ES LD018D-CU08218-M18 Constant Current LED Driver, 820mA 10-18V 14.7W max
|Constant Current LED Driver
|Output Regulated Current
|Output Voltage max
|85.2 x 27.7 x 38mm (3.36 x 1.09 x 1.5 in)
|Class 2/ Class II

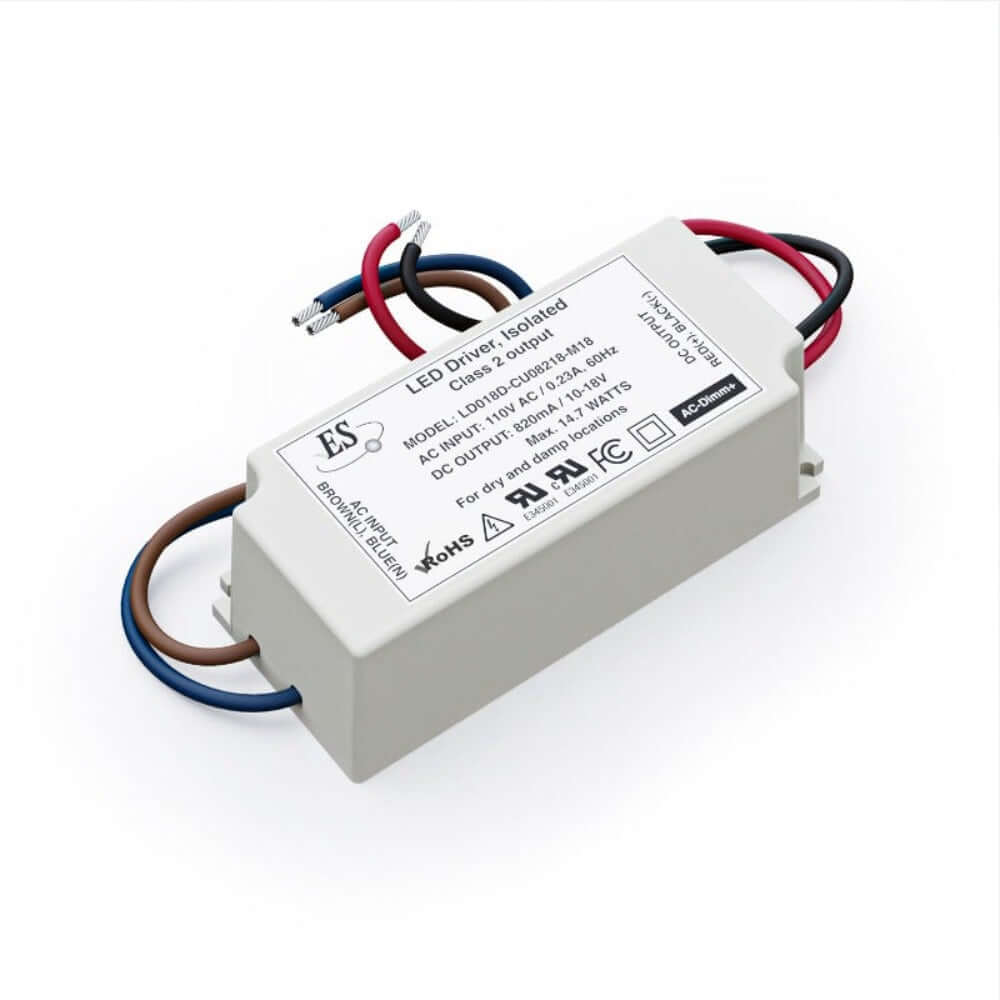

The ES LD018D-CU08218-M18 is a constant current LED driver designed to power LED lighting systems. It has a model number of LD018D-CU08218-M18 and operates with an input voltage of 110V AC and input current of 0.23A, at a frequency of 60Hz.

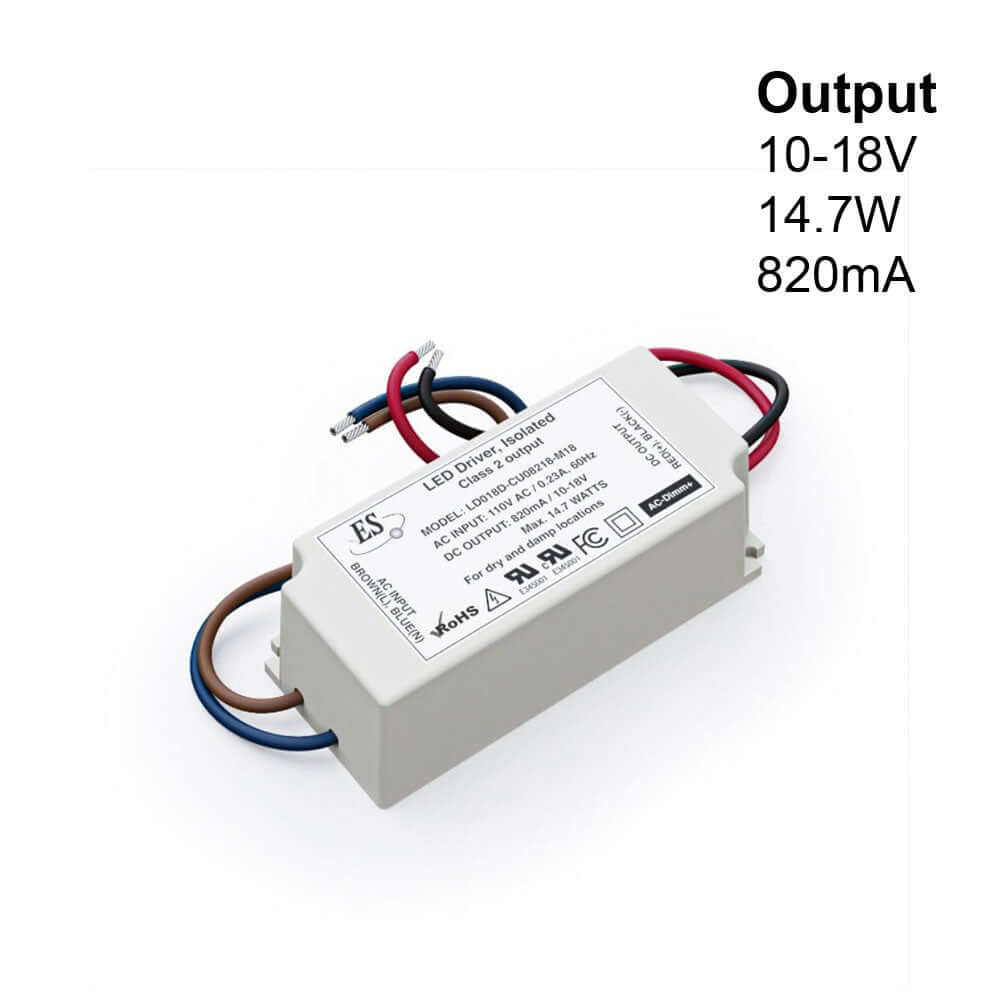

The output of this LED driver is a regulated current of 820mA, which can power LED lights with a maximum power of 14.7W. The output voltage can range from 10-18V DC.
The driver is also dimmable, allowing for adjustable brightness levels, and has dimensions of 85.45 x 27.78 x 38mm (3.36 x 1.09 x 1.5 in). It is Class 2/ Class II certified, which means it is designed to meet safety standards for electrical products.
- The ES LD018D-CU08218-M18 is a constant current LED driver designed for LED lighting systems.
- It has a model number of LD018D-CU08218-M18.
- It operates with an input voltage of 110V AC and input current of 0.23A, at a frequency of 60Hz.
- The driver provides a regulated current of 820mA, which can power LED lights with a maximum power of 14.7W.
- The output voltage can range from 10-18V DC.
- It is dimmable, allowing for adjustable brightness levels.

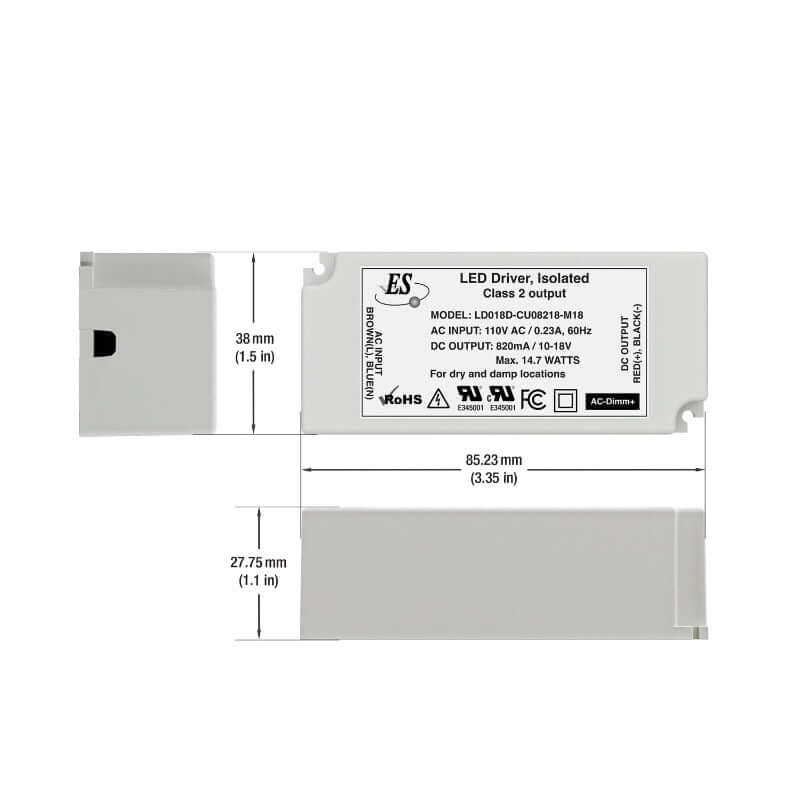

- The driver has dimensions of 85.45 x 27.78 x 38mm (3.36 x 1.09 x 1.5 in).
- It is Class 2/Class II certified, designed to meet safety standards for electrical products.
- The ES LD018D-CU08218-M18 is a reliable and versatile constant current LED driver suitable for various LED lighting applications.
How to Install ES LD018D-CU08218-M18 Dimming Constant Current LED Driver?
Turn off the power: Before installing the LED driver, make sure to turn off the power to the circuit from the circuit breaker or the main electrical panel.
Choose the installation location: Select a suitable location to mount the driver. The location should be dry and free from any heat sources.
Mount the driver: Use screws to mount the driver on a solid surface.
Connect the input wires: Connect the input wires from the driver to the AC power source. Make sure to match the correct wires (hot and neutral) from the driver to the corresponding wires from the power source. (Blue color wire to Neutral (N) and the Brown color Wire to Line (L))
Connect the output wires: Connect the output wires from the driver to the LED lighting fixture. Make sure to match the correct wires (positive and negative) from the driver to the corresponding wires from the fixture. ( Red color wire to the positive (+) and Black wire to the negative (-))
Test the installation: Once the connections are made, turn on the power to the circuit and test the LED fixture to ensure it is working properly.
Adjust dimming settings: If the driver is dimmable, follow the manufacturer's instructions to connect the dimming wires and adjust the dimming settings as required.
Note: It's important to follow the specific instructions provided by the manufacturer for your LED driver, as installation procedures may vary based on the model and manufacturer. If you are not comfortable with electrical installations, it is recommended to consult a licensed electrician for assistance.
