ES LD009D-CU02242-M9 Constant Current LED Driver, 220mA 33-42V 9W max

  • $51.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561420444
Title:
We only have 3 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).



Product Description

Product Constant Current LED Driver
Model LD009D-CU02242-M9
Input Voltage 120V AC
Input Current 0.12A
Input Frequency 60Hz
Output Voltage 33-42V DC
Output Regulated Current 220mA
Output Power 9W max
Dimmable Yes

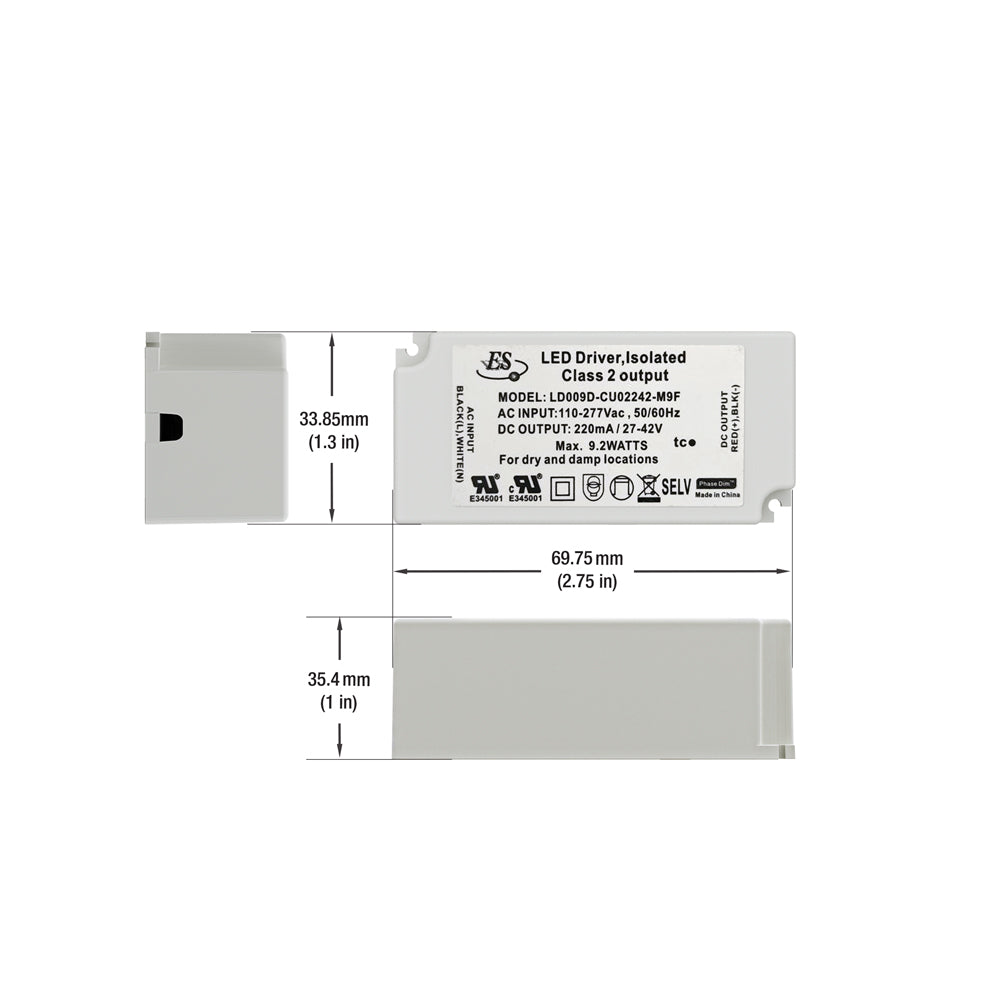

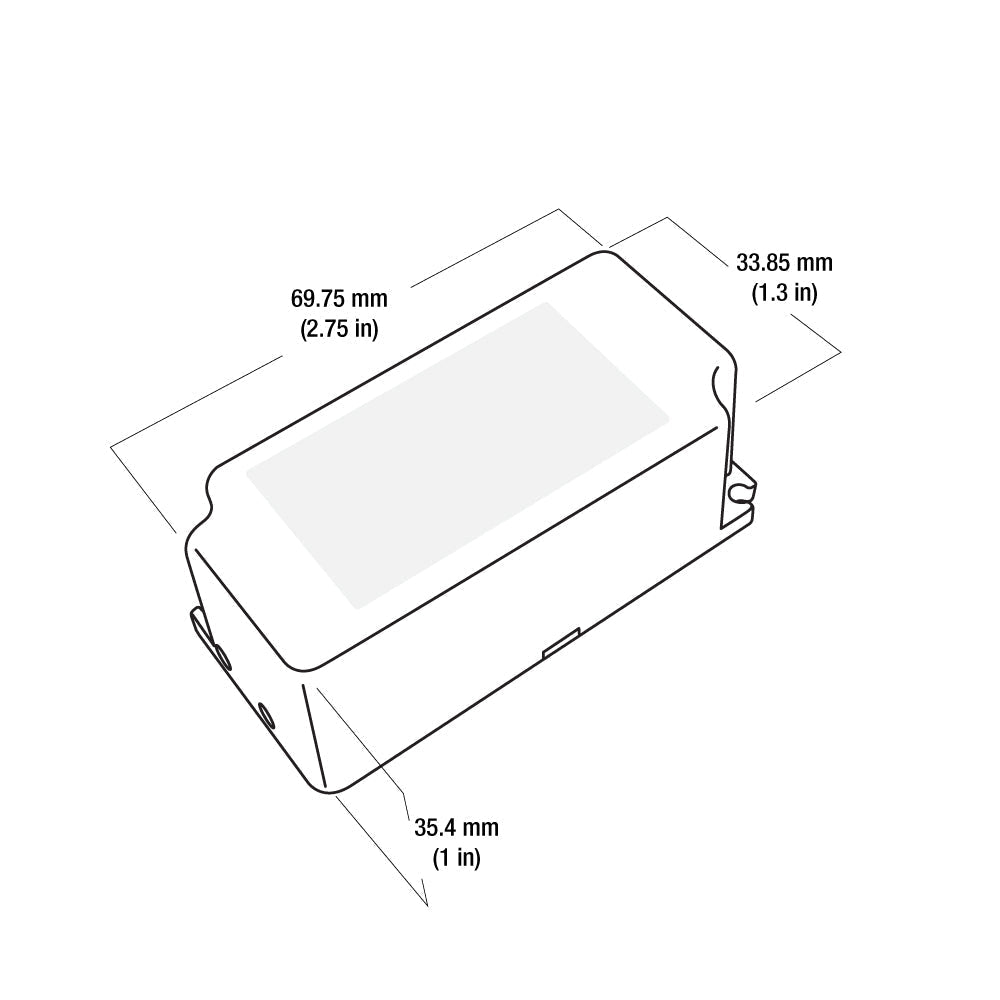

Dimensions 69.75 x 33.85 x 35.4mm (2.75 x 1.3 x 1in)
Class Certification Class 2
Certifications


The ES LD009D-CU02242-M9 is a constant current LED driver designed to power LED lighting fixtures. It has a model number of LD009D-CU02242-M9 and is designed to operate on an input voltage of 120V AC with a frequency of 60Hz. The driver has an input current of 0.12A.

The driver has a regulated output current of 220mA with a maximum output power of 9W, making it suitable for use with LED lighting fixtures with power requirements up to 9 watts. The output voltage of the driver can vary between 33-42V DC, allowing it to be used with a wide range of LED lighting fixtures that require different voltages.

The driver is also dimmable, making it easy to adjust the brightness of the LED lighting fixtures as needed. It has Class 2 certification, indicating that it is designed for use in locations where a grounded electrical system is not available.

Features:

  • ES LD009D-CU02242-M9 is a constant current LED driver for powering LED lighting fixtures
  • The driver operates on an input voltage of 120V AC with a frequency of 60Hz, and has an input current of 0.12A
  • It has a regulated output current of 220mA with a maximum output power of 9W, suitable for use with LED lighting fixtures with power requirements up to 9 watts
  • The output voltage can vary between 33-42V DC, making it compatible with a wide range of LED lighting fixtures that require different voltages
  • The driver is dimmable, allowing easy adjustment of the brightness of the LED lighting fixtures as needed
  • It has Class 2 certification, indicating its suitability for use in locations where a grounded electrical system is not available
  • The driver is compact with dimensions of 69.75 x 33.85 x 35.4mm (2.75 x 1.3 x 1in), making it easy to install in tight spaces
  • Overall, the ES LD009D-CU02242-M9 is an efficient and reliable solution for powering LED lighting fixtures in various applications.

How to Install ES LD009D-CU02242-M9 Dimming Constant Current LED Driver?

  1. Turn off the power: Before installing the LED driver, make sure to turn off the power to the circuit from the circuit breaker or the main electrical panel.

  2. Choose the installation location: Select a suitable location to mount the driver. The location should be dry and free from any heat sources.

  3. Mount the driver: Use screws to mount the driver on a solid surface.

  4. Connect the input wires: Connect the input wires from the driver to the AC power source. Make sure to match the correct wires (hot and neutral) from the driver to the corresponding wires from the power source. (White color wire to Neutral (N) and the Black color Wire to Line (L))

  5. Connect the output wires: Connect the output wires from the driver to the LED lighting fixture. Make sure to match the correct wires (positive and negative) from the driver to the corresponding wires from the fixture. ( Red color wire to the positive (+) and Black wire to the negative (-))

  6. Test the installation: Once the connections are made, turn on the power to the circuit and test the LED fixture to ensure it is working properly.

  7. Adjust dimming settings: If the driver is dimmable, follow the manufacturer's instructions to connect the dimming wires and adjust the dimming settings as required.

Note: It's important to follow the specific instructions provided by the manufacturer for your LED driver, as installation procedures may vary based on the model and manufacturer. If you are not comfortable with electrical installations, it is recommended to consult a licensed electrician for assistance.
