Product Description
| Product | Non-dimmable Constant Current LED Driver |
| Model | LD020H-CU03556-15 |
| Input Voltage | 100-240V AC |
| Input Current | 0.25A |
| Frequency | 50/60Hz |
| Output Voltage | 36-56V DC |
| Output Regulated Current | 350mA |
| Output Power | 10-20W |
| Ambient Temperature (Ta) | 40°C |
| Case Temperature (Tc) | 70°C |
| Dimmable | No |

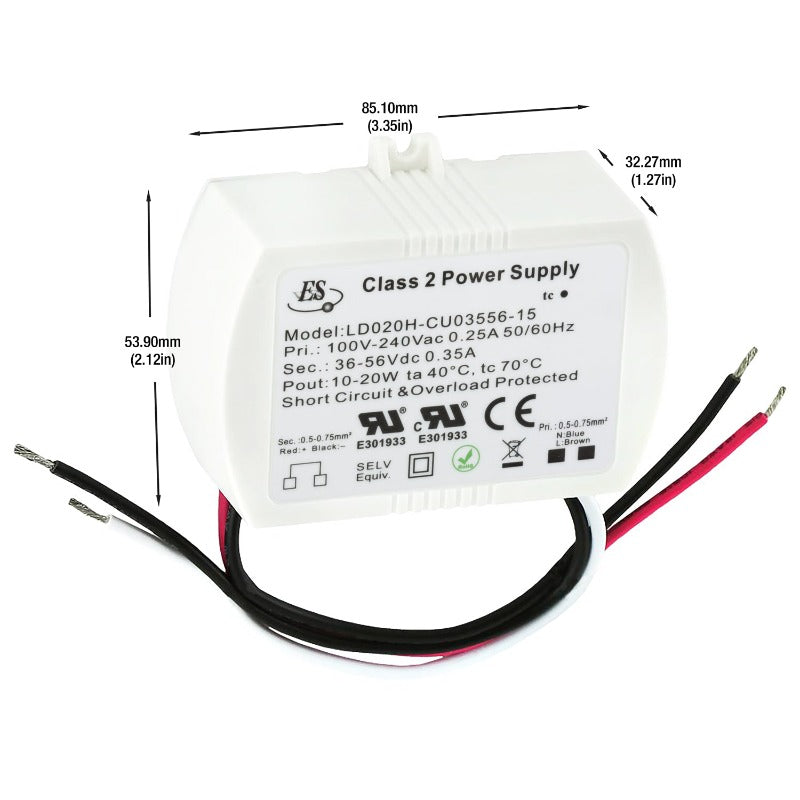

| Dimension | 85 x 54 x 32mm (3.35x2.12x1.27 in) |
| Class Certification | Class 2/ Class II |
| Certifications |

|

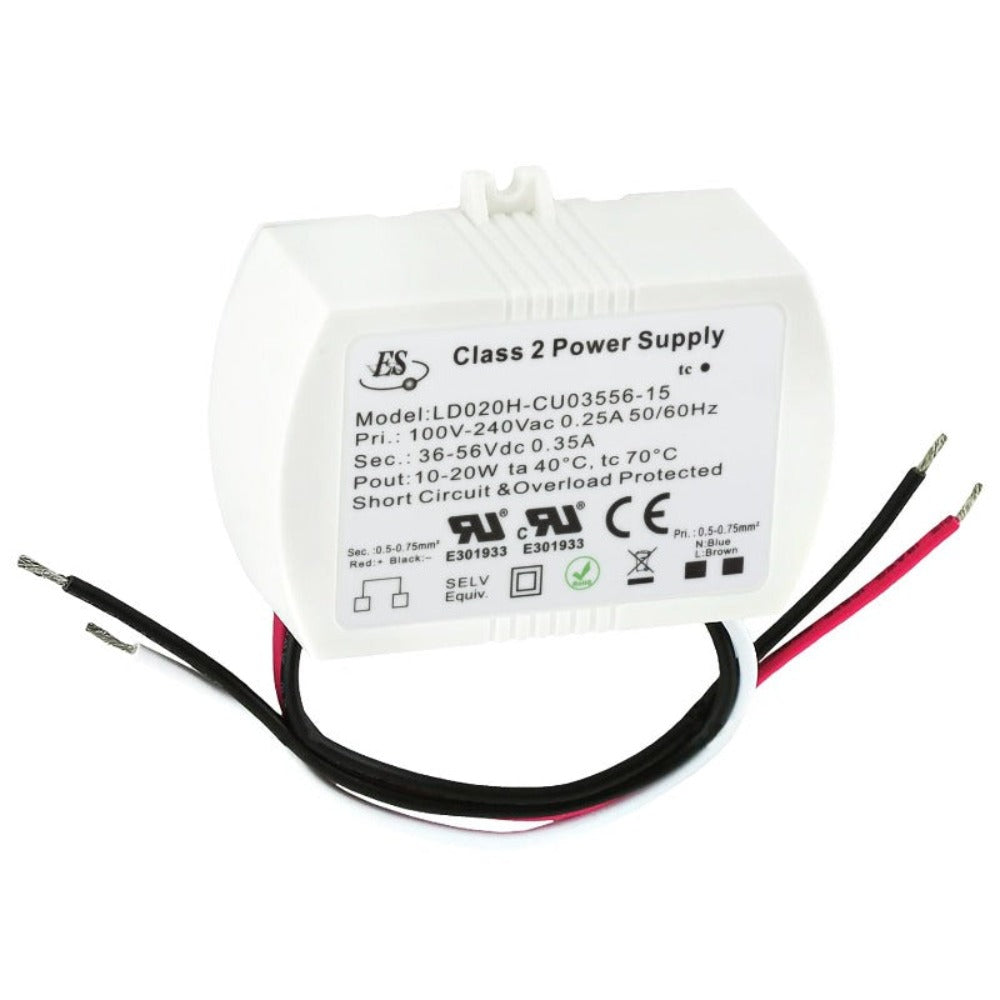

The ES LD020H-CU03556-15 is a non-dimmable constant current LED driver designed for use in dry and damp locations. This LED driver has an input voltage range of 100-240V AC, input current of 0.25A, and can operate at a frequency of 50/60Hz.
The LD020H-CU03556-15 LED driver has an output voltage range of 36-56V DC and a regulated output current of 350mA, making it suitable for powering LED lighting systems that require constant current output. The output power of this driver ranges from 10W to 20W, depending on the load requirements.
This LED driver is also equipped with short circuit and overload protection, which protects the LED lighting system from damage in case of faults. The LD020H-CU03556-15 LED driver is non-dimmable, meaning that it cannot be used to adjust the brightness of the connected LED lights.
Feature:
- Non-dimmable constant current LED driver for use in dry and damp locations
- Input voltage range of 100-240V AC, input current of 0.25A, and can operate at a frequency of 50/60Hz

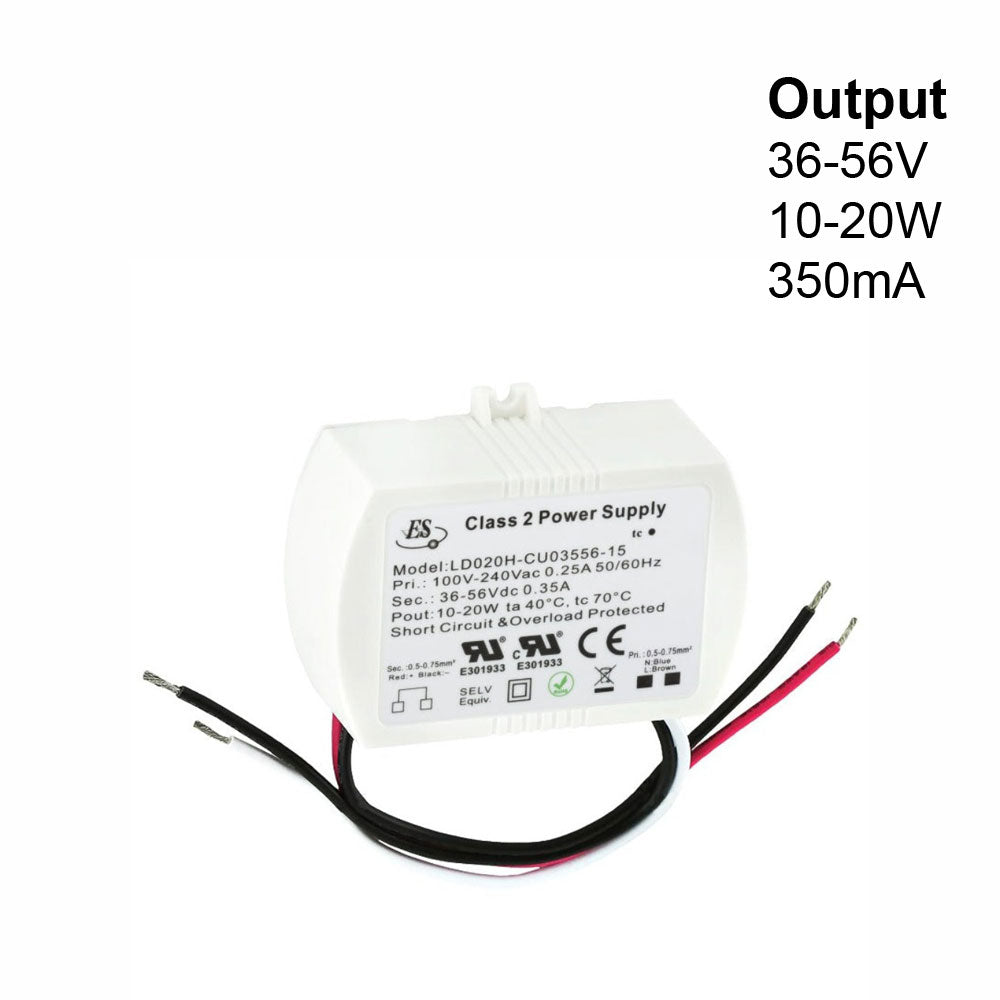

- Output voltage range of 36-56V DC and a regulated output current of 350mA, suitable for powering LED lighting systems that require constant current output
- Output power ranges from 10W to 20W, depending on the load requirements
- Ambient temperature (Ta) of 40°C and a case temperature (Tc) of 70°C
- Dimensions of 85 x 54 x 32mm (3.35x2.12x1.27 in)
- Class 2/Class II certified, providing double insulation protection and ensuring safe operation in applications where contact with electrical conductors is possible
- Equipped with short circuit and overload protection, protecting the LED lighting system from damage in case of faults
- Non-dimmable, cannot be used to adjust the brightness of the connected LED lights
