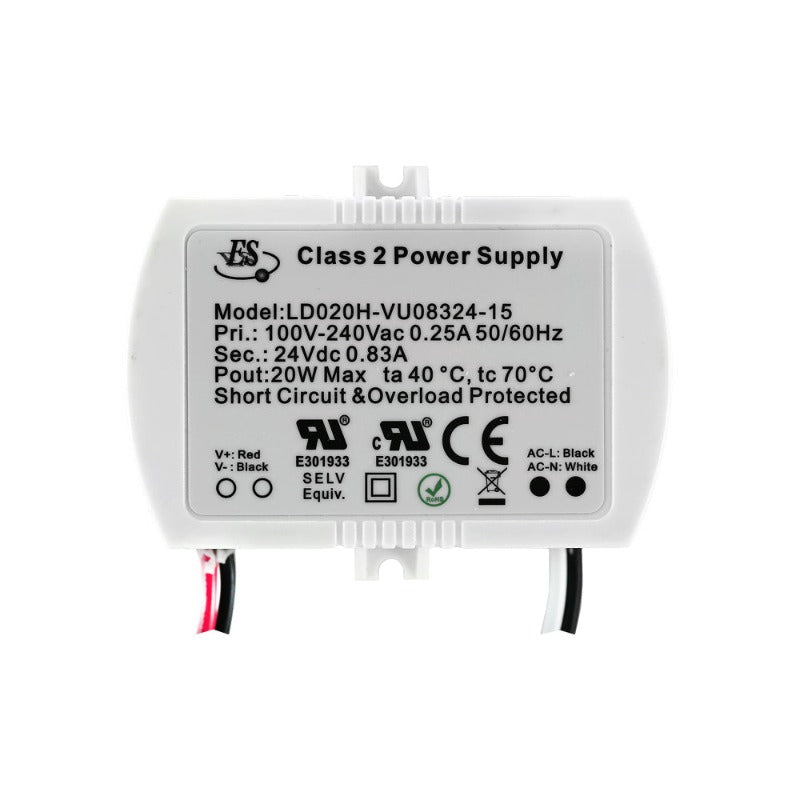

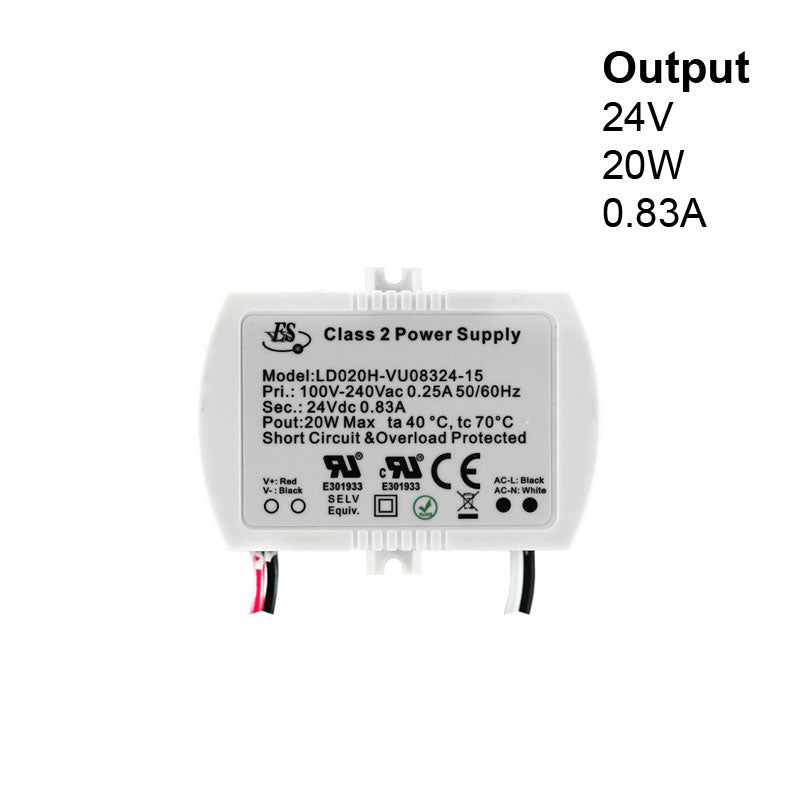

ES LD020H-VU08324-15 Non-Dimmable Constant Voltage LED Driver, 24V 20W 830mA
ES LD020H-VU08324-15 Non-Dimmable Constant Voltage LED Driver, 24V 20W 830mA
SKU: SKU:666561412975
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our product?
GekPower will ship via the most reliable and time-efficient courier available depending on the location of the delivery.
Customers may provide GekPower with their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at the time of checkout.
How do we calculate the shipping cost?
Our prices are based on US dollars and are as follows:
Free Shipping
For orders totalling $99 USD or above.
Free shipping is Not available for specific products; please check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Product shipping costs are charged based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority you selected at checkout. All orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Any orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
- All returned products must be in new, resellable condition and in original packaging to be accepted as a valid return or exchange.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Two week processing time.
- To Return any product, make sure to use USPS for the United States, Other shipping companies are NOT acceptable.
- To submit a request for a return or exchange, please email sales@gekpower.com
Return Duty Charge:
- The customer is responsible for any duty charges incurred on a returned product by the carrier, if applicable.
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or customs issues, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25
Product Description
| Model | LD020H-VU08324-15 |
| Input Voltage | 100-240V AC |
| Input Current | 0.25A |
| Frequency | 50/60Hz |
| Output Voltage | 24V DC |
| Output Regulated Current | 0.83A |
| Output Power | 20W max |
| Dimmable | No |
| IP Rating | IP20 |
| Class Certification | Class 2/ Class II |

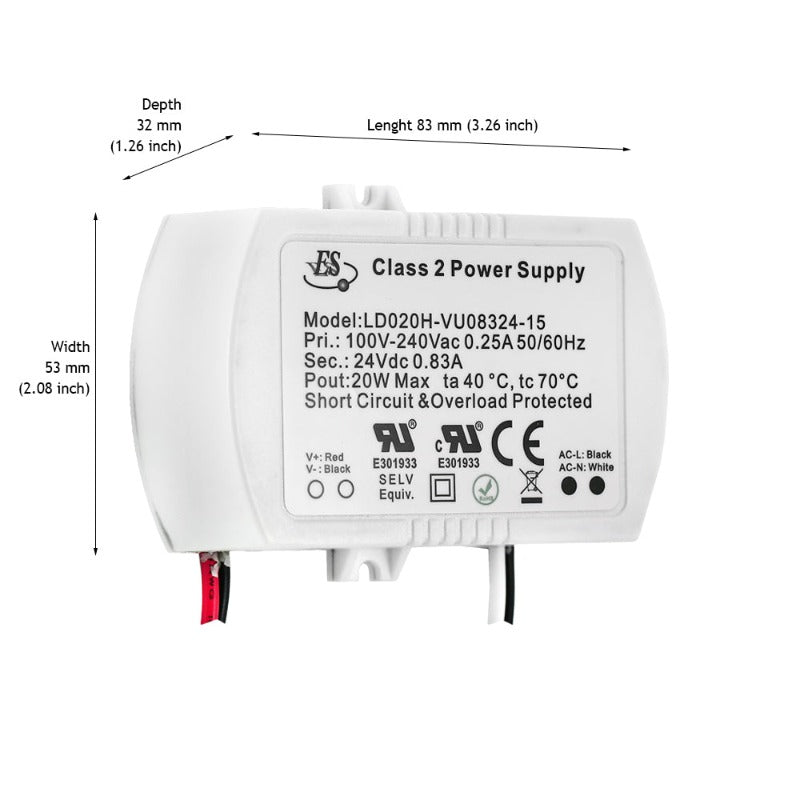

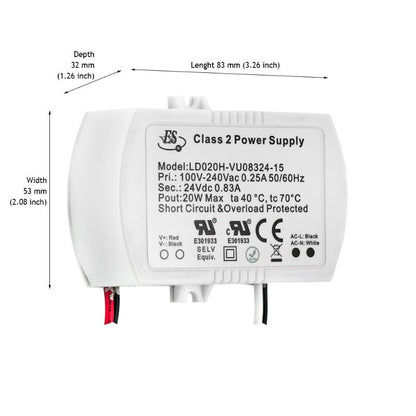

| Dimensions | 83 x 53 x 32mm (3.26 x 2.08 x 1.26 in) |
| Certification |

|
| Short Circuit and Overload Protected |
| Suitable for dry and damp locations |
The ES LD020H-VU08324-15 Constant Voltage LED Driver is a reliable and high-quality power supply designed to provide a steady and efficient source of power to LED lighting systems. The device has a model number of LD020H-VU08324-15 and an input voltage range of 100-240V AC with an input current of 0.25A and a frequency of 50/60Hz.
The device delivers a maximum output power of 20W, with a regulated output current of 0.83A and an output voltage of 24V DC. It is not dimmable and has an IP20 rating, making it suitable for indoor use. The LED driver is also Class 2/Class II certified, indicating that it is designed for use with low voltage LED lighting fixtures.
This LED driver is suitable for use in dry and damp locations, providing versatility in various indoor LED lighting applications. Overall, the ES LD020H-VU08324-15 Constant Voltage LED Driver is a dependable and efficient power supply suitable for various indoor LED lighting projects that require a constant voltage source.
Features:
- Reliable and high-quality power supply
- Input voltage range of 100-240V AC, input current of 0.25A, and frequency of 50/60Hz
- Maximum output power of 20W
- Regulated output current of 0.83A and output voltage of 24V DC
- Not dimmable and IP20 rated for indoor use
- Class 2/Class II certified for low voltage LED lighting fixtures
- Compact dimensions of 83 x 53 x 32mm (3.26 x 2.08 x 1.26 in) for easy installation in tight spaces
- Short circuit and overload protected for safe and reliable operation
- Suitable for use in dry and damp locations
- Ideal for various indoor LED lighting applications requiring a constant voltage source.
