Product Description
| Model | LD024D-VA20012-M28 |
| Input voltage | 120V AC |
| Input current | 0.42A |
| Frequency | 50-60Hz |
| Output voltage | 12V DC |
| Output regulated current | 2000mA |
| Output max Power | 24W max |
| Ambient Temperature (Ta) | 40°C |
| Case temperature (Tc) | 90°C |
| Dimmable | Yes (Phase/ Triac/ Magnetic Low Voltage) |
| IP Rating | IP20 |

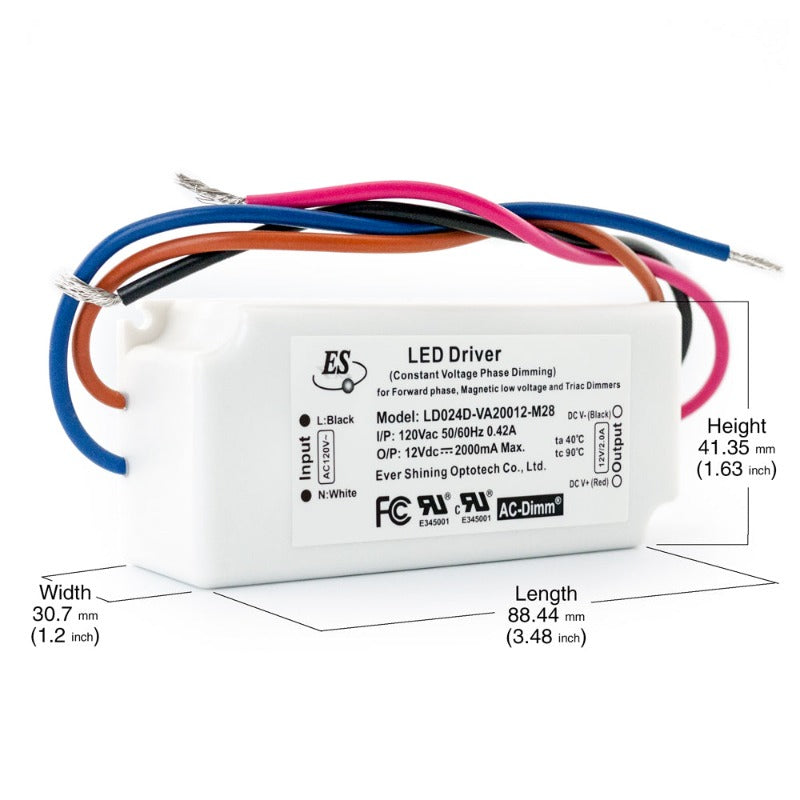

| Dimensions | 88.44 x 30.7 x 41.35mm (3.48 x 1.2 x 1.63in) |
| Certification |

|
| Applicable for Dry and Damp locations |
|
Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers |

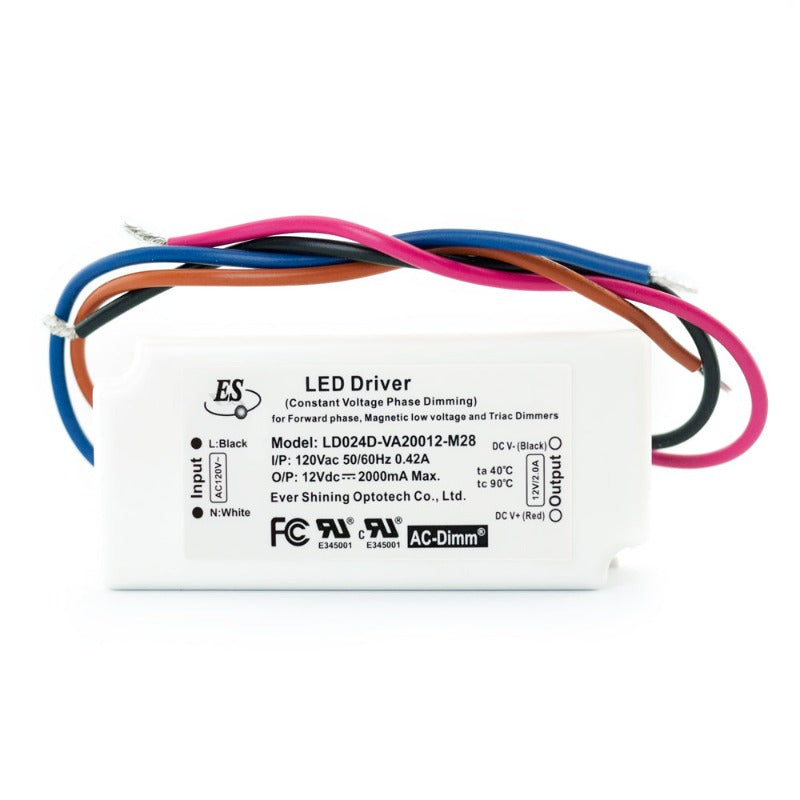

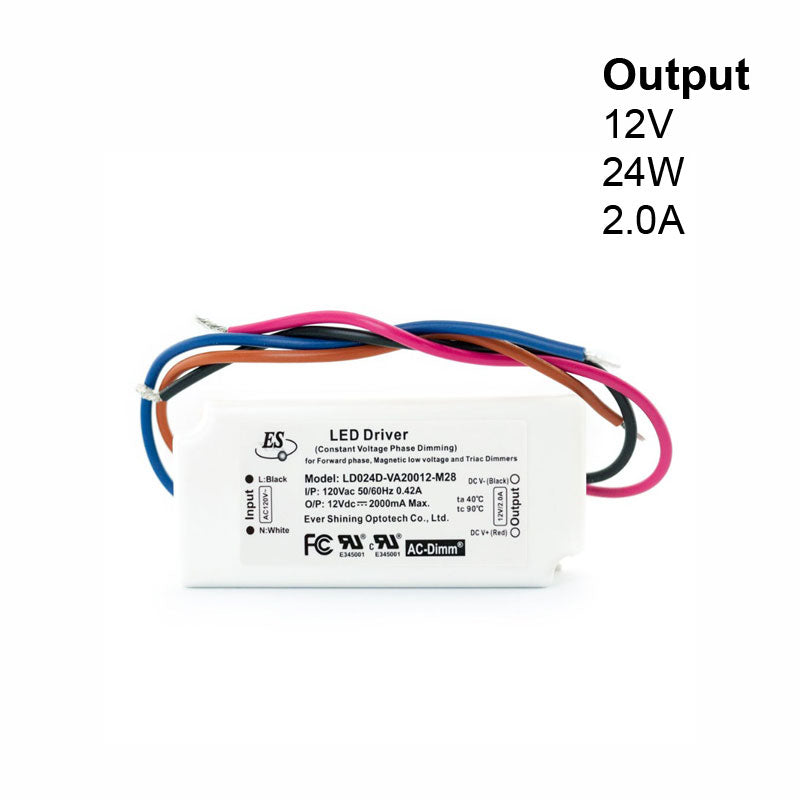

The ES LD024D-VA20012-M28 is a J-Box Triac dimmable Constant Voltage LED Driver. It has an input voltage of 120V AC, input current of 0.42A, and operates at a frequency of 50-60Hz. The driver has an output voltage of 12V DC, output regulated current of 2000mA, and an output max power of 24 W max.
It is dimmable using Phase, Triac, or Magnetic Low Voltage dimmers. The driver has an IP20 rating, which makes it suitable for indoor use. The ambient temperature range for this driver is up to 40°C and the case temperature range is up to 90°C. The driver has dimensions of 88.44 x 30.7 x 41.35mm (3.48 x 1.2 x 1.63in) and is certified by the FCC.
Features:
- Product: ES LD024D-VA20012-M28 J-Box Triac Dimmable Constant Voltage LED Driver
- Input voltage: 120V AC
- Input current: 0.42A
- Frequency: 50-60Hz
- Output voltage: 12V DC
- Output regulated current: 2000mA
- Output max power: 24 W max
- Dimming options: Phase, Triac, or Magnetic Low Voltage dimmers
- IP rating: IP20 (suitable for indoor use)
- Ambient temperature range: up to 40°C
- Case temperature range: up to 90°C
- Dimensions: 88.44 x 30.7 x 41.35mm (3.48 x 1.2 x 1.63in)
- Certification: FCC certified
