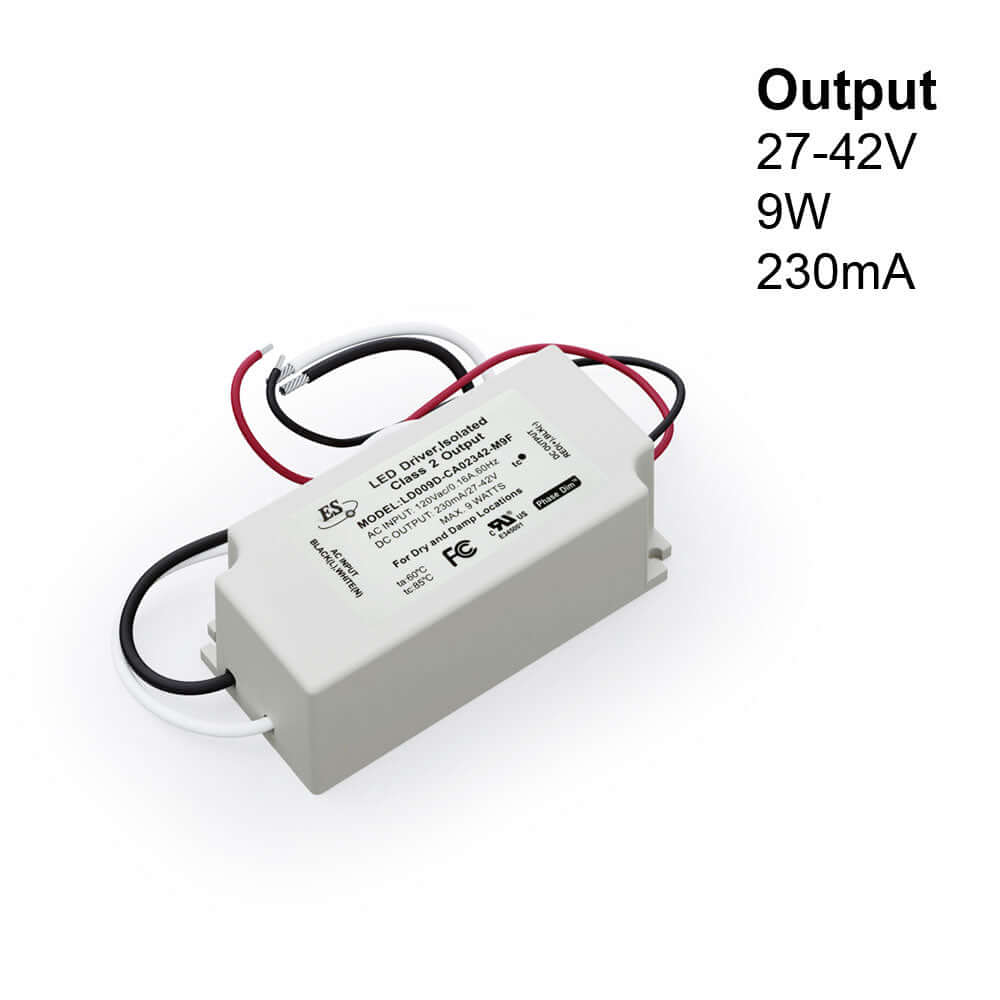

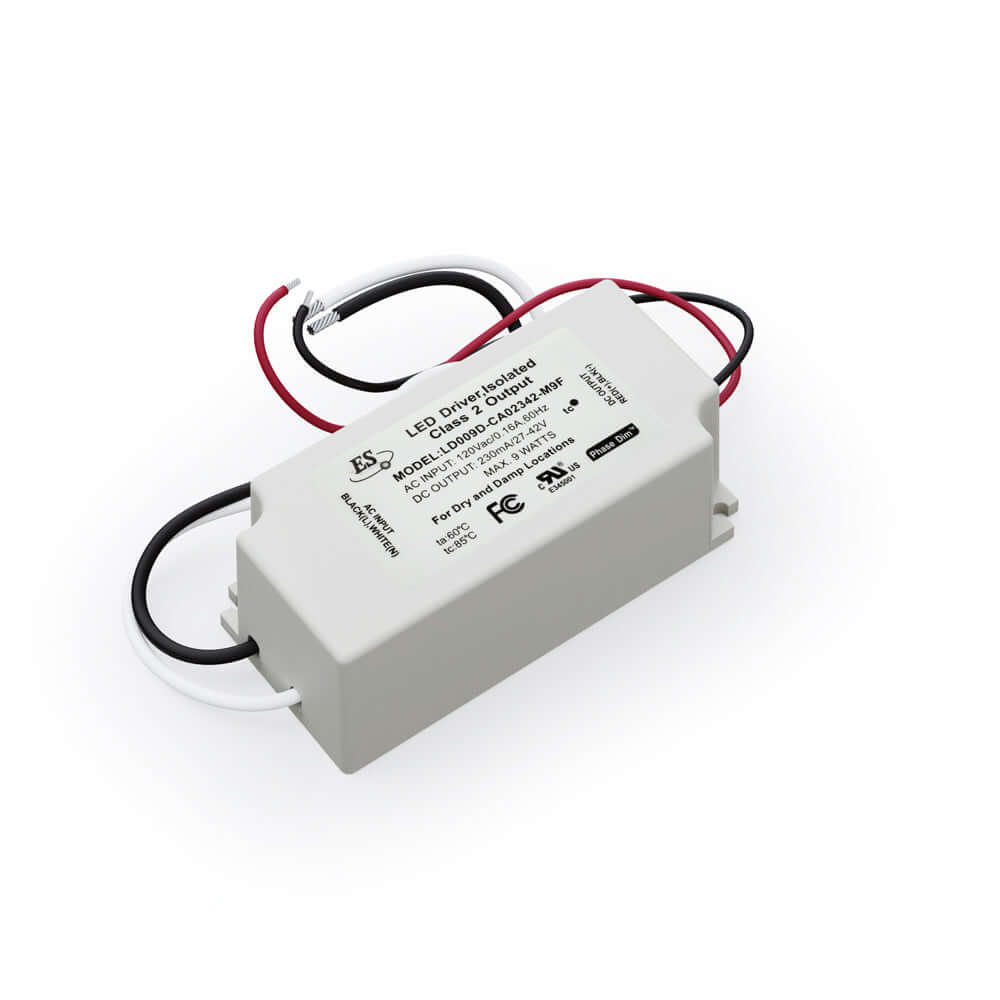

ES LD009D-CA02342-M9F Constant Current LED Driver, 230mA 27-42V 9W max

  • $49.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561430283
Title:
We only have 100 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).


Product Description

Product Constant Current LED Driver
Model LD009D-CA02342-M9F
Input Voltage 120V AC
Input Current 0.16A
Frequency 60Hz
Output Regulated Current 230mA
Output Power 9W
Output Voltage 27-42V DC
Dimmable  Yes
Class Certification Class 2/ Class II

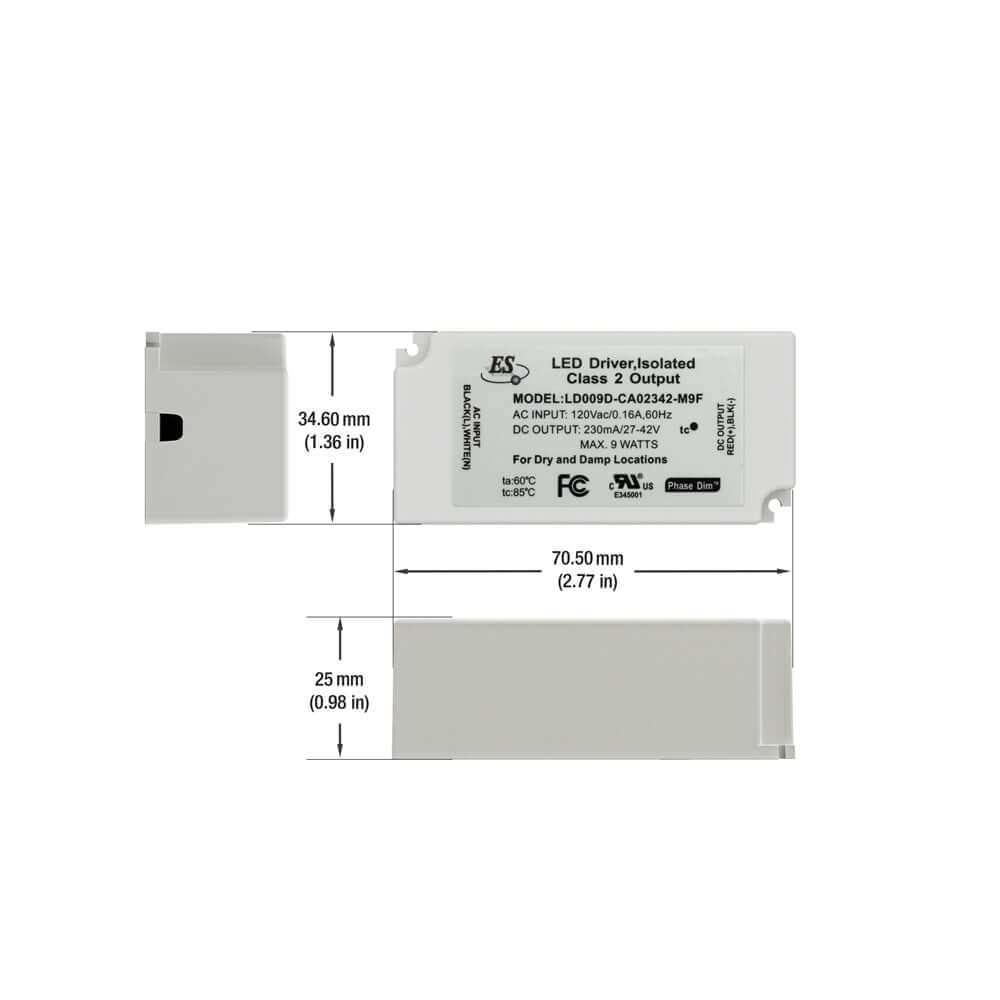

Dimensions 70.5 x 34.6 x 25mm (2.7 x 1.3 x 0.98in)
Certification



The ES LD009D-CA02342-M9F is a constant current LED driver that provides a regulated current of 230mA to power LED lights. The driver is designed to operate on an input voltage of 120V AC and a frequency of 60Hz.

The output power of the driver is 9W, making it suitable for use with LED lights that require up to 9 watts of power. The output voltage ranges from 27-42V DC, which makes it compatible with a wide range of LED lights that operate within that voltage range.

The driver is also dimmable, which means you can adjust the brightness of the LED lights by connecting a compatible dimmer switch. This provides greater flexibility in controlling the level of illumination in your space.

The driver is Class 2/Class II certified, which means it has been tested and certified to meet safety standards for use in lighting applications. This certification indicates that the driver is designed with protective measures to prevent electrical shock and reduce the risk of fire hazards.

Features:

  • The ES LD009D-CA02342-M9F is a constant current LED driver designed to power LED lights with a regulated current of 230mA.
  • It operates on an input voltage of 120V AC and a frequency of 60Hz.
  • The output power of the driver is 9W, making it suitable for use with LED lights that require up to 9 watts of power.
  • The output voltage ranges from 27-42V DC, making it compatible with a wide range of LED lights that operate within that voltage range.
  • The driver is dimmable, allowing you to adjust the brightness of the LED lights by connecting a compatible dimmer switch.
  • It is Class 2/Class II certified, meeting safety standards for use in lighting applications.
  • The dimensions of the driver are 70.5 x 34.6 x 25mm (2.7 x 1.3 x 0.98in), making it compact and easy to install in a variety of locations.
  • Overall, the ES LD009D-CA02342-M9F constant current LED driver is a reliable and versatile solution for powering LED lights, with its regulated current, dimming capabilities, and Class 2/Class II certification making it a safe and effective option for use in lighting applications.

How to Install ES LD009D-CA02342-M9F Dimming Constant Current LED Driver?

  1. Turn off the power: Before installing the LED driver, make sure to turn off the power to the circuit from the circuit breaker or the main electrical panel.

  2. Choose the installation location: Select a suitable location to mount the driver. The location should be dry and free from any heat sources.

  3. Mount the driver: Use screws to mount the driver on a solid surface.

  4. Connect the input wires: Connect the input wires from the driver to the AC power source. Make sure to match the correct wires (hot and neutral) from the driver to the corresponding wires from the power source. (White color wire to Neutral (N) and the Black color Wire to Line (L))

  5. Connect the output wires: Connect the output wires from the driver to the LED lighting fixture. Make sure to match the correct wires (positive and negative) from the driver to the corresponding wires from the fixture. ( Red color wire to the positive (+) and Black wire to the negative (-))

  6. Test the installation: Once the connections are made, turn on the power to the circuit and test the LED fixture to ensure it is working properly.

  7. Adjust dimming settings: If the driver is dimmable, follow the manufacturer's instructions to connect the dimming wires and adjust the dimming settings as required.

Note: It's important to follow the specific instructions provided by the manufacturer for your LED driver, as installation procedures may vary based on the model and manufacturer. If you are not comfortable with electrical installations, it is recommended to consult a licensed electrician for assistance.
