Selectable Constant Current 10W LED Driver DALI Dim PUP10D-1WMC-700 , 100VAC-240VAC 350 to 700mA

  • $94.40 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561428334
Title:
We only have 97 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).



Product Description

Product Constant Current LED Driver with Selectable Current
Model PUP10D-1WMC-700
Input Voltage 100-240VAC
Input Current 0.12Amax@100VAC

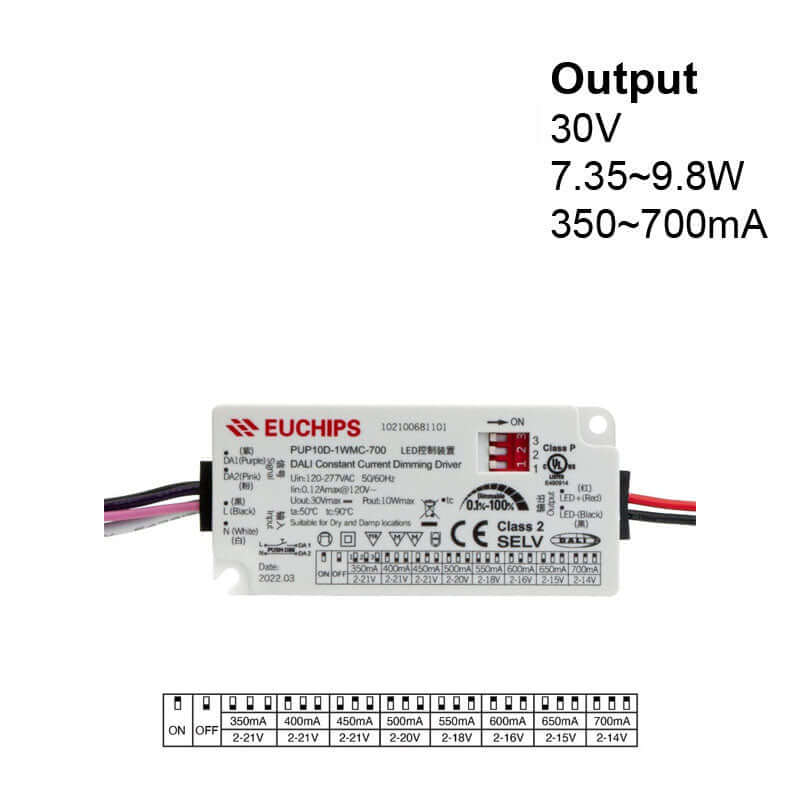

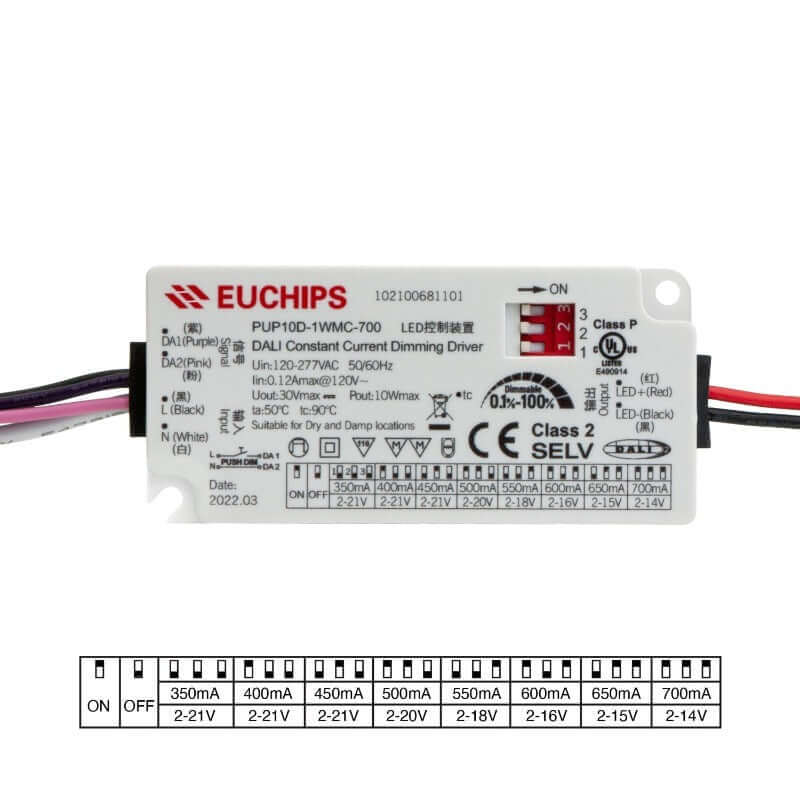

Output Current/Voltage/Power 350mA/2-21V/7.35W
400mA/2-21V/8.4W
450mA/2-21V/9.45W
500mA/2-20V/10W
550mA/2-18V/9.9W
600mA/2-16V/9.6W
650mA/2-15V/9.75W
700mA/2-14V/9.8W
No-load Output Voltage 30V Max
Input Frequency  50/60Hz
Dimming Type DALI/Touch DIM (Push DIM)
Dimming Range 0.1%-100% Dimming to off
IP Rating IP20 (Dry and Damp Locations)
Efficiency 78%@230VAC, Full load
Working Temperature -20℃~50℃
Lifetime 50,000h @ Tc:85℃

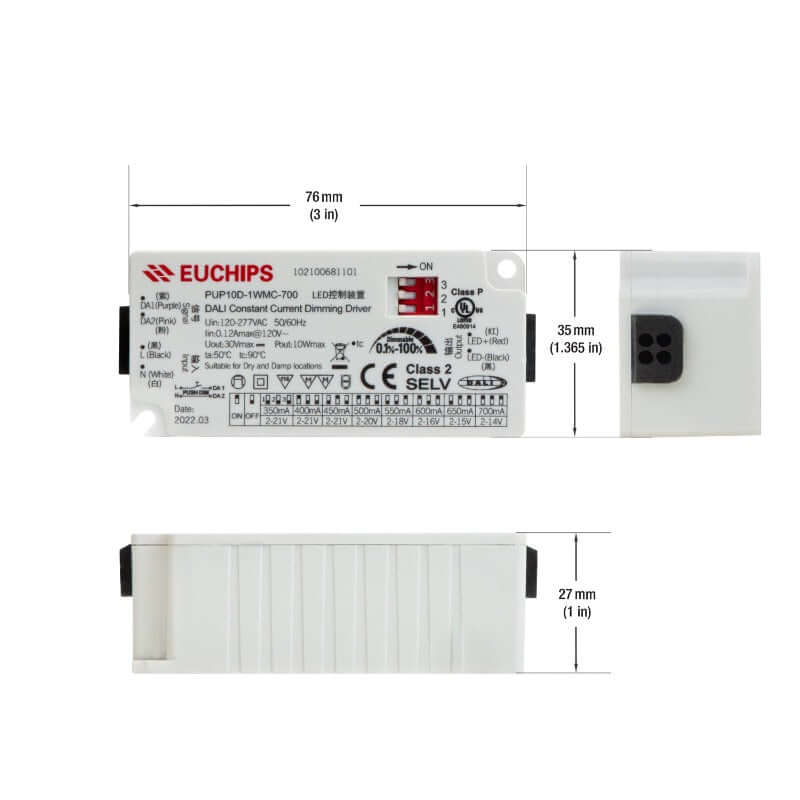

Dimensions 75.23 x 35.29 x 26.67mm (2.96 x 1.39 x 1in)
Certifications


The PUP10D-1WMC-700 is a selectable constant current LED driver capable of outputting 10W of power. It has an input voltage range of 100-240VAC and a maximum input current of 0.12A at 100VAC. The driver has several output current options, ranging from 350mA to 700mA, with corresponding output voltage and power specifications. The no-load output voltage is 30V max, and the input frequency is 50/60Hz.

The driver is dimmable through DALI and Touch DIM (Push DIM) dimming types, with a dimming range of 0.1%-100% and dimming to off capability. It has an IP20 rating for dry and damp locations and has an efficiency of 78% at 230VAC full load. The working temperature range is -20℃~50℃, and it has a lifetime of 50,000 hours at Tc:85℃. The dimensions of the driver are 75.23 x 35.29 x 26.67mm (2.96 x 1.39 x 1in).

Features:

  • The PUP10D-1WMC-700 is a selectable constant current LED driver capable of outputting 10W of power.
  • It has an input voltage range of 100-240VAC and a maximum input current of 0.12A at 100VAC.
  • The driver has several output current options, ranging from 350mA to 700mA, with corresponding output voltage and power specifications.
  • The no-load output voltage is 30V max, and the input frequency is 50/60Hz.
  • The driver is dimmable through DALI and Touch DIM (Push DIM) dimming types, with a dimming range of 0.1%-100% and dimming to off capability.
  • It has an IP20 rating for dry and damp locations and has an efficiency of 78% at 230VAC full load.
  • The working temperature range is -20℃~50℃, and it has a lifetime of 50,000 hours at Tc:85℃.
  • The dimensions of the driver are 75.23 x 35.29 x 26.67mm (2.96 x 1.39 x 1in).
