Product Description
| Model | EVT-C33-0700-T-20V |
| Input Voltage | 120-277V AC |
| Input Current | 0.15A |
| Input Frequency | 50/60Hz |
| Power Factor | PF>0.9 |
| Output Regulated Current | 700mA |
| Output Power | 14W |
| Output Voltage | 6-20V DC |
| Dimmable | Yes (Triac Dimming) |
| Weight | 0.2 kg |
| Ambient Temperature (Ta) | -40-55°C |
| IP Rating | IP20 (Indoor use only) |

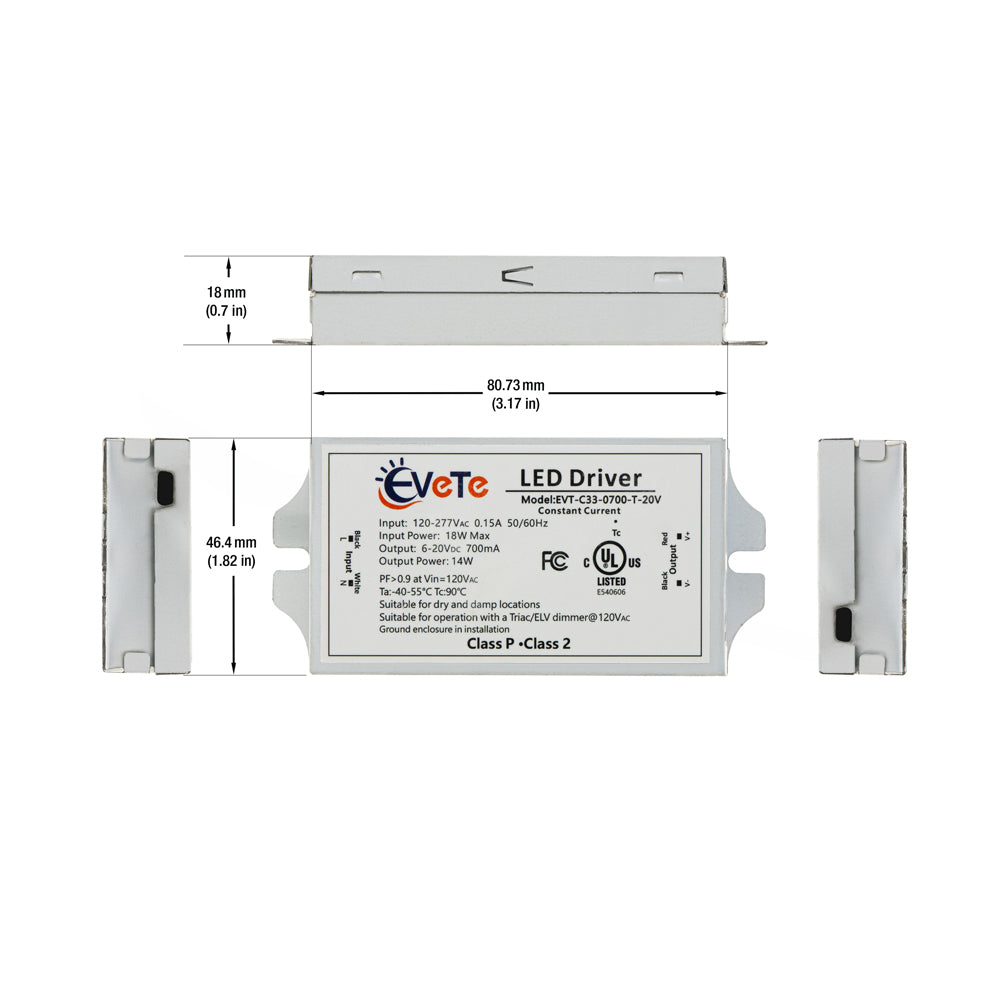

| Dimensions | 80.7 x 46.4 x 18 mm (3.1 x 1.8 x 0.7 in) |
| Class Certification | Class P Class 2 |
| Certification |
|
Features:
- Regulated current: The EVT-C33-0700-T-20V constant current LED driver provides a regulated current of 700mA, ensuring a stable and consistent power supply to LED lights.
- Output power: It has an output power of 14W, providing reliable power for LED lighting applications.
- Wide input voltage range: The driver accepts an input voltage range of 120-277V AC, making it compatible with various electrical systems.
- Input current and frequency: It has an input current of 0.15A and an input frequency of 50/60Hz, suitable for standard AC power grids.
- High power factor: The driver features a power factor of >0.9, ensuring high efficiency and reduced energy consumption.
- Output voltage range: It supports an output voltage range of 6-20V DC, suitable for LED lights requiring this voltage.
- Dimmable with Triac dimming: The driver can be dimmed using Triac dimming, allowing flexibility in adjusting LED brightness.
- Operating temperature: It operates in ambient temperatures from -40°C to 55°C, suitable for various indoor environments.
- Class certification: Certified as Class P, Class 2, ensuring compliance with safety standards.
