Product Description
| Model | VBDSH-5050-RGB27D-420-24-NS |
| Voltage | 24V DC |
| Wattage | 100W |
|
Color Temperature |
RGBW(2700K) |
| LED Qty | 420 LEDs |
| Chip Type | UC2904 |
| IP Rating | IP20 (Indoor) |
| Rendering Index | CRI>90+ |
| Beam Angle | 120° |
| Cut Size |
Every 60mm (2.36") x 45mm (1.77") |
| Weight | 0.4 kg |

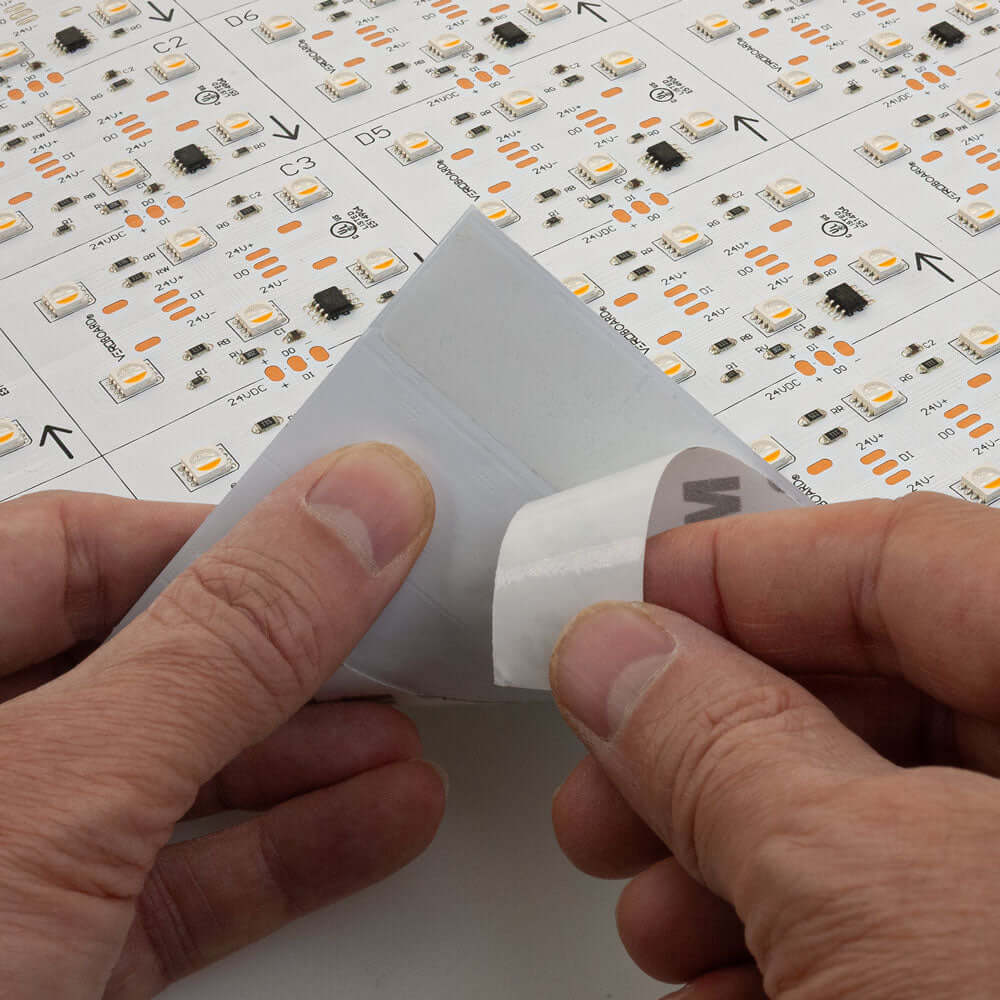

| Installation | 3M Double sided tape (Can be installed on flat or curved surfaces such as wood, metal, stone) |

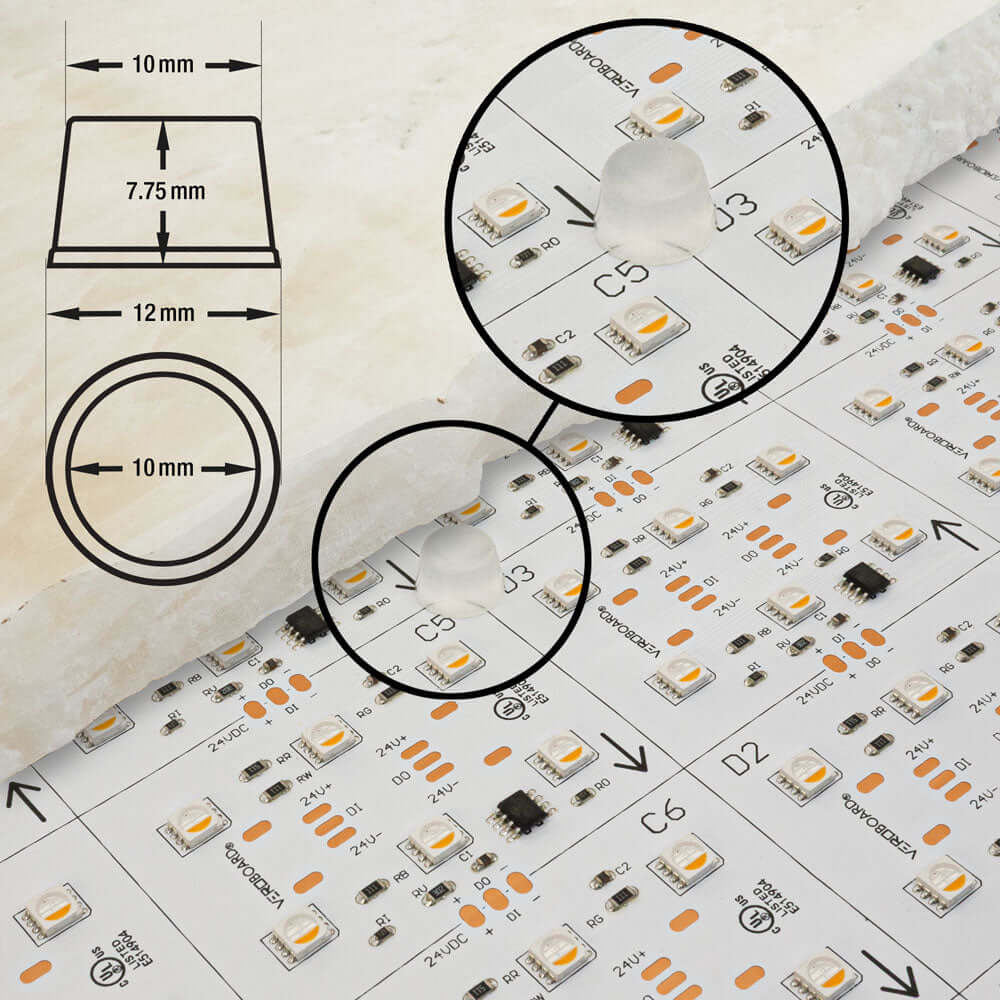

| Silicon bumper size | Ø12 x H7.75 mm (Ø0.4 x H0.3in) |
| Connector Size | 40mm (1.6") Sheet to Sheet 150mm (6") Sheet to Power 20AWG |
| Dimensions | 610 x 305mm (24 x 12in) |
| Certification |
 |
Features:
- Thin, bendable, and easily shaped, it adapts flawlessly to various uses including signage, backlighting, trade shows, displays, and panels.

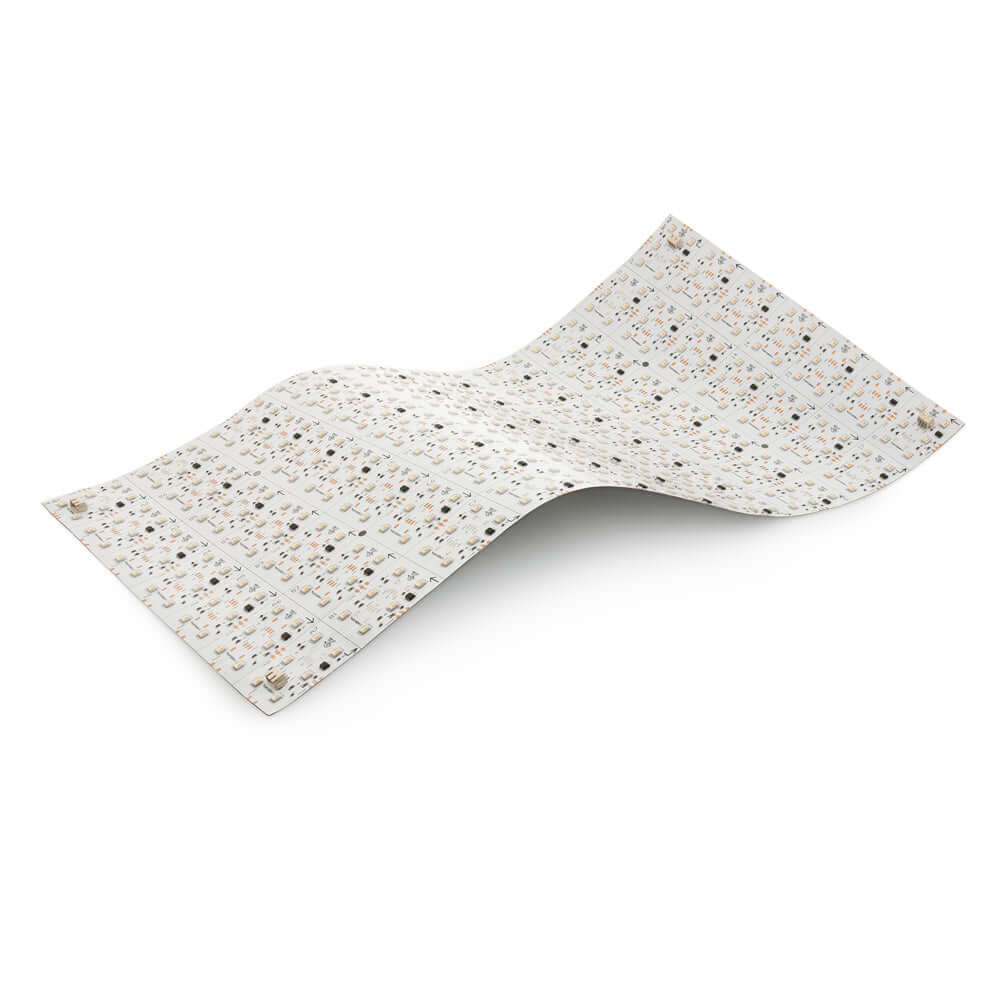

- Effortlessly create captivating designs by bending it into intricate shapes, and with cut lines in both directions, odd shapes are a breeze to achieve.
- Installing our LED sheet is a breeze with slot-in and push-fit electrical connections, wired and ready to go within minutes.
- Long lifespan of over 50,000 hours, and a high color rendering index (CRI).
- Illuminate curved objects like columns and point-of-sale displays with ease, opening up a world of creative possibilities.

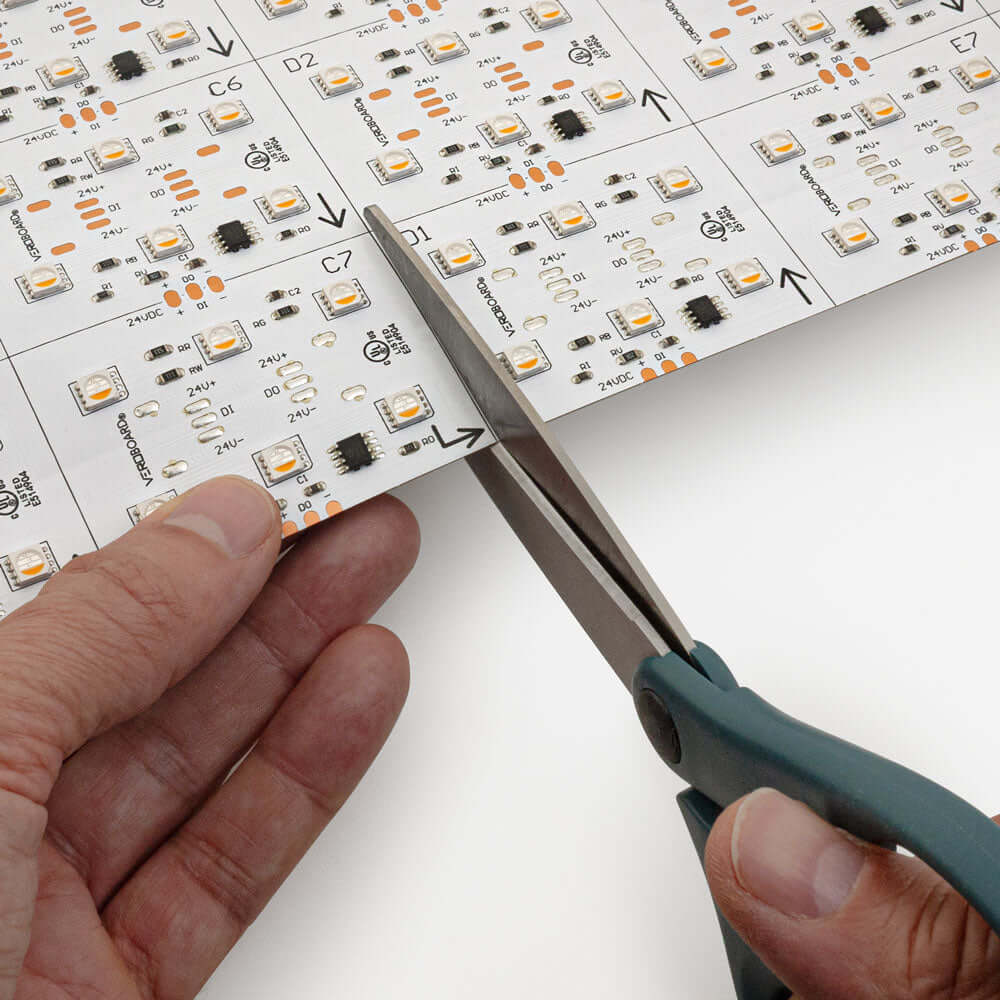

- Flexible Addressable LED Backlight Sheet Easily tailor the LED sheet to suit your requirements by cutting it in any direction.

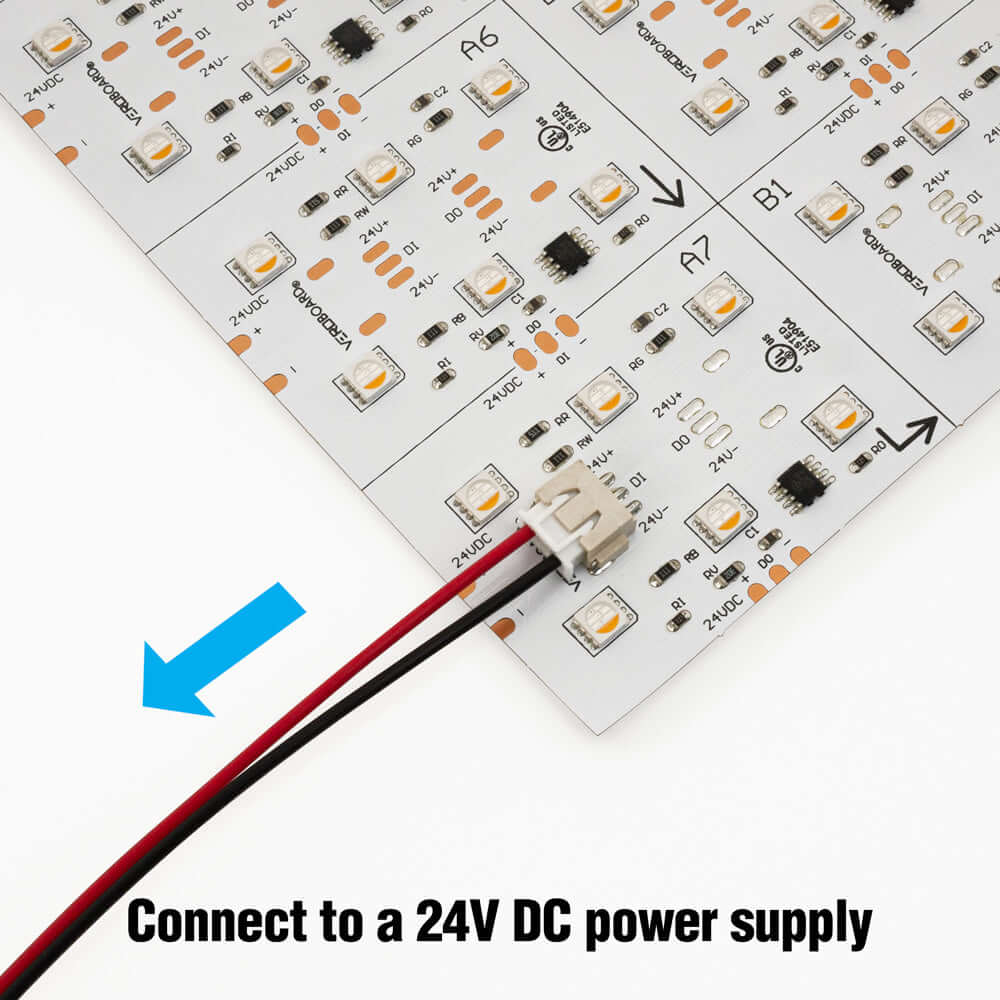

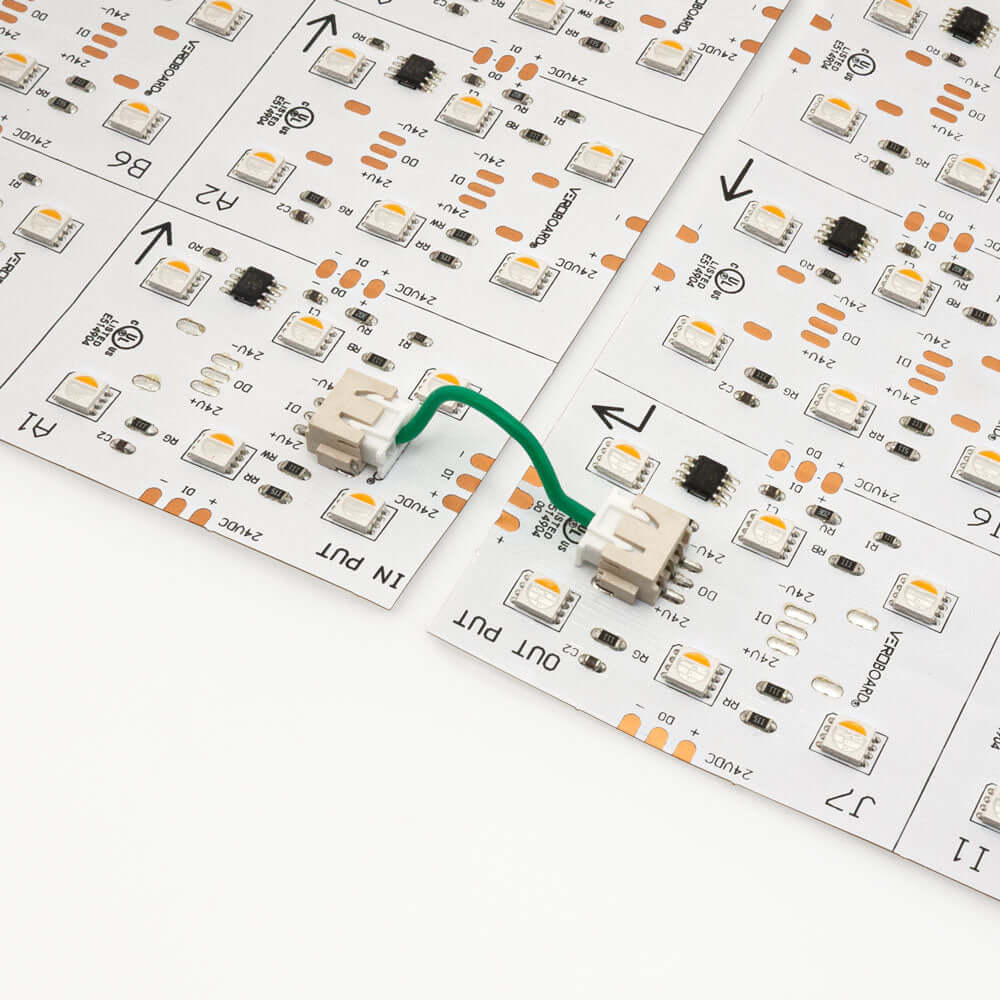

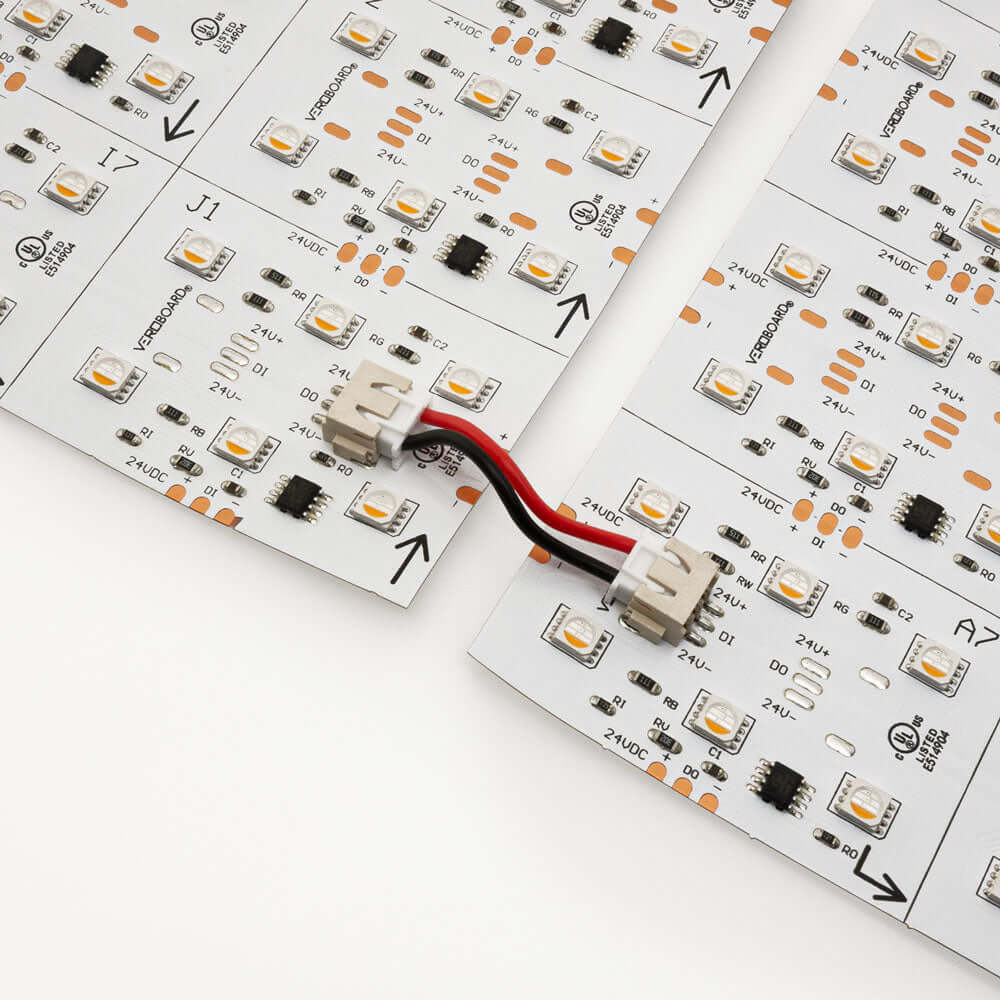

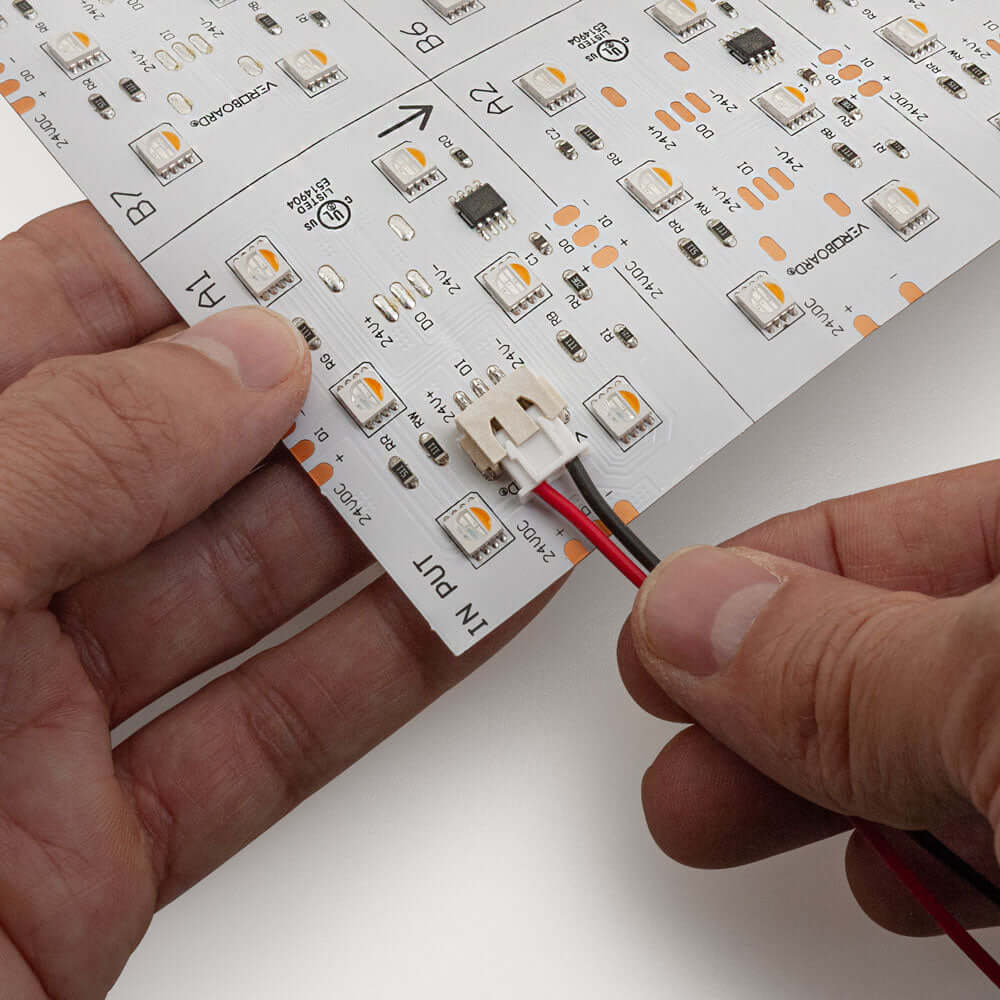

- Use the 6" cables to link the LED sheet to the power supply. Use the 1.6" connectors to interconnect the LED sheets with each other.
