LD012H-VU10012-Q12P 0-10V Dimmable Constant Voltage LED Driver 12V 12W
LD012H-VU10012-Q12P 0-10V Dimmable Constant Voltage LED Driver 12V 12W
SKU: SKU:666561434915
Free Shipping
Free Shipping
- Get free shipping on purchases over $99!
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our product?
GekPower will ship via the most reliable and time-efficient courier available depending on the location of the delivery.
Customers may provide GekPower with their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at the time of checkout.
How do we calculate the shipping cost?
Our prices are based on US dollars and are as follows:
Free Shipping
For orders totalling $99 USD or above.
Free shipping is Not available for specific products; please check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Product shipping costs are charged based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority you selected at checkout. All orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Any orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
- All returned products must be in new, resellable condition and in original packaging to be accepted as a valid return or exchange.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Two week processing time.
- To Return any product, make sure to use USPS for the United States, Other shipping companies are NOT acceptable.
- To submit a request for a return or exchange, please email sales@gekpower.com
Return Duty Charge:
- The customer is responsible for any duty charges incurred on a returned product by the carrier, if applicable.
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or customs issues, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25
Product Description
| Model | LD012H-VU10012-Q12P |
| Input Voltage | 110-277V AC |
| Input Current | 0.15~0.05A |
| Frequency | 50/60 Hz |
| Output voltage | 12V DC |
| Output regulated current | 1000mA |
| Output Power | 12W |
| Dimmable | Yes (0/10V Dimming) |
| Class Certification | Class 2 |
| IP Rating | IP20 (Indoor Rated) |

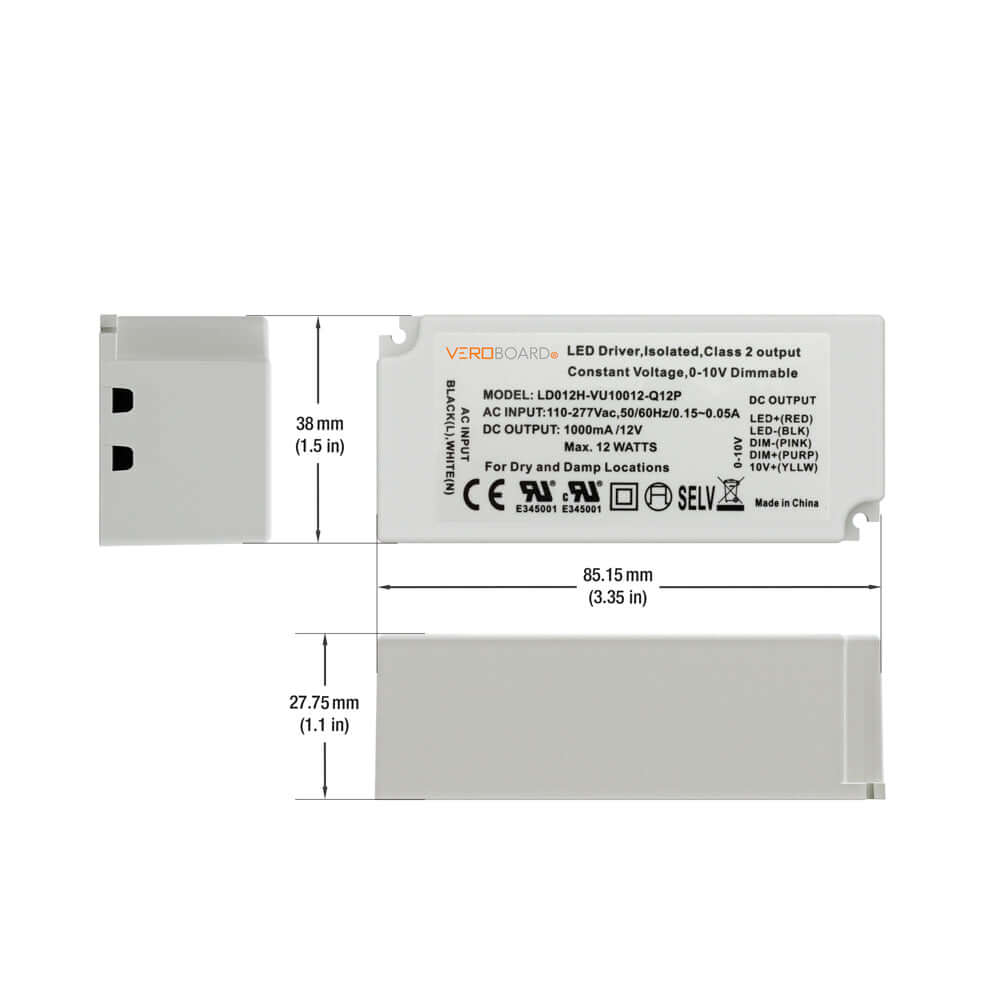

| Dimensions | 85.15 x 38 x 27.7mm (3.3 x 1.5 x 1.1in) |
| Certifications |   |
The LD012H-VU10012-Q12P is a 0-10V dimmable constant voltage LED driver that operates with an input voltage of 110-277V AC and a frequency of 50-60 Hz. It has an input current of 0.15~0.05A, an output voltage of 12V DC, and a wattage of 12W. The output current is 1000mA, ideal for LED lighting systems needing a constant voltage.
This driver supports 0-10V dimming, offering brightness control, and is rated IP20 for dry and damp locations. The dimmer switch should be on the 110-277V AC side of the driver.
Features:
- Operates with an input voltage range of 110-277V AC and supports a frequency of 50-60 Hz.
- Draws an input current between 0.15A and 0.05A.
- Provides a stable output voltage of 12V DC, ideal for LED lighting systems.
- Delivers a power output of 12W.
- Supplies a consistent output current of 1000mA.
- Features 0-10V dimming functionality for adjustable brightness levels.
- Rated IP20, making it suitable for dry and damp indoor locations.
- Compatible with any standard 0-10V dimming switches for flexible lighting control.
