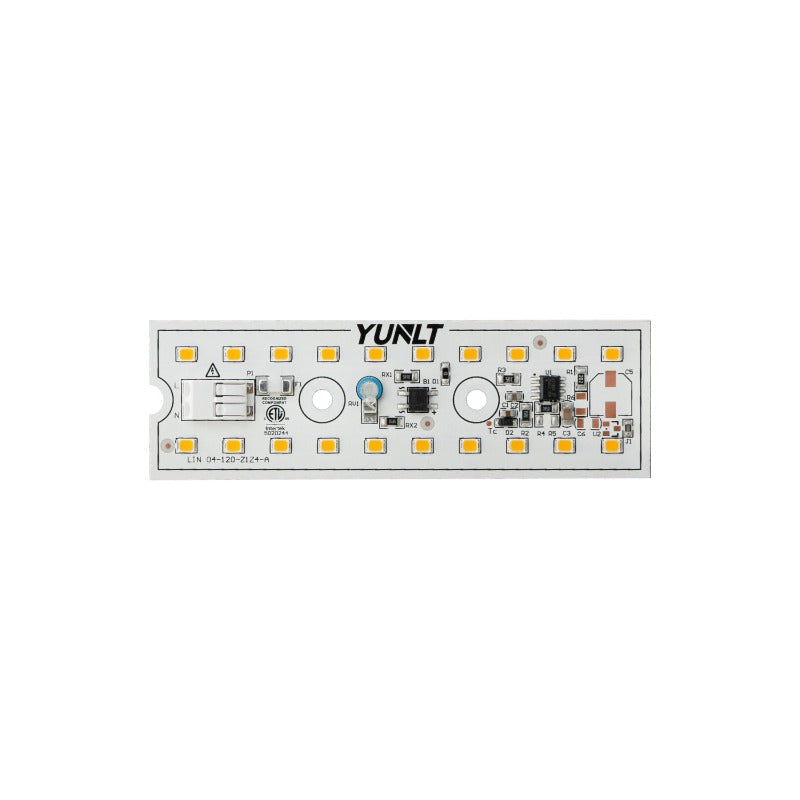

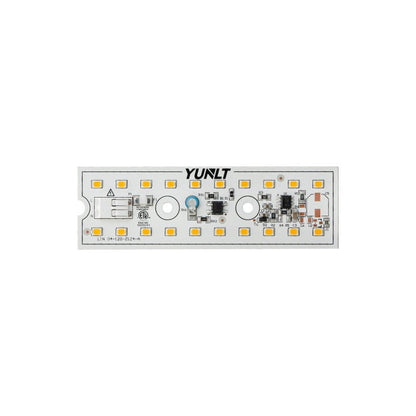

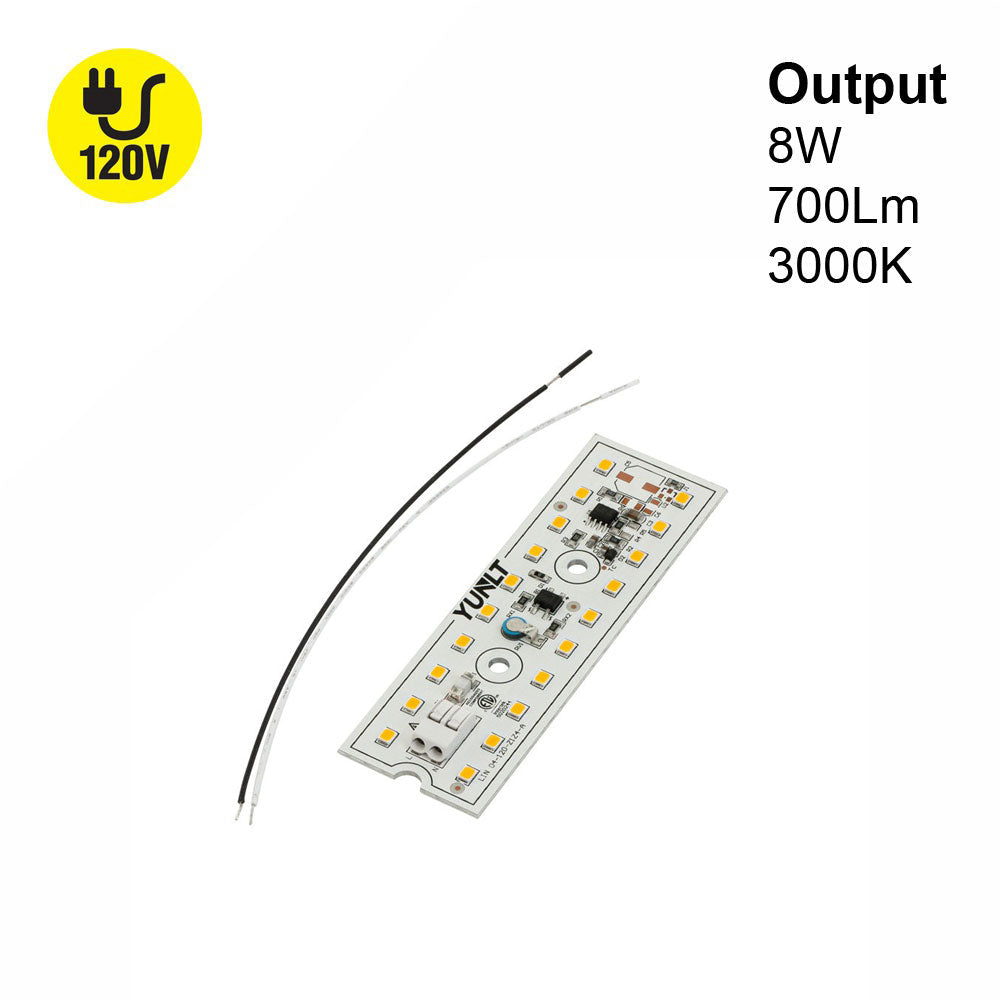

4 inch Linear ZEGA LED Module LIN 04-008W-930-120-S3-Z1A , 120V 8W 3000K(Warm White)
Product Description
Product | LED Module |
Model No | LIN 04-008W-930-120-S3-Z1A |
No of LEDs | 20 |
Wattage | 8W |
Voltage | 120V AC |
Luminous Flux | 700 lumens |
Color Temperature | 3000K (Warm White) |
Rendering Index | CRI>90 |
Power Source | AC |
Dimmable | Yes |
Base Material | Aluminum |

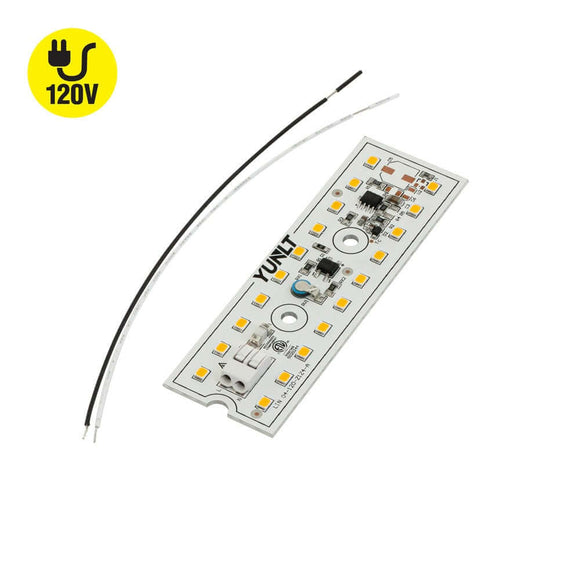

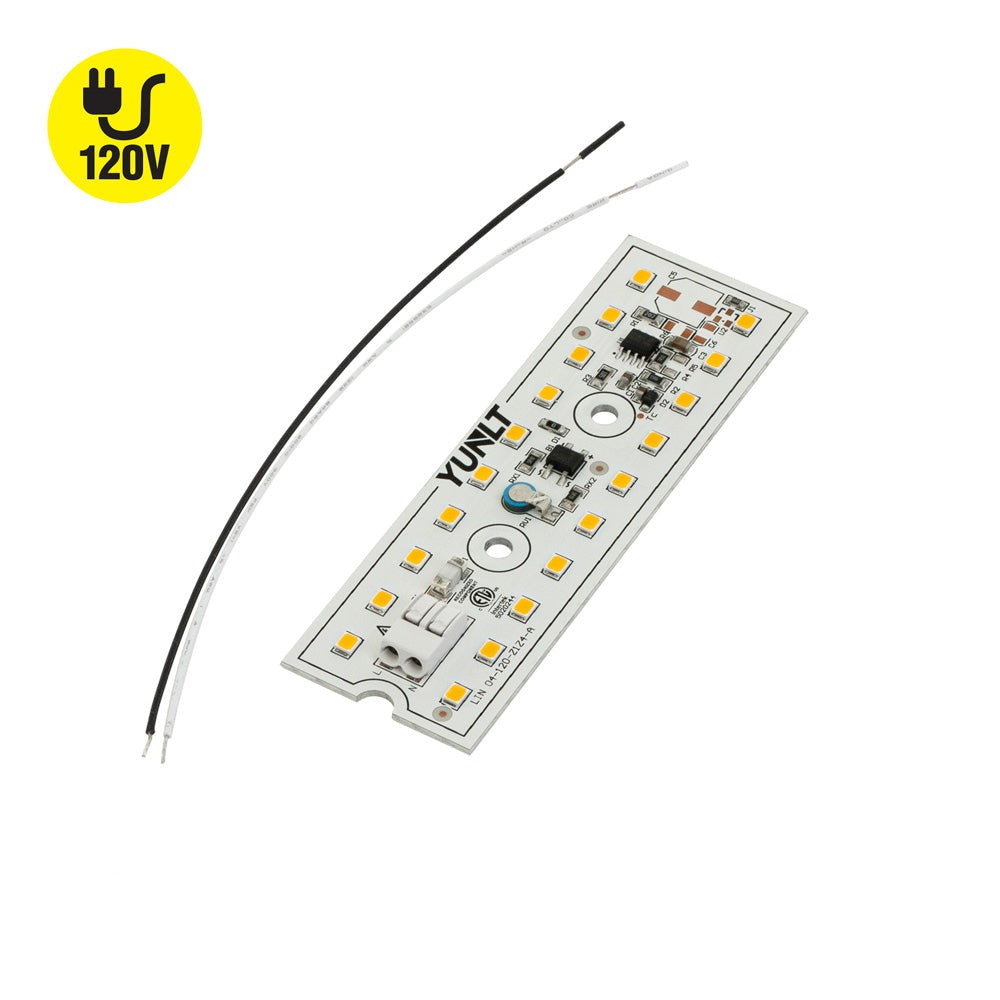

Package Components | LED Module Thermal Silicon Pad 6inch Black and White power feed |

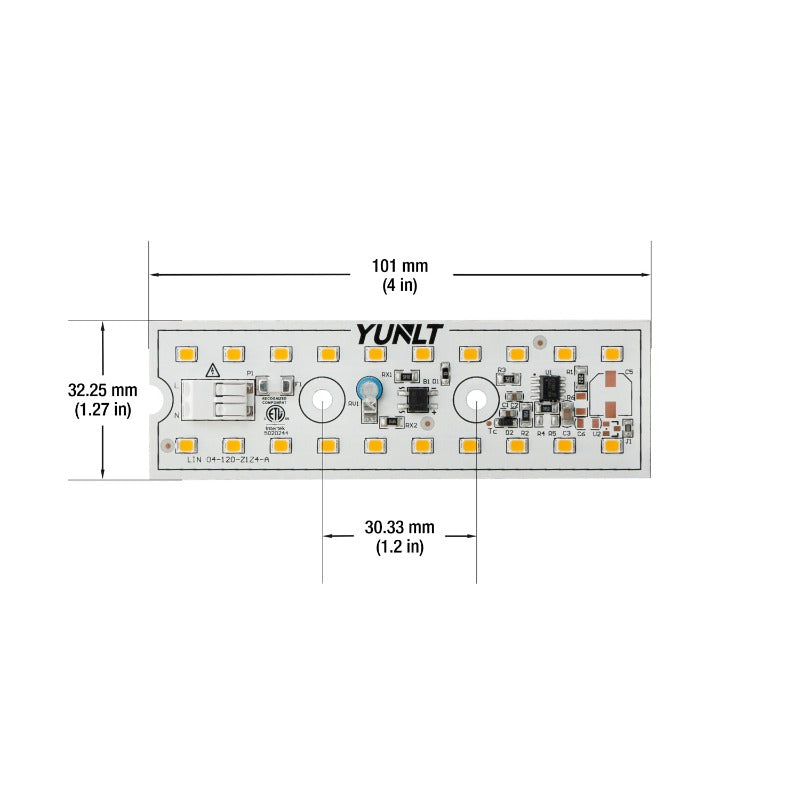

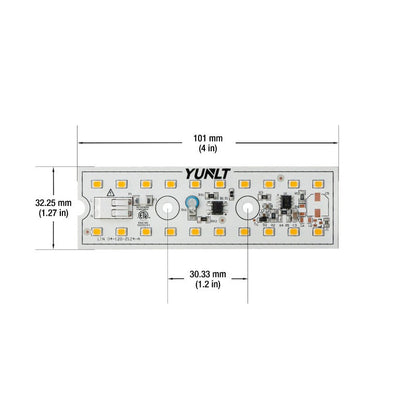

Dimensions | 101mm (4 inch) x 32.25 mm (1.27 inch) |
Diameter of the screw hole | 3.9mm (0.15 in) |
Distance between holes | 30.5mm (1.2 in) |
Height | 6mm (0.23in) |
Certification |
![]() |
The 4inch Linear LED Module Driverless Engine LIN 04-008W-930-120-S3-Z1A is an excellent lighting solution that offers energy efficiency and superior performance. This LED module features 20 high-quality LEDs that provide a warm white light with a color temperature of 3000K and a high rendering index of CRI>90, resulting in excellent color quality. With a wattage of 8W and operating on a voltage of 120V AC, this LED module produces a luminous flux of 700 lumens, providing powerful lighting while remaining energy-efficient.
This LED module is also dimmable, allowing for greater control over the lighting environment. Constructed with an aluminum base material, the LIN 04-008W-930-120-S3-Z1A has a compact size of 101mm (4 inch) x 32.25 mm (1.27 inch), making it easy to install in a variety of settings. It also includes a thermal silicon pad and a 6-inch black and white power feed for added convenience.
The LIN 04-008W-930-120-S3-Z1A LED Module is ETL certified, ensuring that it meets high safety and quality standards. The LED module has a diameter of 3.9mm (0.15 in) and a distance between holes of 30.5mm (1.2 in), making it easy to install using screws.
Overall, the LIN 04-008W-930-120-S3-Z1A LED Module by YUNLT is an excellent lighting solution that provides exceptional quality, energy efficiency, and convenience. Its low power consumption and high luminous flux make it suitable for a wide range of lighting applications, while its compact size and easy installation make it an ideal DIY product for replacing ceiling lights or bulb sources.
Features:
- Energy-efficient lighting solution with superior performance
- 20 high-quality LEDs providing warm white light with a color temperature of 3000K and CRI>90 for excellent color quality
- 8W wattage and 120V AC voltage producing 700 lumens of luminous flux for powerful lighting while remaining energy-efficient
- Dimmable for greater control over lighting environment
- Aluminum base material and compact size of 101mm (4 inch) x 32.25 mm (1.27 inch) for easy installation in various settings
- Includes thermal silicon pad and a 6-inch black and white power feed for added convenience
- ETL certified for high safety and quality standards
- Diameter of 3.9mm (0.15 in) and distance between holes of 30.5mm (1.2 in) for easy installation using screws
- Suitable for a wide range of lighting applications and an ideal DIY product for replacing ceiling lights or bulb sources.
- A premier quality light engine. It produces up to 700 lumens of exceptional light.
- Low power consumption, high energy efficiency.
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.

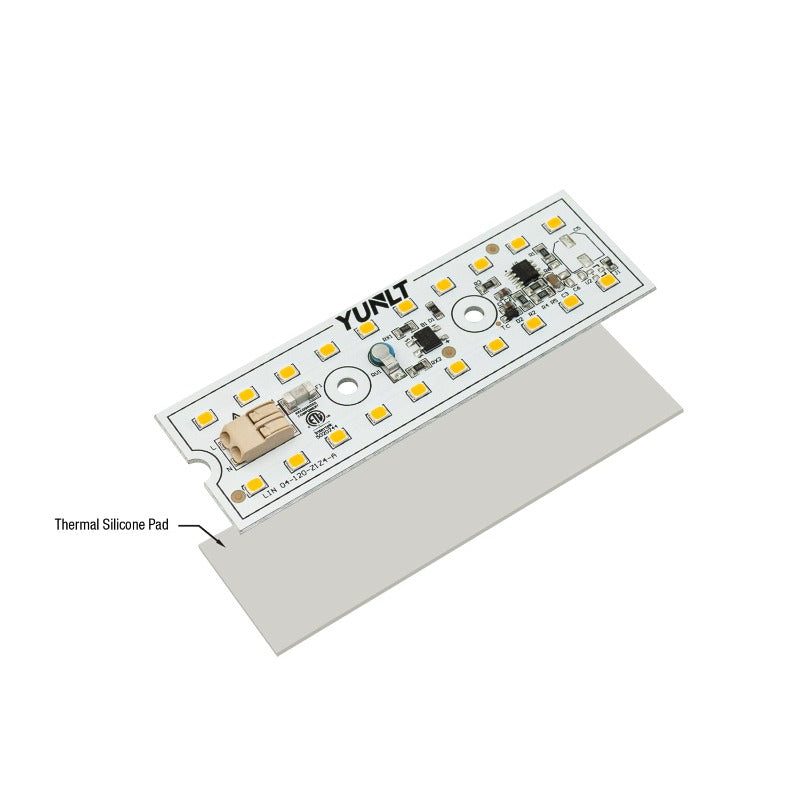

- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
