6 inch Linear ZEGA LED Module LIN 06-008W-930-120-S3-Z1A, 120V 8W 3000K(Warm White)

  • $19.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561427696
Title:
We only have 67 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).


Product Description

Product LED Module
Model No LIN 06-008W-930-120-S3-Z1A
No of LEDs 20
Wattage 8W
Voltage 120V AC
Luminous Flux 700 lumens
Color Temperature 3000K (Warm White)
Rendering Index CRI>90
Power Source AC
Dimmable Yes
Base Material Aluminum
Package Components  LED Module
Thermal Silicon Pad
6inch Black and White power feed

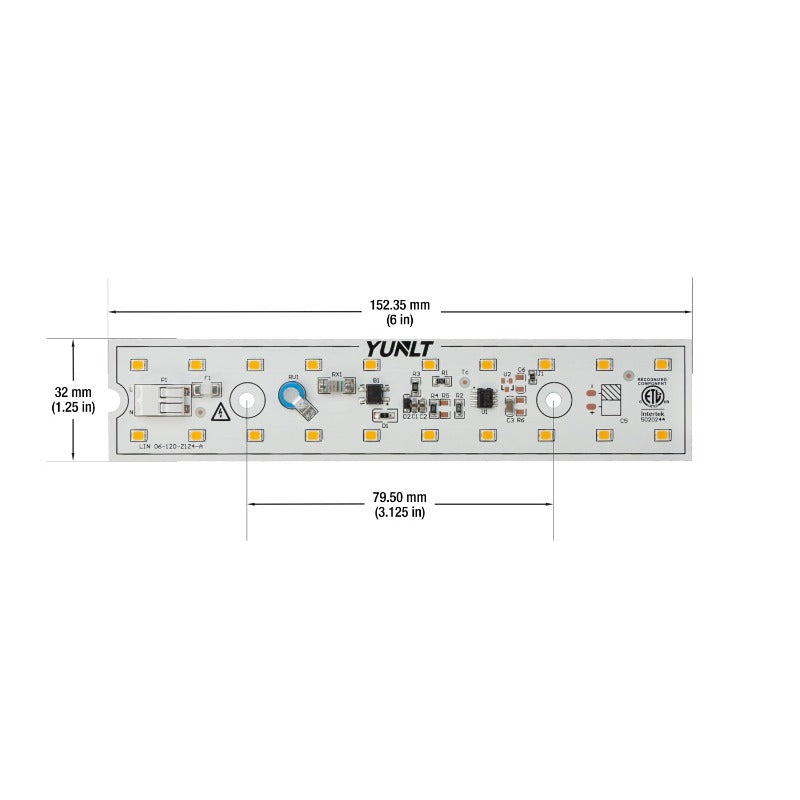

Dimensions 152.35mm (6 inch) x 32 mm (1.25 inch)
Diameter of the screw hole 3.5mm (0.13 in)
Distance between holes 80mm (3.14 in)
Height 6mm (0.23in)
Certification


The 6inch Linear LED Module Driverless Engine LIN 06-008W-930-120-S3-Z1A is an energy-efficient and high-quality lighting solution that produces warm white light with a color temperature of 3000K and a high rendering index of CRI>90, resulting in excellent color quality. With a wattage of 8W and operating on a voltage of 120V AC, this LED module produces a luminous flux of 700 lumens, providing bright and efficient lighting.

Overall, the LIN 06-008W-930-120-S3-Z1A LED Module by YUNLT is an excellent lighting solution that provides exceptional quality, energy efficiency, and convenience. Its low power consumption and high luminous flux make it suitable for a wide range of lighting applications, while its slim and compact size and easy installation make it an ideal DIY product for replacing ceiling lights or bulb sources.

Features:

  • Energy-efficient and high-quality LED module
  • Produces warm white light with a color temperature of 3000K and a high rendering index of CRI>90
  • Wattage of 8W and operating voltage of 120V AC
  • Luminous flux of 700 lumens, providing bright and efficient lighting
  • Dimmable, allowing for greater control over the lighting environment
  • Constructed with an aluminum base material
  • Slim and compact size of 152.35mm (6 inch) x 32 mm (1.25 inch)

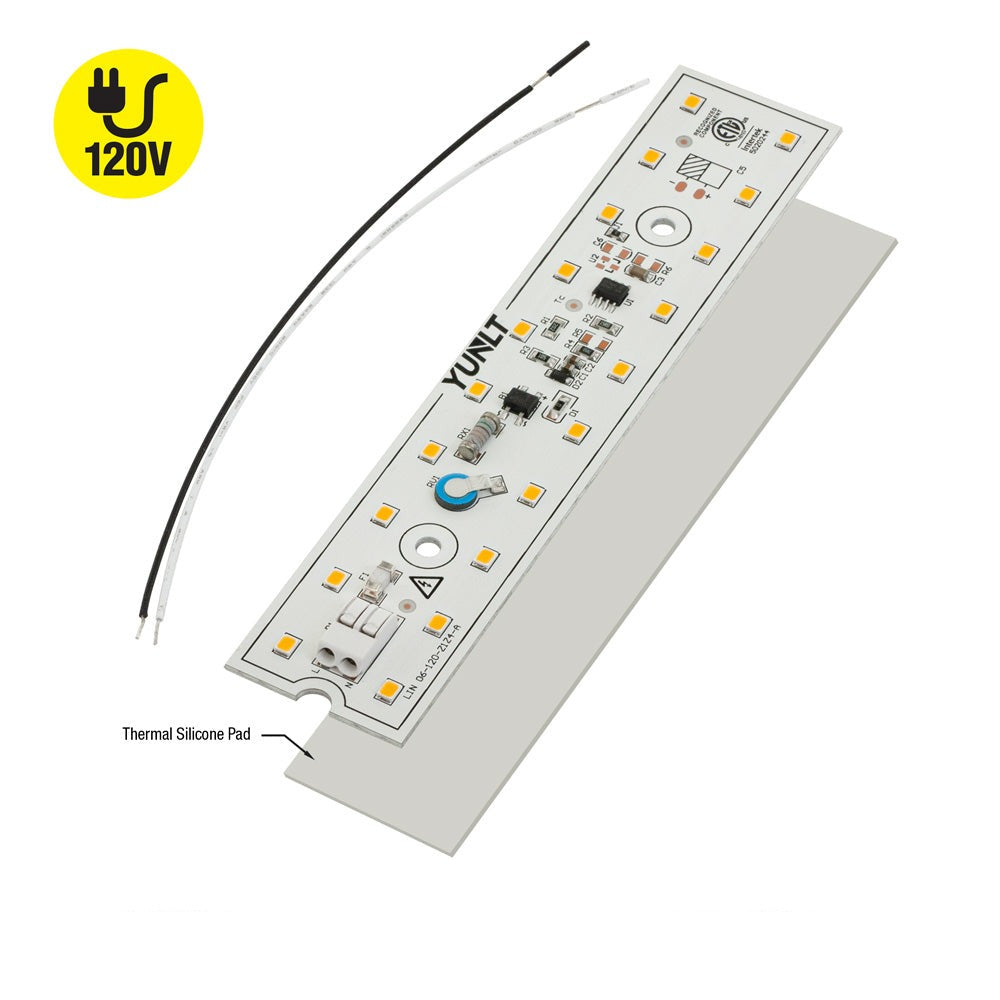

  • Includes a thermal silicon pad and a 6-inch black and white power feed for added convenience
  • Designed to meet high safety and quality standards and ETL certified
  • Diameter of the screw hole is 3.5mm (0.13 in) and a distance between holes of 80mm (3.14 in)
  • Suitable for a wide range of lighting applications and an ideal DIY product for replacing ceiling lights or bulb sources.
  • A premier quality light engine. It produces up to 700 lumens of exceptional light.
  • Low power consumption, high energy efficiency.
  • It is a good DIY product for the replacement of a ceiling light/ Bulb source.
  • Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
