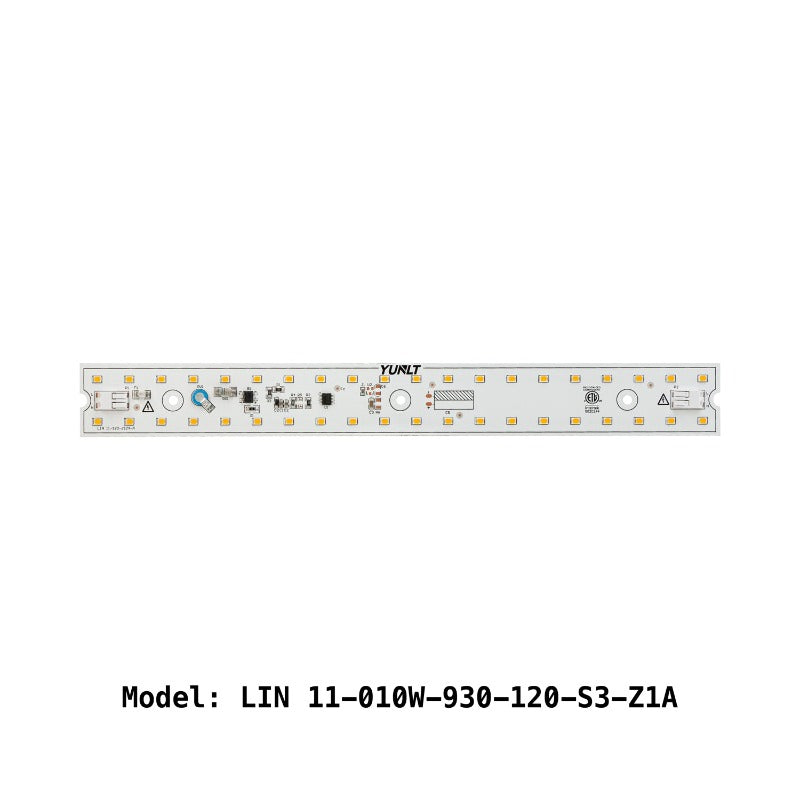

11 inch Linear ZEGA LED Module LIN 11-010W-930-120-S3-Z1A, 120V 10W 3000K(Warm White)
|Model No||LIN 11-010W-930-120-S3-Z1A|
|No of LEDs||40|
|Luminous Flux||900 lumens|
|Color Temperature||3000K (Warm White)|
|Package Components||LED Module
Thermal Silicon Pad
6inch Black and White power feed
|Dimensions||279.4mm (11 inch) x 32 mm (1.25 inch)|
|Diameter of the screw hole||3.9mm (0.15 in)|
|Distance between holes||98.7mm (3.9 in)|

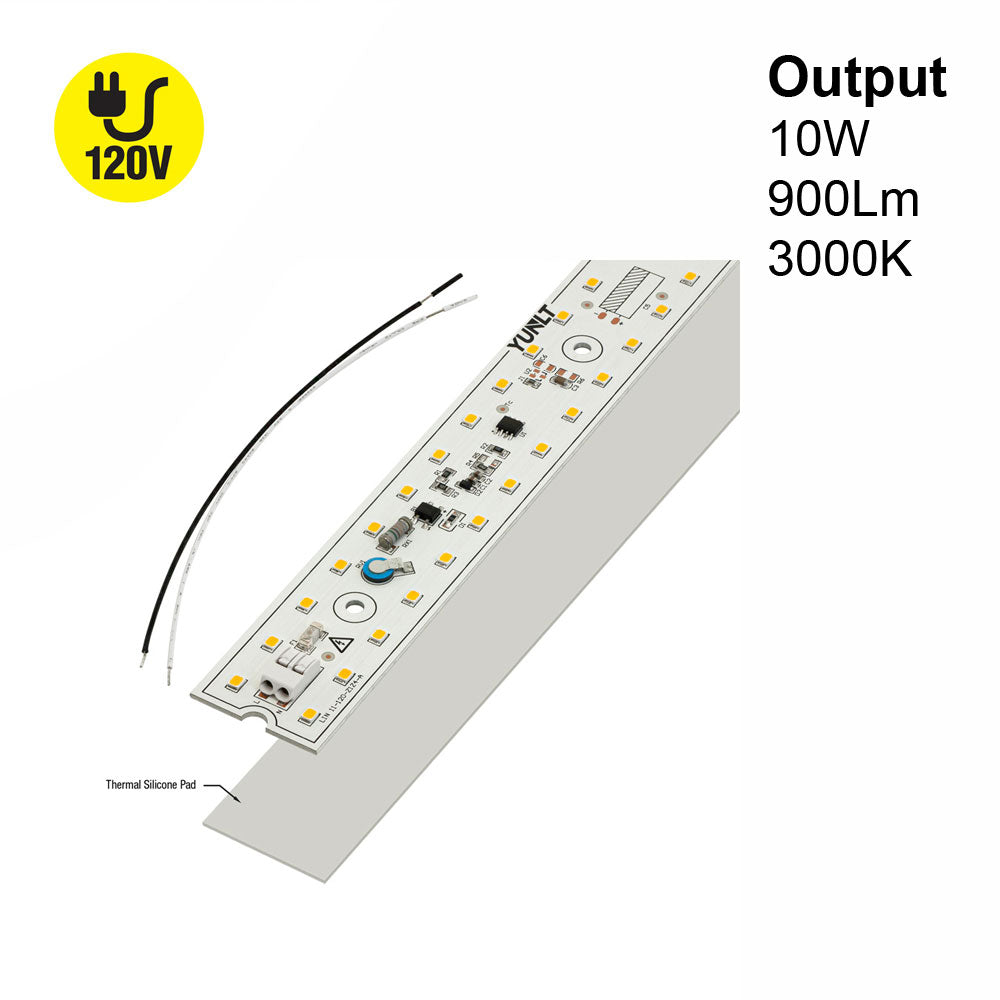

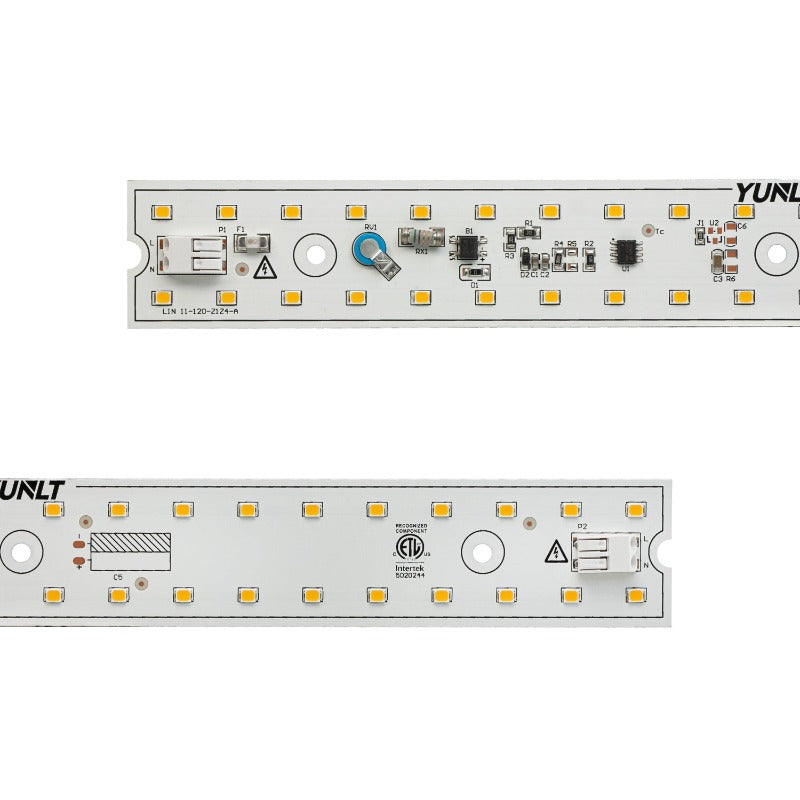

The LIN 11-010W-930-120-S3-Z1A is an 11-inch linear LED module driverless engine that provides high-quality and efficient lighting for various applications. This product contains 40 LEDs and has a wattage of 10W, powered by 120V AC. The module emits warm white light at a color temperature of 3000K, with a high color rendering index (CRI) of over 90, which means colors appear natural and vibrant.

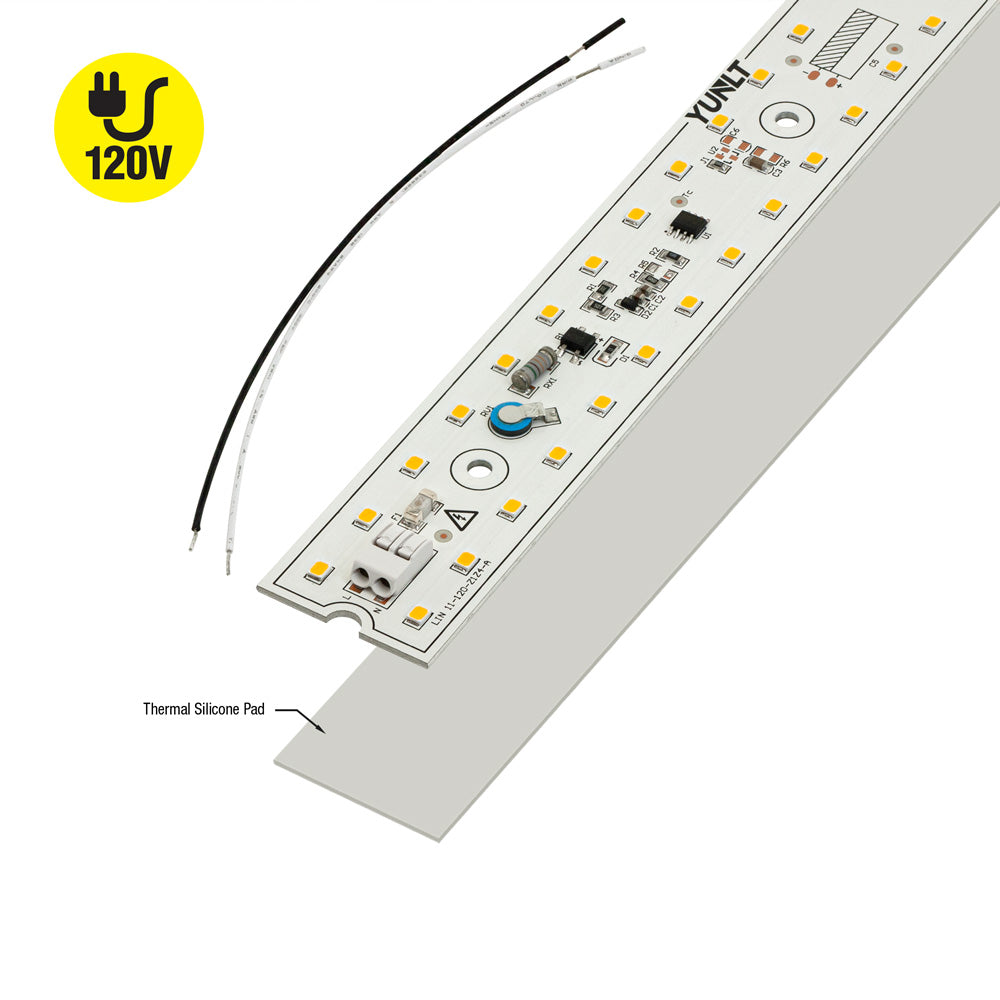

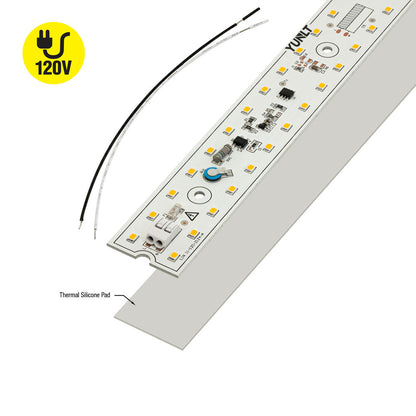

It comes with a thermal silicon pad for even heat distribution, which helps to prolong the life of the module. Additionally, a 6-inch black and white power feed is included for easy installation.

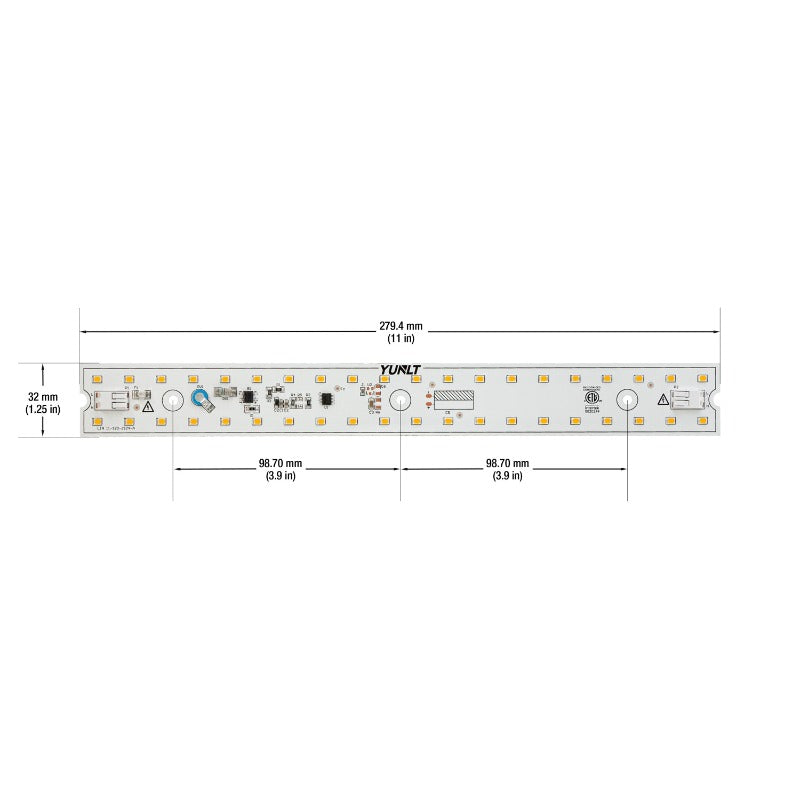

The dimensions of the module are 279.4mm (11 inch) in length and 32 mm (1.25 inch) in width. The diameter of the screw hole is 3.9mm (0.15 in), and the distance between the holes is 98.7mm (3.9 in).
With a luminous flux of 900 lumens, this LED module provides bright and efficient lighting suitable for various applications such as ceiling lights, task lighting, and display lighting. It has low power consumption and high energy efficiency, making it cost-effective to use. This LED module is also dimmable and can be used as a DIY product for replacing ceiling lights or bulb sources.
The LIN 11-010W-930-120-S3-Z1A is certified by ETL for safe and reliable use. It is an excellent choice for anyone looking for a high-quality, energy-efficient, and long-lasting LED lighting solution.
- 11-inch linear LED module driverless engine
- Contains 40 LEDs and has a wattage of 10W
- Powered by 120V AC
- Emits warm white light at a color temperature of 3000K with a CRI of over 90
- Includes a thermal silicon pad for even heat distribution and a 6-inch black and white power feed for easy installation
- Dimensions: 279.4mm (11 inch) in length and 32 mm (1.25 inch) in width; screw hole diameter of 3.9mm (0.15 in) and a distance between holes of 98.7mm (3.9 in)
- Provides bright and efficient lighting with a luminous flux of 900 lumens
- Suitable for various applications such as ceiling lights, task lighting, and display lighting
- Low power consumption and high energy efficiency, making it cost-effective to use
- Dimmable and can be used as a DIY product for replacing ceiling lights or bulb sources
- Certified by ETL for safe and reliable use
- Low power consumption, high energy efficiency.
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.
- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
