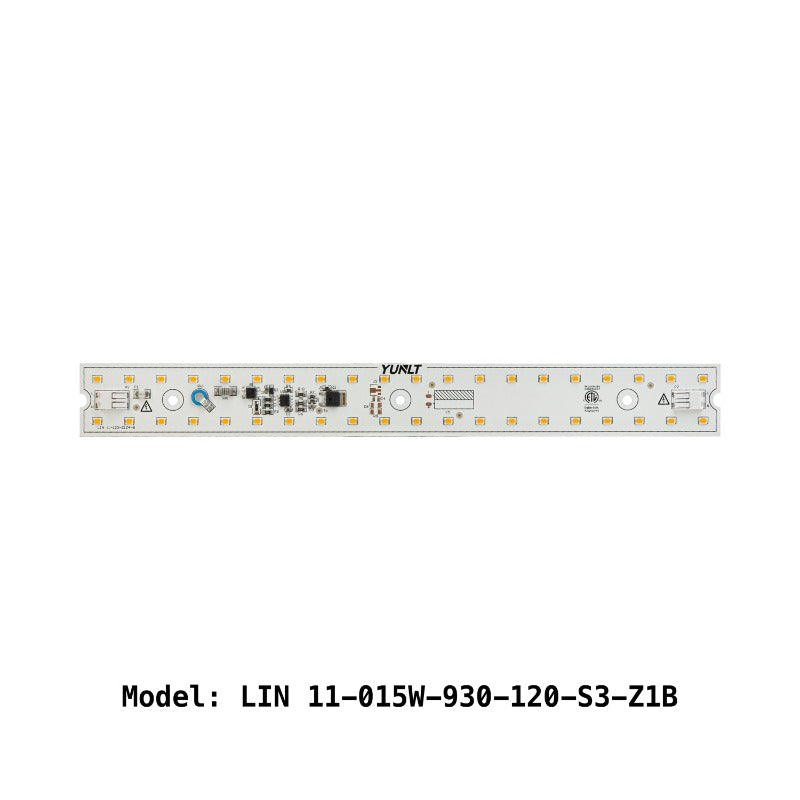

11 inch Linear ZEGA LED Module LIN 11-015W-930-120-S3-Z1B, 120V 15W 3000K(Warm White)

  • $29.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561427832
Title:
We only have 104 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).


Product Description

Product LED Module
Model No LIN 11-015W-930-120-S3-Z1B
No of LEDs 40
Wattage 15W
Voltage 120V AC
Luminous Flux 1300 lumens
Color Temperature 3000K (Warm White)
Rendering Index CRI>90
Power Source AC
Dimmable Yes
Base Material Aluminum
Package Components  ED Module
Thermal Silicon Pad
6inch Black and White power feed

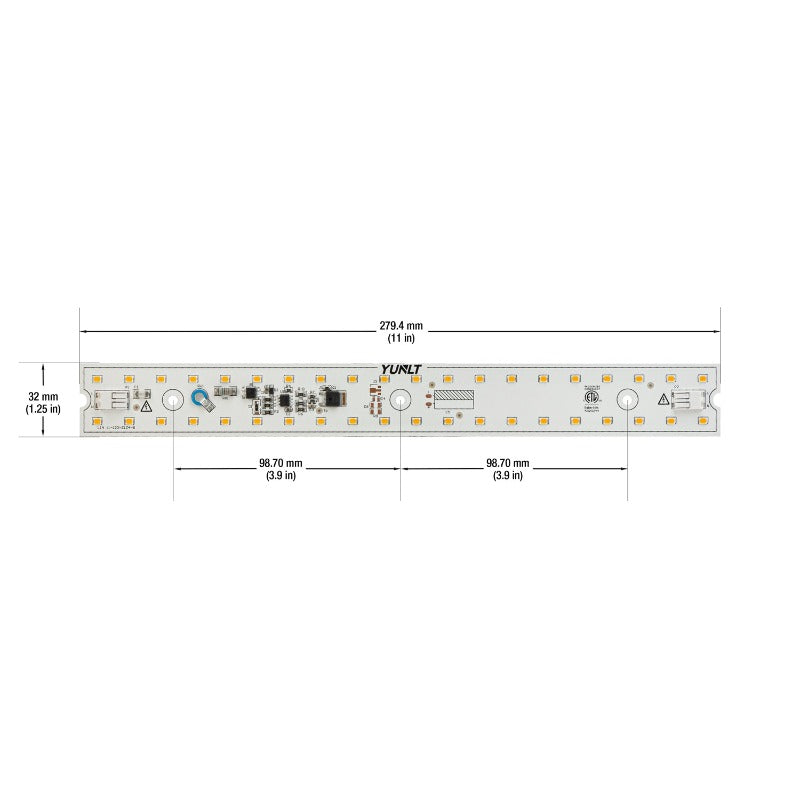

Dimensions 279.4mm (11 inch) x 32 mm (1.25 inch)
Diameter of the screw hole 3.9mm (0.15 in)
Distance between holes 98.7mm (3.9 in)
Height 6mm (0.23in)
Certification


The LIN 11-015W-930-120-S3-Z1B is an 11-inch linear LED module driverless engine, designed for high-performance lighting in various applications. This product contains 40 LEDs and has a wattage of 15W, powered by 120V AC. The module emits warm white light at a color temperature of 3000K, with a high color rendering index (CRI) of over 90, which means colors appear natural and vibrant.

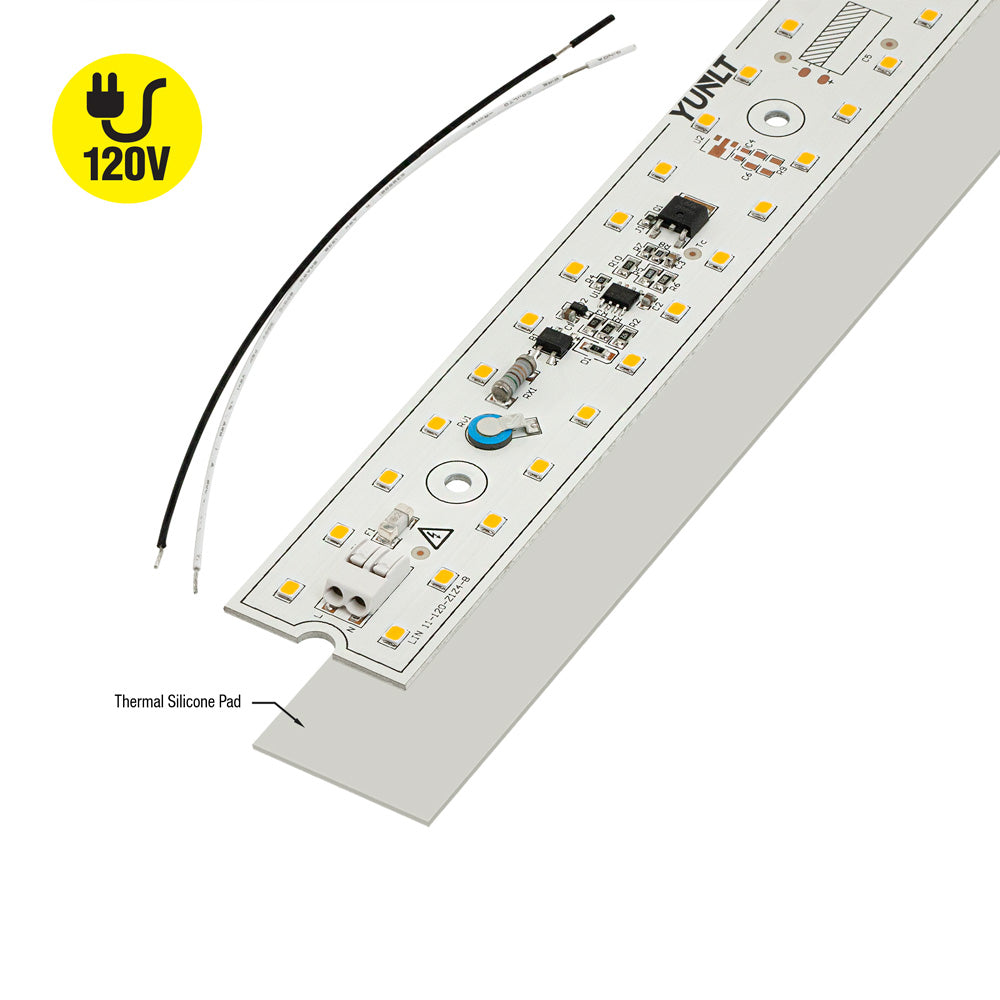

It comes with a thermal silicon pad for even heat distribution, which helps to prolong the life of the module. Additionally, a 6-inch black and white power feed is included for easy installation.

The dimensions of the module are 279.4mm (11 inch) in length and 32 mm (1.25 inch) in width. The diameter of the screw hole is 3.9mm (0.15 in), and the distance between the holes is 98.7mm (3.9 in).

With a luminous flux of 1300 lumens, this LED module provides exceptional lighting suitable for various applications such as ceiling lights, task lighting, and display lighting. It has low power consumption and high energy efficiency, making it cost-effective to use. This LED module is also dimmable and can be used as a DIY product for replacing ceiling lights or bulb sources.

The LIN 11-015W-930-120-S3-Z1B is certified by ETL for safe and reliable use. It is an excellent choice for anyone looking for a high-quality, energy-efficient, and long-lasting LED lighting solution.

Features:

  • 11-inch linear LED module driverless engine with 40 LEDs
  • 15W wattage and 120V AC power source for high-performance lighting
  • Emits warm white light at 3000K with CRI>90 for natural and vibrant colors
  • Made of aluminum for excellent heat dissipation and comes with thermal silicon pad for even heat distribution
  • 6-inch black and white power feed included for easy installation
  • Dimensions of 279.4mm (11 inch) length and 32 mm (1.25 inch) width with 3.9mm (0.15 in) screw hole diameter and 98.7mm (3.9 in) distance between holes
  • Luminous flux of 1300 lumens suitable for various applications such as ceiling lights, task lighting, and display lighting
  • Low power consumption and high energy efficiency for cost-effective use
  • Dimmable and can be used as a DIY product for replacing ceiling lights or bulb sources
  • Certified by ETL for safe and reliable use
  • Low power consumption, high energy efficiency.
  • It is a good DIY product for the replacement of a ceiling light/ Bulb source.
  • Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
