Magnitude Electronic E60L12DC-KO Dimmable Constant Voltage LED Driver, 12V 60W

LED Lights and Parts

$136.85 USD
Unit price per

Shipping calculated at checkout.

SKU: 666561410483

Tags: 100-120V 12v 60W constant voltage driver dimmable IP67 LED Driver Magnetic Driver

Product Description

Model	E60L12DC-KO
Input Voltage	120V AC
Output voltage	12V DC
Output Power	60W
Dimmable	Yes
IP Rating	IP67 (Waterproof)

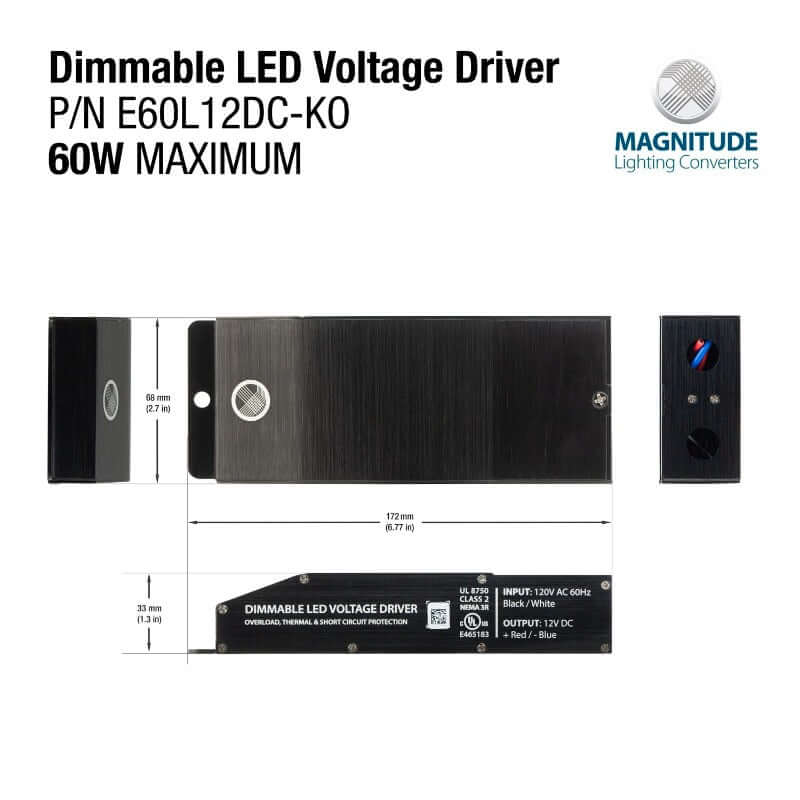

Dimensions (Without Box)	172 x 68 x 32mm (6.77 x 2.67 x 1.26in)
Certifications

The Magnitude Electronic E60L12DC-KO is a dimmable constant voltage LED driver designed to convert 120V AC input voltage to 12V DC output voltage, with an output power of 60W. The driver is equipped with a dimming feature, allowing users to adjust the light output according to their preferences.

This LED driver has an IP67 rating, making it waterproof and suitable for outdoor use in wet locations. The dimensions of the driver are 172 x 68 x 32mm (6.77 x 2.67 x 1.26in) without the box.

The driver is certified with ETL certification, which indicates that it has been tested and certified to meet certain safety and performance standards.

Features:

Dimmable constant voltage driver: The Magnitude Electronic E60L12DC-KO is a dimmable LED driver that converts 120V AC input voltage to 12V DC output voltage, providing a constant voltage power supply for LED lighting applications.
Output power of 60W: With a maximum output power of 60W, this driver is capable of efficiently powering a variety of LED lighting fixtures.
Dimming feature: The driver is equipped with dimming capabilities, allowing users to adjust the light output and create the desired ambiance or lighting effects.
IP67 rating: The driver has an IP67 rating, ensuring its waterproof and dustproof properties. This makes it suitable for outdoor use in wet locations, providing reliable performance even in challenging environmental conditions.
Compact dimensions: Measuring 172 x 68 x 32mm (6.77 x 2.67 x 1.26in) without the box, this driver offers a compact and space-saving design, facilitating easy installation and integration into lighting systems.
ETL certified: The driver is certified with ETL certification, indicating that it has undergone rigorous testing and meets the required safety and performance standards. This certification provides assurance of quality and reliability for the LED driver.
