Mean Well IRM-10-24 Non-Dimmable Constant Voltage LED Driver 24V 420mA

  • $19.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561410797
Title:
We only have 204 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).



Product Description

Model IRM-10-24
Input voltage 100-240V AC
Input current 0.25A
Frequency 50/60Hz
Output voltage 24V
Output regulated current 0.42A
Output Power 10W (Max)
Dimmable No
Class Certification Class 2/ Class II
Dimensions 50 x 23.72 x 27.25 mm (1.97 x 0.92 x 1.07 in)
Certification
 Suitable for dry and damp locations

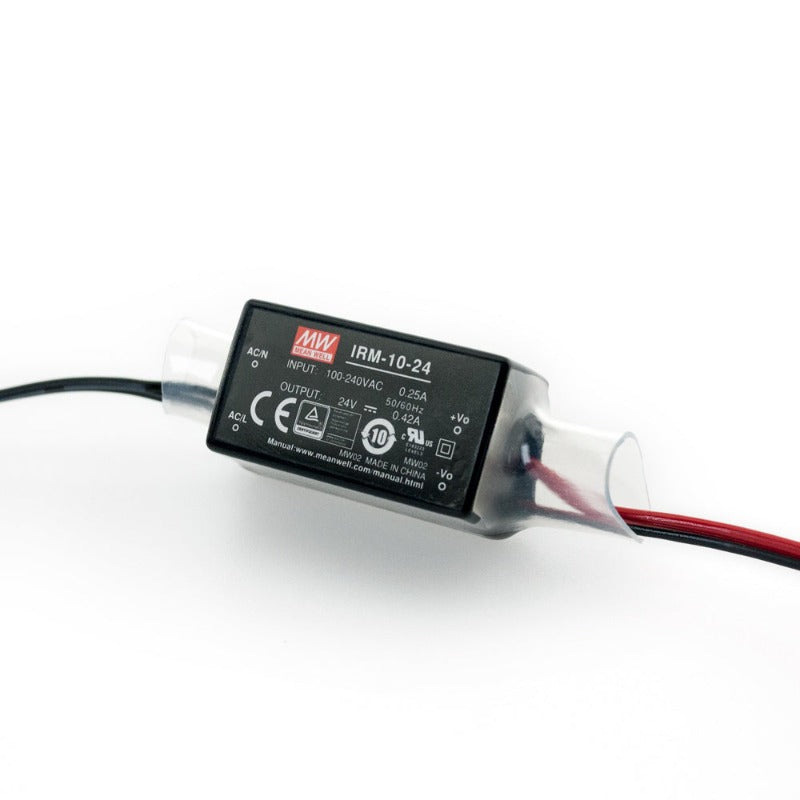

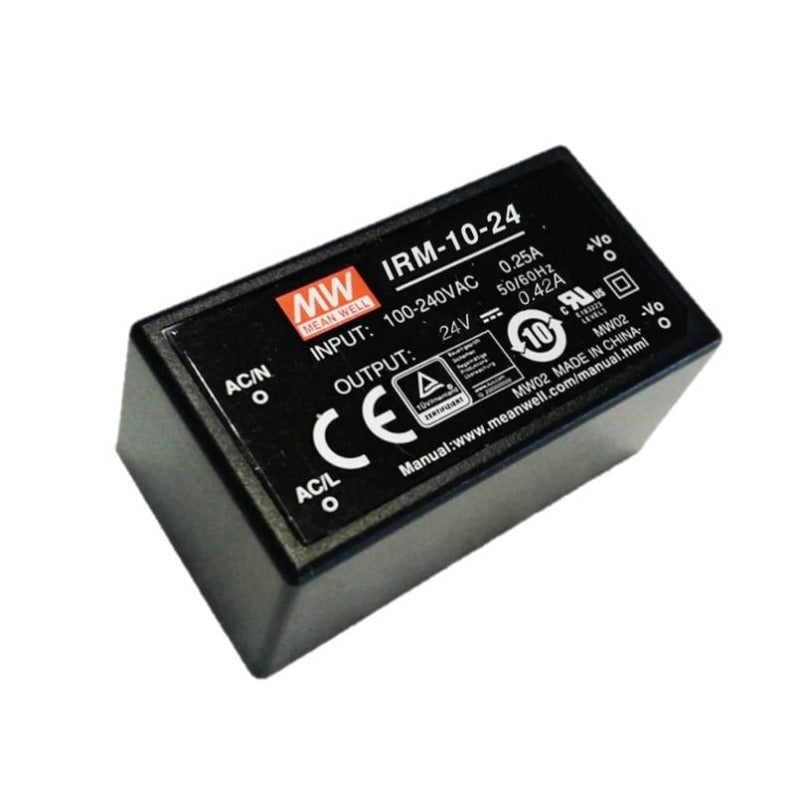

The Mean Well IRM-10-24 Constant Voltage LED Driver is a compact and reliable power supply designed for LED lighting systems. This LED driver has a model number of IRM-10-24 and features an input voltage range of 100-240V AC with an input current of 0.25A, operating on a frequency of 50/60Hz.

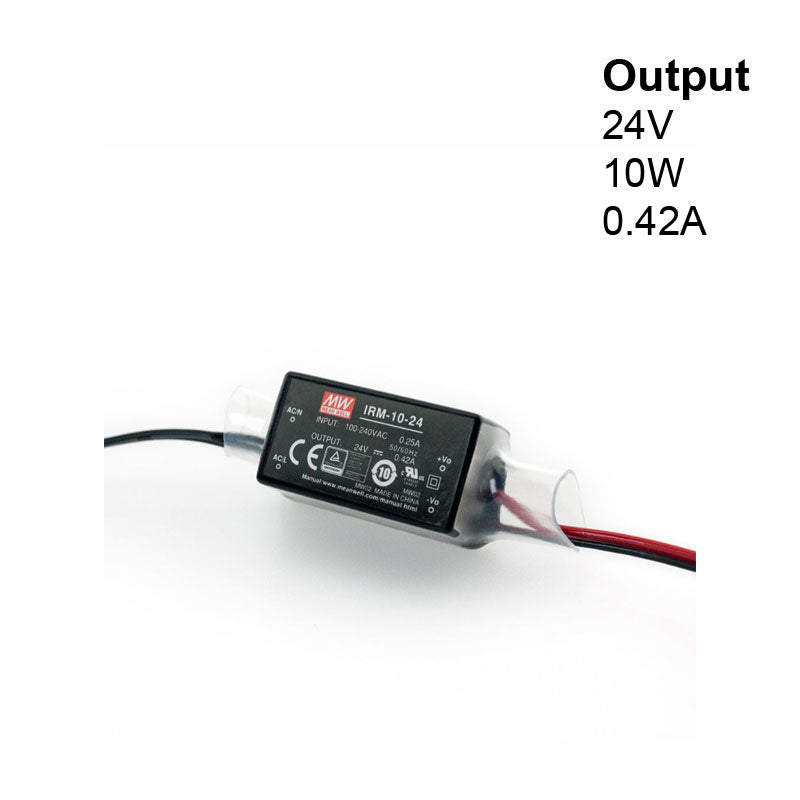

The LED driver delivers a regulated output current of 0.42A and an output voltage of 24V DC, with a maximum output power of 10W. It is not dimmable and has Class 2/Class II certification, indicating that it is designed for use with low voltage LED lighting fixtures.

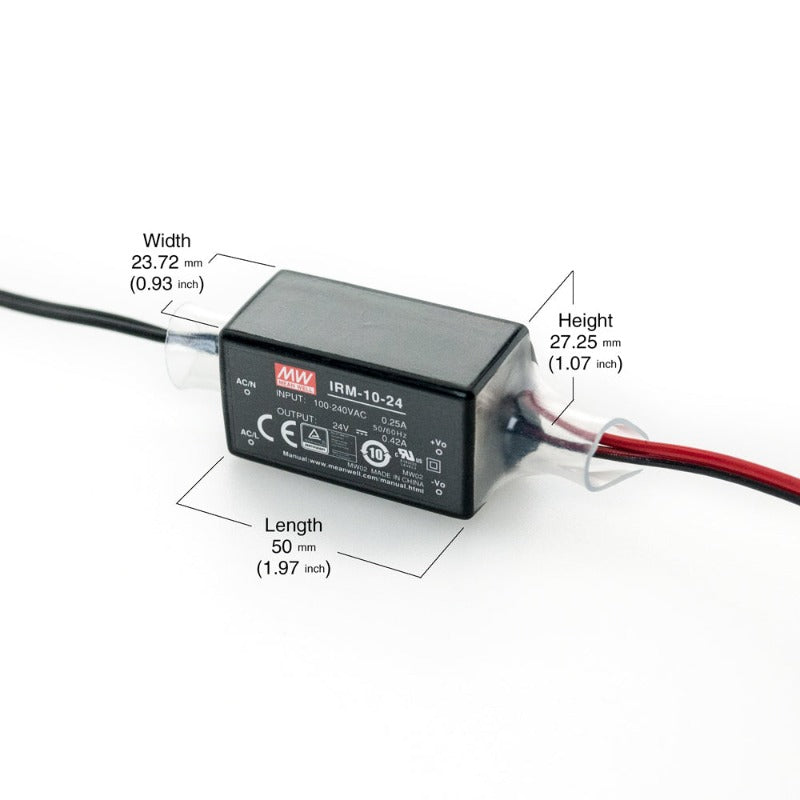

The Mean Well IRM-10-24 LED driver has a compact design with dimensions of 50 x 23.72 x 27.25mm (1.97 x 0.92 x 1.07 in), making it easy to install in tight spaces.

This LED driver is also suitable for use in dry and damp locations, providing versatility in various indoor LED lighting applications. Overall, the Mean Well IRM-10-24 Constant Voltage LED Driver is a dependable and efficient power supply suitable for various indoor LED lighting projects that require a constant voltage source of 24V and a maximum output power of 10W.

Features:

  • Compact and reliable power supply for LED lighting systems
  • Model number: IRM-10-24
  • Input voltage range: 100-240V AC, input current: 0.25A, operating frequency: 50/60Hz
  • Regulated output current: 0.42A, output voltage: 24V DC, maximum output power: 10W
  • Class 2/Class II certification for low voltage LED lighting fixtures
  • Not dimmable
  • Compact design with dimensions of 50 x 23.72 x 27.25mm (1.97 x 0.92 x 1.07 in)
  • Suitable for dry and damp locations
  • Dependable and efficient power supply for indoor LED lighting projects that require a constant voltage source of 24V and a maximum output power of 10W.
