Mean Well PM-10-12 Non-Dimmable Constant Voltage LED Driver, 12V 850mA
|Input voltage||100-240V AC|
|Input current||0.25A for 100V, 0.15A for 240V|
|Output voltage||12V DC|
|Output regulated current||0.85A
|Class Certification||Class 2/ Class II|

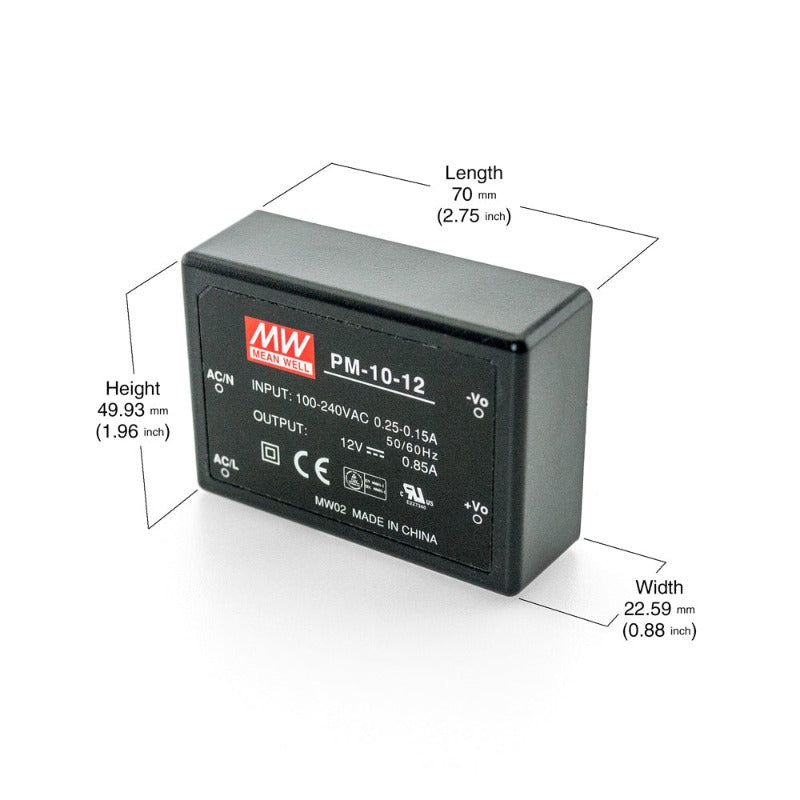

|Dimensions||70 x 22.59 x 50mm (2.75 x 0.88 x 1.96 in)|
|Short Circuit and Overload protection|
|Suitable for dry and damp locations|
The Mean Well PM-10-12 Constant Voltage LED Driver is a high-quality and reliable power supply designed to provide a steady and efficient source of power to LED lighting systems. This LED driver has a model number of PM-10-12 and features an input voltage range of 100-240V AC with an input current of 0.25A for 100V and 0.15A for 240V. It operates on a frequency of 50/60Hz.
The LED driver delivers a regulated output current of 0.85A and an output voltage of 12V DC, with a maximum output power of 10.2W. It is not dimmable and has Class 2/Class II certification, indicating that it is designed for use with low voltage LED lighting fixtures.
The Mean Well PM-10-12 LED driver has a compact design with dimensions of 70 x 22.59 x 50mm (2.75 x 0.88 x 1.96 in), making it easy to install in tight spaces. It is also designed to be short circuit and overload protected, ensuring that it operates safely and reliably.
This LED driver is suitable for use in dry and damp locations, providing versatility in various indoor LED lighting applications. Overall, the Mean Well PM-10-12 Constant Voltage LED Driver is a dependable and efficient power supply suitable for various indoor LED lighting projects that require a constant voltage source.
- Input voltage range of 100-240V AC with input current of 0.25A for 100V and 0.15A for 240V
- Regulated output current of 0.85A and output voltage of 12V DC
- Maximum output power of 10.2W
- Class 2/Class II certified, suitable for use with low voltage LED lighting fixtures
- Compact design with dimensions of 70 x 22.59 x 50mm (2.75 x 0.88 x 1.96 in)
- Short circuit and overload protected for safe and reliable operation
- Suitable for use in dry and damp locations
- Ideal for indoor LED lighting projects that require a constant voltage source.
