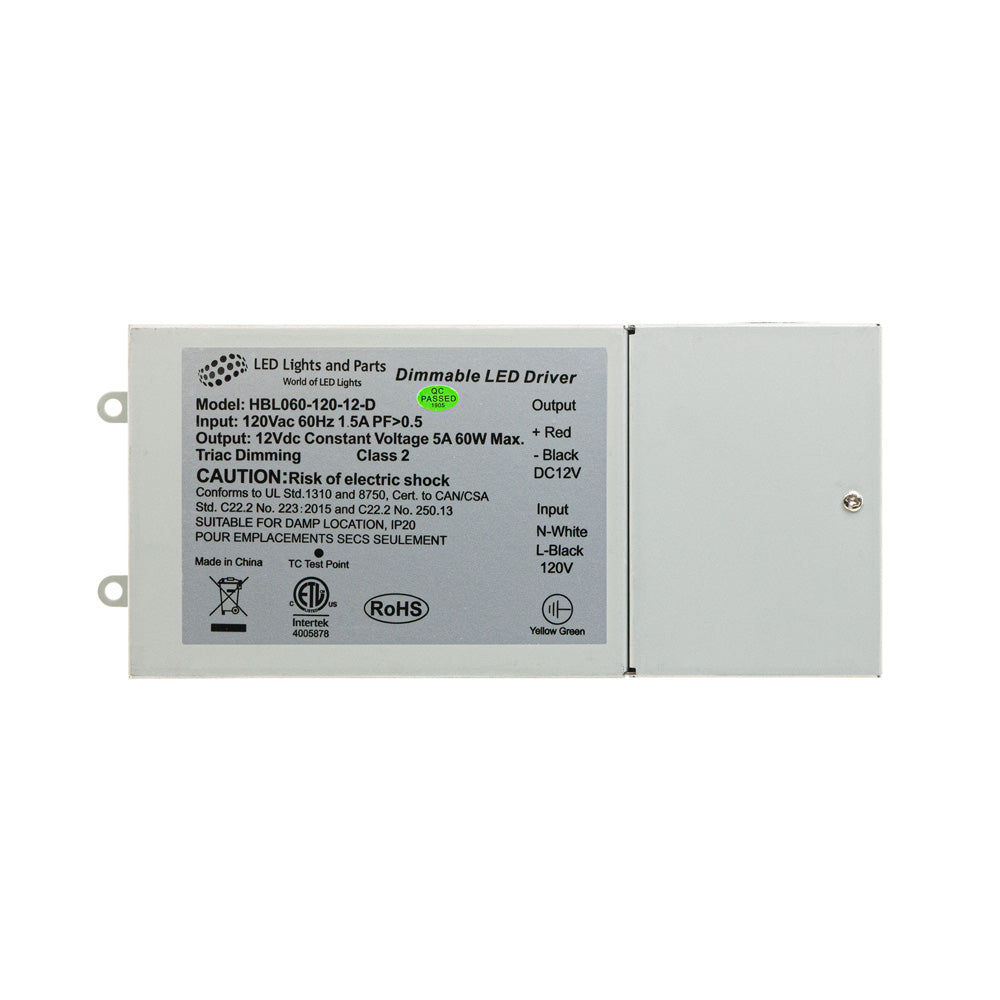

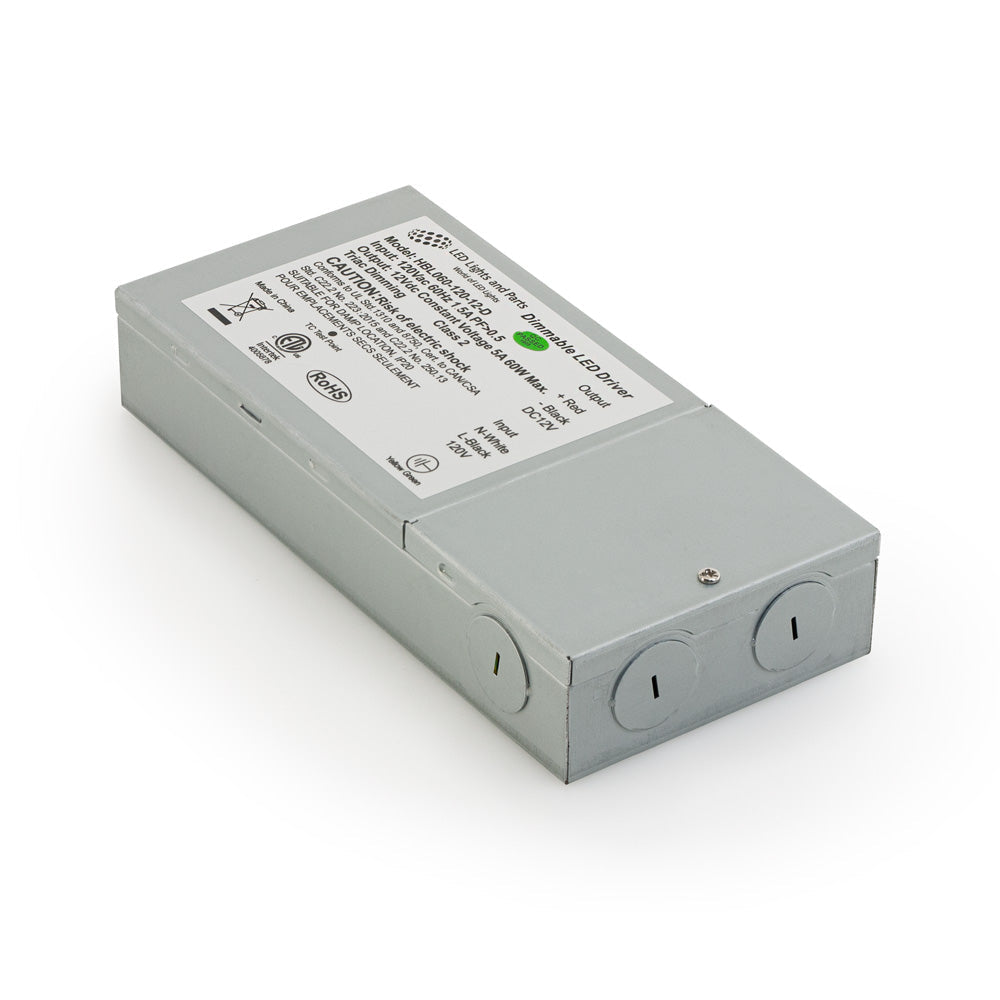

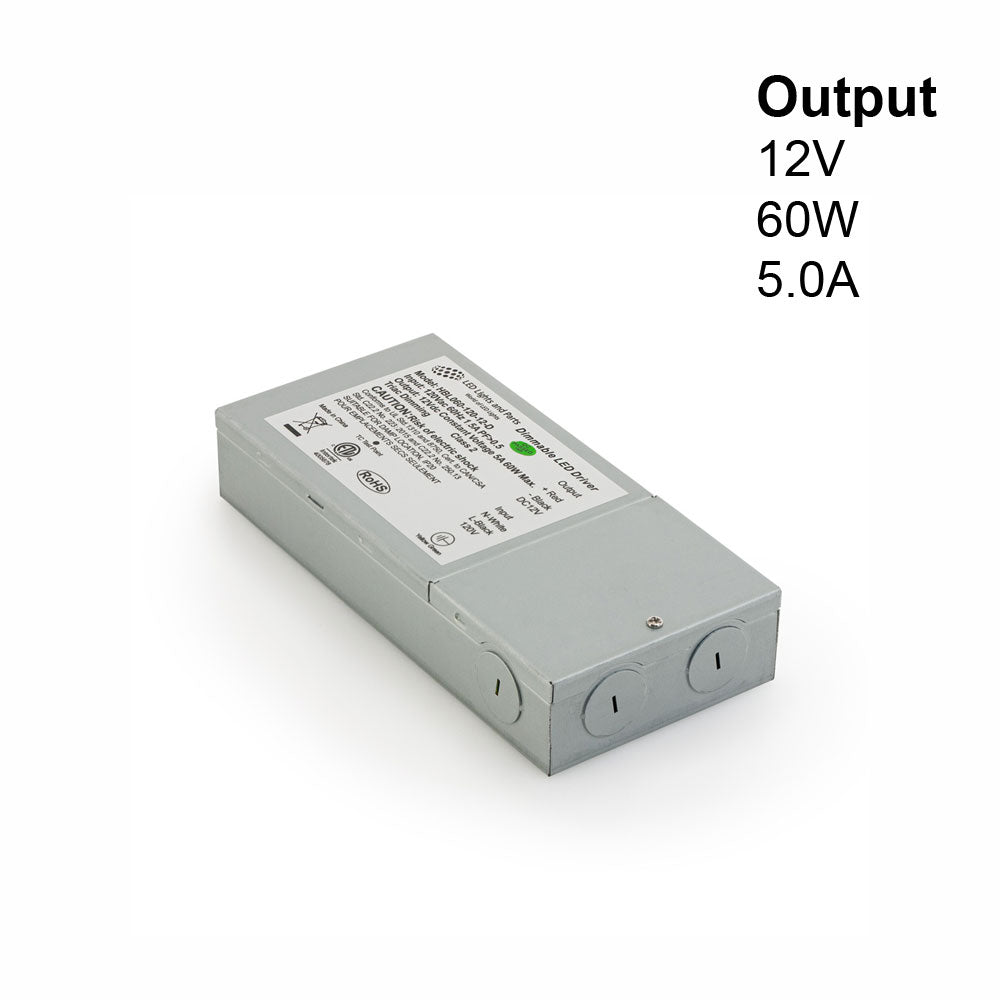

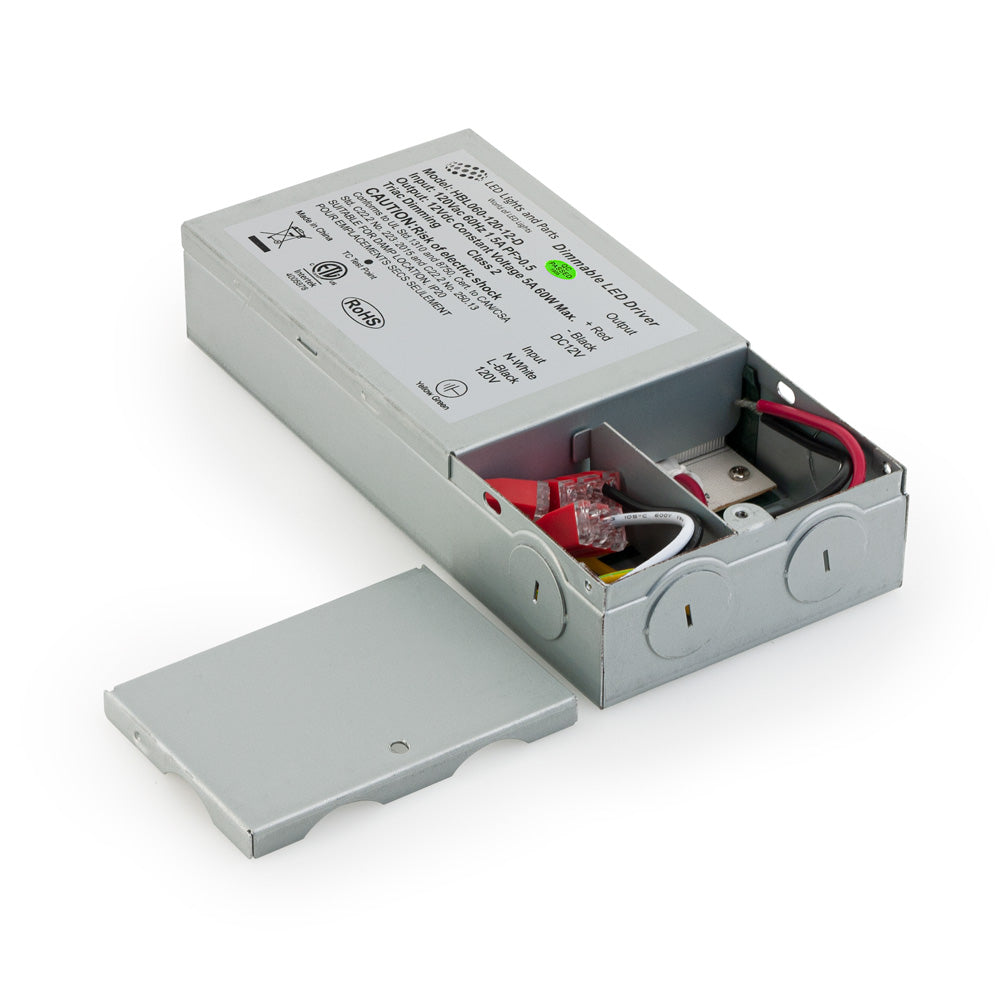

HBL060-120-12-D Metal Case Constant Voltage LED Driver 12V 5A 60W
Product Description
| Model | HBL060-120-12-D |
| Input Voltage | 120V AC |
| Input Current | 1.5A |
| Frequency | 60Hz |
| Output Voltage | 12V DC |
| Output regulated Current | 5A |
| Power Factor | >0.5 |
| Output Power | 60W max |
| Dimmable | Yes (Triac dimming) |
| Class Certification | Class 2 |
| IP Rating | IP20 |
| Dimensions | 203.2 x 85 x 35mm (8 x 3.5 x 1.4in) |
| Certifications |

|
| Applicable for Dry and Damp locations |
Features:
- Metal case constant voltage LED driver
- Model: HBL060-120-12-D
- Input voltage: 120V AC, input current: 1.5A, frequency: 60Hz
- Output voltage: 12V DC, output regulated current: 5A
- Power factor: >0.5, indicating moderate power efficiency
- Maximum output power: 60W
- Triac dimming control
- Class 2 certified for electrical safety
- IP20 rated for indoor use only
- Compact dimensions: 203.2 x 85 x 35mm (8 x 3.5 x 1.4in)
- ETL certified, meeting relevant safety standards.
