Product Description
| Model No | OTM-W60-36-F |
| Input Voltage | 100-277V AC |
| Input Current | 0.86A |
| Input Frequency | 50-60 Hz |
| Output Voltage | 36V DC |
| Output Current | 1.6A |
| Wattage | 60W |
| Dimmable | Yes (0-10 Dimming) |
| IP Rating | IP67 (Dry, Damp, and Wet Locations) |

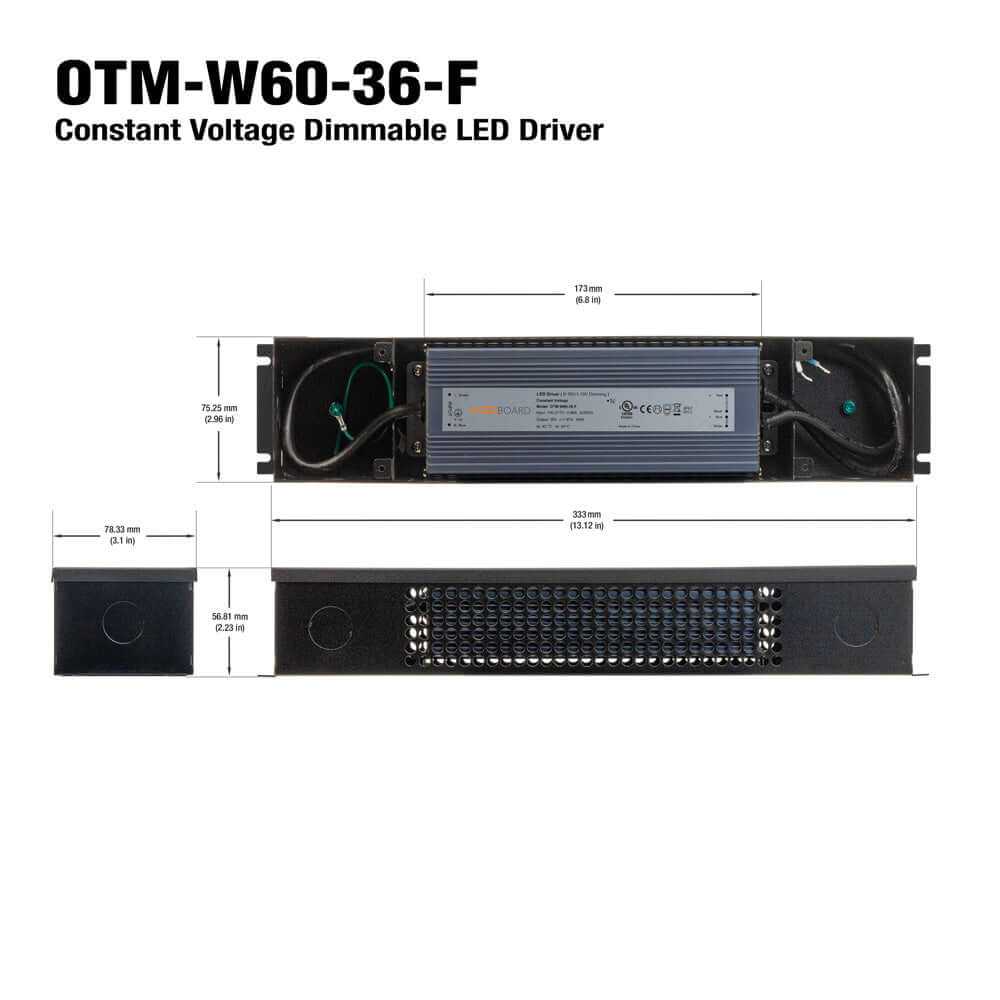

| Dimensions | 333 x 78.33 x 56.81mm (13.12 x 3.1 x 2.23in) |
| Ambient Temperature(Ta) | 40℃ |
| Case Temperature(Tc) | 85℃ |
| Certifications |   |

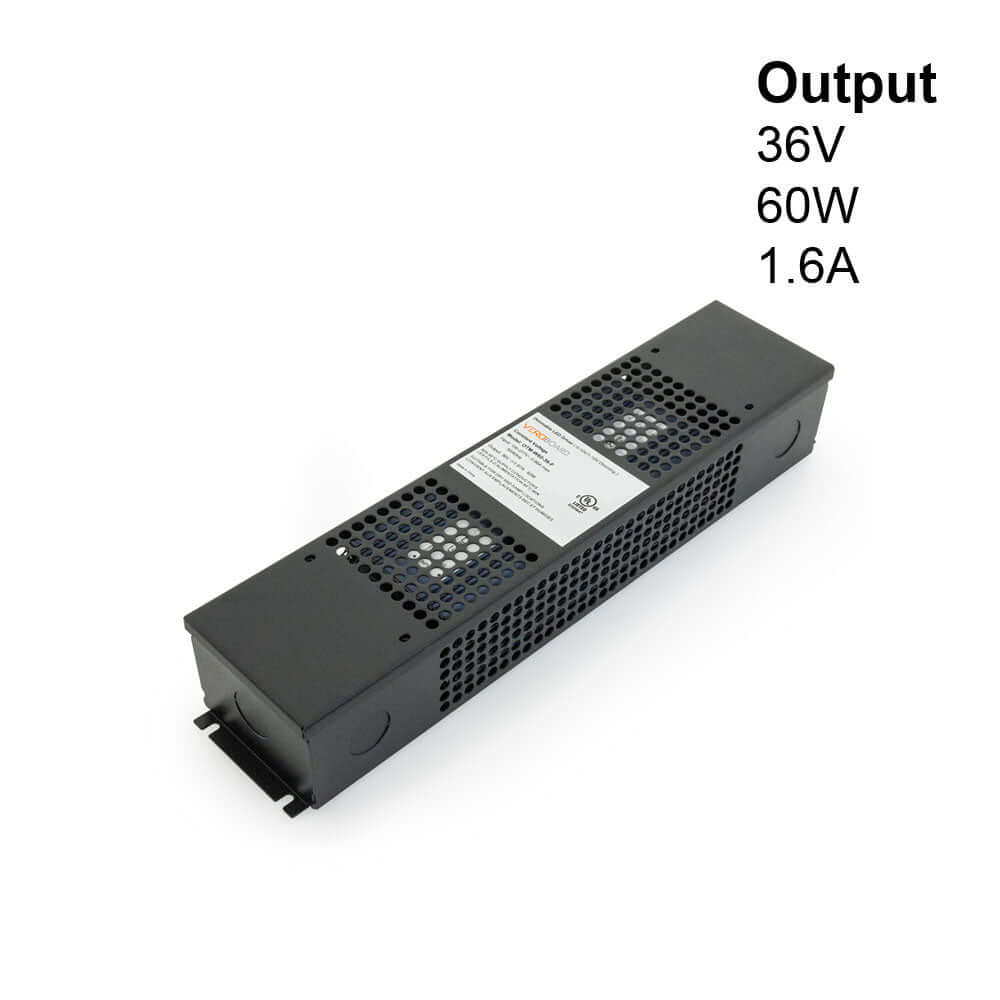

The OTM-W60-36-F is a 60W LED driver with an input voltage range of 100-277V AC and input current of 0.86A. It operates at an input frequency of 50-60 Hz and provides a constant output voltage of 36V DC and output current of 1.6A.
This LED driver is dimmable with 0-10V dimming capability and has an IP67 rating, which makes it suitable for use in dry, damp, and wet locations. The dimensions of the driver are 333 x 78.33 x 56.81mm (13.12 x 3.1 x 2.23in), and it has an ambient temperature rating of 40℃ and a case temperature rating of 85℃.
Overall, the OTM-W60-36-F LED driver is designed for use in a wide range of applications, such as indoor and outdoor lighting, commercial lighting, and architectural lighting, where a reliable and high-performance LED driver is required.
Features:
- 60W LED driver with input voltage range of 100-277V AC and input current of 0.86A
- Provides constant output voltage of 36V DC and output current of 1.6A
- Dimmable with 0-10V dimming capability
- IP67 rating makes it suitable for use in dry, damp, and wet locations
- Dimensions: 333 x 78.33 x 56.81mm (13.12 x 3.1 x 2.23in)
- Ambient temperature rating of 40℃ and case temperature rating of 85℃ for reliable operation in various environments
- Designed for use in indoor and outdoor lighting, commercial lighting, and architectural lighting applications
- Provides high-performance and reliable LED driver solution.
