Product Description

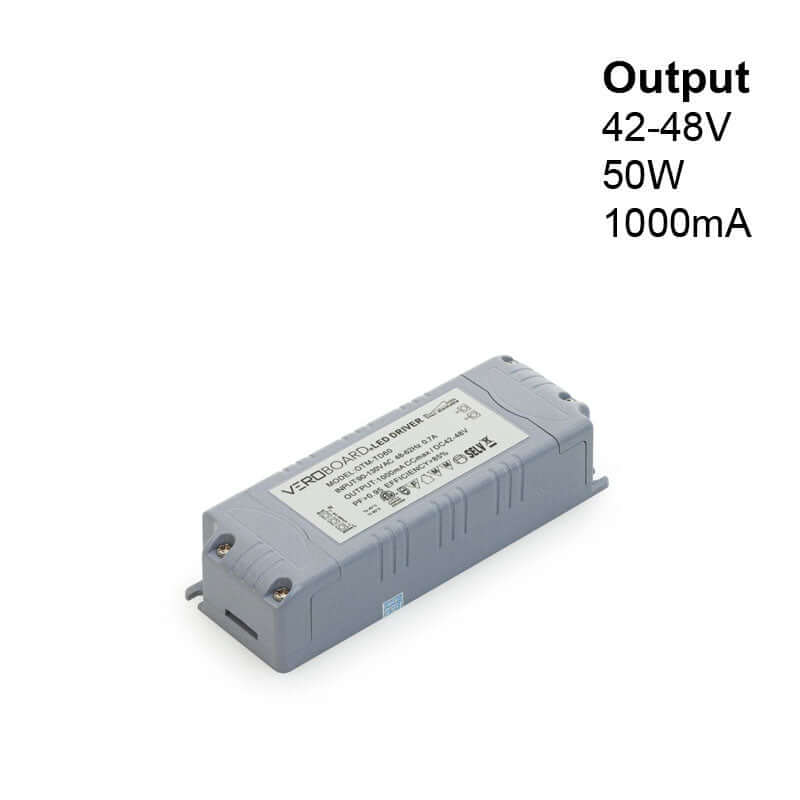

Product	Constant Current LED Driver
Model	OTM-TD60
Input Voltage	90-130V AC
Input Current	0.7A
Input Frequency	48-62Hz
Power Factor	PF>0.95
Efficiency	>85%
Output Regulated Current	1000mA
Output Power	50W
Output Voltage	42-48V DC
Dimmable	Yes (Triac Dimming)
Ambient Temperature (Ta)	40°C
Case Temperature (Tc)	80°C
IP Rating	IP20 (Indoor use only)

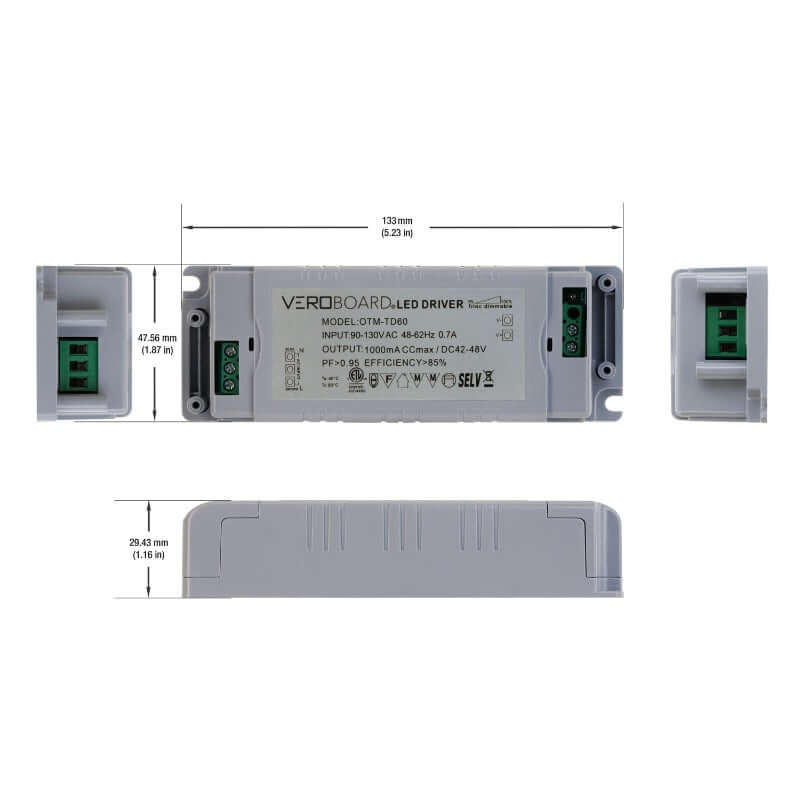

Dimensions	133 x 47.5 x 29.4 mm (5.2 x 1.8 x 1.1 in)
Class Certification	Class II
Certification

The OTM-TD60 is a constant current LED driver that provides a regulated current of 1000mA and an output power of 50W. It has an input voltage range of 90-130V AC and an input current of 0.7A. The input frequency ranges from 48-62Hz, and the driver has a power factor greater than 0.95, ensuring high efficiency.

The output voltage range is 42-48V DC, and the driver is dimmable with Triac dimming, allowing users to adjust the brightness of the LEDs as desired. The driver has an efficiency rating greater than 85%, ensuring that it operates at maximum efficiency, reducing energy consumption and costs.

The driver has an IP20 rating, indicating that it is suitable for indoor use only, and it operates at an ambient temperature of up to 40°C, with a maximum case temperature of 80°C. The driver has a compact size of 133 x 47.5 x 29.4 mm, making it easy to install and integrate into LED lighting fixtures.

The OTM-TD60 is classified as Class II, which means it has two levels of insulation and is suitable for use in applications where protection against electric shock is necessary. Overall, the OTM-TD60 is an efficient and reliable constant current LED driver suitable for a wide range of indoor LED lighting applications.

Features:

• The OTM-TD60 is a constant current LED driver
• Provides a regulated current of 1000mA and an output power of 50W
• Input voltage range of 90-130V AC and an input current of 0.7A
• Input frequency ranges from 48-62Hz, and the driver has a power factor greater than 0.95
• Output voltage range is 42-48V DC
• Dimmable with Triac dimming, allowing users to adjust the brightness of the LEDs as desired
• Efficiency rating greater than 85%, ensuring that it operates at maximum efficiency, reducing energy consumption and costs
• IP20 rating, suitable for indoor use only
• Operates at an ambient temperature of up to 40°C, with a maximum case temperature of 80°C
• Compact size of 133 x 47.5 x 29.4 mm, making it easy to install and integrate into LED lighting fixtures
• Classified as Class II, suitable for use in applications where protection against electric shock is necessary
• Efficient and reliable constant current LED driver suitable for a wide range of indoor LED lighting applications.

How to Install OTM-TD60 Dimming Constant Current LED Driver?

1. Ensure that the power is turned off.
2. Verify the output current of both the light and the driver.

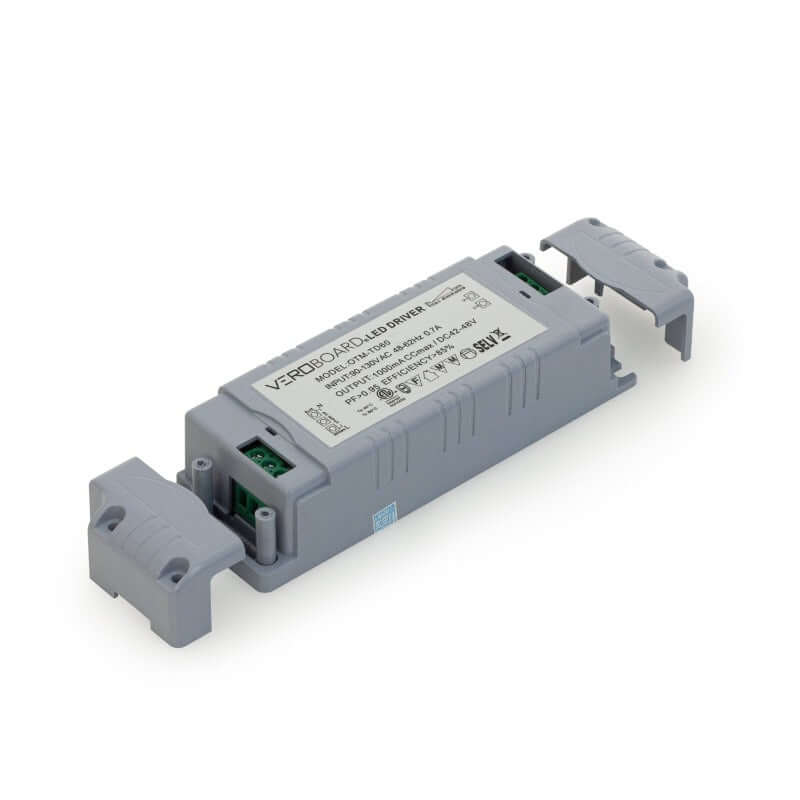

3. Remove the caps on both sides and loosen the screws on the green terminals.
4. Attach the AC wires to the terminals labeled Line (L) and Neutral (N).
5. Connect the positive wire of the light to V+ and the negative wire to V-.
