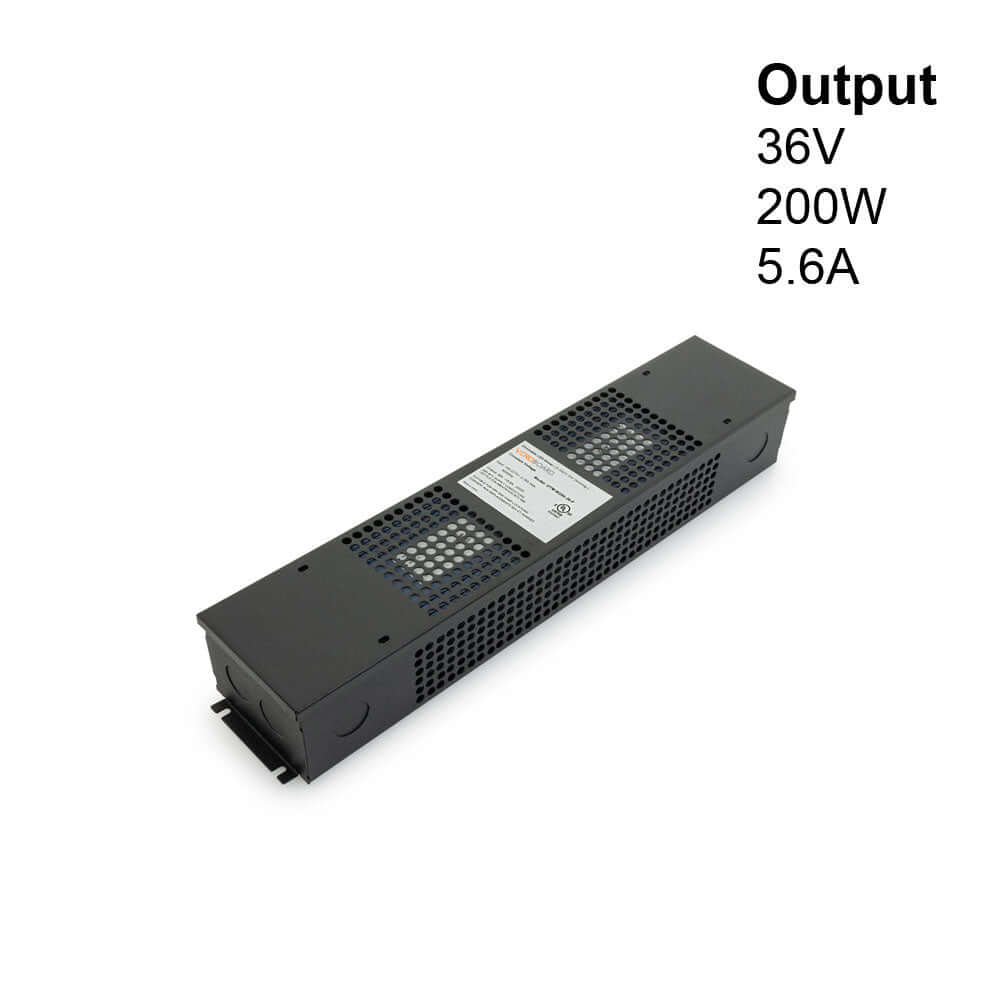

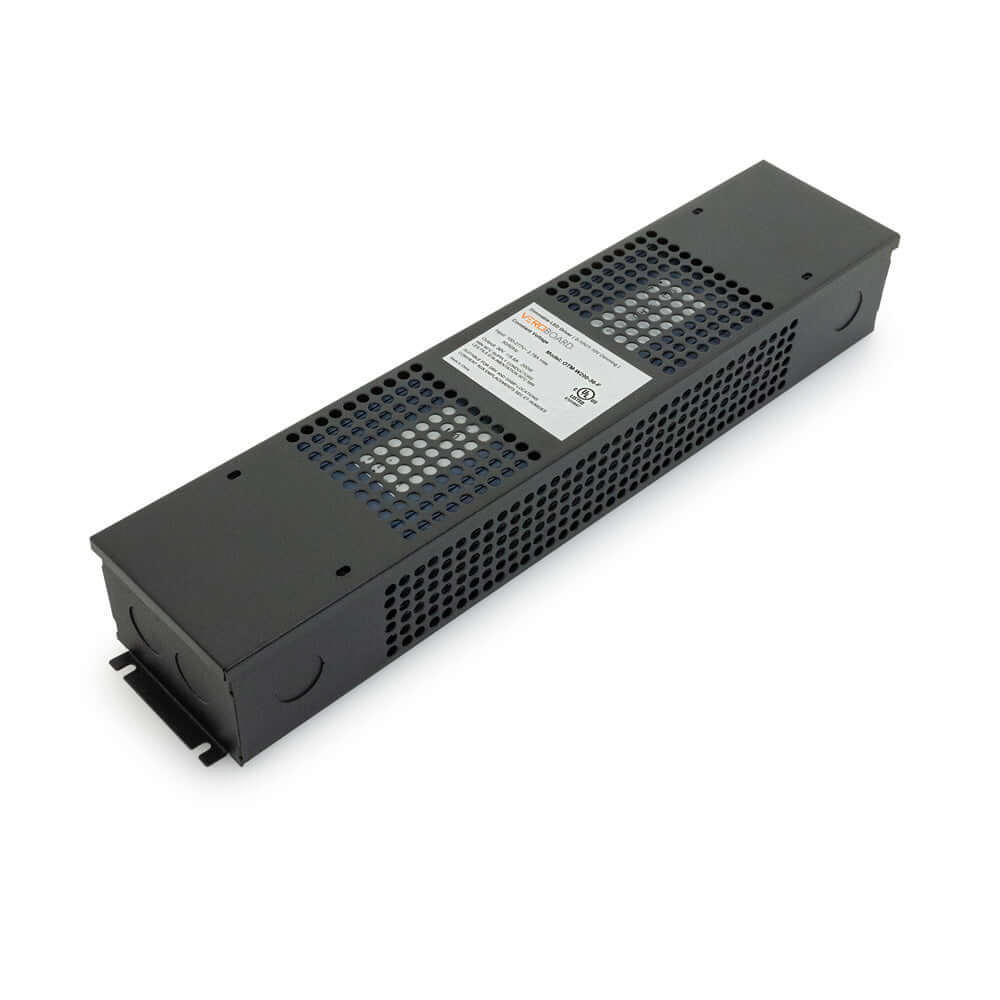

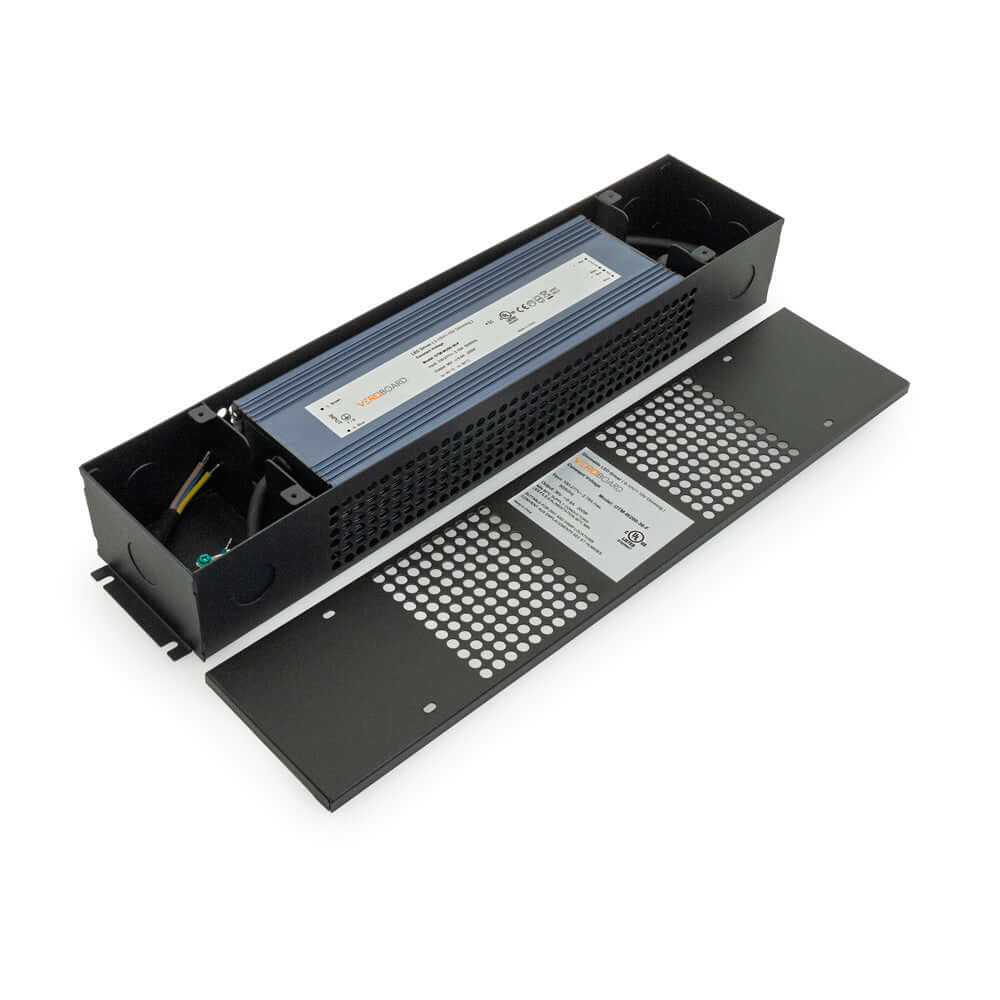

OTM-W200-36F Constant Voltage 0-10V Dimming LED Driver 36V 200W
OTM-W200-36F Constant Voltage 0-10V Dimming LED Driver 36V 200W
OTM-W200-36F Constant Voltage 0-10V Dimming LED Driver 36V 200W

OTM-W200-36F Constant Voltage 0-10V Dimming LED Driver 36V 200W

LED Lights and Parts

Shipping calculated at checkout.
SKU: 666561430344
We only have 30 left! Get it now before it's completely gone.

FREE Shipping over $49 USD (Canada and US Only)

Tags: 0-10V dimming 110-277V 200W 36V Constant Voltage dimmable IP67


Product Description

Model No OTM-W200-36-F
Input Voltage 100-277V AC
Input Current 2.78A
Input Frequency 50-60 Hz
Output Voltage 36V DC
Output Current 5.6A
Wattage 200W
Dimmable  Yes (0-10 Dimming)
IP Rating IP67 (Dry, Damp, and Wet Locations)

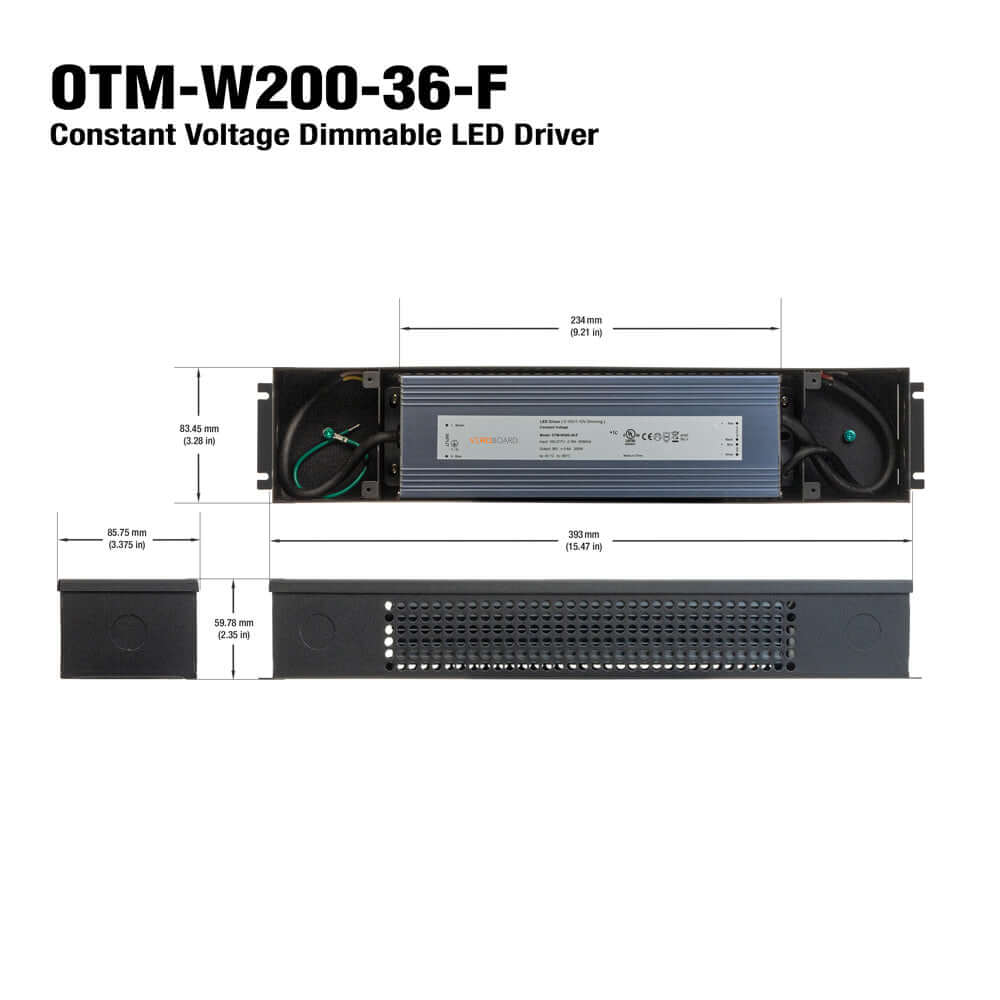

Dimensions 393 x 85.75 x 59.78mm (15.47 x 3.3 x 2.35in)
Ambient Temperature(Ta) 40℃
Case Temperature(Tc) 85℃
Certifications
