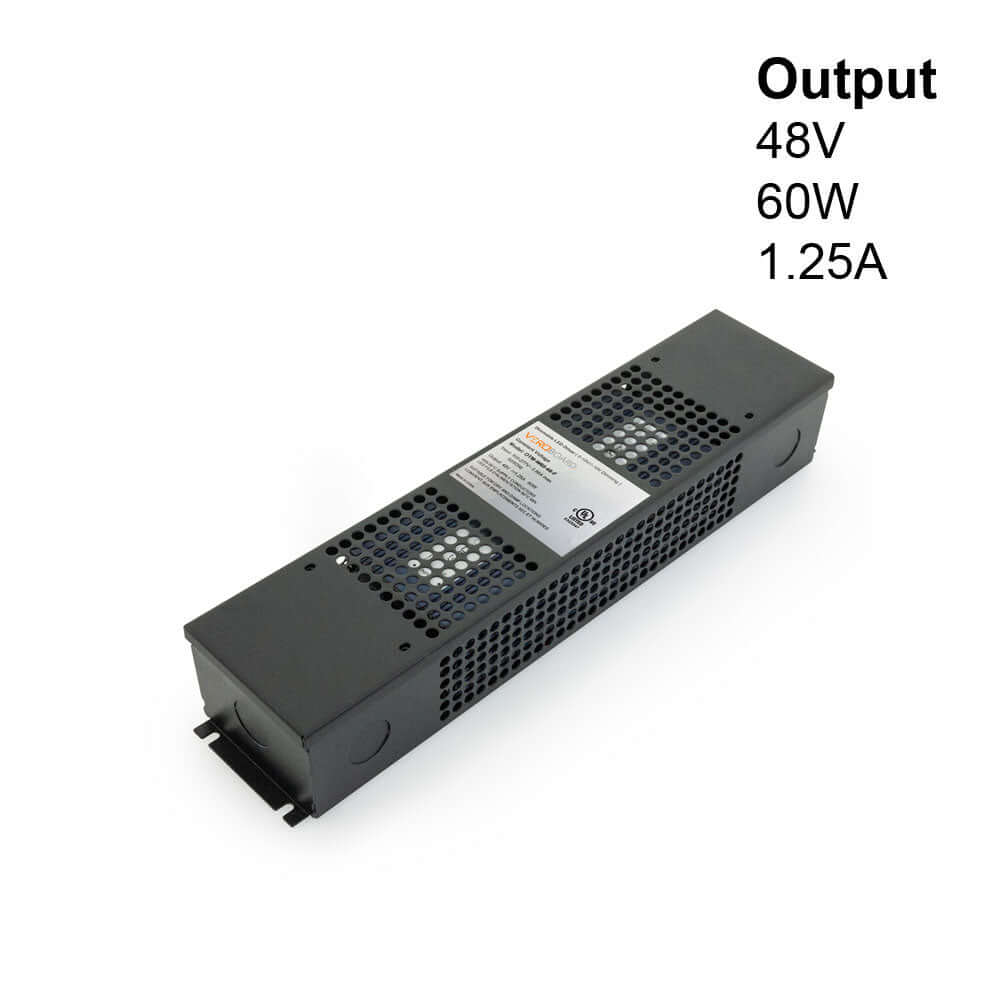

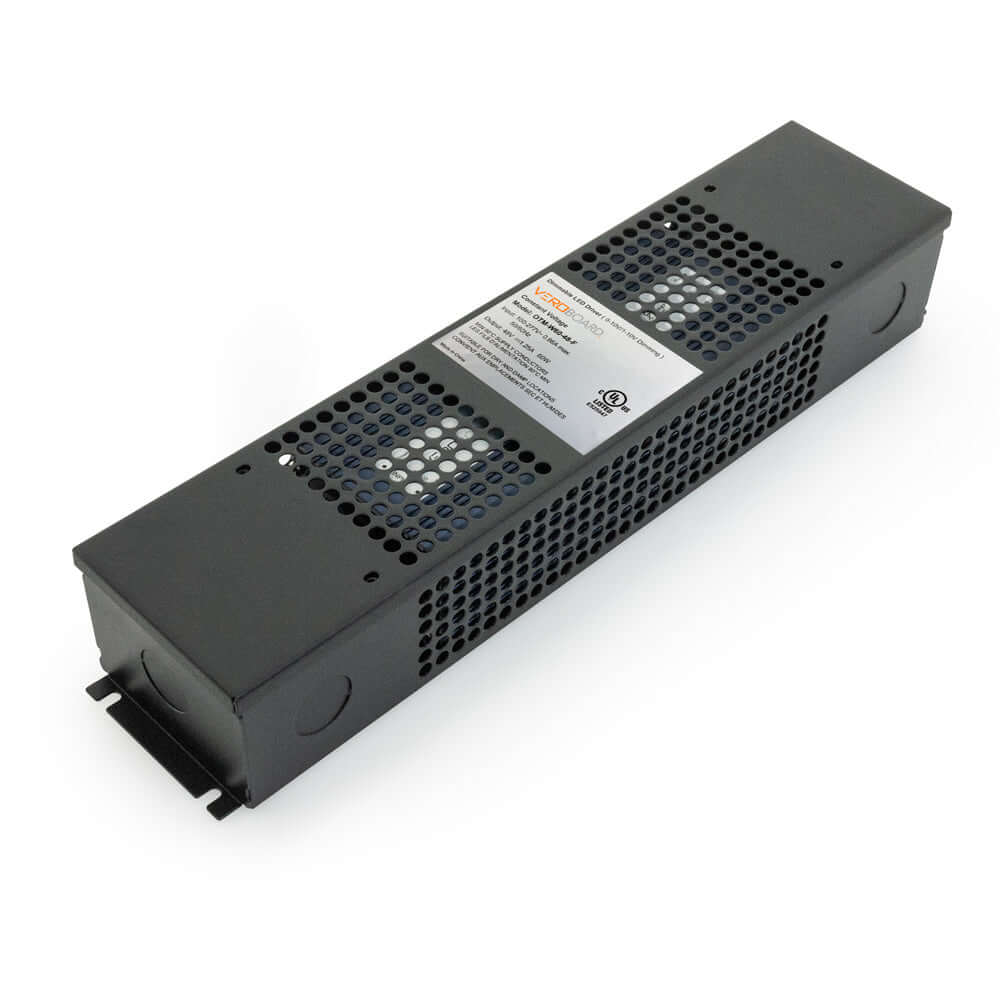

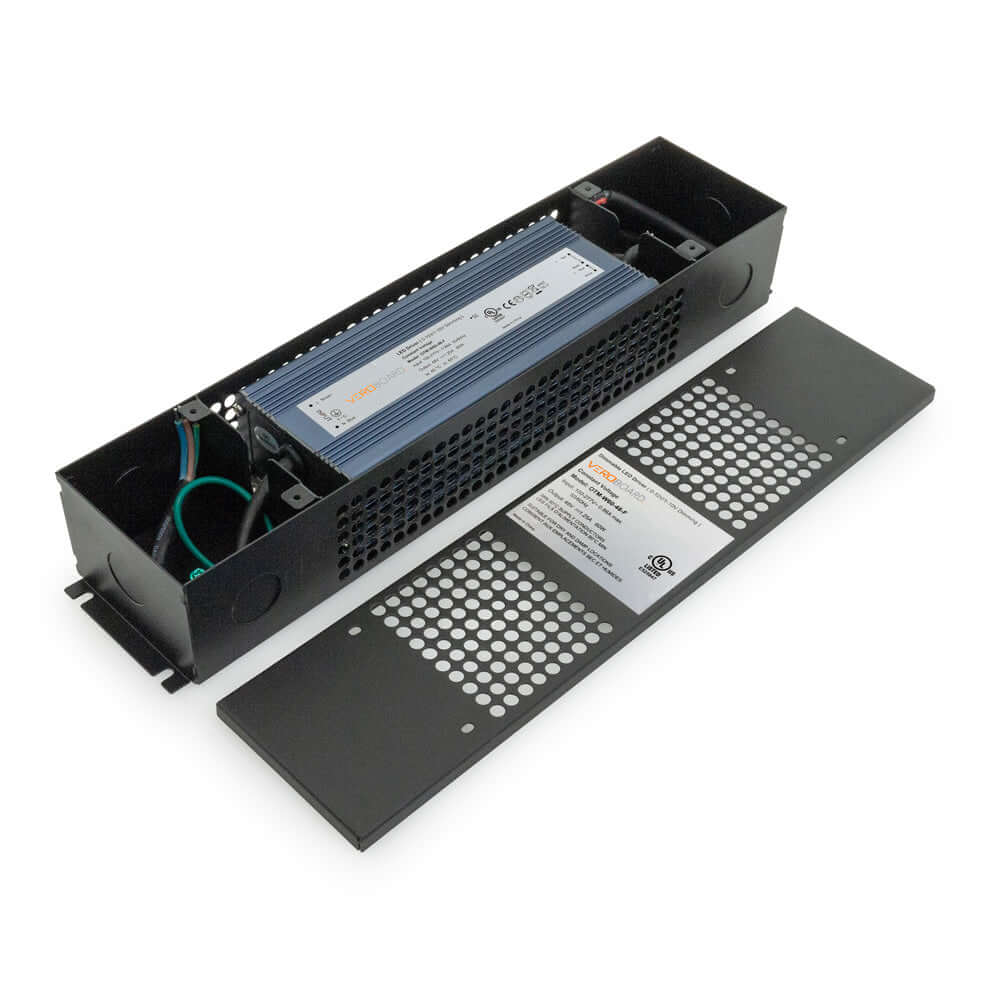

OTM-W60-48-F 0-10V Dimming Constant Voltage LED Driver 48V 60W
OTM-W60-48-F 0-10V Dimming Constant Voltage LED Driver 48V 60W
SKU: SKU:666561430313
Free Shipping
Free Shipping
- Get free shipping on purchases over $99!
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our product?
GekPower will ship via the most reliable and time-efficient courier available depending on the location of the delivery.
Customers may provide GekPower with their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at the time of checkout.
How do we calculate the shipping cost?
Our prices are based on US dollars and are as follows:
Free Shipping
For orders totalling $99 USD or above.
Free shipping is Not available for specific products; please check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Product shipping costs are charged based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority you selected at checkout. All orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Any orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
- All returned products must be in new, resellable condition and in original packaging to be accepted as a valid return or exchange.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Two week processing time.
- To Return any product, make sure to use USPS for the United States, Other shipping companies are NOT acceptable.
- To submit a request for a return or exchange, please email sales@gekpower.com
Return Duty Charge:
- The customer is responsible for any duty charges incurred on a returned product by the carrier, if applicable.
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or customs issues, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25
Product Description
| Model No | OTM-W60-48-F |
| Input Voltage | 100-277V AC |
| Input Current | 0.86A |
| Input Frequency | 50-60 Hz |
| Output Voltage | 48V DC |
| Output Current | 1.25A |
| Wattage | 60W |
| Dimmable | Yes (0-10 Dimming) |
| IP Rating | IP67 (Dry, Damp, and Wet Locations) |

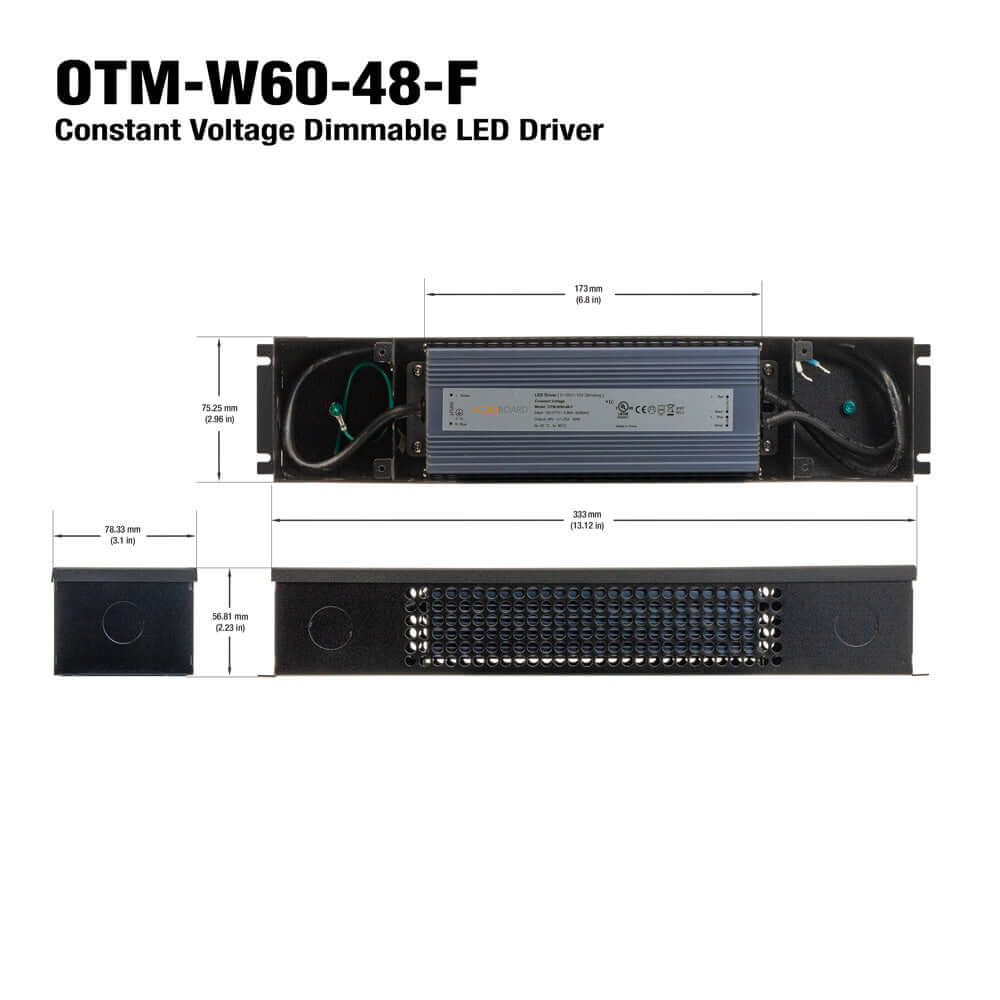

| Dimensions | 333 x 78.31 x 56.81mm(13.12 x 3.1 x 2.23in) |
| Ambient Temperature(Ta) | 40℃ |
| Case Temperature(Tc) | 85℃ |
| Certifications |   |
The OTM-W60-48-F is a 60W LED driver that provides a constant voltage output of 48V DC and output current of 1.25A. It is designed with a 0-10V dimming function, allowing for precise control of the brightness level of the connected LED lights.
The LED driver is capable of operating with input voltages ranging from 100-277V AC, and input current of 0.86A at a frequency of 50-60 Hz. It is rated IP67, making it suitable for use in dry, damp, and wet locations. The dimensions of the driver are 333 x 78.31 x 56.81mm (13.12 x 3.1 x 2.23in).
With an ambient temperature rating of 40℃ and a case temperature rating of 85℃, this LED driver is capable of operating reliably in a wide range of environments. It is also certified by UL and CE, indicating compliance with relevant safety and performance standards.
Overall, the OTM-W60-48-F LED driver is a high-performance and versatile solution for powering LED lights in a wide range of applications, including indoor and outdoor lighting, architectural lighting, and commercial lighting.
Features:
- 60W LED driver with constant voltage output of 48V DC and output current of 1.25A
- Designed with 0-10V dimming function for precise control of brightness level
- Input voltage range: 100-277V AC, input current: 0.86A at 50-60 Hz frequency
- Rated IP67 for use in dry, damp, and wet locations
- Dimensions: 333 x 78.31 x 56.81mm (13.12 x 3.1 x 2.23in)
- Ambient temperature rating of 40℃ and case temperature rating of 85℃ for reliable operation in a wide range of environments
- UL and CE certified for compliance with safety and performance standards
- Suitable for indoor and outdoor lighting, architectural lighting, and commercial lighting applications.
