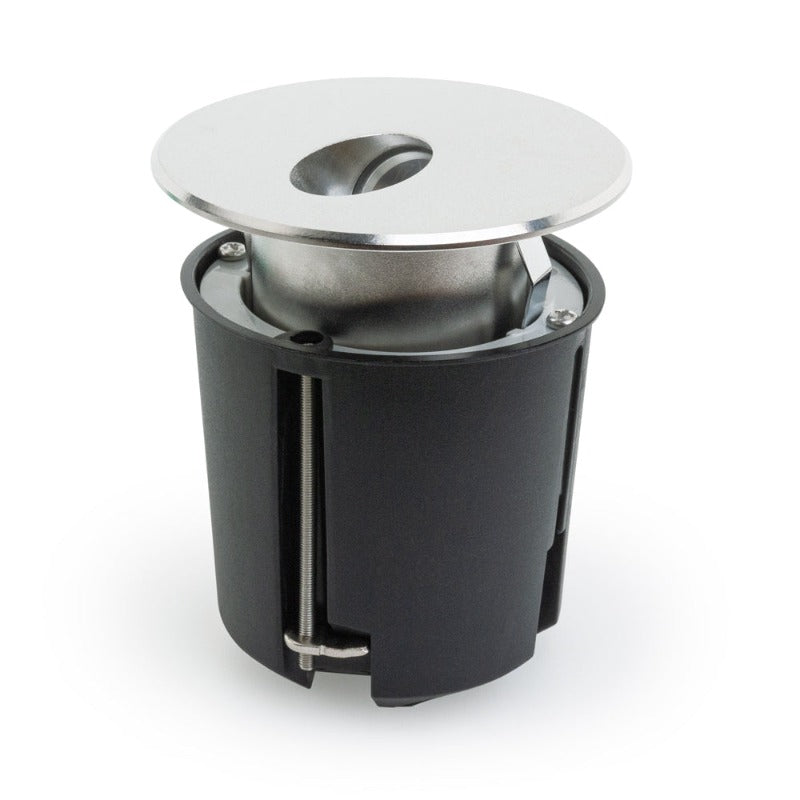

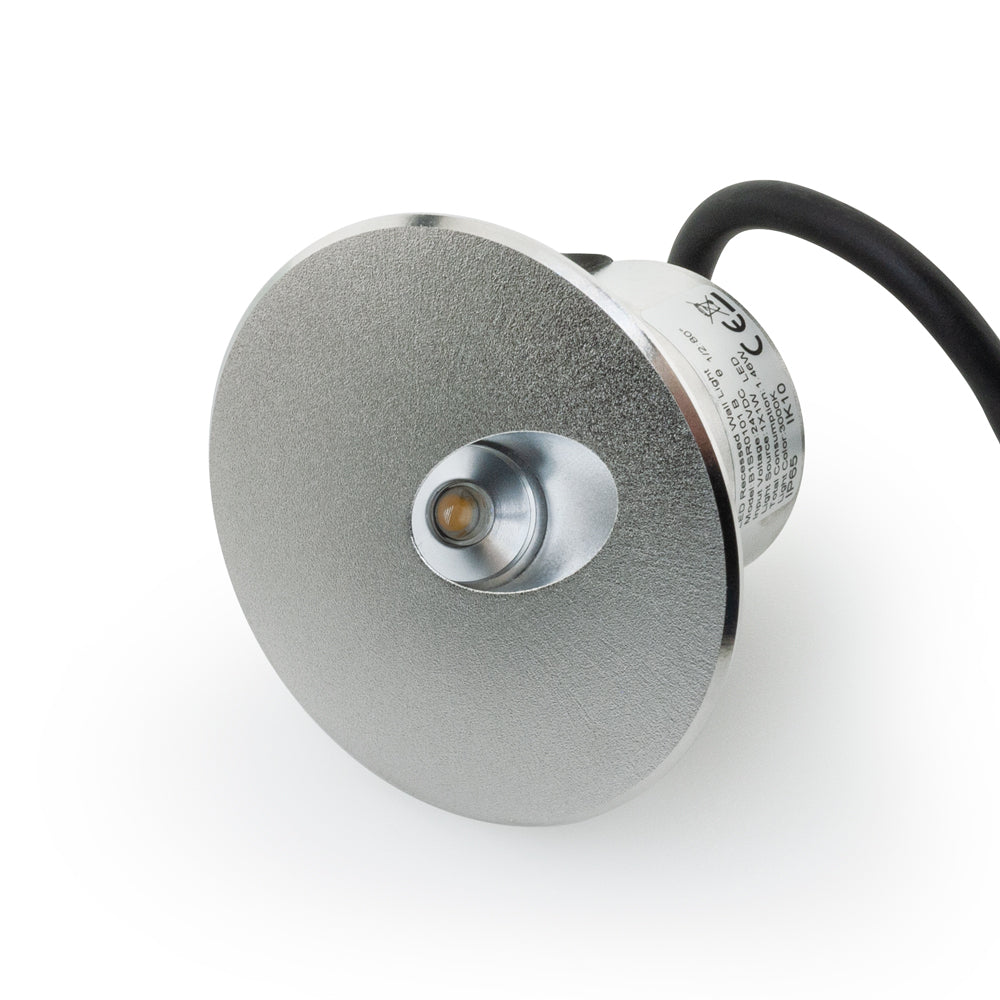

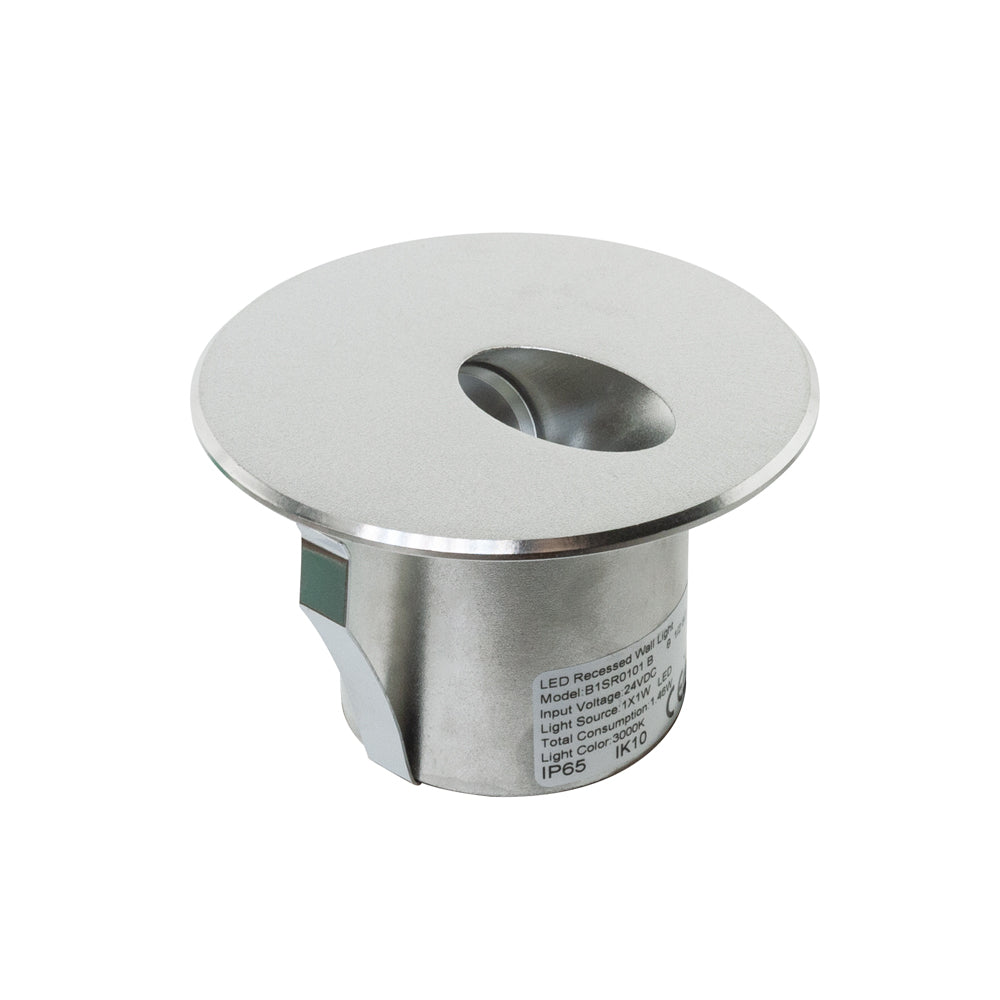

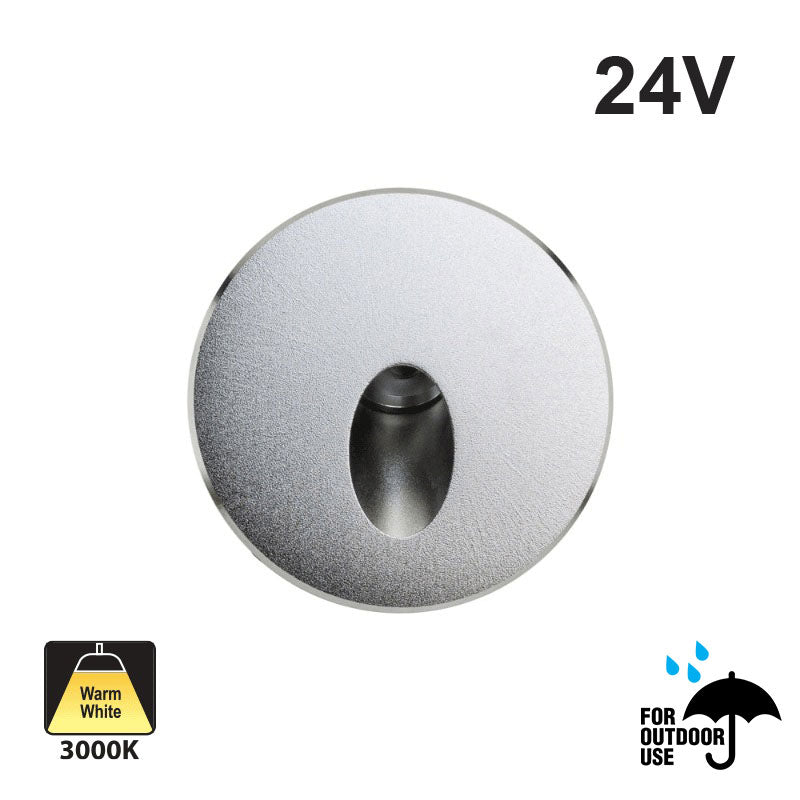

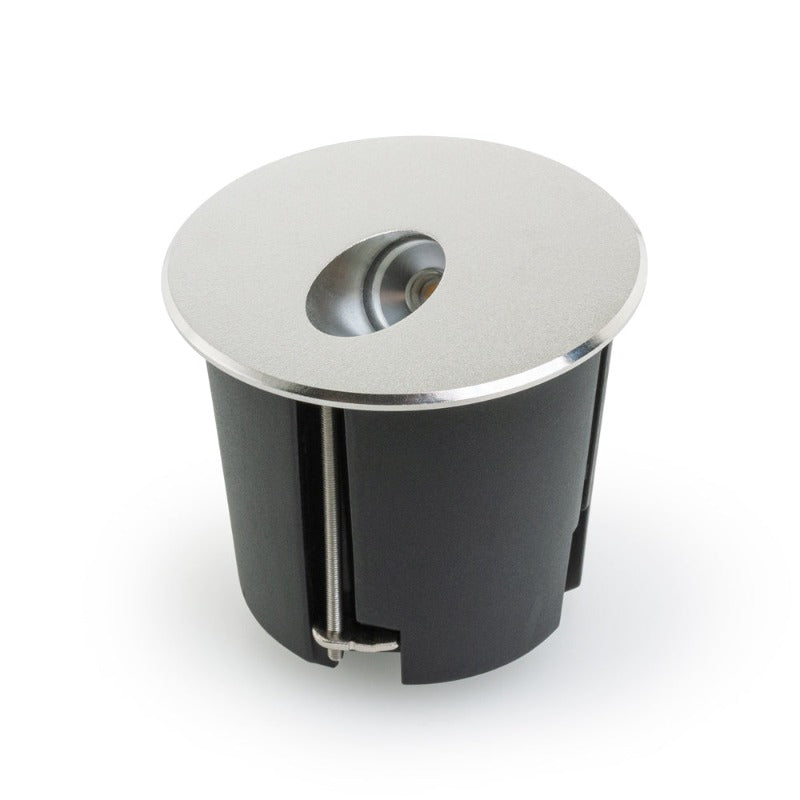

B1SR0101B Outdoor Recessed Step Light/ Pathway Light and Wall light, 24V 1.46W 3000K(Warm White)
Product Description
Product | Step Light/ Pathway Light/ Wall light |
Model | B1SR0101B |
Operating Voltage | 24V DC |
Light Source |
1x1W |
Total Power Consumption | 1.46W |
Color Temperature | 3000K (Warm White) |
Bulb Type | Integrated LED |
Housing | Molding shaped stainless-steel SUS 316 |
front Cover | Brushed Nickel |
Beam Angle | 80° |
IP Rating | IP65 (Outdoor Rated) |
IK Rating | IK09 |
Dimensions without Housing
|
Diameter – 80 mm (3.15 inches) |
Dimensions with Housing |
Overall Diameter – 80 mm (3.15 inches) |
Certification |
The B1SR0101B is a versatile outdoor lighting solution that can be used as a step light, pathway light, or wall light. It operates on a 24 V DC voltage and has a total power consumption of 1.46W, utilizing an integrated LED bulb that produces warm white light at a color temperature of 3000K.
The light fixture is made of molded stainless-steel SUS 316 housing with a brushed nickel front cover, providing excellent corrosion resistance and high-temperature strength. The unidirectional in-ground downlight has an 80° beam angle, making it suitable for lighting steps and walkways without being overly distracting.
The B1SR0101B has an IP65 rating, meaning it can withstand harsh weather conditions and is resilient to being stepped upon. It has an IK09 rating, which means it has a high level of resistance to impact.

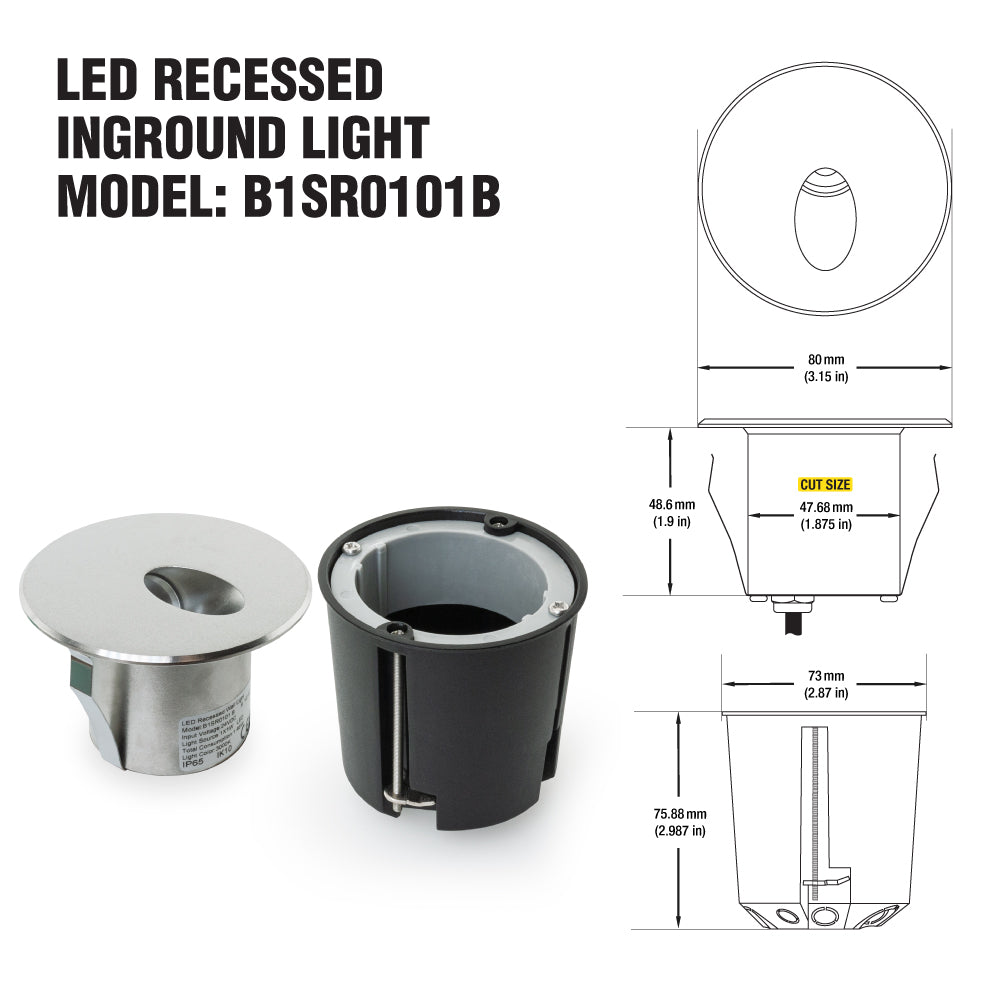

The light fixture measures 80mm in diameter and has a depth of 48.6mm without housing, while with the housing, it measures 78.56mm in overall height and has a depth of 75.88mm. The cut size for installation is 73mm. It is certified by ETL, indicating it meets North American safety standards.
Overall, the B1SR0101B is a durable and functional lighting solution that is ideal for outdoor applications, such as lighting steps, walkways, and decks, and can withstand various weather conditions.
Features:
- The B1SR0101B is a versatile outdoor lighting solution that can be used as a step light, pathway light, or wall light.
- It operates on a 24 V DC voltage and has a total power consumption of 1.46W, utilizing an integrated LED bulb that produces warm white light at a color temperature of 3000K.
- The light fixture is made of molded stainless-steel SUS 316 housing with a brushed nickel front cover, providing excellent corrosion resistance and high-temperature strength.
- It has an 80° beam angle, making it suitable for lighting steps and walkways without being overly distracting.
- The B1SR0101B has an IP65 rating, meaning it can withstand harsh weather conditions and is resilient to being stepped upon. It has an IK09 rating, which means it has a high level of resistance to impact.
- The light fixture measures 80mm in diameter and has a depth of 48.6mm without housing, while with the housing, it measures 78.56mm in overall height and has a depth of 75.88mm. The cut size for installation is 73mm.
- It is certified by ETL, indicating it meets North American safety standards.
- Overall, the B1SR0101B is a durable and functional lighting solution that is ideal for outdoor applications, such as lighting steps, walkways, and decks, and can withstand various weather conditions.
