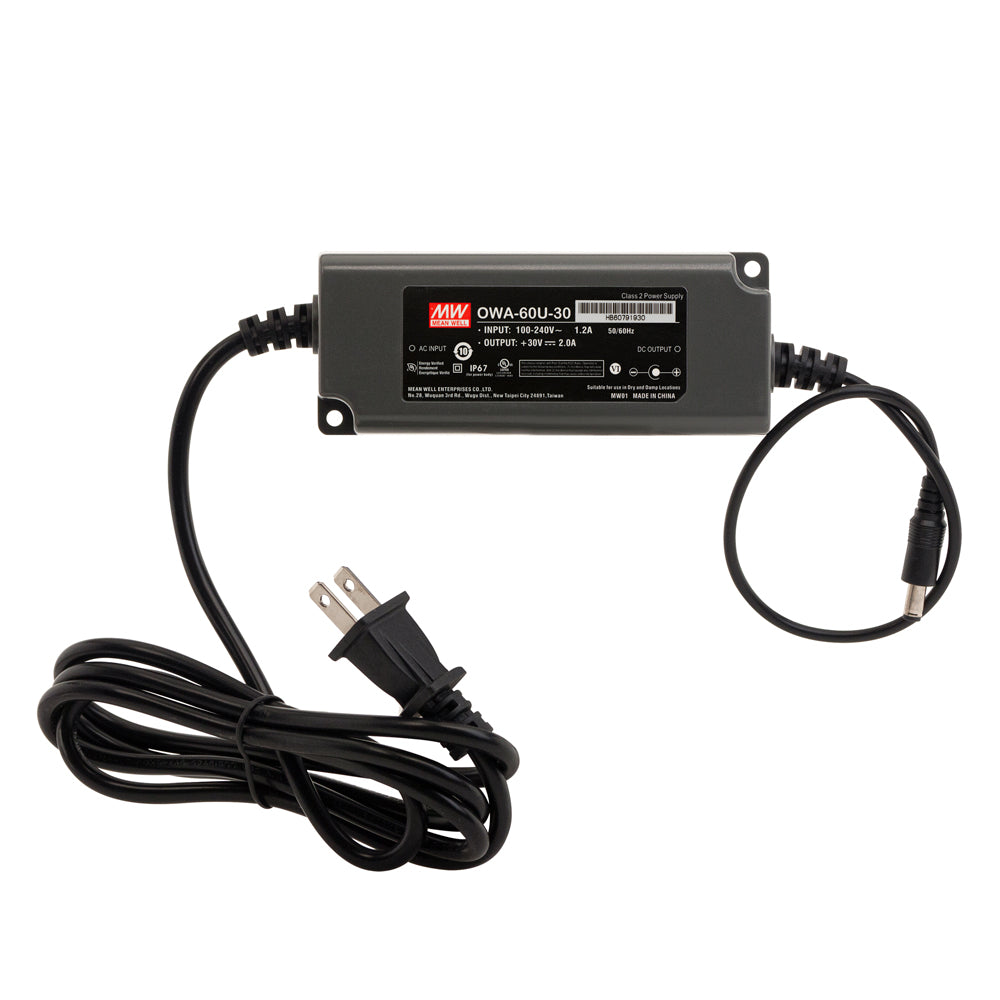

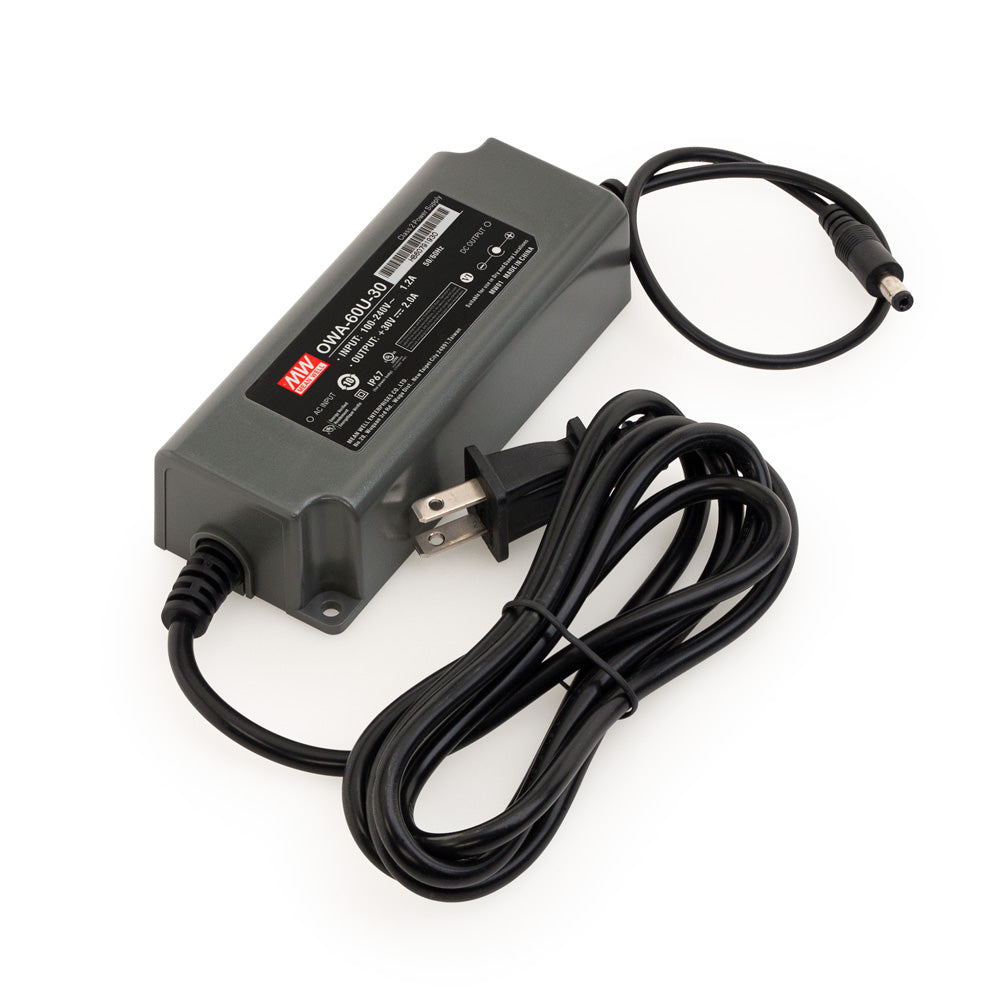

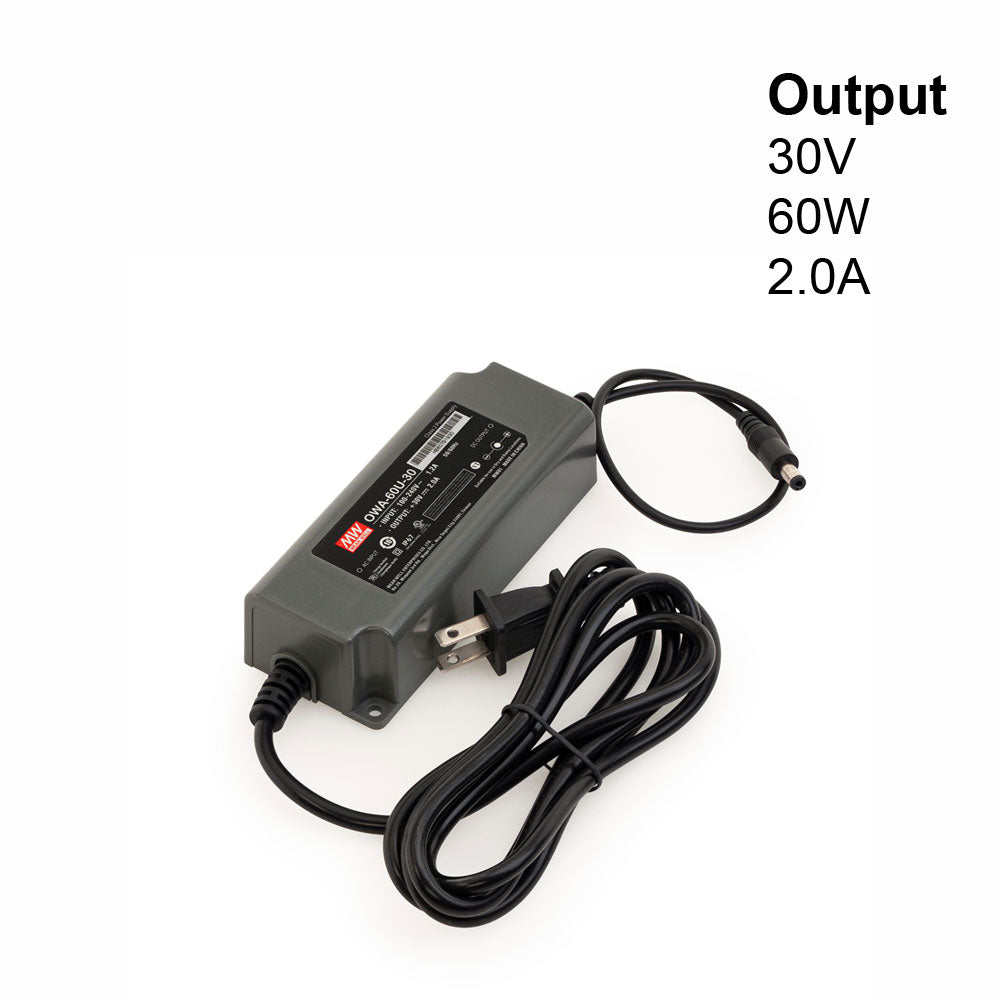

Mean Well OWA-60U-30 Non-Dimmable Constant Current + Constant Voltage LED Driver with Universal Input Voltage

  • $65.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561414641
Title:
We only have 13 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).



Product Description

Model OWA-60U-30
Input Voltage 100-240V AC
Efficiency 91%
Input Current 1.2A
Output Voltage (CV Mode) 30V
Output  Current (CC Mode) 2.0A
Output Power 60W
IP Rating IP67
Dimmable No

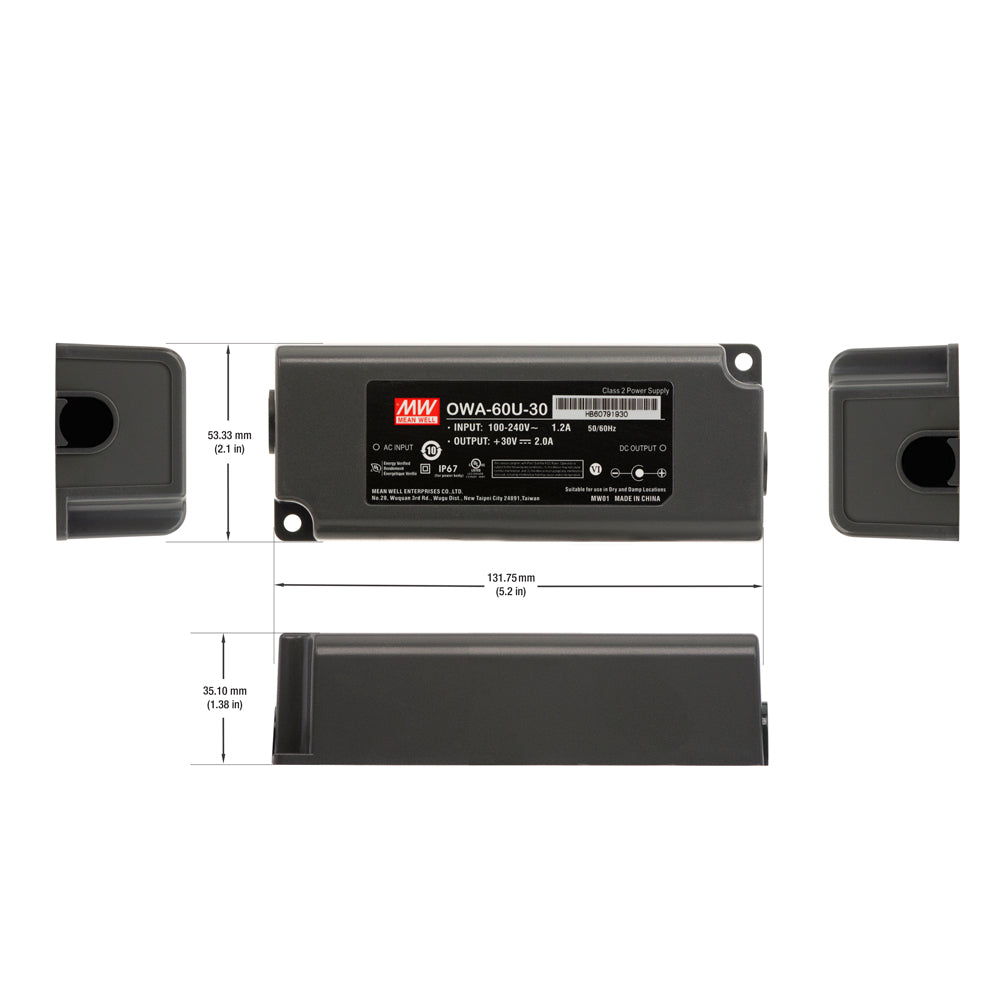

Dimensions 131.7 x 53.3 x 35.1mm
Class Certification Class 2/ Class II
Certification




The Mean Well OWA-60U-30 LED driver is a high-quality and reliable power supply solution for LED lighting applications. It features a universal input voltage range of 100-240V AC, making it suitable for use in a variety of countries and regions.

This driver delivers a constant voltage output of 30V in CV mode and a constant current output of 2.0A in CC mode, providing stable and consistent power to your LED lighting system. It has an efficiency rating of 91%, making it energy-saving and cost-effective.

The Mean Well OWA-60U-30 LED driver is fully protected against short circuit, over current, over voltage, and over temperature, ensuring safe and reliable operation. It has a Class 2/Class II certification and is fully isolated in a plastic case.

Features:

  • Universal input voltage range of 100-240V AC, suitable for use in various countries and regions
  • Constant voltage output of 30V in CV mode and constant current output of 2.0A in CC mode, providing stable and consistent power to your LED lighting system
  • Efficiency rating of 91%, making it energy-saving and cost-effective
  • Fully protected against short circuit, over current, over voltage, and over temperature, ensuring safe and reliable operation
  • Class 2/Class II certification and fully isolated in a plastic case, making it safe to use without a FG
  • Fanless design and cooled by free air convection, making it quiet and low-maintenance
  • IP67 rating, making it suitable for use in dry and damp locations
  • Not dimmable and has dimensions of 131.7 x 53.3 x 35.1mm
  • Overall, a reliable and high-quality power supply solution for LED lighting applications suitable for a wide variety of projects.
