Mean Well OWA-90U-15 Constant Current + Constant Voltage LED Driver with Universal Input Voltage

GekPower

  • $95.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561414573
We only have 8 left! Get it now before it's completely gone.

FREE Shipping over $49 USD (Canada and US Only)


Product Description

Model OWA-90U-15
Input Voltage 100-240V AC
Input Current 1.1A
Efficiency 91%

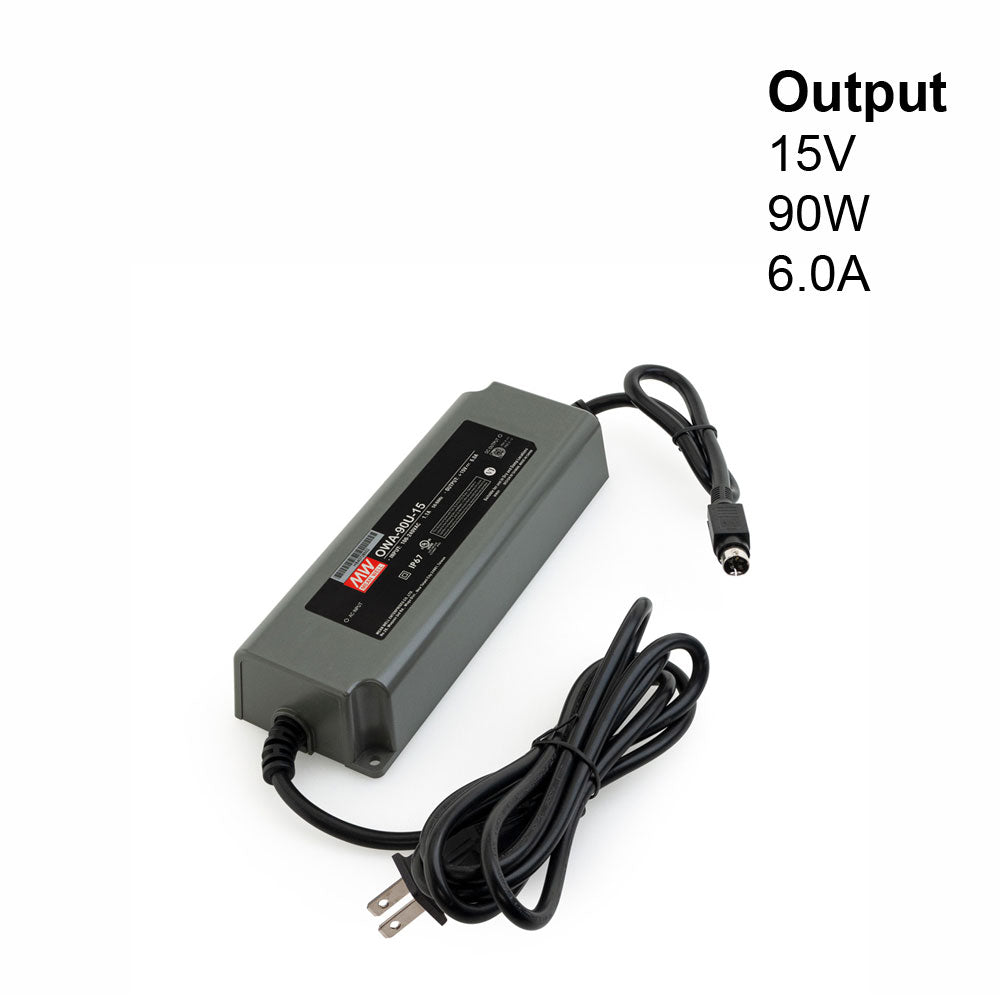

Output Voltage (CV Mode) 15V
Output  Current (CC Mode) 6.0A
Output Power 90W
IP Rating IP67
Dimmable No

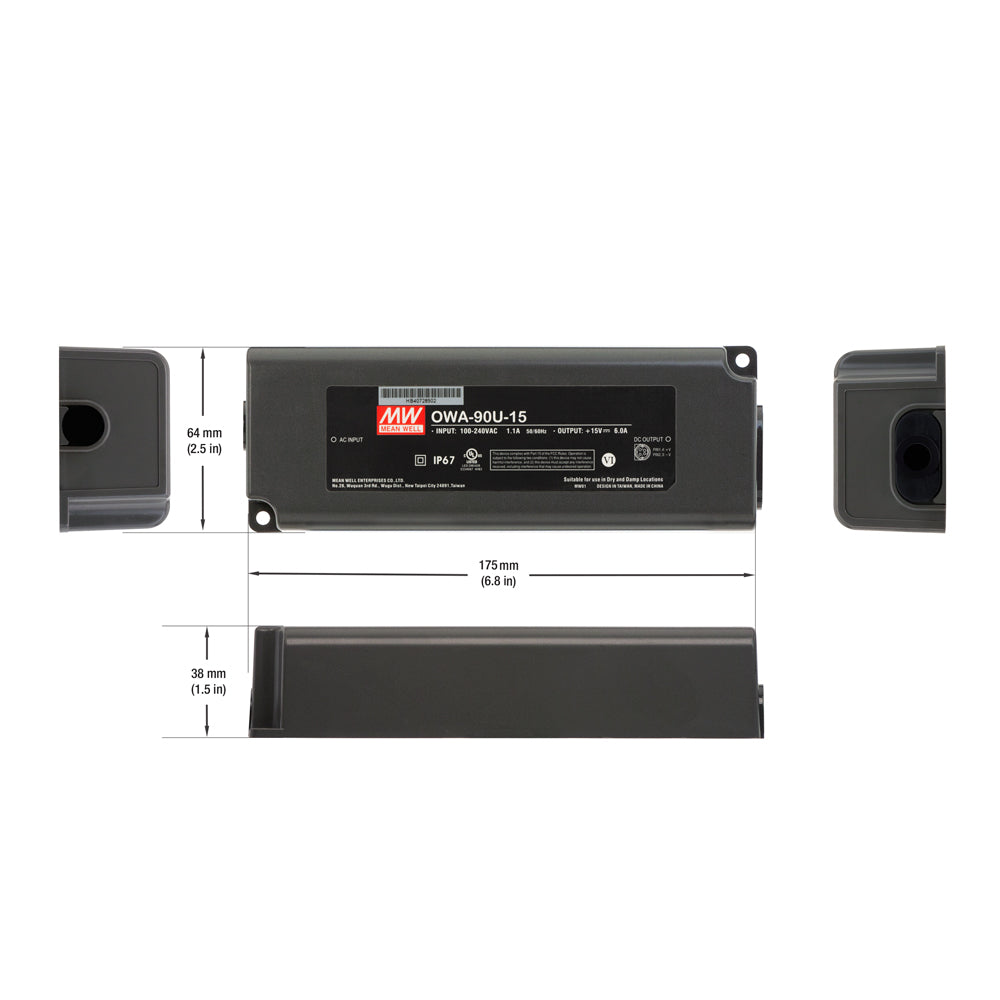

Dimensions 171 x 63 x 37.5mm (6.7 x 2.4 x 1.47 in)
Class Certification Class 2/ Class II
Certification

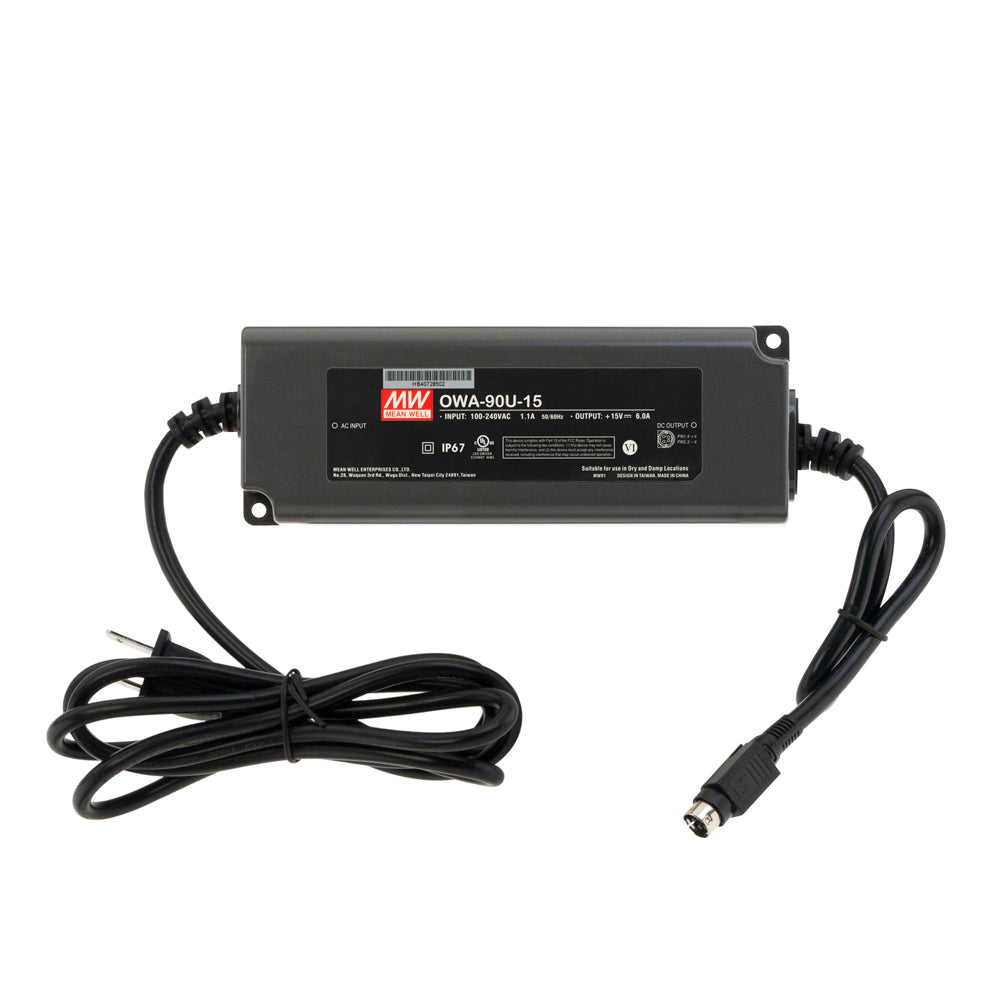

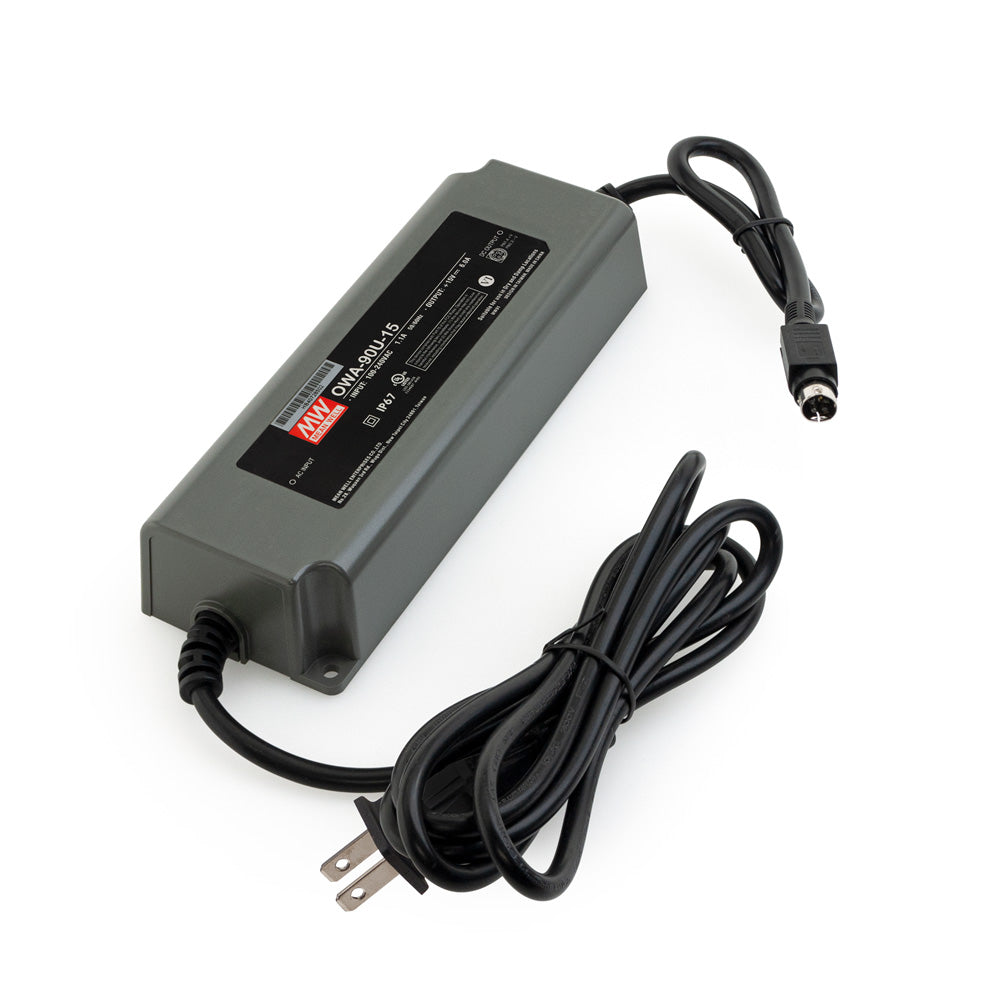

The Mean Well OWA-90U-15 LED driver is a reliable power supply solution for LED lighting applications. With a universal input voltage range of 100-240V AC, it can be used in various countries and regions. This driver delivers a constant voltage output of 15V in CV mode and a constant current output of 6.0A in CC mode, providing stable and consistent power to your LED lighting system. It has an efficiency rating of 91%, making it energy-saving and cost-effective.

The Mean Well OWA-90U-15 LED driver is fully protected against short circuit, over current, over voltage, and over temperature, ensuring safe and reliable operation. It has a Class 2/Class II certification and is fully isolated in a plastic case, making it safe to use without a FG. The Mean Well OWA-90U-15 LED driver has dimensions of 171 x 63 x 37.5mm, making it compact and easy to install.

Overall, the Mean Well OWA-90U-15 LED driver is a high-quality and reliable power supply solution for LED lighting applications, suitable for a wide variety of projects in both dry and damp locations.

Features:

  • Universal input voltage range of 100-240V AC
  • Constant voltage output of 15V in CV mode
  • Constant current output of 6.0A in CC mode
  • Efficiency rating of 91%
  • Fully protected against short circuit, over current, over voltage, and over temperature
  • Class 2/Class II certification and fully isolated in a plastic case
  • Fanless design for quiet and low-maintenance operation
  • IP67 rating for use in dry and damp locations
  • Not dimmable
  • Compact dimensions of 171 x 63 x 37.5mm
