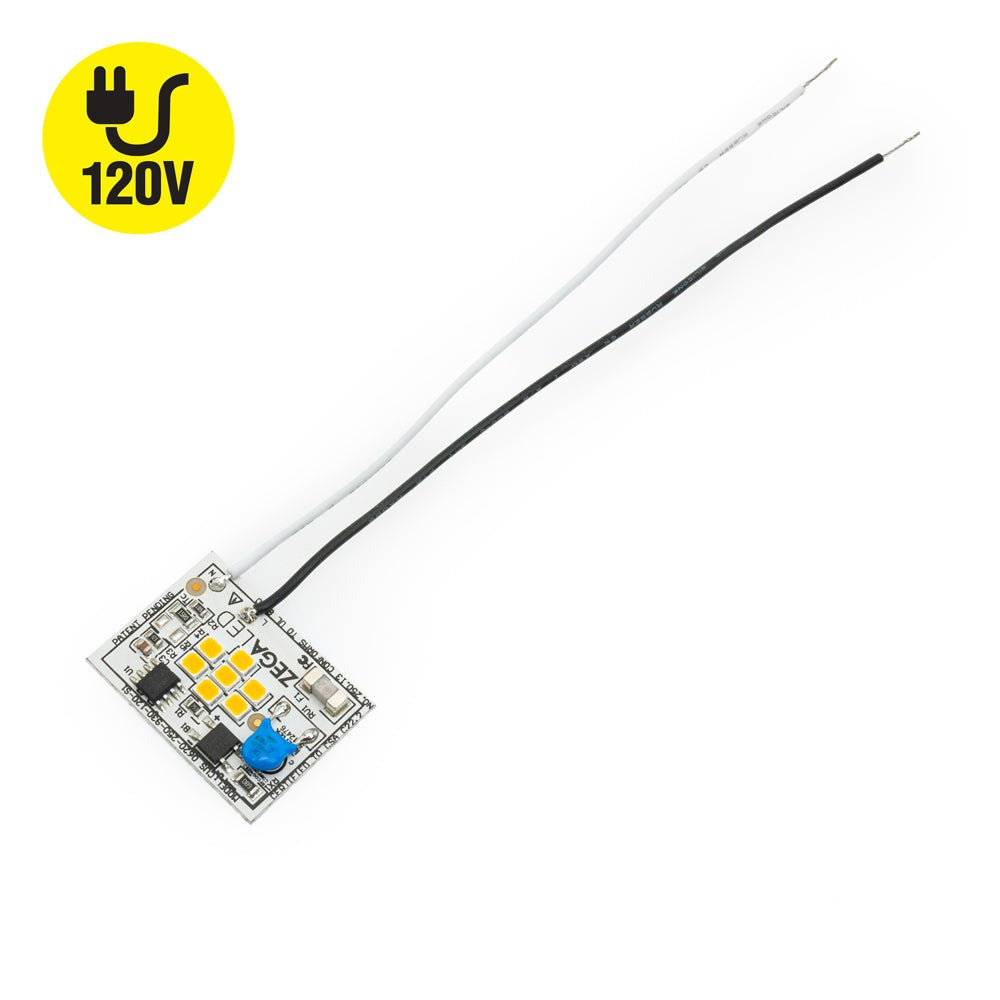

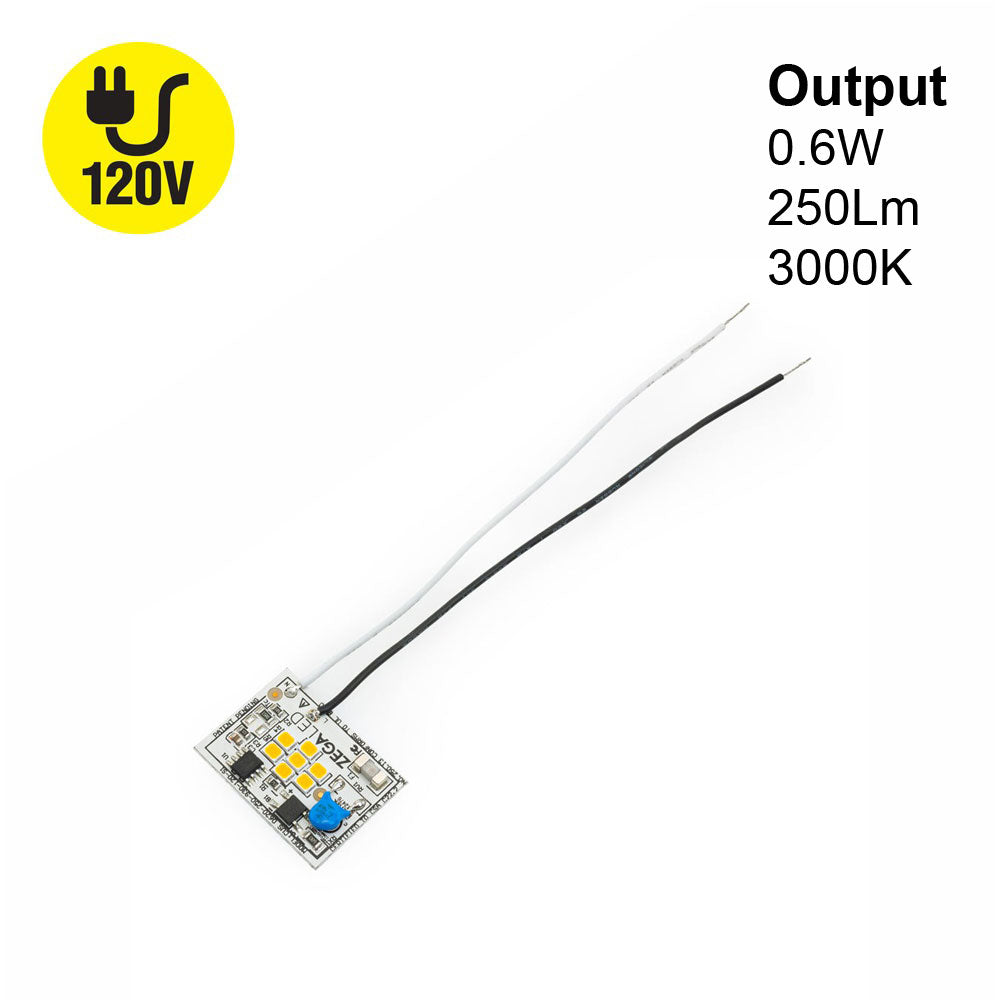

ZEGA LED Module CUS 0620-250-930-120-S1, 120V 0.6W 3000K(Warm White)
|Model No||CUS 0620-250-930-120-S1|
|No of LEDs||7|
|Luminous Flux||250 lumens|
|Color Temperature:||3000K (Warm White)|
|Material||Aluminum (Metallic Base)|
|Package Components||LED Module
6inch Black and White power feed

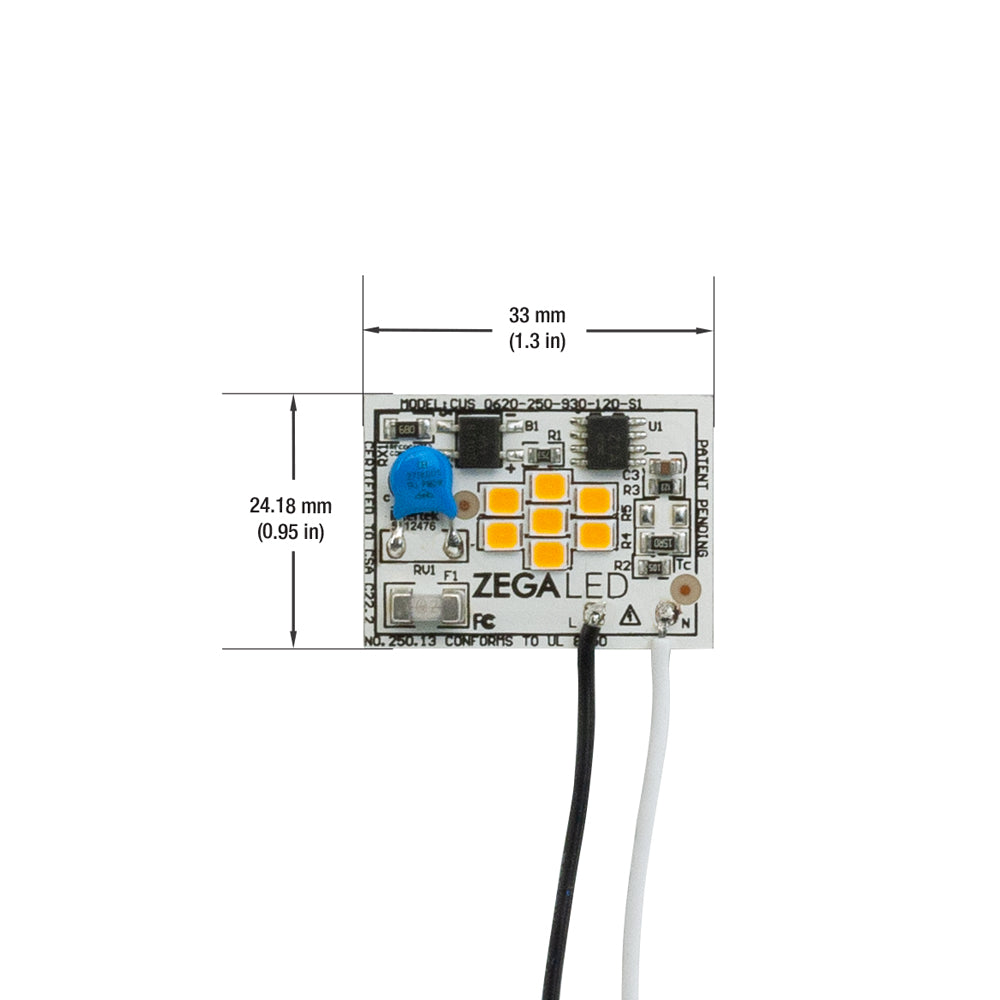

|Outer Diameter||L33 x W24.18 x H5 mm (1.3in x 0.95in x 0.2in)|
The LED Module CUS 0620-250-930-120-S1 by ZEGA is an excellent lighting solution that offers premier quality light engine technology. With 7 high-quality LEDs, it produces up to 250 lumens of exceptional light, making it an ideal choice for DIY projects and the replacement of a ceiling light or bulb source.
This LED Module has a low power consumption of 0.6W and high energy efficiency, which saves on energy costs while providing excellent illumination. The module operates on a voltage of 120V AC and emits warm white light with a color temperature of 3000K.
Constructed with an aluminum (metallic base) material, this LED Module features an aluminum board that eliminates the need for an extra heat sink. Its outer diameter measures 33mm x 24.18mm (1.3in x 0.95in), making it compact and easy to install.
The package components include the LED Module and a 6-inch black and white power feed. The product is etl certified, ensuring it meets high safety and quality standards.
When installing, it is recommended to apply thermal grease evenly on the bottom of the light source and the contact surface of the heat sink to ensure optimal performance.
Overall, the LED Module CUS 0620-250-930-120-S1 by ZEGA is an exceptional lighting solution that offers premier quality light engine technology, low power consumption, and high energy efficiency. It is an ideal choice for DIY projects, replacement of ceiling lights or bulb sources, and general lighting applications.
- Produces up to 250 lumens of exceptional light
- Low power consumption of 0.6W
- High energy efficiency
- Voltage of 120V AC
- Warm white light with a color temperature of 3000K
- Constructed with an aluminum (metallic base) material
- Outer diameter measures 33mm x 24.18mm (1.3in x 0.95in)
- Package includes LED Module and 6-inch black and white power feed
- ETL certified for safety and quality
- A premier quality light engine. It produces up to 250 lumens of exceptional light.
- Low power consumption, high energy efficiency.
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.
- Apply Thermal Grease evenly on the bottom of the light source and the contact surface of the heat sink when installation.
