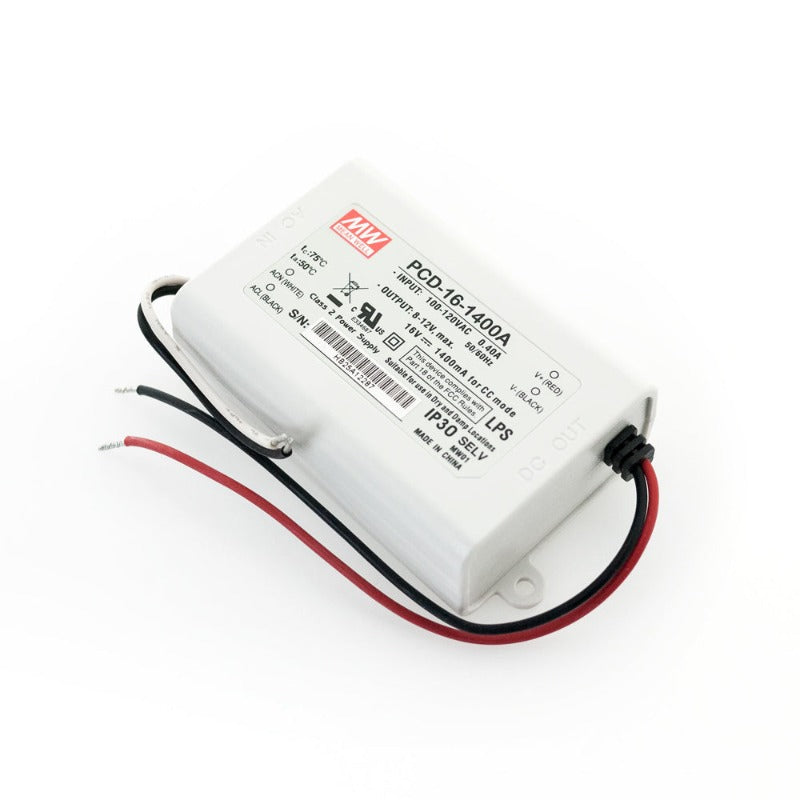

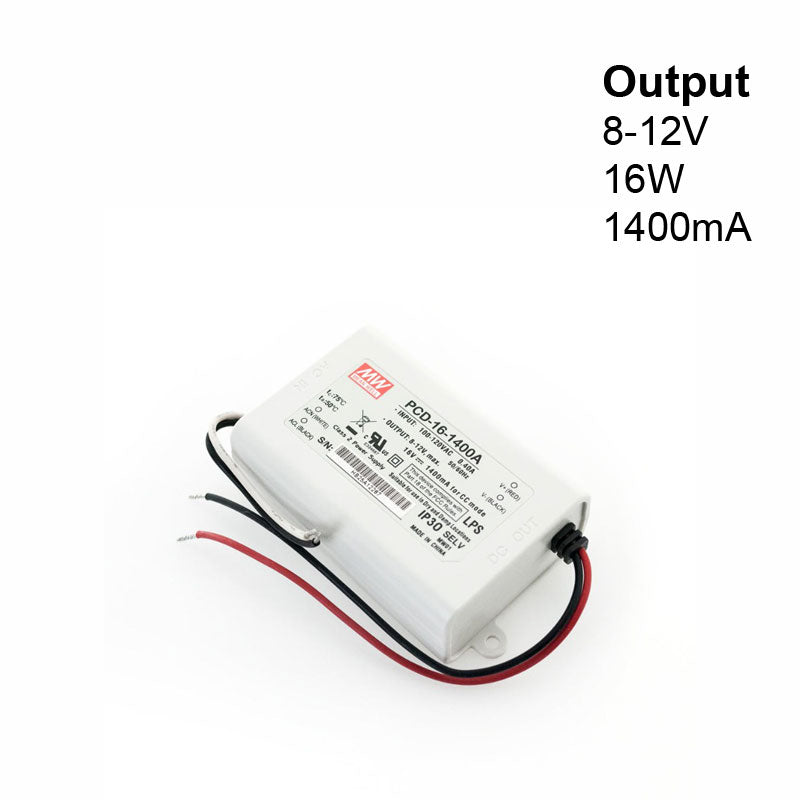

Mean Well PCD-16-1400A Constant Current LED Driver, 1400mA 8-12V 16W

Product Description

Product	Constant Current LED Driver
Model	PCD-16-1400A
Input Voltage	100-120V AC
Input Current	0.40A
Output Voltage	8-12V DC
Output Power	16W
Output Regulated Current:	1400mA
Dimmable	Yes
IP Rating	IP30 (Indoor Rated)

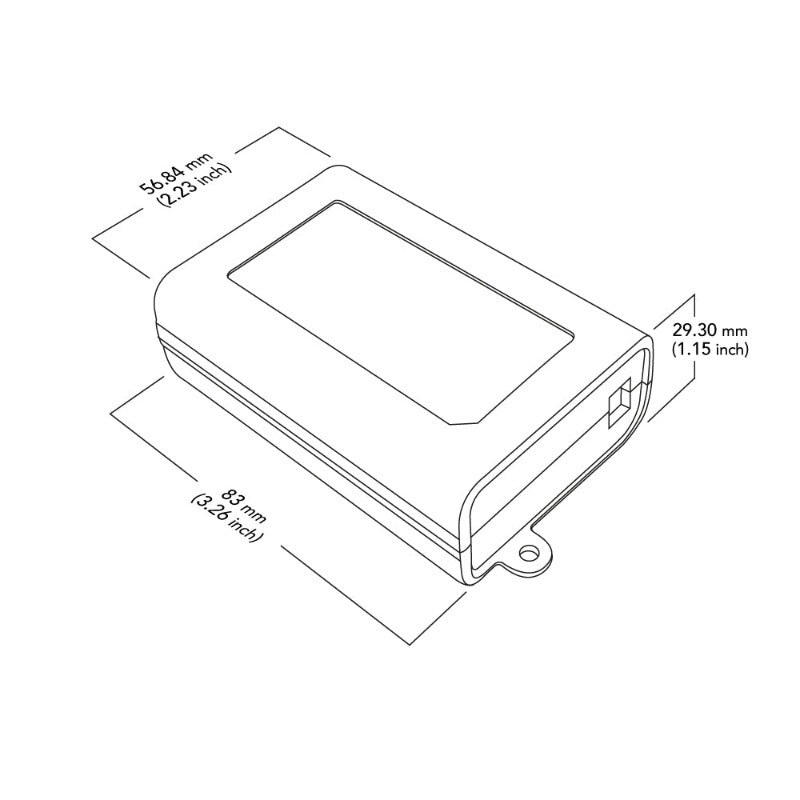

Dimensions	83 x 56.84 x 29.30mm (3.26 x 2.23 x 1.15 in)
Class Certification	Class 2/ Class II
Certification

The Mean Well PCD-16-1400A is a constant current LED driver that provides a regulated power supply to LED lights. It operates within an input voltage range of 100-120V AC, with an input current of 0.40A.

This LED driver has an output voltage range of 8-12V DC, providing a regulated current of 1400mA and an output power of 16W. It is also dimmable, allowing users to adjust the brightness of their LED lights as desired.

The PCD-16-1400A has an IP30 rating, making it suitable for indoor use and protected against dust. Its compact size of 83 x 56.84 x 29.30mm (3.26 x 2.23 x 1.15 in) allows for easy installation and integration into lighting systems.

This LED driver is certified as Class 2/Class II, ensuring safe and reliable operation in lighting applications.
Note: Never use constant voltage driver instead of constant current driver, even if Voltage and mA are equal.

Features:

• The Mean Well PCD-16-1400A is a constant current LED driver for regulated power supply to LED lights.
• Input voltage range: 100-120V AC, input current: 0.40A.
• Output voltage range: 8-12V DC, regulated current: 1400mA, output power: 16W.
• Dimmable, allowing users to adjust the brightness of their LED lights as desired.
• IP30 rating, suitable for indoor use and protected against dust.
• Compact size of 83 x 56.84 x 29.30mm (3.26 x 2.23 x 1.15 in) for easy installation and integration into lighting systems.
• Certified as Class 2/Class II, ensuring safe and reliable operation in lighting applications.

How to Install Mean Well PCD-16-1400A Dimming Constant Current LED Driver?

1. Turn off the power: Before installing the LED driver, make sure to turn off the power to the circuit from the circuit breaker or the main electrical panel.

2. Choose the installation location: Select a suitable location to mount the driver. The location should be dry and free from any heat sources.

3. Mount the driver: Use screws to mount the driver on a solid surface.

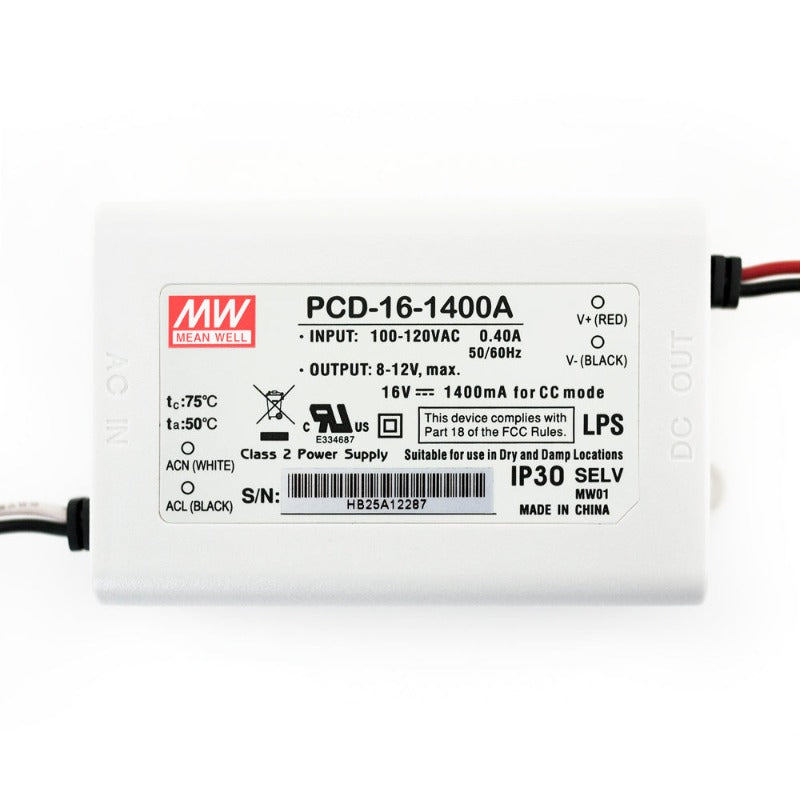

4. Connect the input wires: Connect the input wires from the driver to the AC power source. Make sure to match the correct wires (hot and neutral) from the driver to the corresponding wires from the power source. (White color wire to Neutral (N) and the Black color Wire to Line (L))

5. Connect the output wires: Connect the output wires from the driver to the LED lighting fixture. Make sure to match the correct wires (positive and negative) from the driver to the corresponding wires from the fixture. ( Red color wire to the positive (+) and Black wire to the negative (-))

6. Test the installation: Once the connections are made, turn on the power to the circuit and test the LED fixture to ensure it is working properly.

7. Adjust dimming settings: If the driver is dimmable, follow the manufacturer's instructions to connect the dimming wires and adjust the dimming settings as required.

Note: It's important to follow the specific instructions provided by the manufacturer for your LED driver, as installation procedures may vary based on the model and manufacturer. If you are not comfortable with electrical installations, it is recommended to consult a licensed electrician for assistance.
