Mean Well PCD-16-350A Constant Current LED Driver, 350mA 24-48V 16W
|Product||Constant Current LED Driver|
|Input Voltage||100-120V AC|
|Output Voltage Max||24-48V DC|
|Output regulated current||350mA|
|Dimensions||83 x 56.84 x 30mm (3.26 x 2,23 x 1,415 in)|
|Class Certification||Class 2/ Class II|

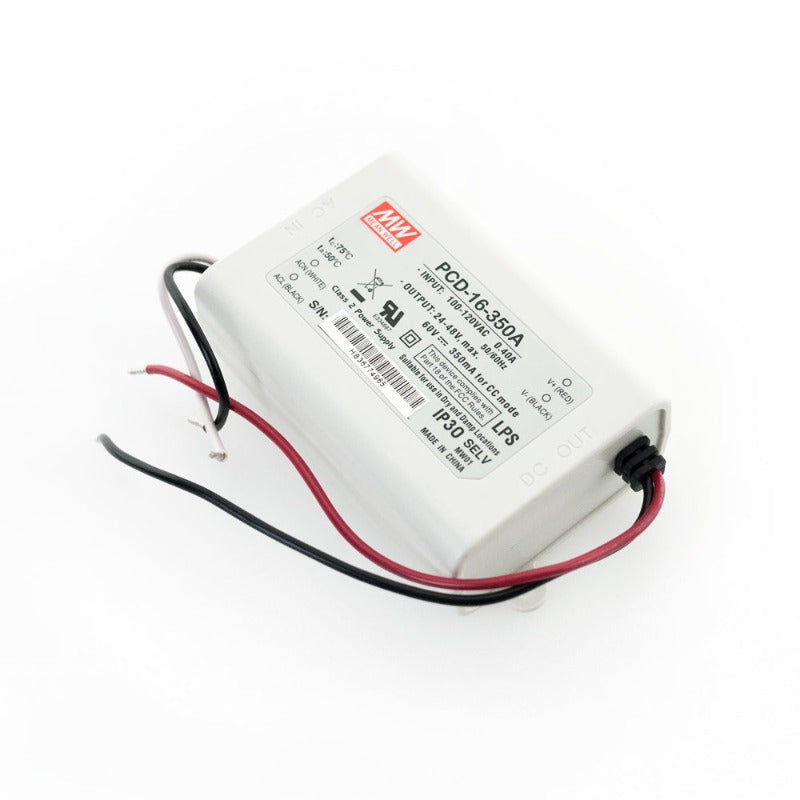

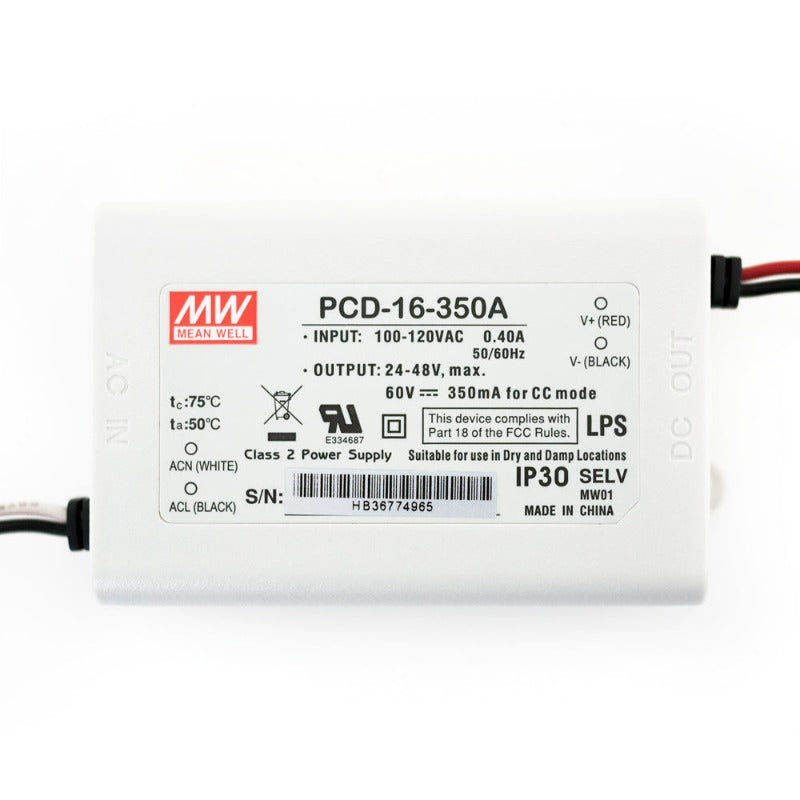

The Mean Well PCD-16-350A is a constant current LED driver that provides a regulated current output of 350mA with a maximum output power of 16.8W. It has an input voltage range of 100-120V AC with an input current of 0.40A and a frequency of 50/60Hz. The output voltage range is 24-48V DC, which is suitable for driving LED lights. This driver is also dimmable, allowing for easy control of LED light levels.

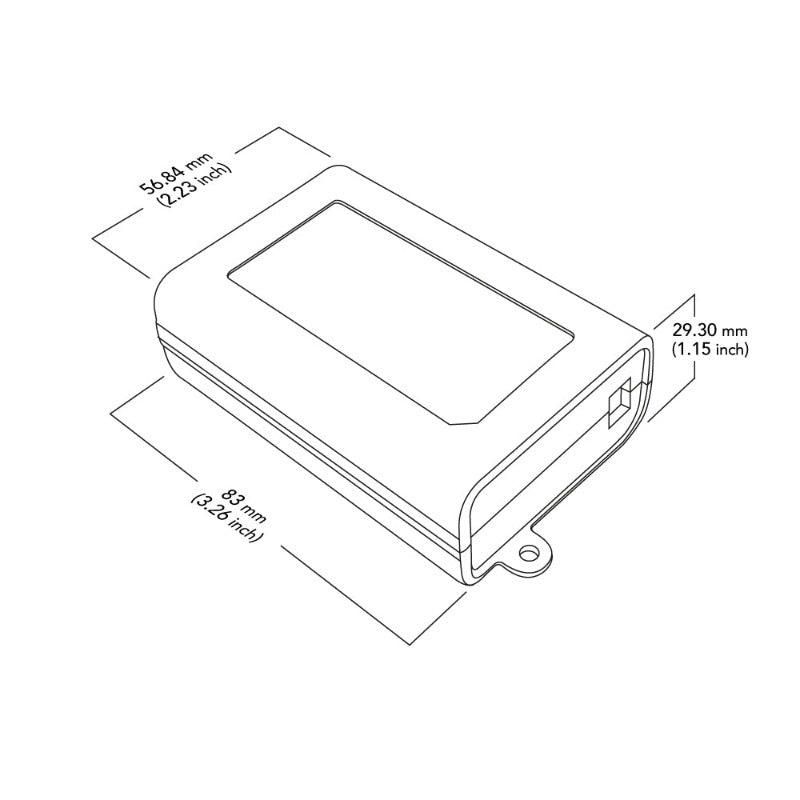

The PCD-16-350A has an IP30 rating, which means it is protected against dust and accidental contact, but is not suitable for use in wet or outdoor environments. The dimensions of the driver are 83 x 56.84 x 30mm (3.26 x 2,23 x 1,415 in), making it compact and easy to install in a variety of lighting applications.
This LED driver is Class 2/Class II certified, which means it provides double insulation between the primary and secondary circuits, ensuring a high level of safety. The PCD-16-350A is suitable for use in a wide range of LED lighting applications, including indoor lighting, signage, and architectural lighting.
Note: Never use constant voltage driver instead of constant current driver, even if Voltage and mA are equal.
- The Mean Well PCD-16-350A is a constant current LED driver for regulated power supply to LED lights.
- Input voltage range: 100-120V AC, input current: 0.40A, frequency: 50/60Hz.

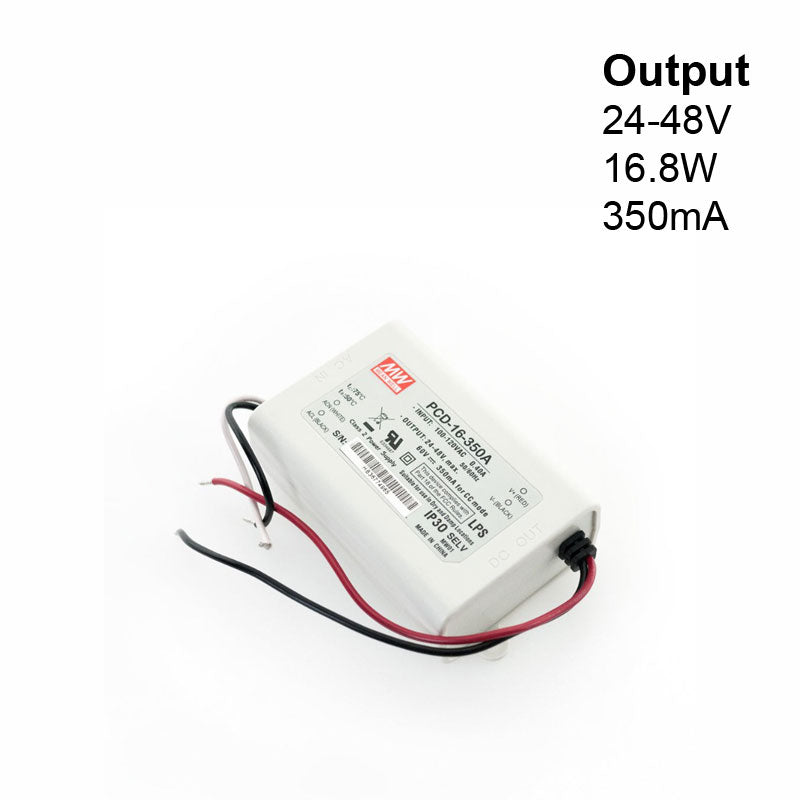

- Output voltage range: 24-48V DC, regulated current: 350mA, maximum output power: 16.8W.
- Dimmable, allowing for easy control of LED light levels.
- IP30 rating, protected against dust and accidental contact, but not suitable for wet or outdoor environments.
- Compact size of 83 x 56.84 x 30mm (3.26 x 2,23 x 1,415 in) for easy installation in a variety of lighting applications.
- Class 2/Class II certified, ensuring a high level of safety with double insulation.
- Suitable for use in indoor lighting, signage, and architectural lighting applications.
How to Install Mean Well PCD-16-350A Dimming Constant Current LED Driver?
Turn off the power: Before installing the LED driver, make sure to turn off the power to the circuit from the circuit breaker or the main electrical panel.
Choose the installation location: Select a suitable location to mount the driver. The location should be dry and free from any heat sources.
Mount the driver: Use screws to mount the driver on a solid surface.
Connect the input wires: Connect the input wires from the driver to the AC power source. Make sure to match the correct wires (hot and neutral) from the driver to the corresponding wires from the power source. (White color wire to Neutral (N) and the Black color Wire to Line (L))
Connect the output wires: Connect the output wires from the driver to the LED lighting fixture. Make sure to match the correct wires (positive and negative) from the driver to the corresponding wires from the fixture. ( Red color wire to the positive (+) and Black wire to the negative (-))
Test the installation: Once the connections are made, turn on the power to the circuit and test the LED fixture to ensure it is working properly.
Adjust dimming settings: If the driver is dimmable, follow the manufacturer's instructions to connect the dimming wires and adjust the dimming settings as required.
Note: It's important to follow the specific instructions provided by the manufacturer for your LED driver, as installation procedures may vary based on the model and manufacturer. If you are not comfortable with electrical installations, it is recommended to consult a licensed electrician for assistance.
