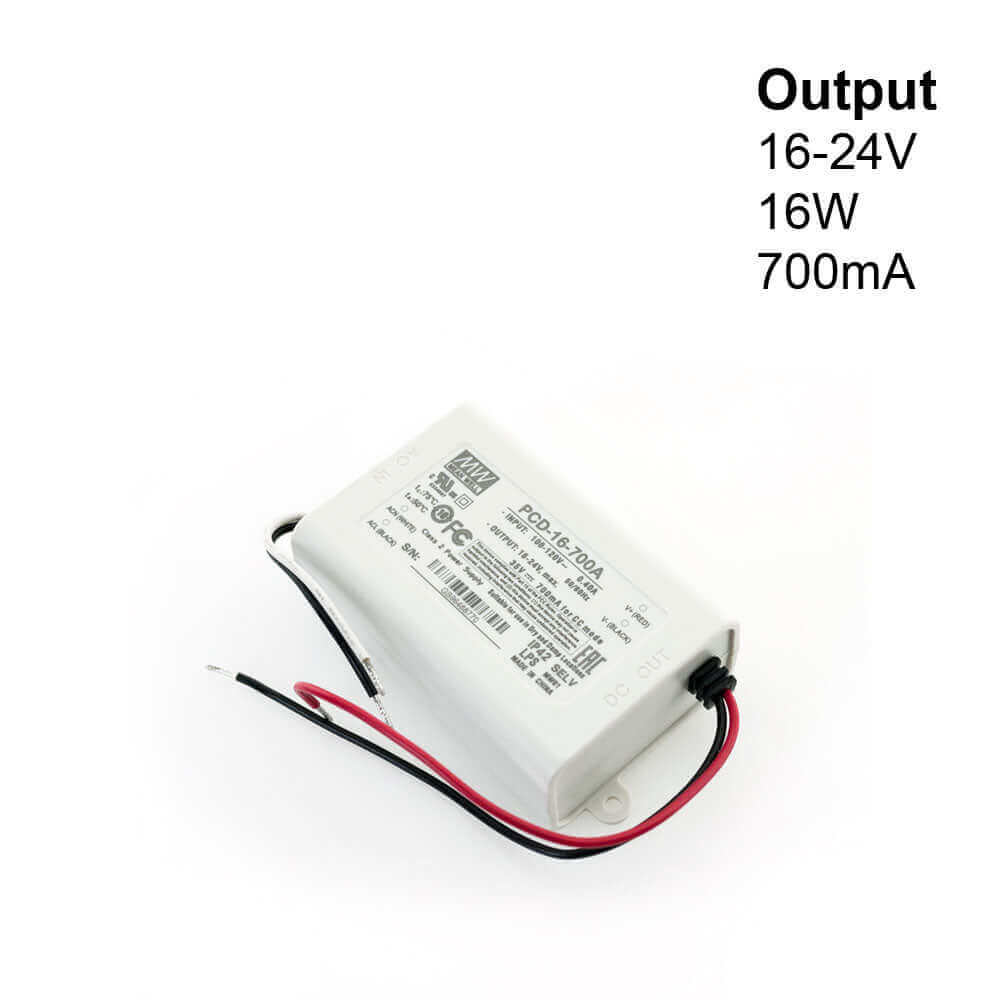

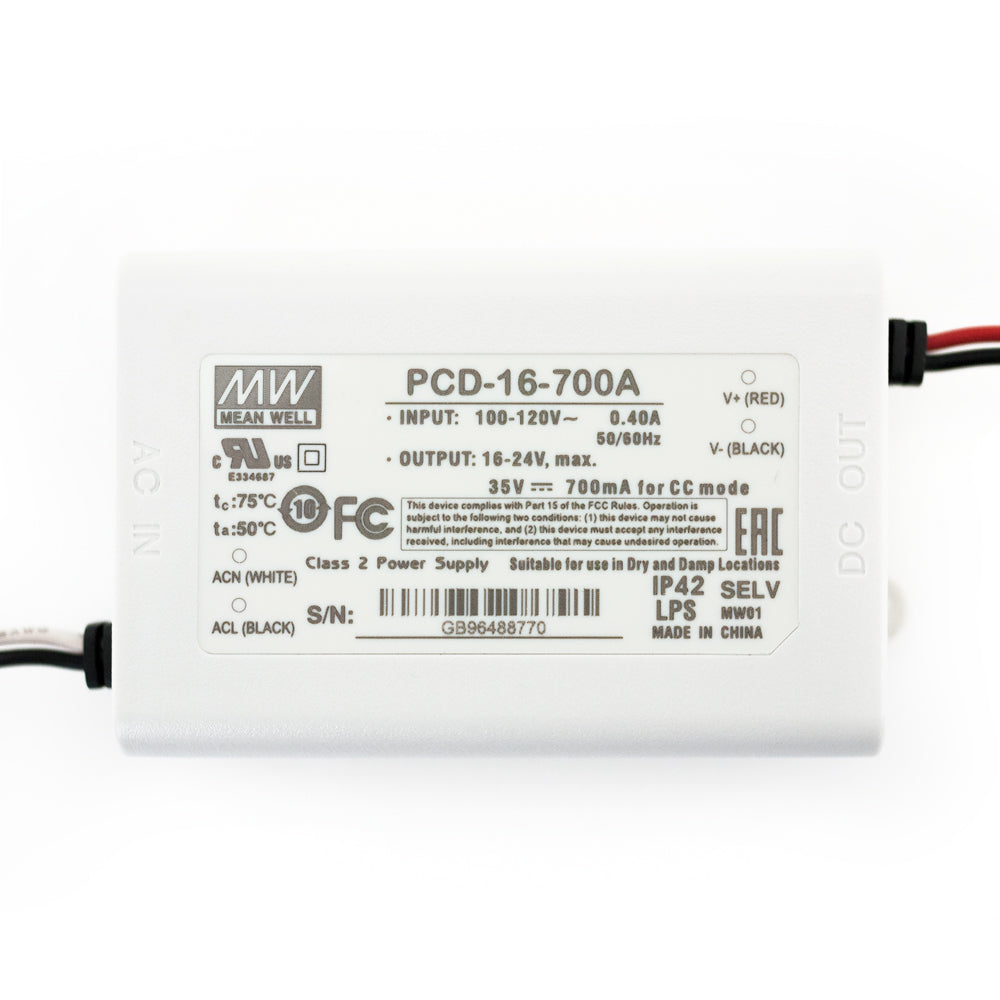

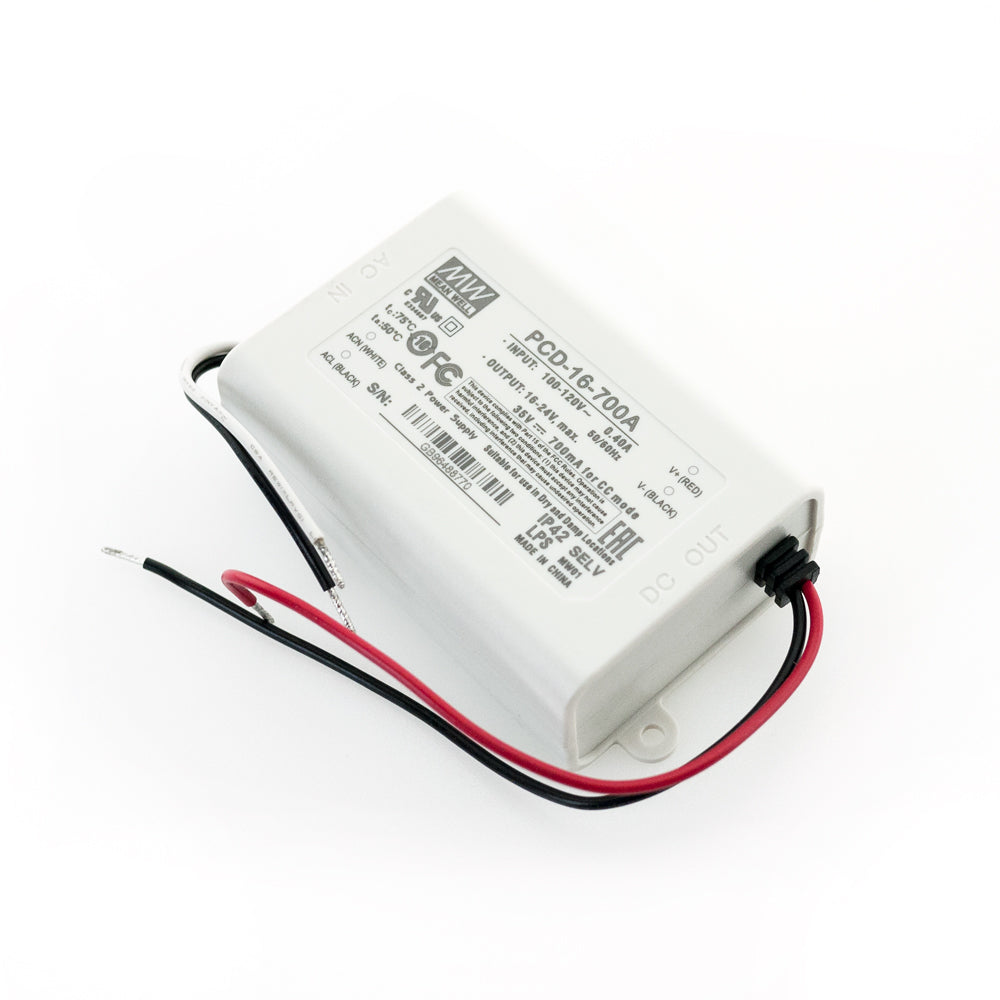

Mean well PCD-16-700A Constant Current LED Driver, 700mA 16-24V 16W
Product Description
| Product | Constant Current LED Driver |
| Model | PCD-16-700A |
| Input voltage | 100-120 VAC |
| Input Current | 0.40A |
| Output voltage | 16-24V DC |
| Power | 16W |
| Output regulated current | 700mA |
| Dimmable | Yes |
| IP Rating | IP42 |
| Class Certification | Class 2 |

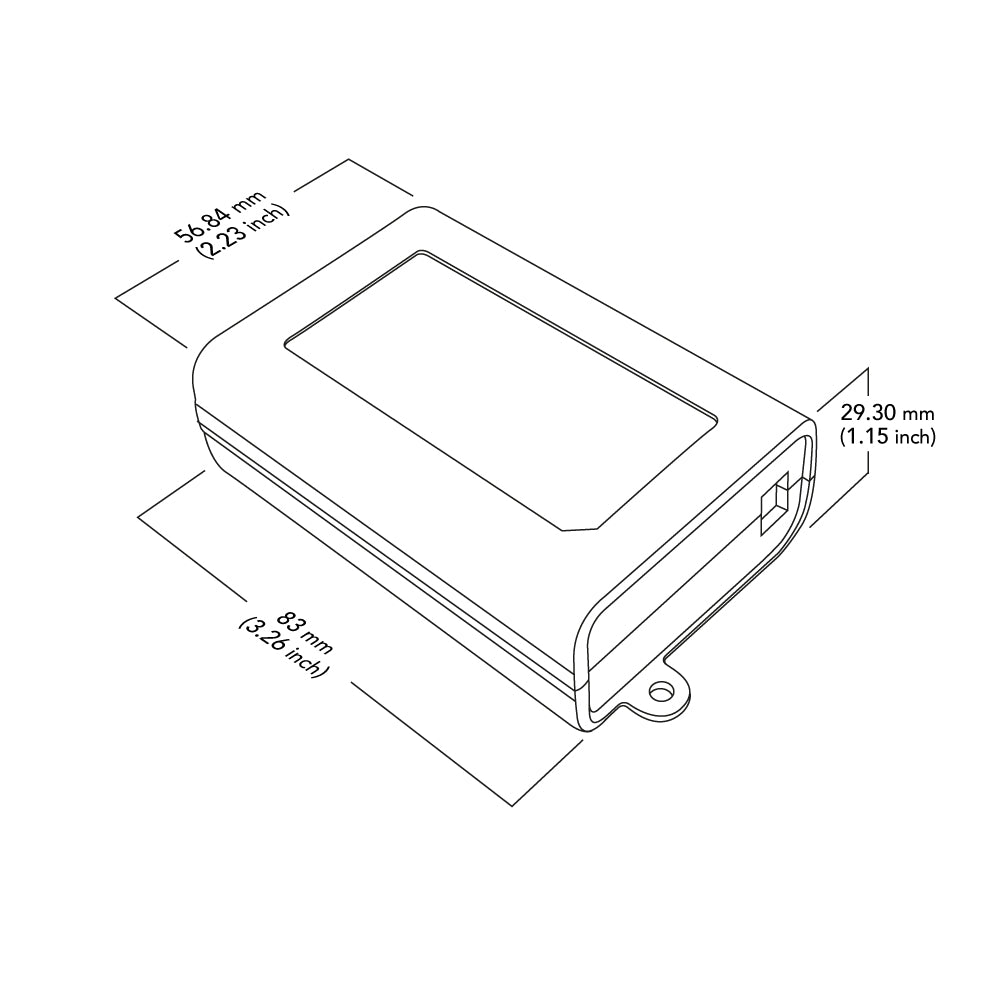

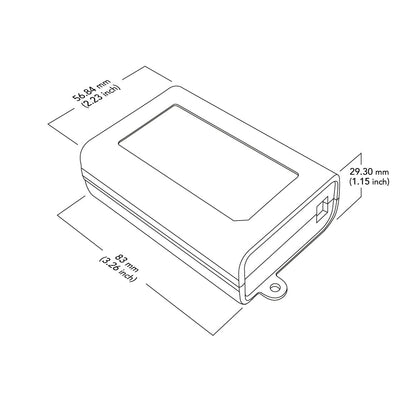

| Dimensions | 83 x 56.84 x 29.30 mm (3.26x2.23x1.15 in) |
| Certification |

|
| Applicable for dry and damp locations |
The Mean Well PCD-16-700A is a constant current LED driver designed to power LED lighting systems in a reliable and efficient way. The driver has an input voltage range of 100-120 VAC and an input current of 0.40A.
The driver provides a regulated output current of 700mA, with a selectable output voltage range of 16-24V DC. The maximum output power of the driver is 16W, which is suitable for a range of LED lighting applications.
The PCD-16-700A is dimmable, which means that it can be used with a dimming system to adjust the brightness of the connected LED lighting system. The driver has an IP42 rating, which means that it is protected against dust and water spray from any direction.
The driver is also Class 2 certified, which means that it meets safety standards for use in low voltage applications. The dimensions of the driver are 83x56.84x29.30 mm (3.26x2.23x1.15 in), making it compact and easy to install.
Overall, the Mean Well PCD-16-700A is a reliable and efficient LED driver that provides constant current regulation and dimming capabilities for a range of LED lighting applications.
Features:
- The Mean Well PCD-16-700A is a constant current LED driver.
- The driver has an input voltage range of 100-120 VAC and an input current of 0.40A.
- It provides a regulated output current of 700mA with a selectable output voltage range of 16-24V DC.
- The maximum output power of the driver is 16W, which is suitable for a range of LED lighting applications.
- The PCD-16-700A is dimmable and can be used with a dimming system to adjust the brightness of the connected LED lighting system.
- The driver has an IP42 rating, making it protected against dust and water spray from any direction.
- It is also Class 2 certified, meeting safety standards for use in low voltage applications.
- The dimensions of the driver are 83x56.84x29.30 mm (3.26x2.23x1.15 in), making it compact and easy to install.
- Overall, the Mean Well PCD-16-700A is a reliable and efficient LED driver suitable for a range of LED lighting applications.
