Product Description
| Product | YUNLT LED Module |
| Model No | PCK 02-005-930-120-C1 Equivalent with CBAC-042-36185-120-3000 |
| Wattage | 5W |
| Voltage | 120V AC |
| Luminous Intensity | 400 lumens |
| Color Temperature | 3000K (Warm White) |
| Dimmable | Yes |
| Rendering Index | CRI>90 |
| IP Rating | IP20 (Indoor rated) |

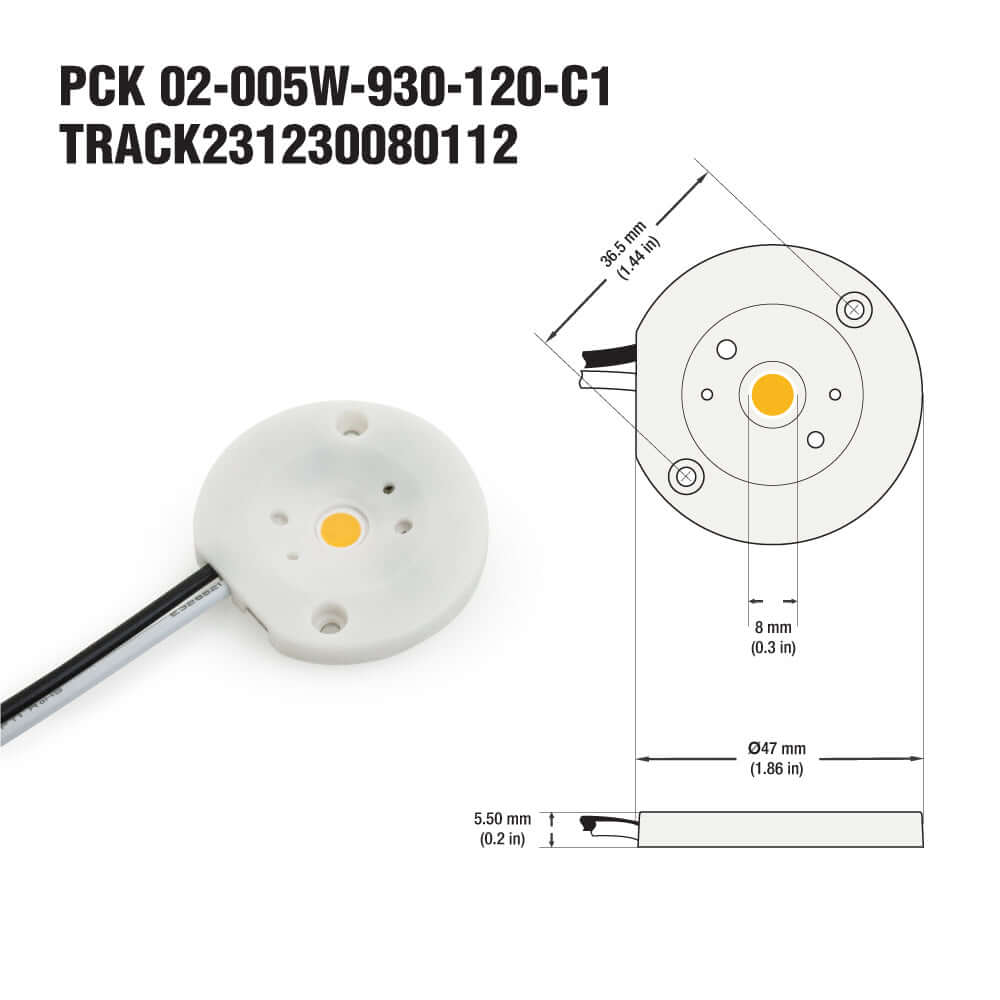

| COB Holder Dimensions | ∅47 x H5.5 mm (1.8 x 0.2 in) |
| COB Module Outer Diameter | ∅8mm (0.3 in) |

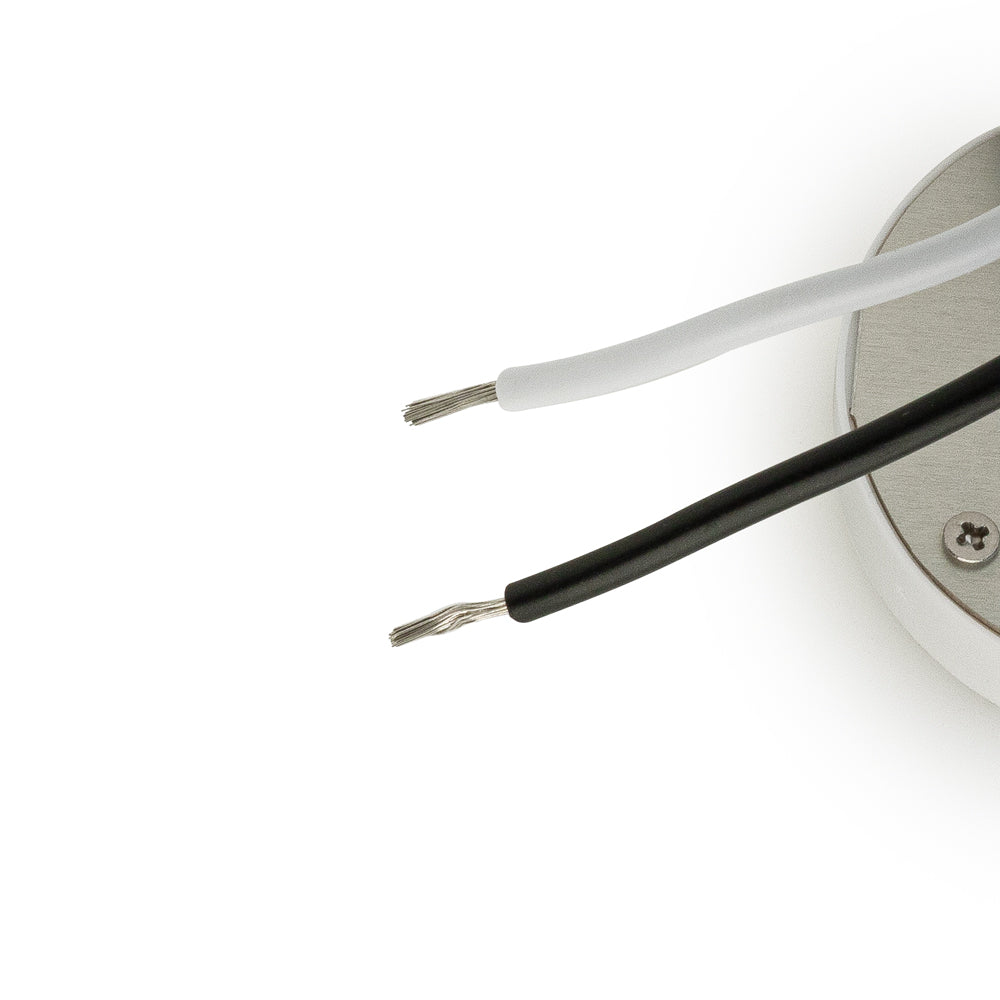

| Wire Size | 30cm (11.8in) 18AWG |
| Operating Temperature | -60 ~ +105℃ |
| Storage Temperature | -60 ~ +105℃ |
| Assembly process Temperature | <300℃ |
| Solder joint point | <105℃ |
| Dielectric Breakdown Voltage of Thermal Pad | >4KV |
| Included Content | COB Module, COB Holder, Thermal Pad |
| Weight | 0.03 kg |
| Certifications |  |
Features:
- PCK 02-005W-930-120-C1 YUNLT LED Module - 120V 5W 3000K
- Produces warm white light with color temperature of 3000K and CRI>90
- Dimmable and suitable for use in damp locations (IP20 rating)
- Requires aluminum heat sink to prevent overheating and luminous decay
- More energy-efficient and produces brighter and higher quality beam output than older LED technologies
- Suitable for use in almost every kind of luminaire

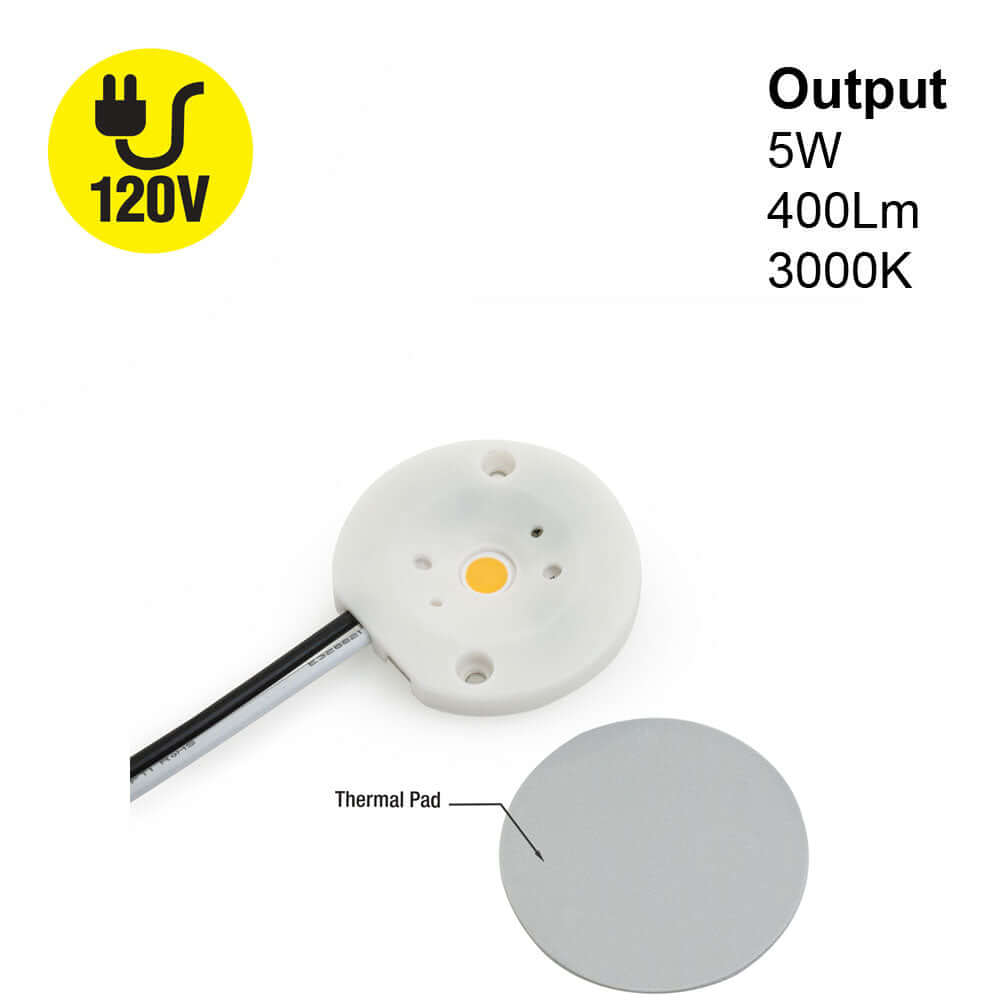

- YUNLT LED Module Light 120V 5W 400Lm 3000K

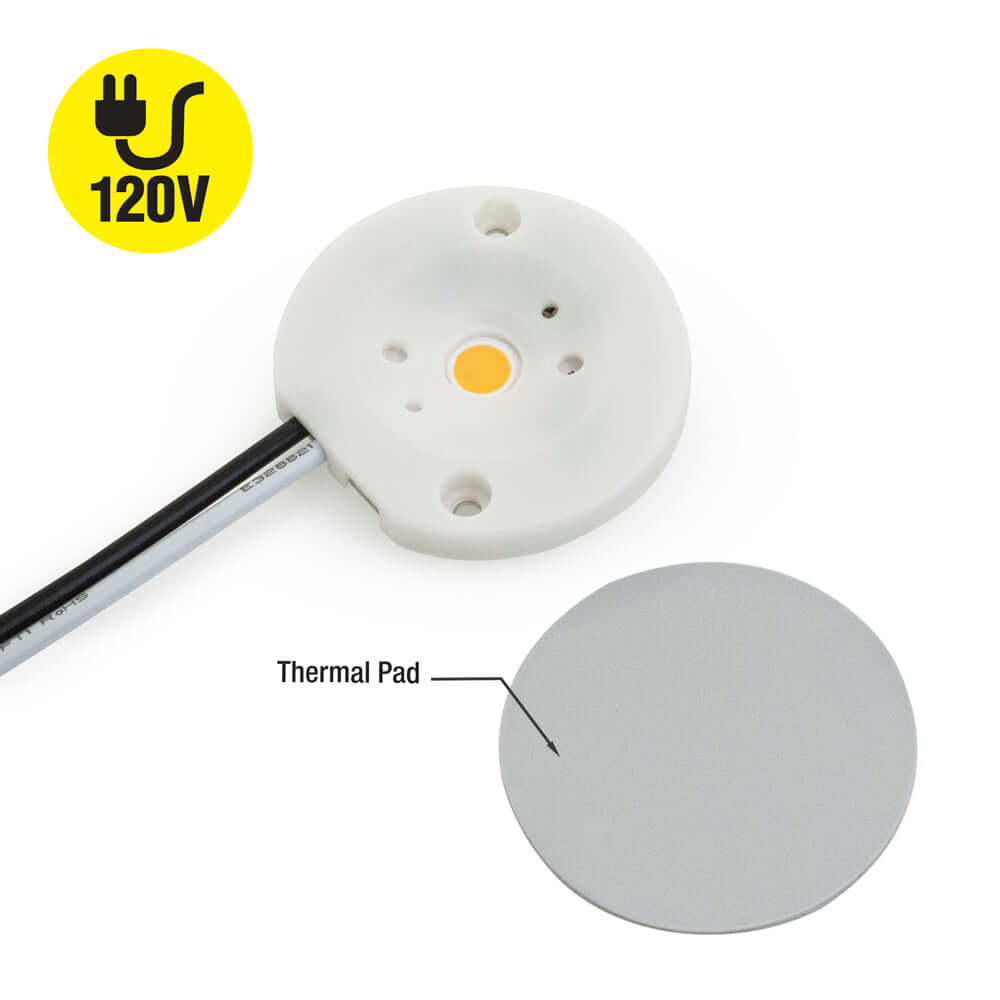

- Silicone grease thermal pad provides heat sink and better heat dissipation
- Operates at temperatures ranging from -60 ~ +105℃, and solder joint point should be kept below 105℃
