PCK 03-015-930-120-S1 YUNLT LED Module, 120V 15W 3000K(Warm White)

  • $55.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561433871
Title:
We only have 100 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).


Product Description

Product YUNLT LED Module
Model No PCK 03-015-930-120-S1

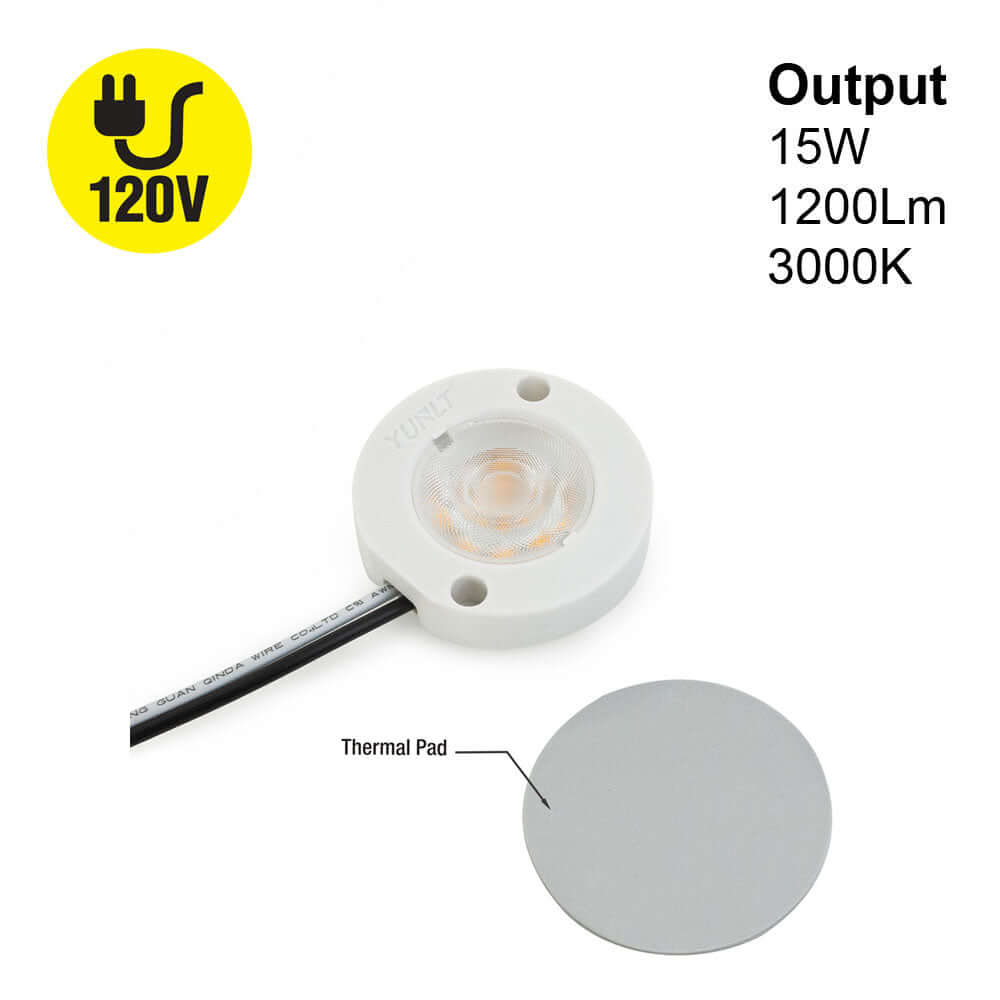

Wattage 15W
Voltage 120V AC
Luminous Intensity 1200 lumens
Color Temperature 3000K (Warm White)
Dimmable Yes
Rendering Index CRI>90
IP Rating IP20 (Indoor rated)

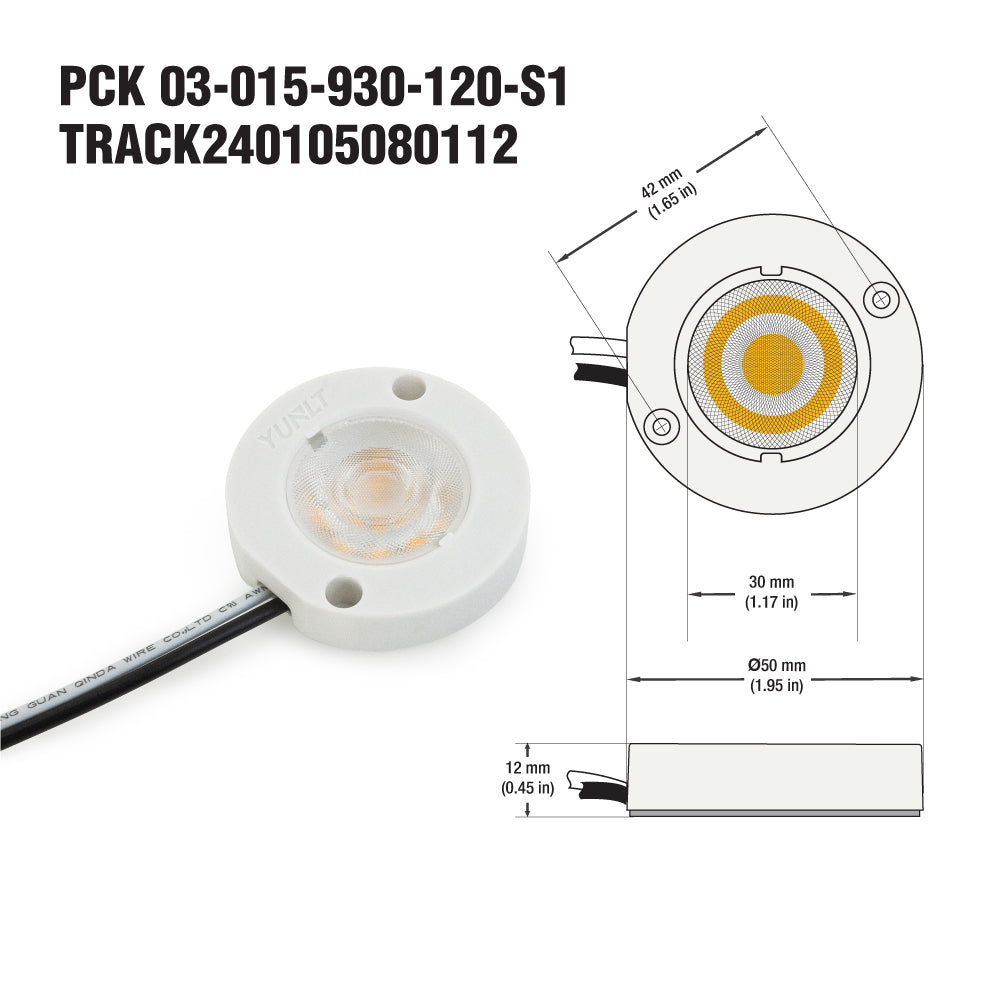

COB Holder Dimensions ∅50 x H12 mm (1.9 x 0.4 in)
COB Module Outer Diameter ∅30mm (1.1 in)

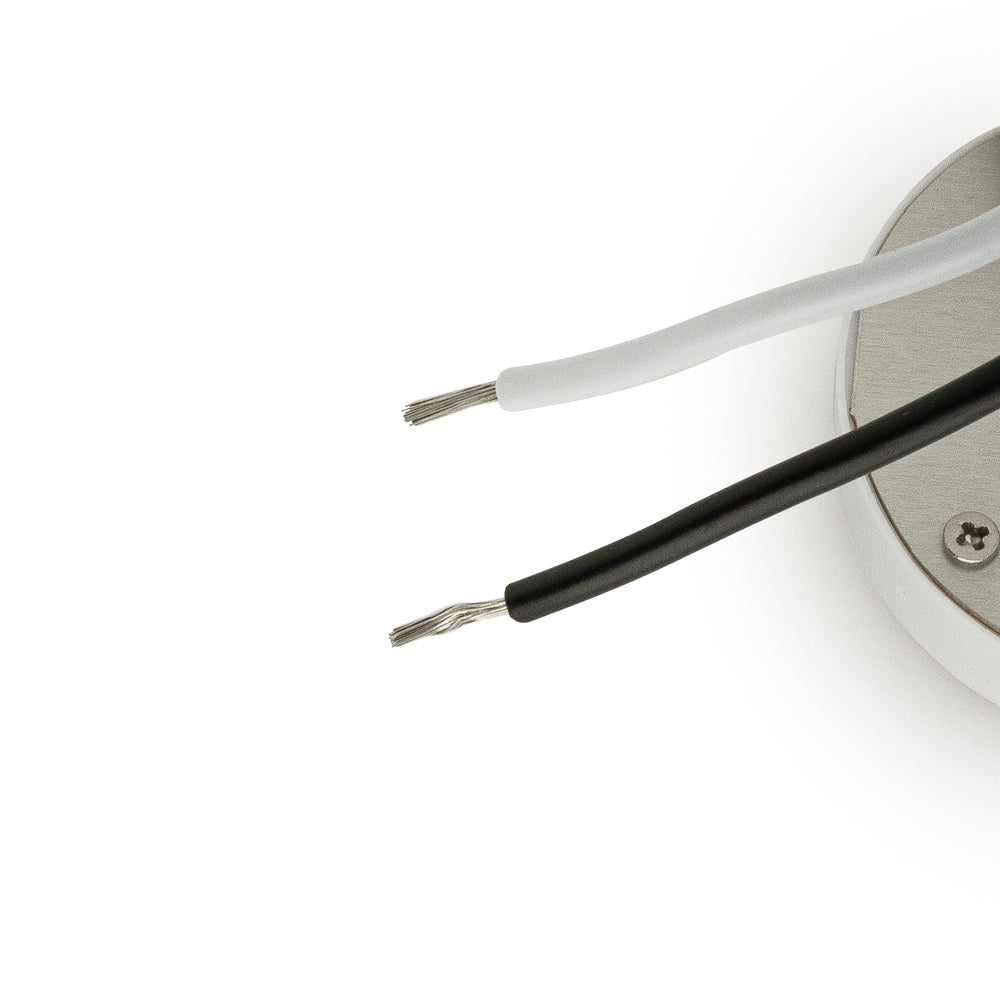

Wire Size 30cm (11.8in)
18AWG
Operating Temperature -60 ~ +105℃
Storage Temperature -60 ~ +105℃
Assembly process Temperature <300℃
Solder joint point <105℃
Dielectric Breakdown Voltage of Thermal Pad >4KV

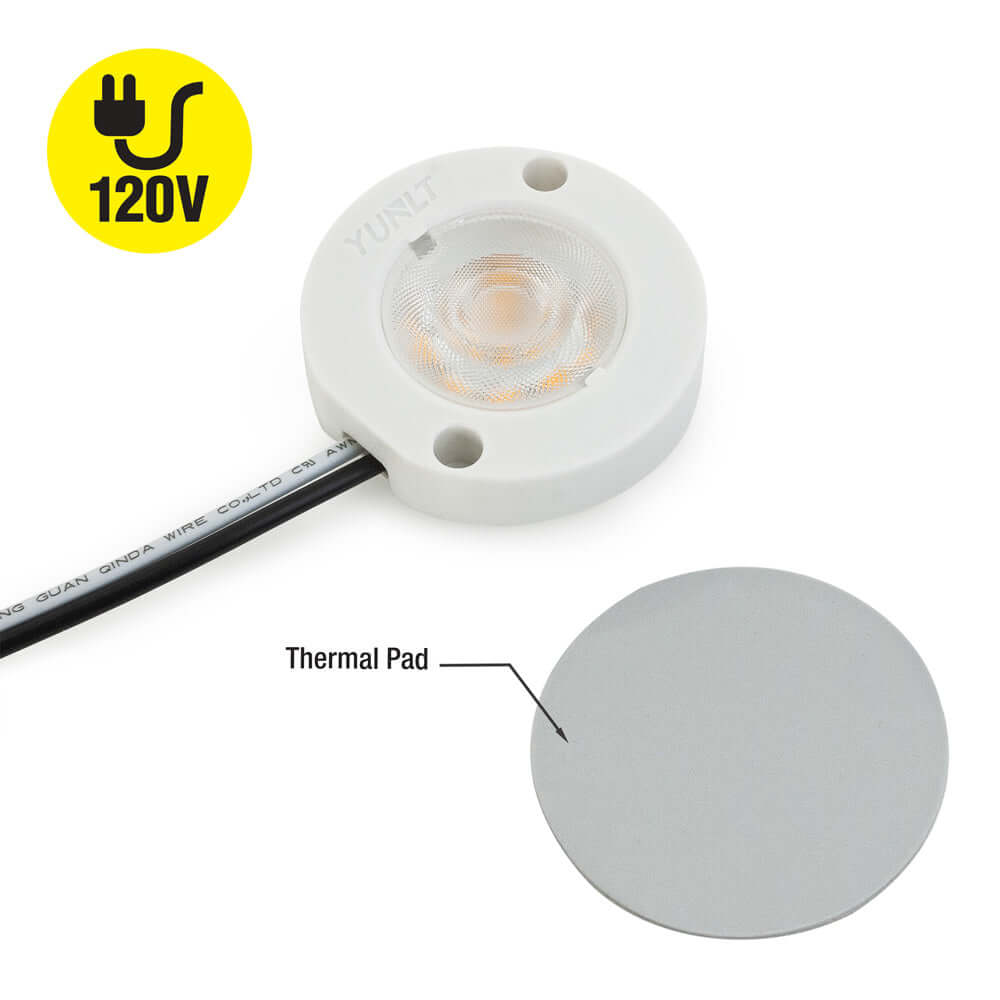

Included Content COB Module, COB Holder, Thermal Pad
Certifications


The PCK 03-015-930-120-S1 YUNLT LED Module is a high-quality LED module. The module operates on 120V AC with a power consumption of 15W. The module produces a warm white light with a color temperature of 3000K and a high rendering index of CRI>90, making it suitable for use in a wide range of indoor lighting applications.

The PCK 03-015-930-120-S1 module is dimmable, making it ideal for use in applications where the light output needs to be adjusted. It has an IP20 rating, indicating that it is suitable for use in damp locations. However, it is essential to use an aluminum heat sink to prevent overheating, which may cause luminous decay.

To ensure the safe and efficient operation of the PCK 03-015-930-120-S1 module, it is essential to ground the light fixtures while designing lamps. The silicone grease thermal pad provides a heat sink and helps in better heat dissipation, thereby increasing the lifespan of the module. The module can operate at temperatures ranging from -60 ~ +105℃, and the solder joint point should be kept below 105℃. The dielectric breakdown voltage of the thermal pad is greater than 4KV.

Features:

  • Operates on 120V DC with a power consumption of 15W
  • Produces warm white light with color temperature of 3000K and CRI>90
  • Dimmable and suitable for use in damp locations (IP20 rating)
  • Requires aluminum heat sink to prevent overheating and luminous decay
  • More energy-efficient and produces brighter and higher quality beam output than older LED technologies
  • Suitable for use in almost every kind of luminaire
  • Grounding light fixtures is essential for safe and efficient operation
  • Silicone grease thermal pad provides heat sink and better heat dissipation
  • Operates at temperatures ranging from -60 ~ +105℃, and solder joint point should be kept below 105℃
