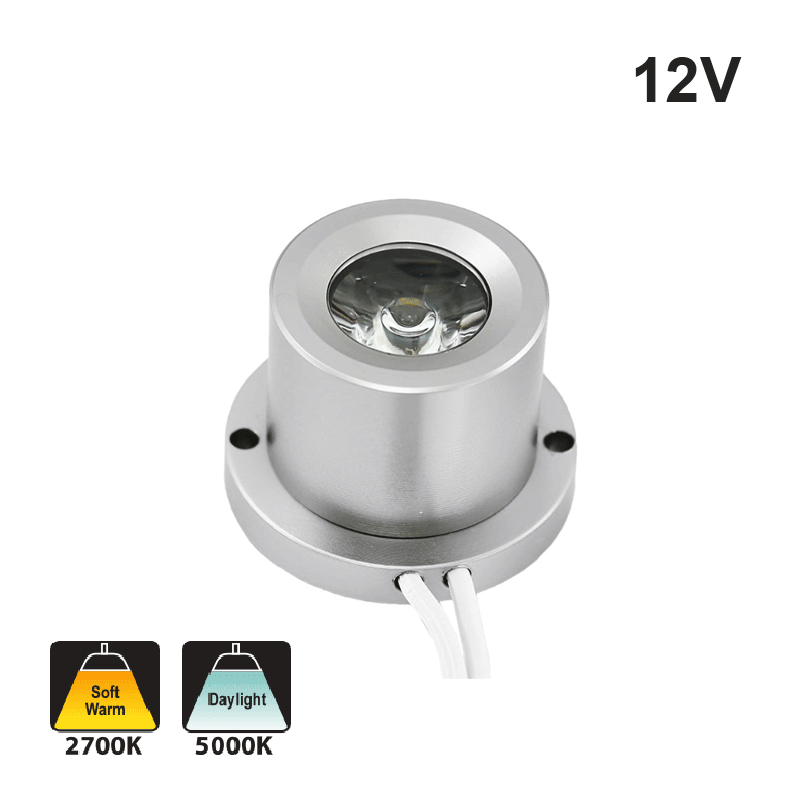

RD12S-1W Outdoor LED Surface Mount Marine Grade LED Spotlight, 12V 1W
Product Description
Model | RD12S-1W | ||
Voltage | 12V DC | ||
Wattage | 1W | ||
LED Type | 1 x COB LED | ||
Color Temperature | 2700K (Soft White) & 5000K (Daylight) | ||
Dimmable | Yes | ||
Brightness | 110 lumens | ||
Rendering Index | CRI>80 | ||
Material | Die-cast Aluminum | ||
Rated Life | 50,000 Hours | ||
IP Rating | IP65 | ||
Beam Angle | 45° | ||
Installation | Surface Mount | ||
Wire Size | 30cm (11.8in) 20AWG | ||

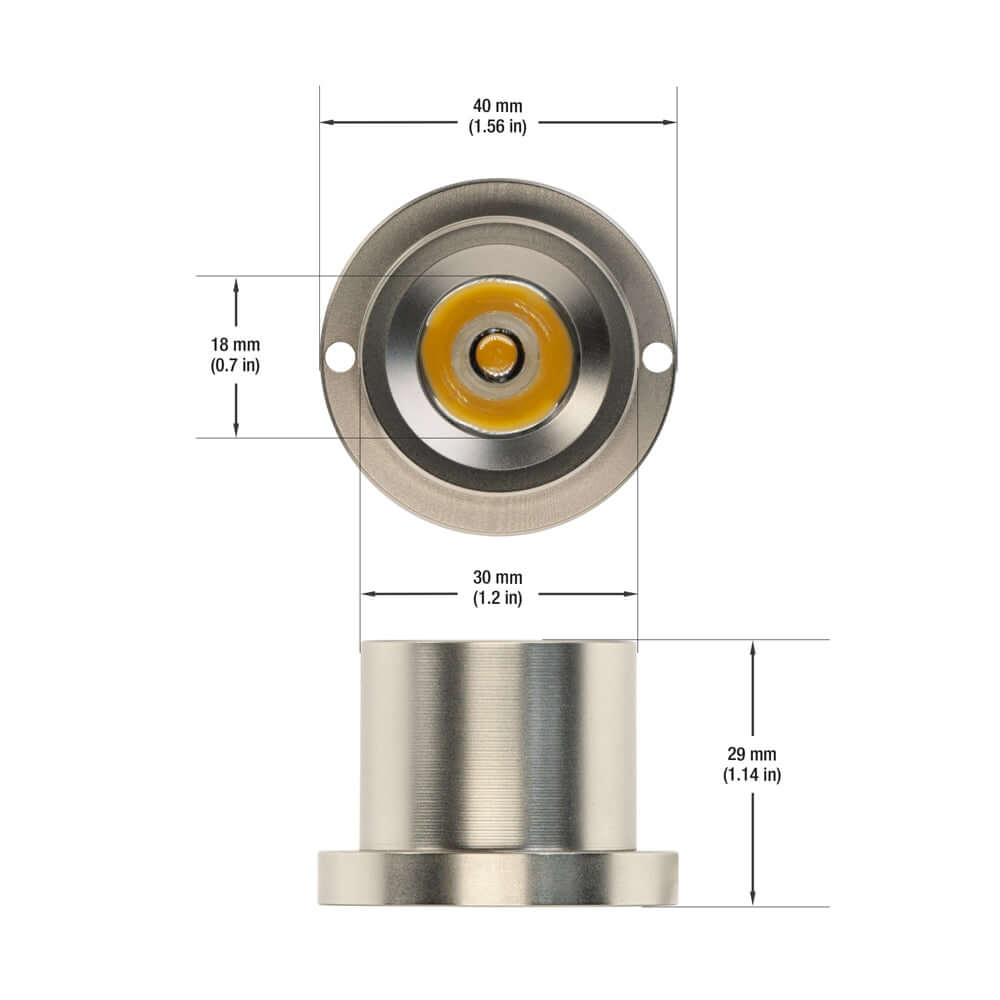

Dimensions |
Height: 29mm (1.1in) Base Diameter: 40mm (1.57in) Body Diameter: 30mm (1.18in) |
||
Certifications | ![]() |
The RD12S-1W is a marine-grade LED spotlight designed for surface mounting with a voltage rating of 12V DC and a wattage of 1W. It features a single COB LED that produces a brightness of 110 lumens and has a color temperature of 2700K (Soft White) and 5000K (Daylight). The spotlight is also dimmable, and the dimmer control must have the same input rating as the dimmable power supply driver it connects to. With a CRI of over 80, it provides accurate color rendering.
The RD12S-1W spotlight has an aluminum housing that allows for efficient heat dissipation, which helps to prolong its life span and reduce light decay. The light is suitable for use in a variety of settings, including wardrobes, cabinets, shelves, patios, and outdoor spaces. Additionally, it is waterproof, with an IP65 rating, making it ideal for both indoor and outdoor applications.
The spotlight can be directly screwed onto a surface and comes with screws for mounting. It also comes with one foot of wire AWG 20 for installation. The light requires a step-down transformer to line voltage, which is available in both hardwire and plugin versions. Depending on the wattage of the transformer, any number of lights can go on one switch.
In summary, the RD12S-1W Surface Mount Marine Grade LED Spotlight is a durable and efficient lighting solution for various indoor and outdoor applications. It features a COB LED with a brightness of 110 lumens, a color temperature of 2700K (Soft White) and 5000K (Daylight), and a CRI of over 80. It is also dimmable and has an aluminum housing for efficient heat dissipation. The spotlight is waterproof with an IP65 rating, making it suitable for use in various environments.
Features:
- The RD12S-1W is a 12V DC marine-grade LED spotlight with a wattage of 1W.
- It features a single COB LED with a brightness of 110 lumens and a color temperature of 2700K (Soft White) and 5000K (Daylight).
- The spotlight is dimmable, and the dimmer control must have the same input rating as the dimmable power supply driver it connects to.
- With a CRI of over 80, it provides accurate color rendering.
- The RD12S-1W spotlight has an aluminum housing that allows for efficient heat dissipation, prolonging its life span and reducing light decay.
- It has an IP65 rating, making it waterproof and suitable for indoor and outdoor applications.
- The spotlight can be directly screwed onto a surface and comes with screws for mounting.
- It comes with one foot of wire AWG 20 for installation.
- The light requires a step-down transformer to line voltage, available in both hardwire and plugin versions.
- Depending on the wattage of the transformer, any number of lights can go on one switch.
