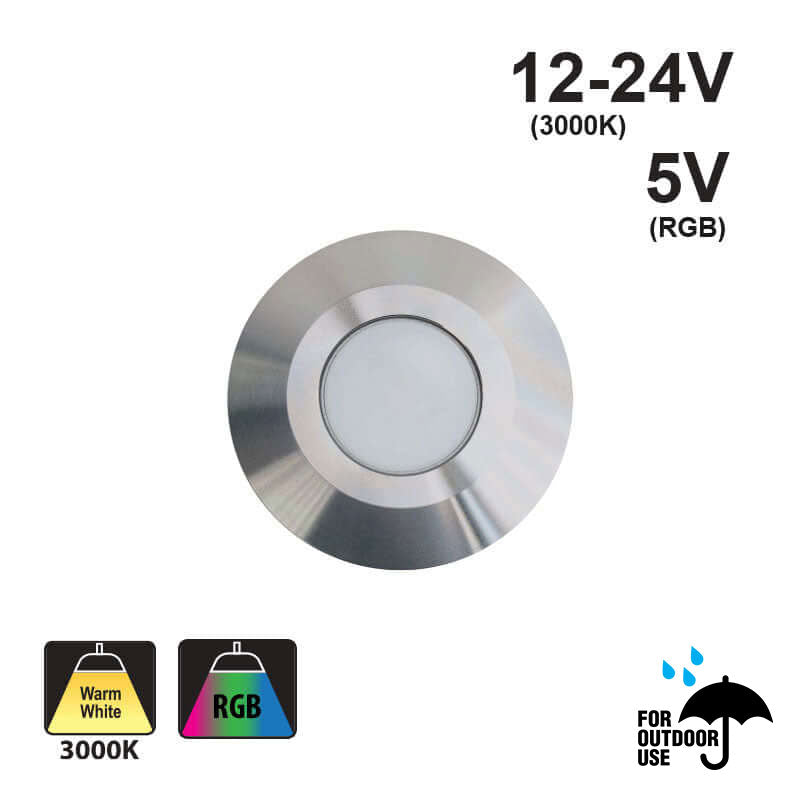

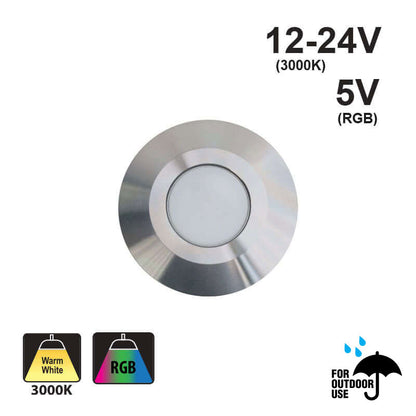

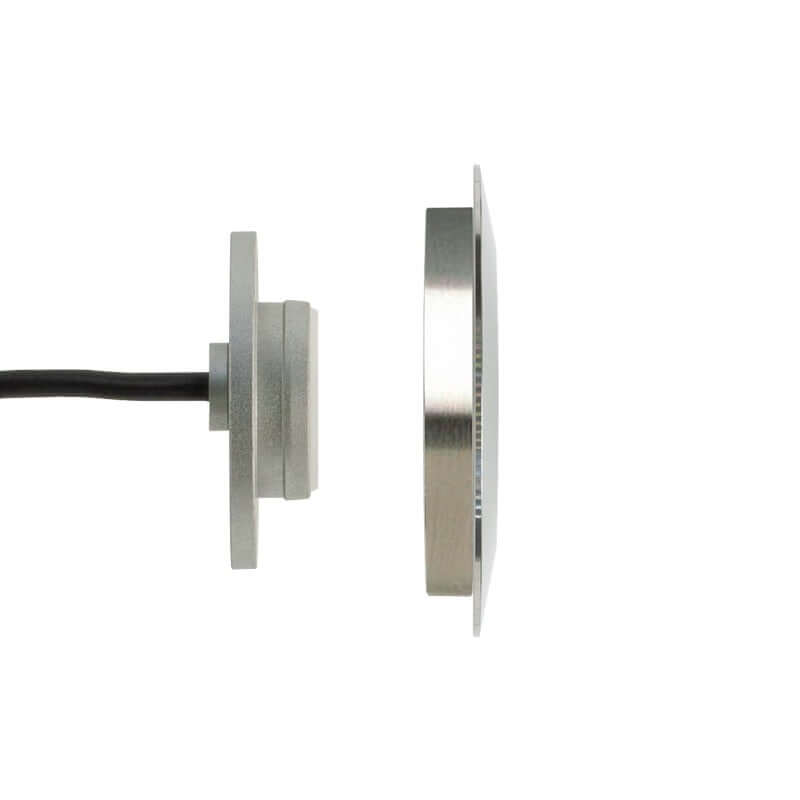

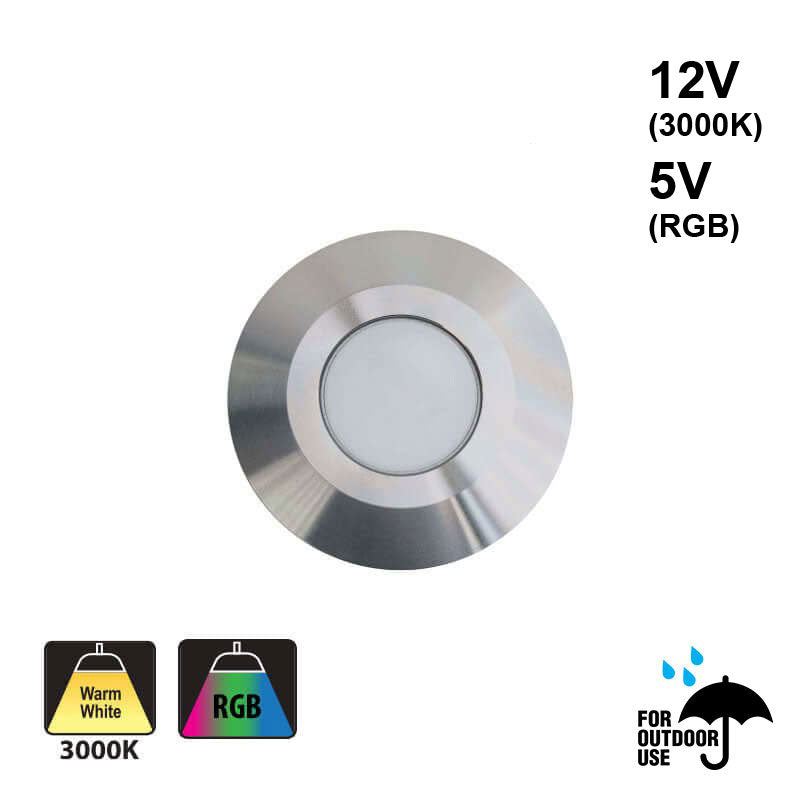

Round LED Step Light/ Pathway Light Flat Bevel Trim TYPE6 3000K(Warm White)
|Product||Step Light/ Pathway Light|
|Model (3000K Engine)||UL-1014
|Trim Type||Flat Bevel Trim|
|Color Temperature||3000K (Warm White)|
|LED Type||COB LED|
|IP Rating||IP67 (Outdoor Rated)|
|Diffuser Material||2mm Opal|
|Wire Length||3ft (92cm) 22AWG|

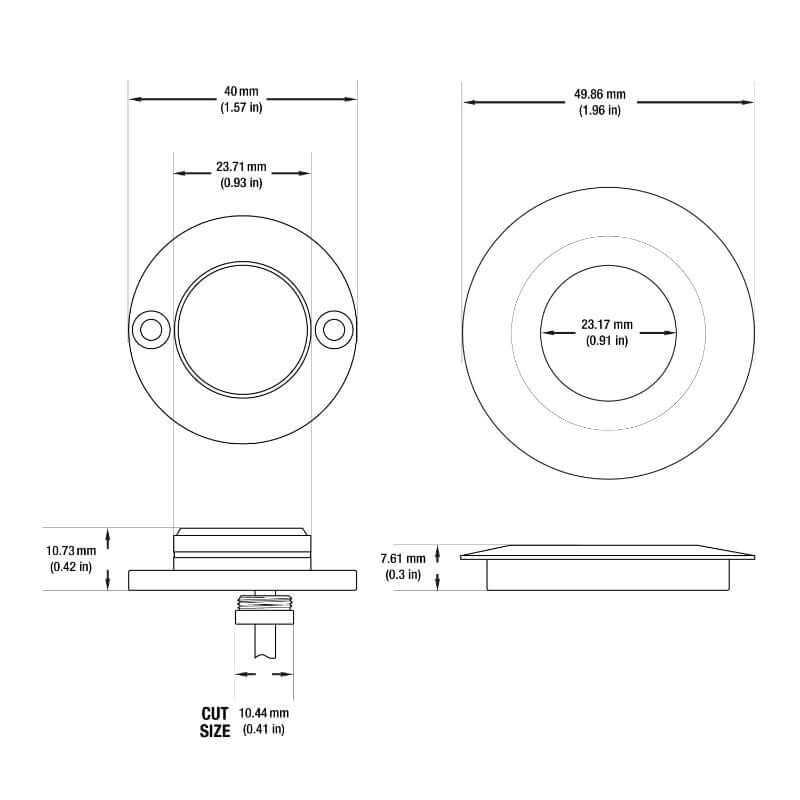

|Dimensions (Diameter)||Ø 49.23 mm (1.94 inch)|
|Dimensions (Cut Size)||Ø 10.44 mm (0.41 inch)|
This Round LED Step Light/ Pathway Light is designed as a flat bevel trim type and has a warm white color temperature of 3000K. It operates on a voltage range of 12-24V and has a wattage of 1.2W. The light source is a COB LED chip from Osram and has a brightness of 40-45Lm. The diffuser material is 2mm opal, which makes it ideal for deck lighting or in-ground lighting. It is rated IP67, which makes it suitable for both indoor and outdoor applications. The product is ETL certified, ensuring its quality and safety.
The housing and front cover of the product are made of passivated aluminum, which provides corrosion-proof protection. The passivated film on the aluminum housing is 11-13 micron. The product has an O-ring seal PMQ gasket, which helps to keep the light waterproof. It also has an IK06 rating, which means it is impact-resistant.
The product has good heat dissipation, a long lifespan, and low light decay. It can be directly screwed onto the surface, with a cut size of just a hole required for installation. The product comes with a 3-foot wire cable, and depending on the wattage of the transformer, any number of lights can go on 1 switch. The product offers a step-down transformer to line voltage in both hardwire and plugin.

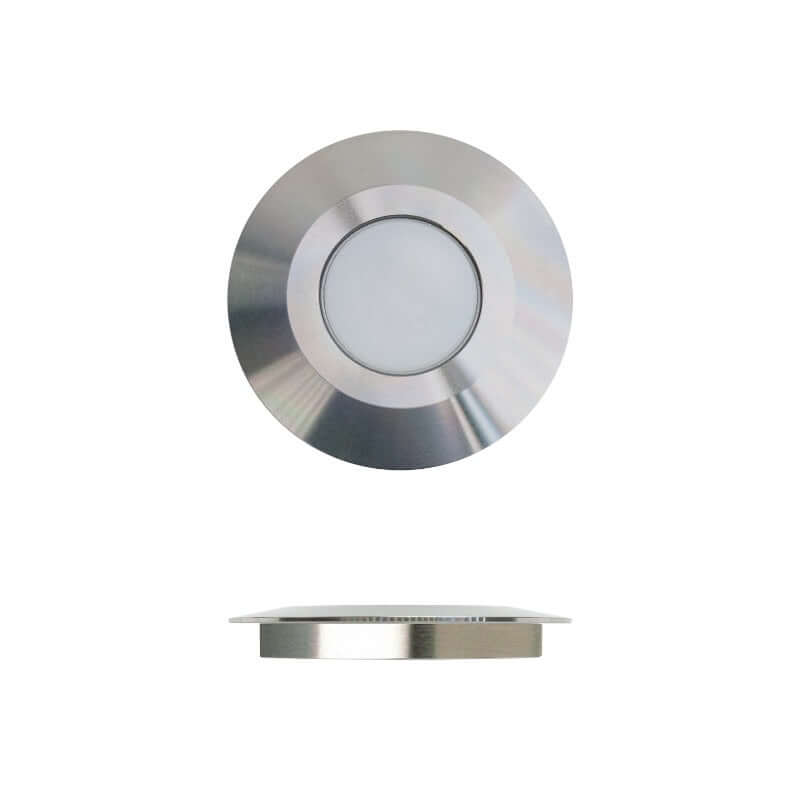

- Flat bevel trim design
- 3000K warm white color temperature
- 12-24V voltage range, 1.2W wattage
- COB LED chip from Osram, providing 40-45Lm brightness
- 2mm opal diffuser material, suitable for deck and in-ground lighting
- IP67 rating, suitable for indoor and outdoor applications
- ETL certified for quality and safety
- Passivated aluminum housing and front cover for corrosion-proof protection
- O-ring seal PMQ gasket for waterproofing
- IK06 rating, impact-resistant
- Good heat dissipation, long lifespan, and low light decay
- Direct screw-on installation with a cut size of just a hole

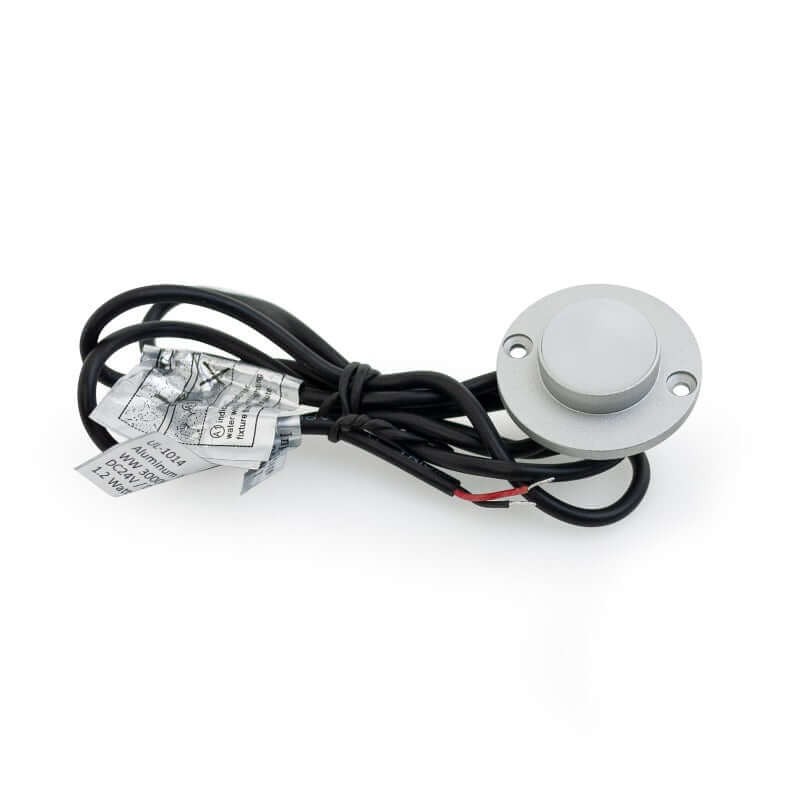

- Comes with 3-foot wire cable
- Any number of lights can go on 1 switch, depending on the wattage of the transformer
- Offers step-down transformer to line voltage in both hardwire and plugin options.
