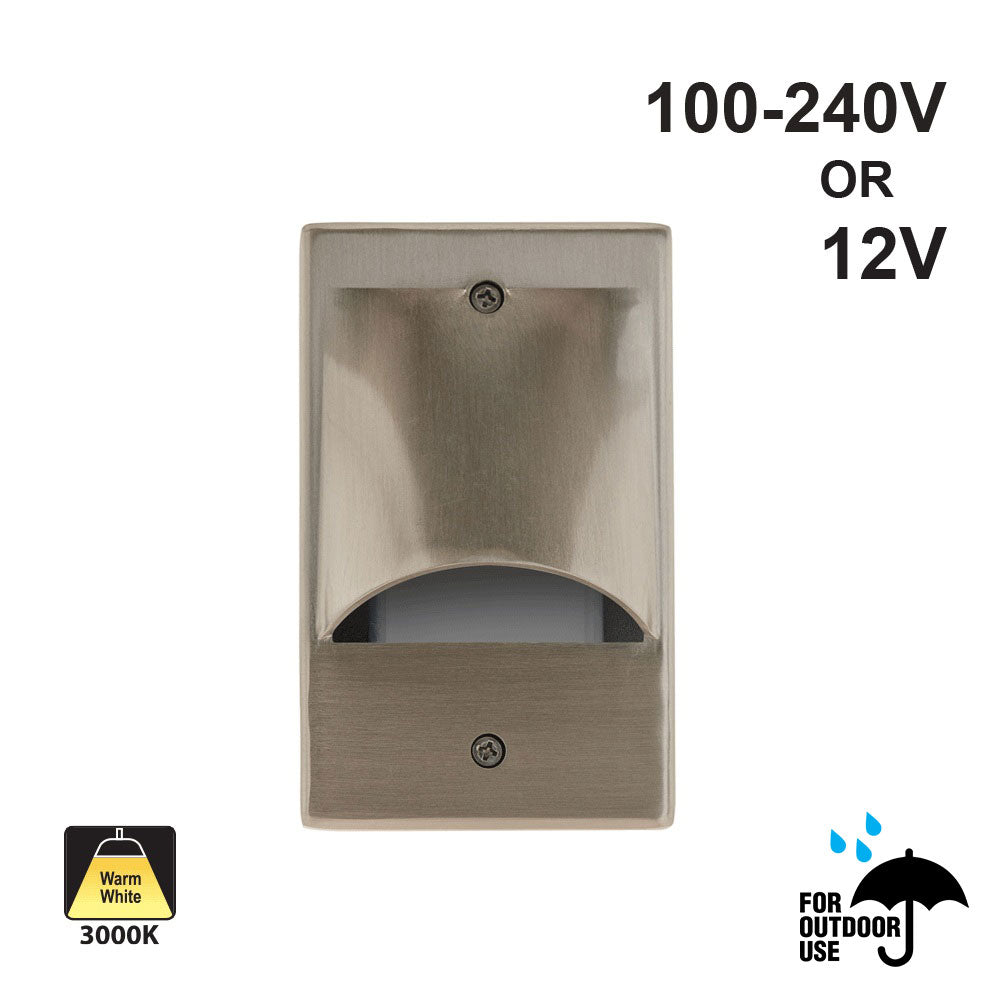

RT05HV Single Gang LED Step Light/ Pathway Light, 100-240V 2W 3000K(Warm White)
Product Description
Product | Step Light/ Pathway Light |
Model | RT05HV |
Voltage | 100-240V DC |
Power | 2W |
Color Temperature | 3000K (Warm White) |
Color | Brushed Nickel |
Trim | Vertical scoop trim |
Rendering Index | CRI>80 |
Dimmable | No |
Housing Material | Polycarbonate (PC) |
IP Rating | IP67 (Outdoor rated) |
Wire Size |
25cm (9.8in) 18AWG |
Dimensions(Gang Box) | 72mm x 47.6mm x 37.68mm (2.8 x 1.87 x 1.48in) |

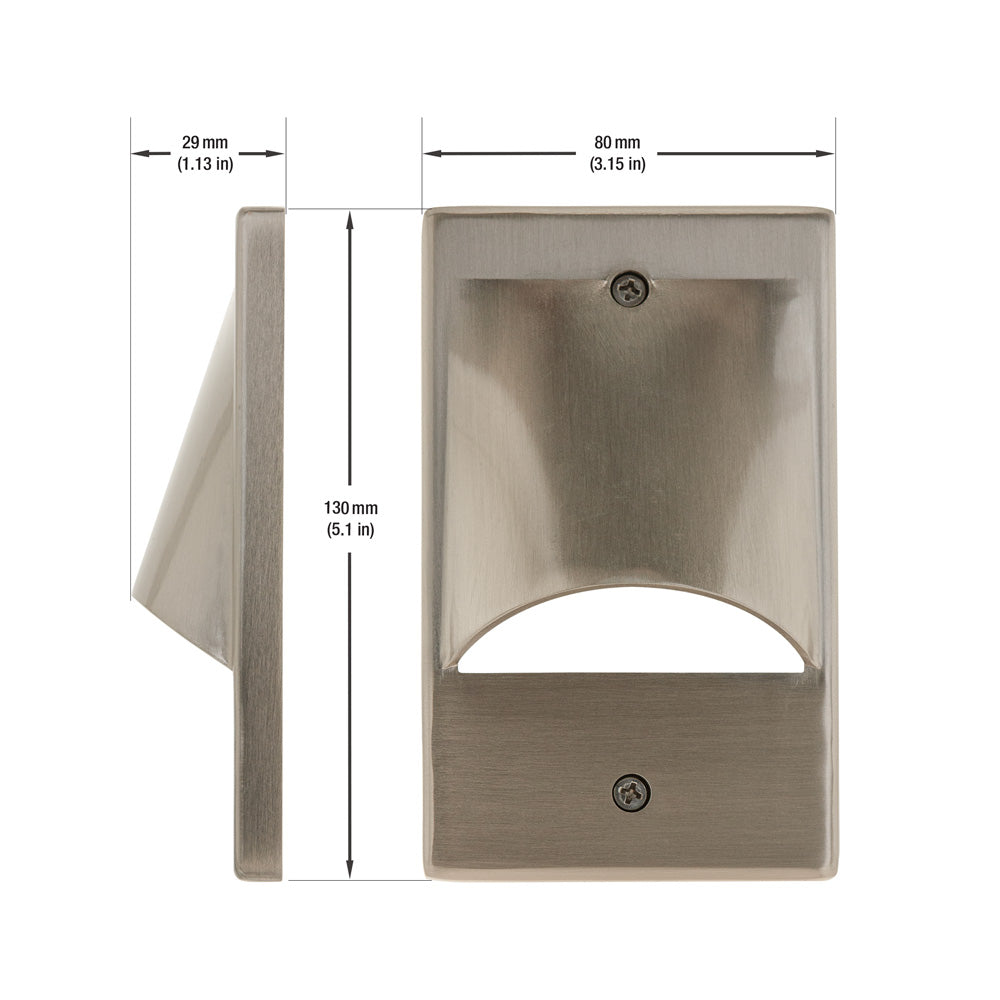

Dimensions (External Cover) | 130mm x 80mm (5.1 x 3.15in) |
Certifications |
![]() |
The RT05HV Single Gang LED Step Light/ Pathway Light is an outdoor-rated lighting solution designed to illuminate pathways and steps. The light has a power consumption of 2W and emits a warm white light with a color temperature of 3000K. The light is brushed nickel in color and comes with a vertical scoop trim that helps direct the light beam.
High color rendering index (CRI) of over 80, ensuring that the colors of illuminated objects appear natural and vibrant. The housing of the light is made of polycarbonate (PC) material, making it resistant to damage from environmental factors such as moisture and dust. The light is also IP67 rated, which means it can be used in wet locations without any risk of water damage.
The dimensions of the gang box for installation are 72mm x 47.6mm x 37.68mm (2.8 x 1.87 x 1.48in), and the external cover dimensions are 130mm x 80mm (5.1 x 3.15in). The light is certified by ETL, ensuring it meets safety and performance standards.
The RT05HV Single Gang LED Step Light/ Pathway Light is designed to be easily installed in a single gang box, following a 120V connection. The light can be directly connected to the line without the need for any transformer having voltage 100-240 V AC. However, the light is not dimmable.
Features:
- Outdoor-rated lighting solution designed to illuminate pathways and steps
- Power consumption of 2W and emits a warm white light with a color temperature of 3000K
- Brushed nickel color with a vertical scoop trim that helps direct the light beam
- High color rendering index (CRI) of over 80, ensuring natural and vibrant colors of illuminated objects
- Housing made of polycarbonate (PC) material for resistance against environmental factors
- IP67 rated, making it suitable for use in wet locations without any risk of water damage
- Gang box dimensions for installation: 72mm x 47.6mm x 37.68mm (2.8 x 1.87 x 1.48in); external cover dimensions: 130mm x 80mm (5.1 x 3.15in)
- Certified by ETL, ensuring safety and performance standards are met
- Designed for easy installation in a single gang box with a 120V connection
- Direct connection to line voltage without the need for a transformer with voltage 100-240V AC
- Not dimmable
- Reliable and durable lighting solution suitable for a range of outdoor environments
