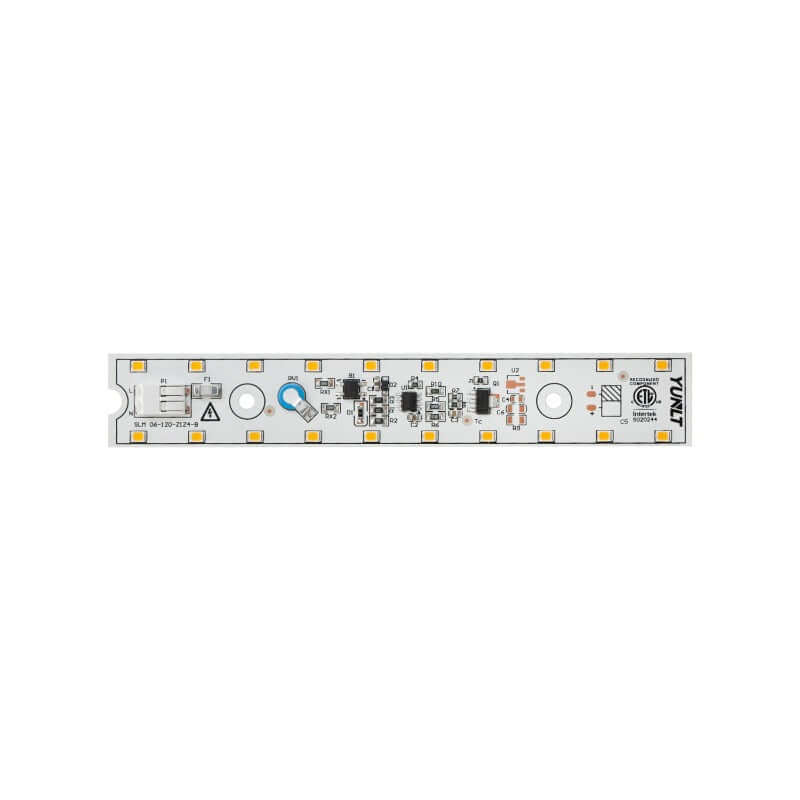

6 inch Slim ZEGA LED Module SLM 06-012W-930-120-S3-Z1B, 120V 12W 3000K(Warm White)
Product Description
Product | LED Module |
Model No | SLM 06-012W-930-120-S3-Z1B |
No of LEDs | 20 |
Wattage | 12W |
Voltage | 120V AC |
Luminous Flux | 1100 lumens |
Color Temperature | 3000K (Warm White) |
Rendering Index | CRI>90 |
Power Source | AC |
Dimmable | Yes |
Base Material | Aluminum |

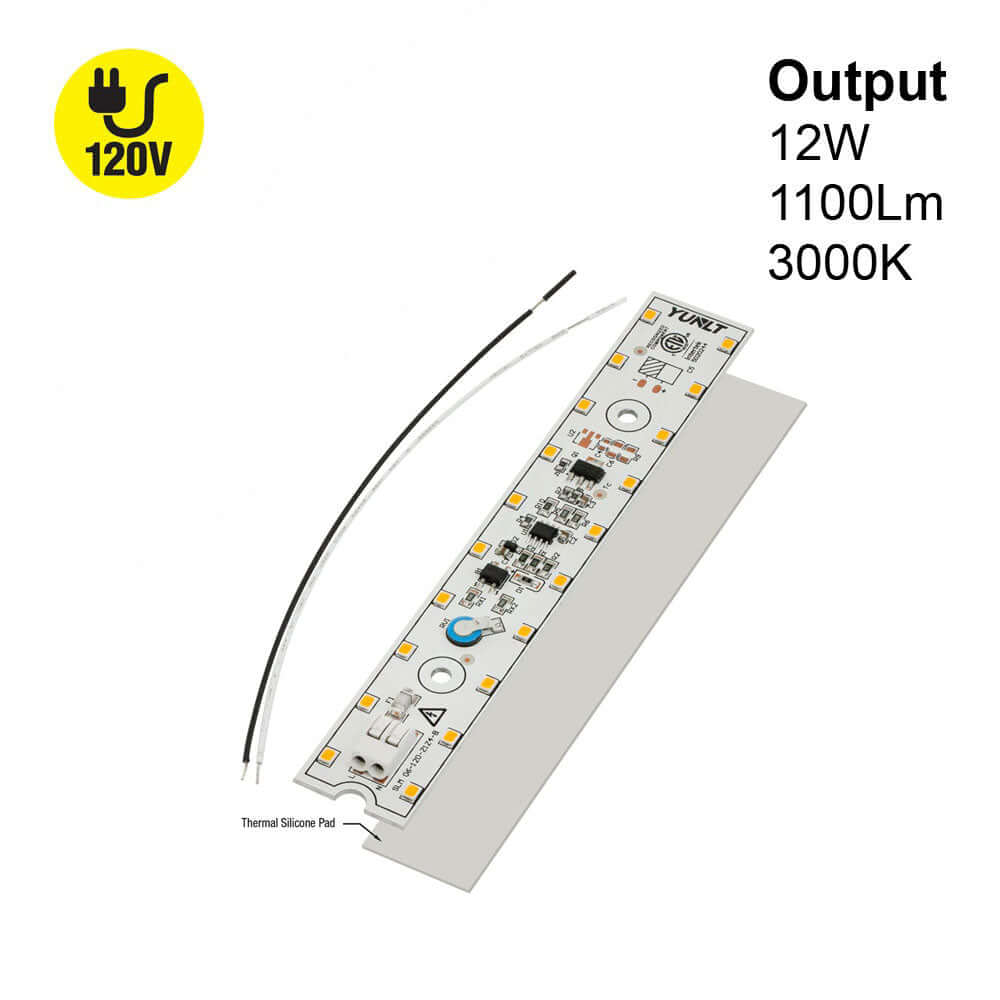

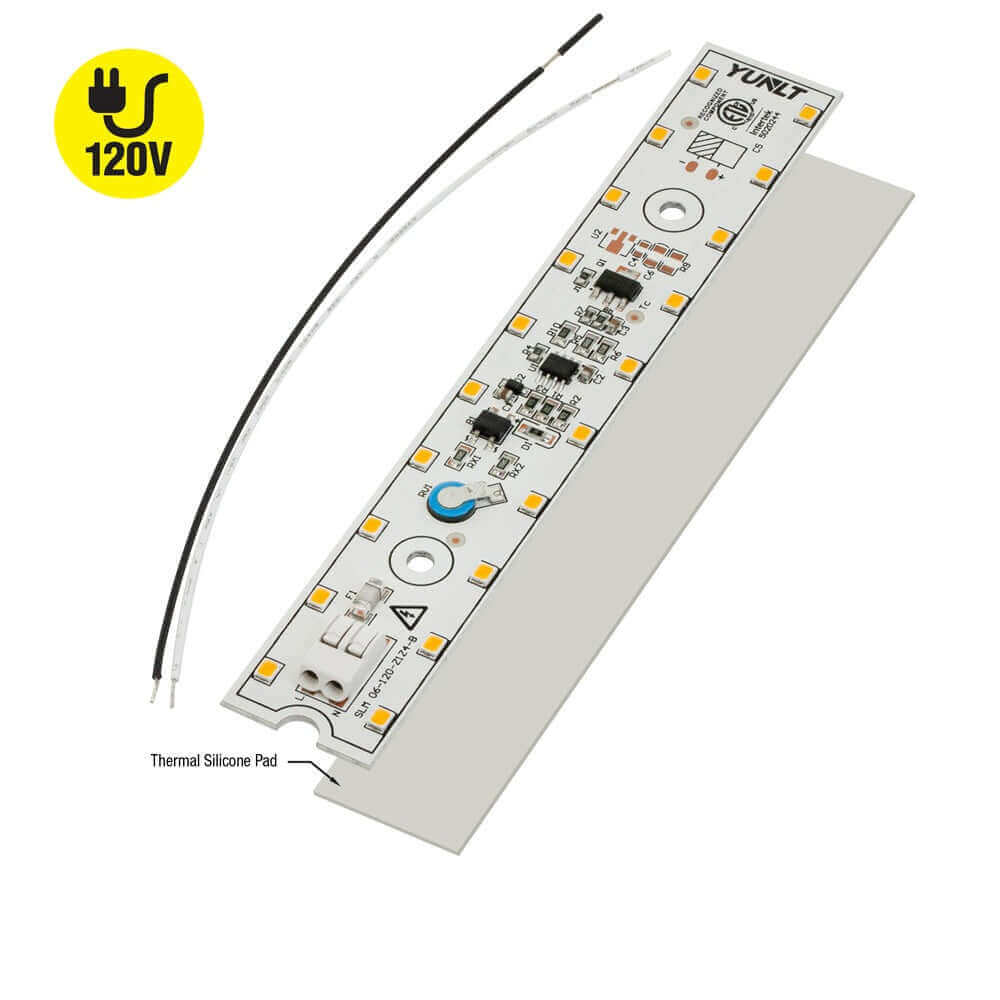

Package Components | LED Module Thermal Silicon Pad 6inch Black and White power feed |

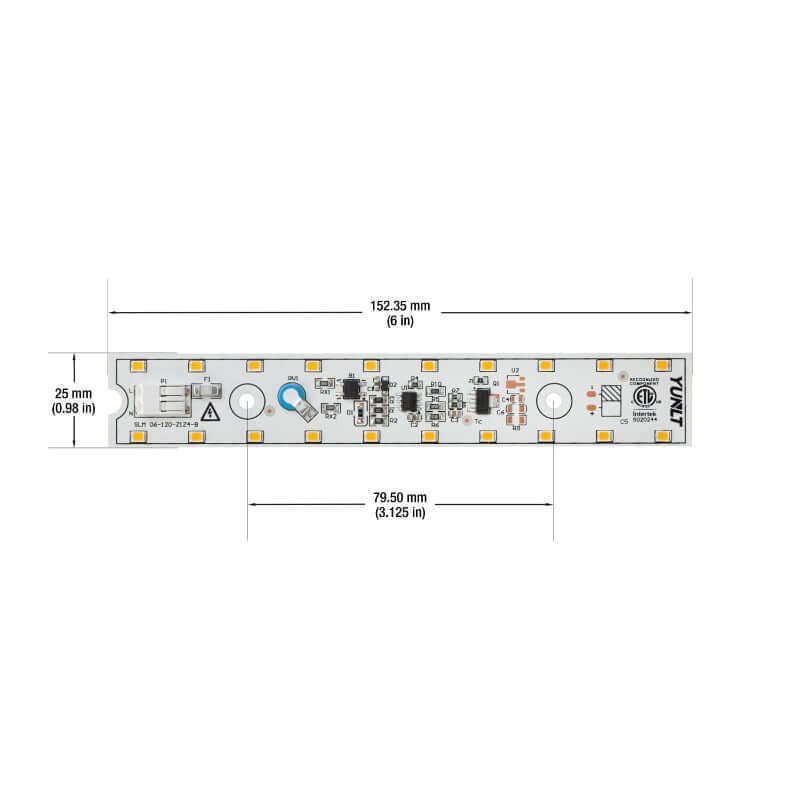

Dimensions | 152.35mm (6 inch) x 25 mm (0.98 inch) |
Diameter of the screw hole | 3.9mm (0.15 in) |
Distance between holes | 79.5mm (3.12 in) |
Height | 6mm (0.23in) |
Certification |
![]() |
The 6inch Slim LED Module Driverless Engine SLM 06-012W-930-120-S3-Z1B is a high-quality and energy-efficient lighting solution that provides warm white light with a color temperature of 3000K and a high rendering index of CRI>90, resulting in excellent color quality. With a wattage of 12W and operating on a voltage of 120V AC, this LED module produces a luminous flux of 1100 lumens, providing powerful lighting while remaining energy-efficient.
This LED module is also dimmable, allowing for greater control over the lighting environment. Constructed with an aluminum base material, the SLM 06-012W-930-120-S3-Z1B has a slim and compact size of 152.35mm (6 inch) x 25 mm (0.98 inch), making it easy to install in a variety of settings. It also includes a thermal silicon pad and a 6-inch black and white power feed for added convenience.
The SLM 06-012W-930-120-S3-Z1B LED Module is designed to meet high safety and quality standards, and is pending ETL certification. The LED module has a diameter of 3.9mm (0.15 in) and a distance between holes of 79.5mm (3.12 in), making it easy to install using screws.
Overall, the SLM 06-012W-930-120-S3-Z1B LED Module by YUNLT is an excellent lighting solution that provides exceptional quality, energy efficiency, and convenience. Its low power consumption and high luminous flux make it suitable for a wide range of lighting applications, while its slim and compact size and easy installation make it an ideal DIY product for replacing ceiling lights or bulb sources.
Features:
- High-quality and energy-efficient LED module
- Provides warm white light with a color temperature of 3000K and a high rendering index of CRI>90
- Wattage of 12W and operating on a voltage of 120V AC, produces a luminous flux of 1100 lumens
- Dimmable, allowing for greater control over the lighting environment
- Constructed with an aluminum base material and has a slim and compact size of 152.35mm (6 inch) x 25 mm (0.98 inch), making it easy to install in a variety of settings
- Includes a thermal silicon pad and a 6-inch black and white power feed for added convenience
- Pending ETL certification to meet high safety and quality standards
- Diameter of the screw hole is 3.9mm (0.15 in) and distance between holes is 79.5mm (3.12 in), making it easy to install using screws
- Suitable for a wide range of lighting applications and an ideal DIY product for replacing ceiling lights or bulb sources.
- A premier quality light engine. It produces up to 1100 lumens of exceptional light.
- Low power consumption, high energy efficiency.
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.
- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
