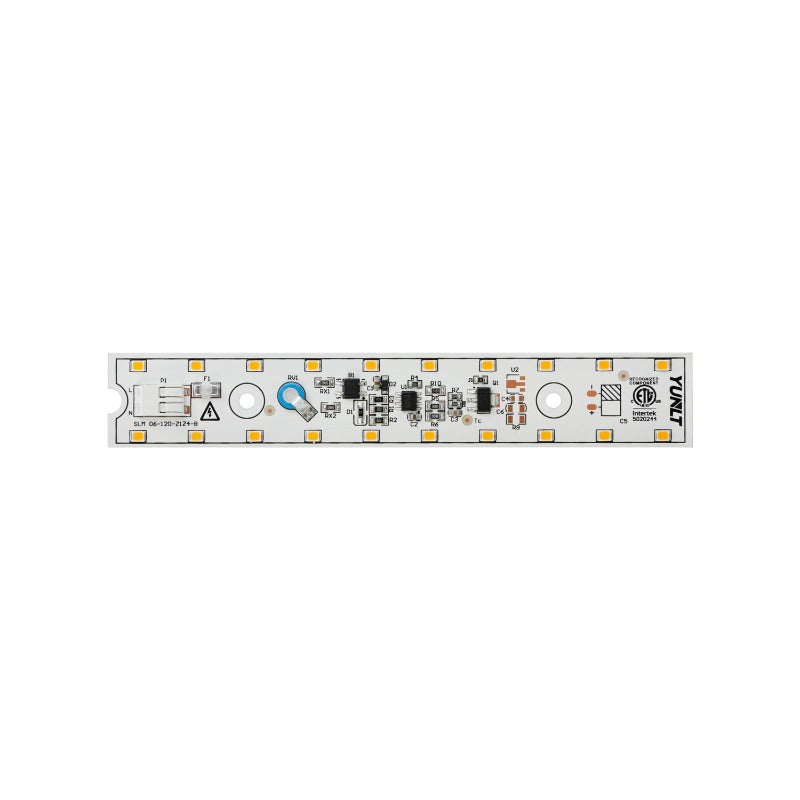

6 inch Slim ZEGA LED Module SLM 06-015W-930-120-S3-Z1B, 120V 15W 3000K(Warm White)
Product Description
| Product | LED Module |
| Model No | SLM 06-015W-930-120-S3-Z1B |
| No of LEDs | 20 |
| Wattage | 15W |
| Voltage | 120V AC |
| Luminous Flux | 1300 lumens |
| Color Temperature | 3000K (Warm White) |
| Rendering Index | CRI>90 |
| Power Source | AC |
| Dimmable | Yes |
| Base Material | Aluminum |
| Package Components | LED Module Thermal Silicon Pad 6inch Black and White power feed |

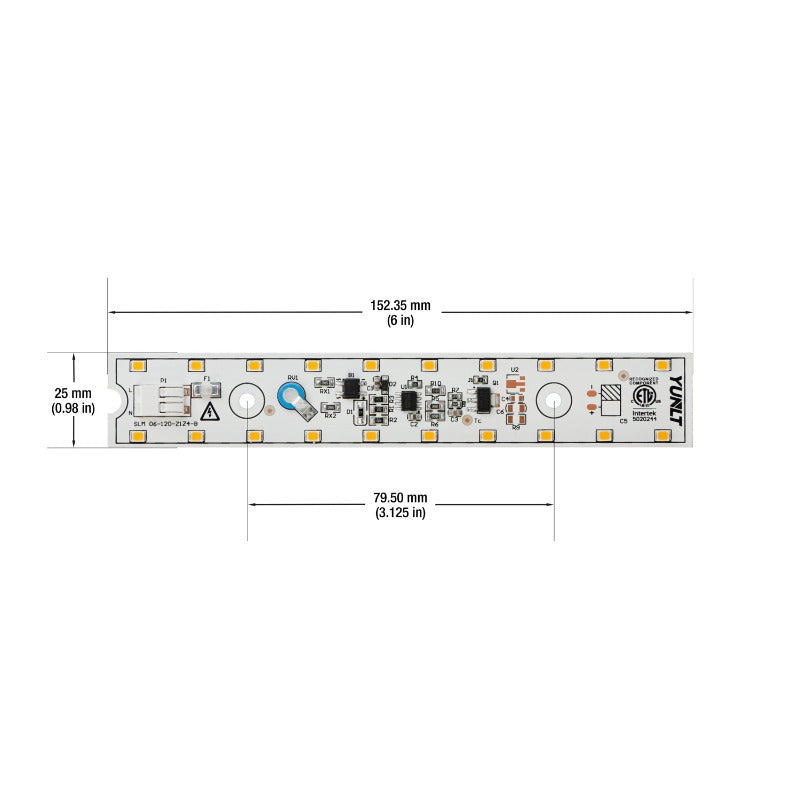

| Dimensions | 152.35mm (6 inch) x 25 mm (0.98 inch) |
| Diameter of the screw hole | 3.9mm (0.15 in) |
| Distance between holes | 79.5mm (3.12 in) |
| Height | 6mm (0.23in) |
| Certification |
 |

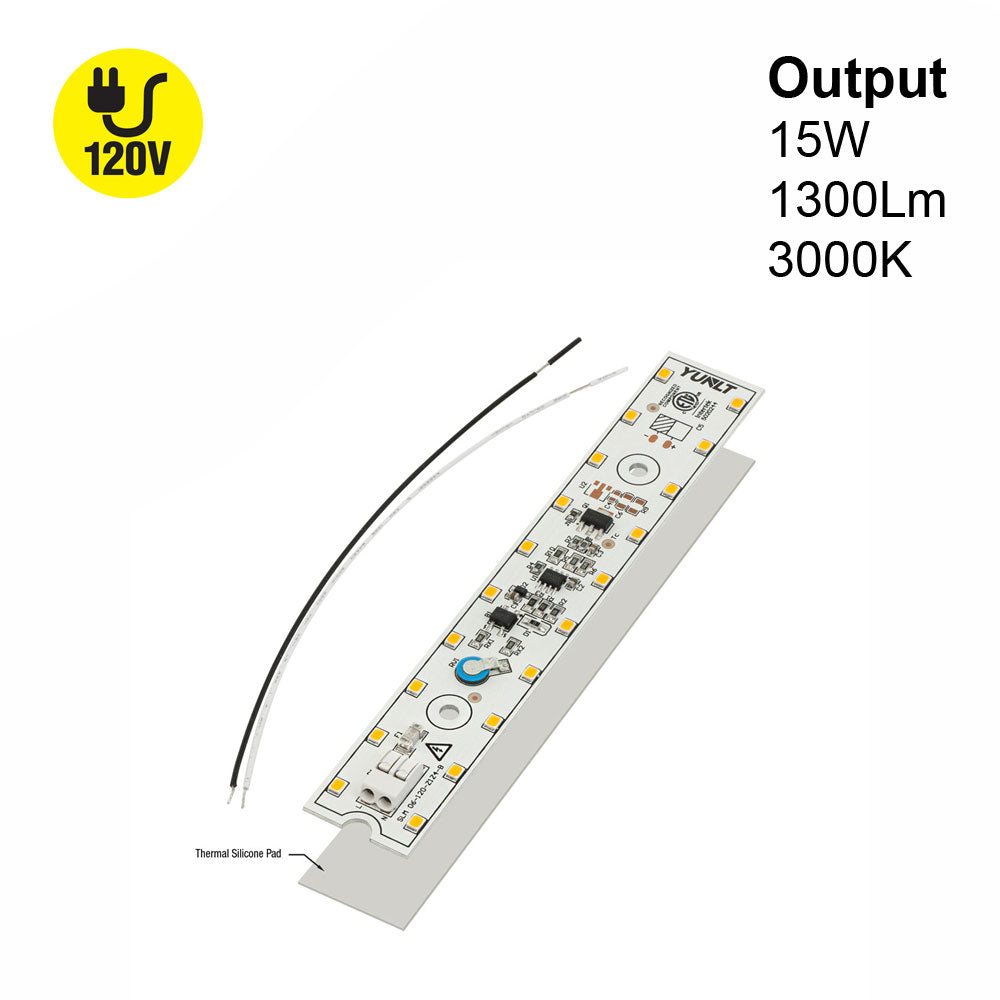

The 6inch Slim LED Module Driverless Engine SLM 06-015W-930-120-S3-Z1B is an energy-efficient and high-quality lighting solution that produces warm white light with a color temperature of 3000K and a high rendering index of CRI>90, resulting in excellent color quality. With a wattage of 15W and operating on a voltage of 120V AC, this LED module produces a luminous flux of 1300 lumens, providing bright and powerful lighting while remaining energy-efficient.
This LED module is also dimmable, allowing for greater control over the lighting environment. Constructed with an aluminum base material, the SLM 06-015W-930-120-S3-Z1B has a slim and compact size of 152.35mm (6 inch) x 25 mm (0.98 inch), making it easy to install in a variety of settings. It also includes a thermal silicon pad and a 6-inch black and white power feed for added convenience.
Overall, the SLM 06-015W-930-120-S3-Z1B LED Module by YUNLT is an excellent lighting solution that provides exceptional quality, energy efficiency, and convenience. Its low power consumption and high luminous flux make it suitable for a wide range of lighting applications, while its slim and compact size and easy installation make it an ideal DIY product for replacing ceiling lights or bulb sources.
Features:
- Energy-efficient and high-quality lighting solution
- Warm white light with a color temperature of 3000K and a high rendering index of CRI>90 for excellent color quality
- 15W wattage and operating voltage of 120V AC produce a luminous flux of 1300 lumens for bright and powerful lighting while remaining energy-efficient
- Dimmable for greater control over the lighting environment
- Constructed with an aluminum base material and slim, compact size of 152.35mm (6 inch) x 25 mm (0.98 inch) for easy installation in a variety of settings

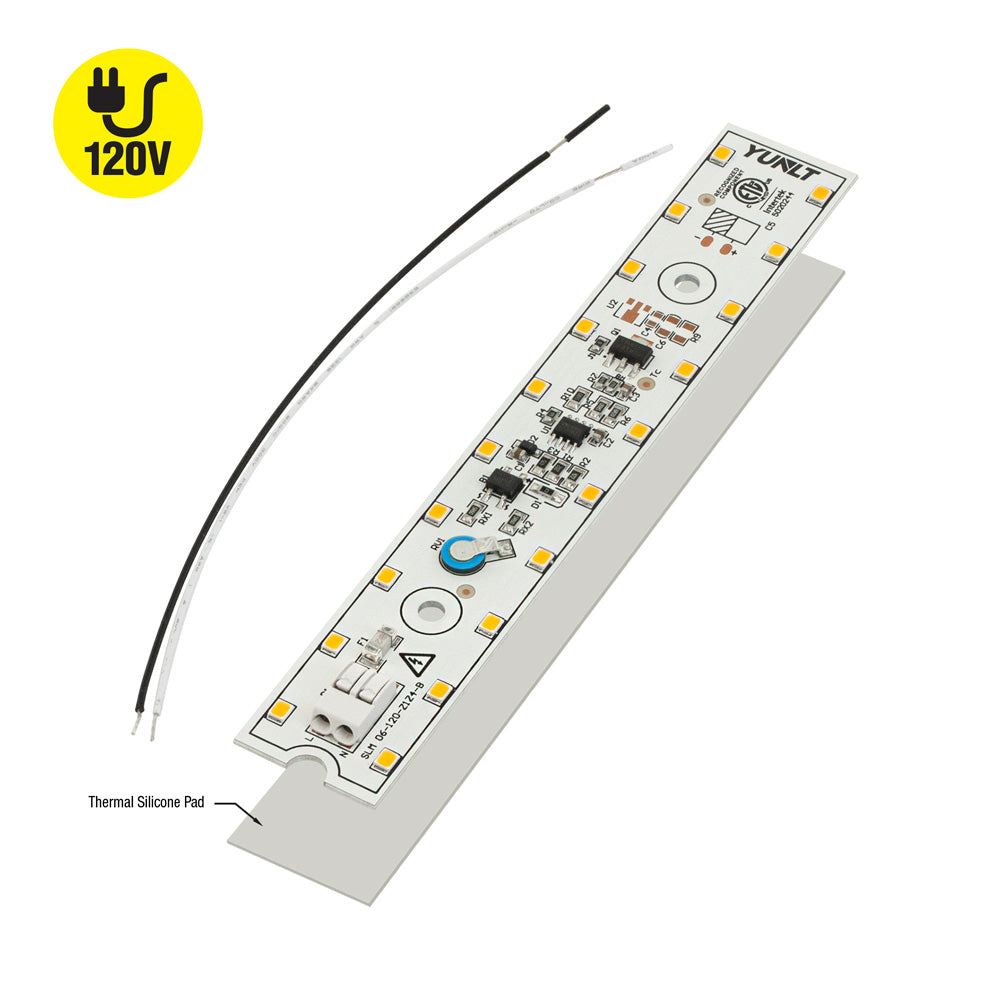

- Includes thermal silicon pad and 6-inch black and white power feed for added convenience
- ETL certified for safety and quality
- Diameter of screw hole is 3.9mm (0.15 in) and distance between holes is 79.5mm (3.12 in) for easy installation using screws
- Suitable for a wide range of lighting applications, and an ideal DIY product for replacing ceiling lights or bulb sources
- A premier quality light engine. It produces up to 1300 lumens of exceptional light.
- Low power consumption, high energy efficiency.
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.
- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
