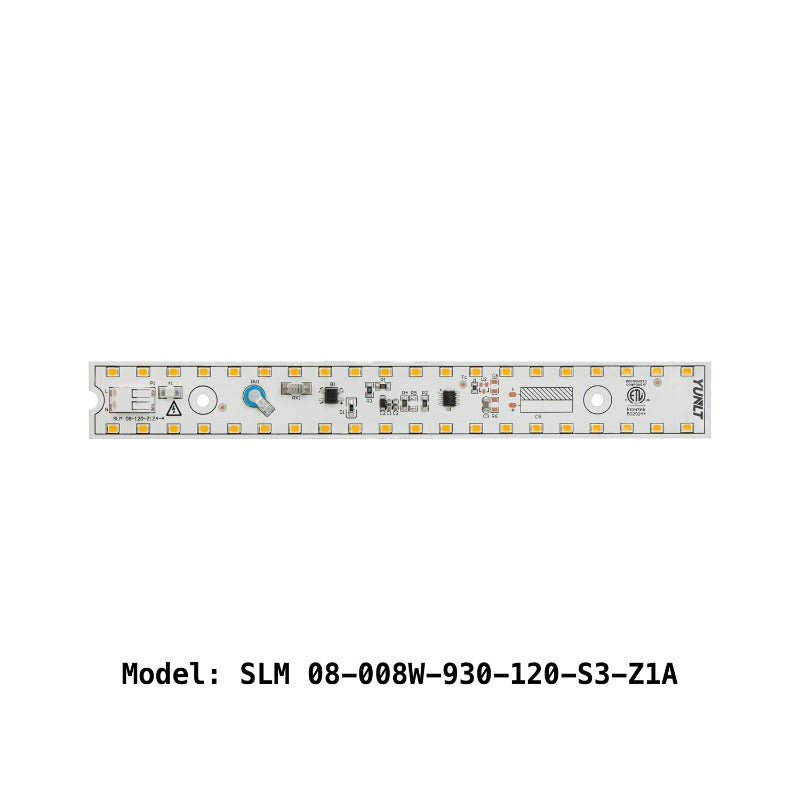

8inch Slim LED Module Driverless Engine SLM 08-008W-930-120-S3-Z1A, 120V 8W 3000K(Warm White)
|Model No||SLM 08-008W-930-120-S3-Z1A|
|No of LEDs||40|
|Luminous Flux||700 lumens|
|Color Temperature||3000K (Warm White)|
|Package Components||LED Module
Thermal Silicon Pad
6inch Black and White power feed

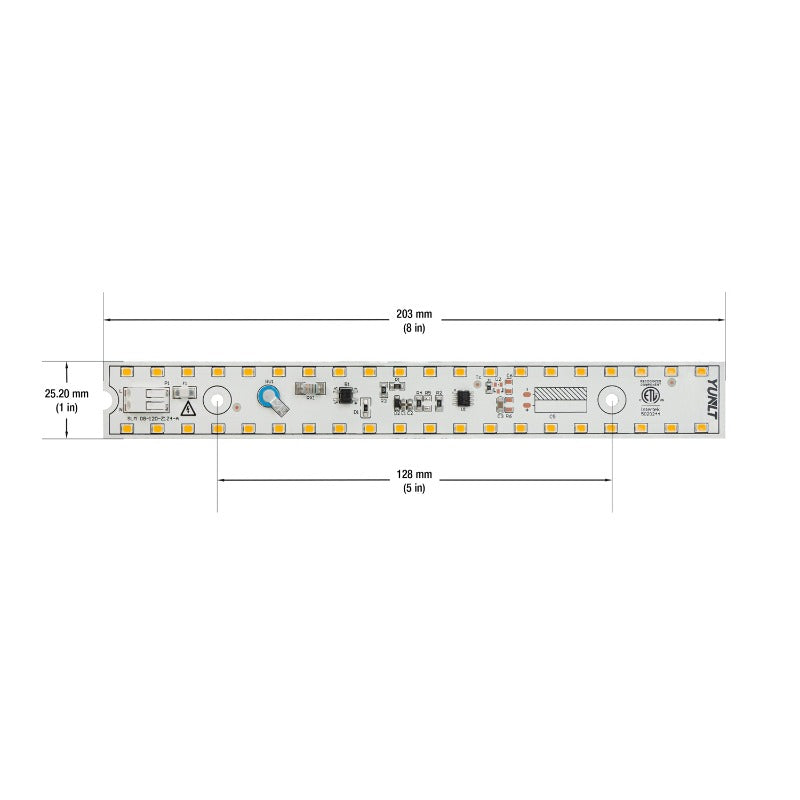

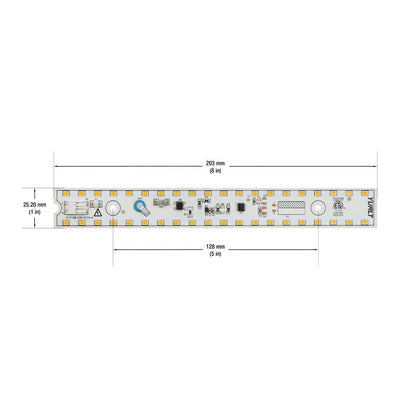

|Dimensions||203mm (8 inch) x 25.2 mm (1 inch)|
|Diameter of the screw hole||3.9mm (0.15 in)|
|Distance between holes||128mm (5 in)|

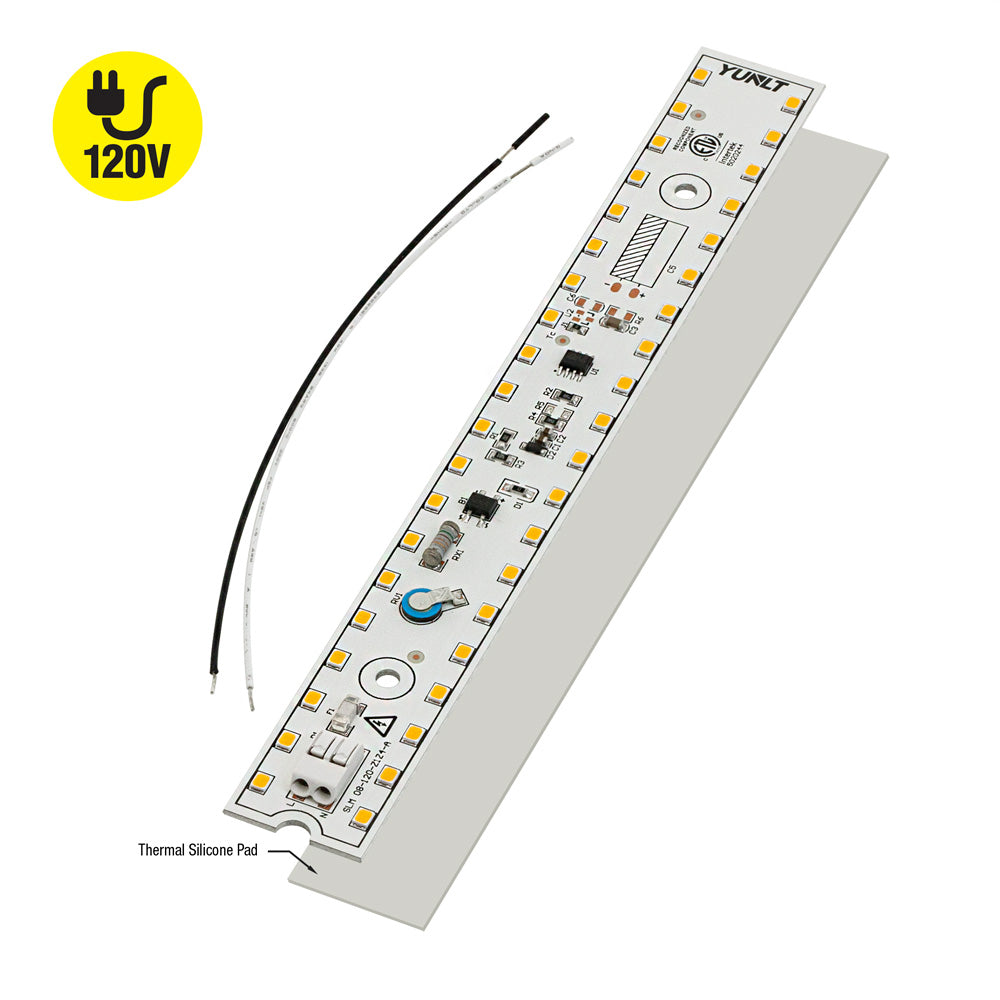

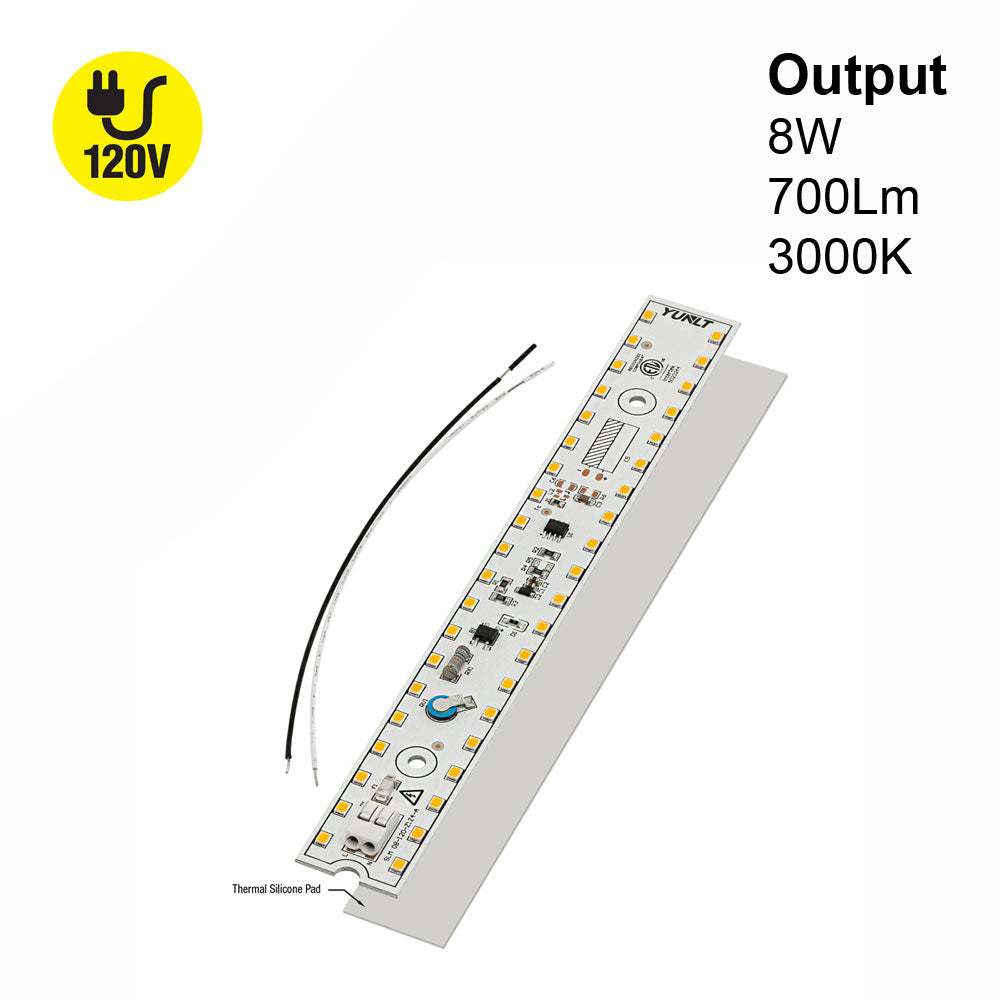

The SLM 08-008W-930-120-S3-Z1A is an 8 inch slim LED module driverless engine that contains 40 LED bulbs. It has a voltage rating of 120V AC and a wattage of 8W, producing a luminous flux of 700 lumens. The color temperature of the LED module is 3000K, which is considered warm white. The color rendering index (CRI) of the module is greater than 90, indicating that it accurately reproduces colors. The module is powered by AC and is dimmable. It has an aluminum base material and comes with a thermal silicon pad, a 6 inch black and white power feed, and the required mounting hardware.
The dimensions of the module are 203mm (8 inch) x 25.2 mm (1 inch), with a diameter of the screw hole of 3.9mm (0.15 in) and a distance between holes of 128mm (5 in). The module is certified by etl, indicating that it meets industry safety standards.
- 8 inch slim LED module driverless engine with 40 LED bulbs
- Voltage rating of 120V AC and wattage of 8W
- Produces a luminous flux of 700 lumens
- Color temperature of 3000K (warm white)
- Color rendering index (CRI) of >90 for accurate color reproduction
- Powered by AC and is dimmable
- Made with an aluminum base material and comes with a thermal silicon pad, a 6 inch black and white power feed, and the required mounting hardware
- Dimensions of the module are 203mm (8 inch) x 25.2 mm (1 inch), with a diameter of the screw hole of 3.9mm (0.15 in) and a distance between holes of 128mm (5 in)
- Certified by etl for meeting industry safety standards
- A premier quality light engine. It produces up to 700 lumens of exceptional light.
- Low power consumption, high energy efficiency.
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.
- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
