8 inch Slim ZEGA LED Module SLM 08-010W-930-120-S3-Z1A, 120V 10W 3000K(Warm White)
|Model No||SLM 08-010W-930-120-S3-Z1A|
|No of LEDs||40|
|Luminous Flux||900 lumens|
|Color Temperature||3000K (Warm White)|

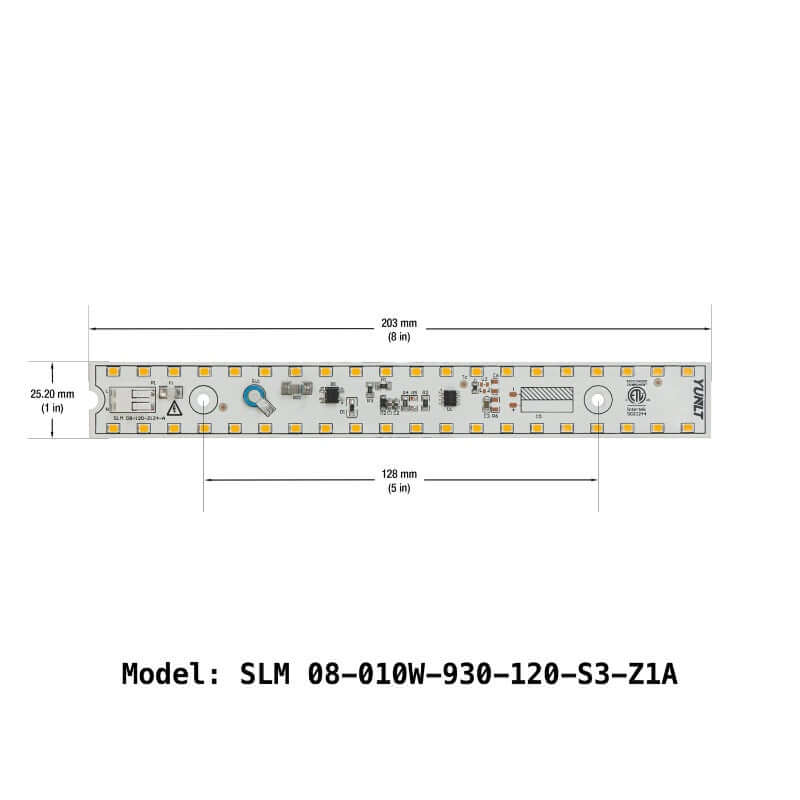

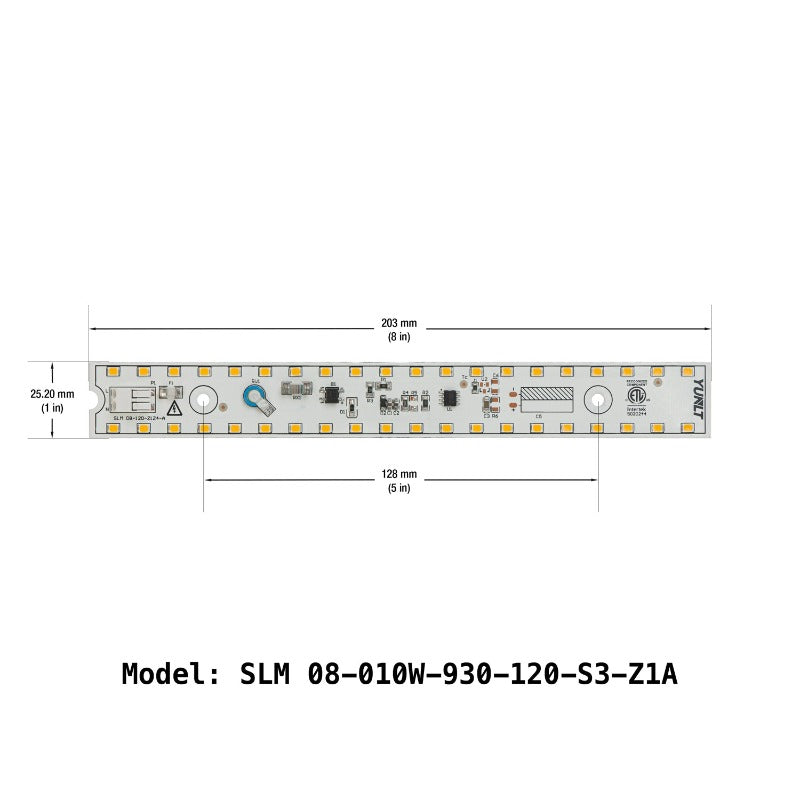

|Dimensions||203mm (8 inch) x 25.2 mm (1 inch)|
|Diameter of the screw hole||3.9mm (0.15 in)|
|Distance between holes||128mm (5 in)|
The 8-inch Slim LED Module Driverless Engine SLM 08-010W-930-120-S3-Z1A is an LED lighting module with a model number of SLM 08-010W-930-120-S3-Z1A. It contains 40 LED bulbs and has a wattage of 10W, with a voltage of 120V AC. The color temperature of the module is 3000K, which provides a warm white light, and the module has a luminous flux of 900 lumens.
The LED module has a high color rendering index (CRI) of over 90, which indicates that it accurately renders colors. The module is powered by AC and is dimmable, allowing the user to adjust the brightness of the light. The base material of the module is aluminum, which provides durability and efficient heat dissipation.
The dimensions of the module are 203mm (8 inches) in length and 25.2 mm (1 inch) in height. The module has screw holes with a diameter of 3.9mm (0.15 inches) and a distance of 128mm (5 inches) between the holes. The module is certified by ETL, indicating that it meets safety standards and has been tested for electrical safety.
- LED lighting module with model number SLM 08-010W-930-120-S3-Z1A
- Contains 40 LED bulbs with a wattage of 10W and voltage of 120V AC
- Color temperature of 3000K provides warm white light
- Luminous flux of 900 lumens
- High color rendering index (CRI) of over 90 for accurate color rendering
- Dimmable to adjust brightness of light
- Base material made of durable and heat-dissipating aluminum
- Dimensions of 203mm (8 inches) length and 25.2mm (1 inch) height
- Screw holes with 3.9mm (0.15 inches) diameter and 128mm (5 inches) distance between holes
- Certified by ETL for electrical safety standards

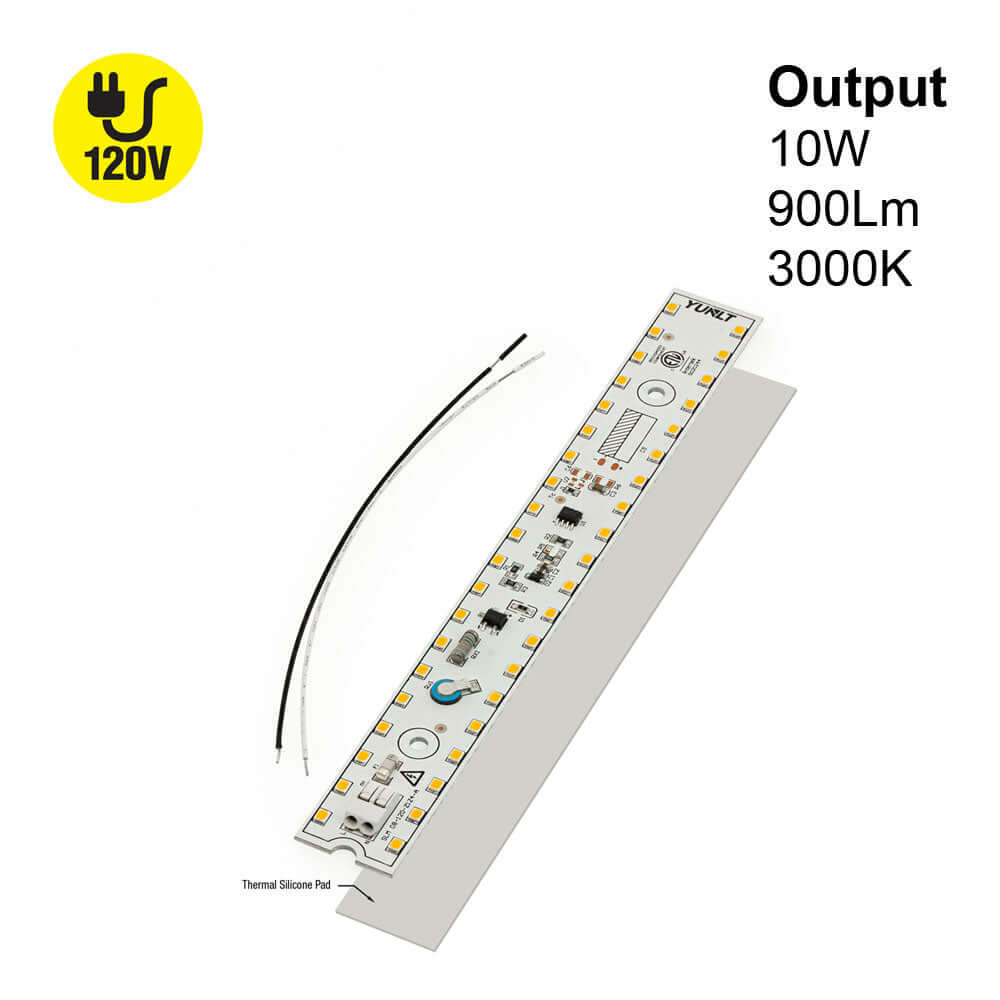

- A premier quality light engine. It produces up to 900 lumens of exceptional light.
- Low power consumption, high energy efficiency.
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.

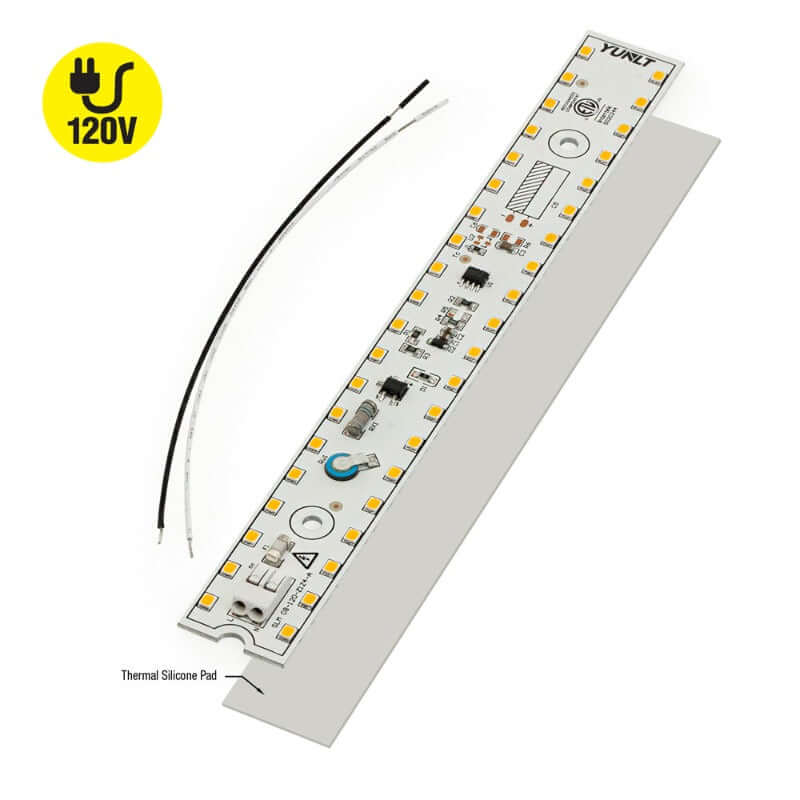

- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
