8 inch Slim ZEGA LED Module SLM 08-012W-930-120-S3-Z1B, 120V 12W 3000K(Warm White)
Product Description
Product | LED Module |

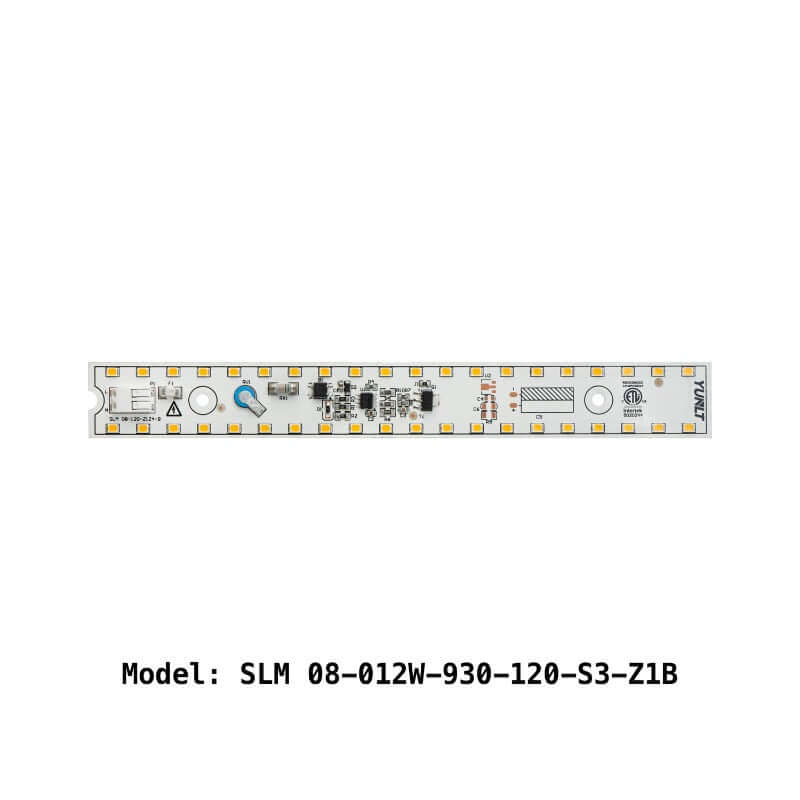

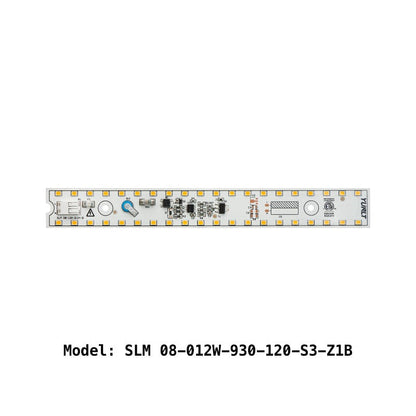

Model No | SLM 08-012W-930-120-S3-Z1B |
No of LEDs | 40 |
Wattage | 12W |
Voltage | 120V AC |

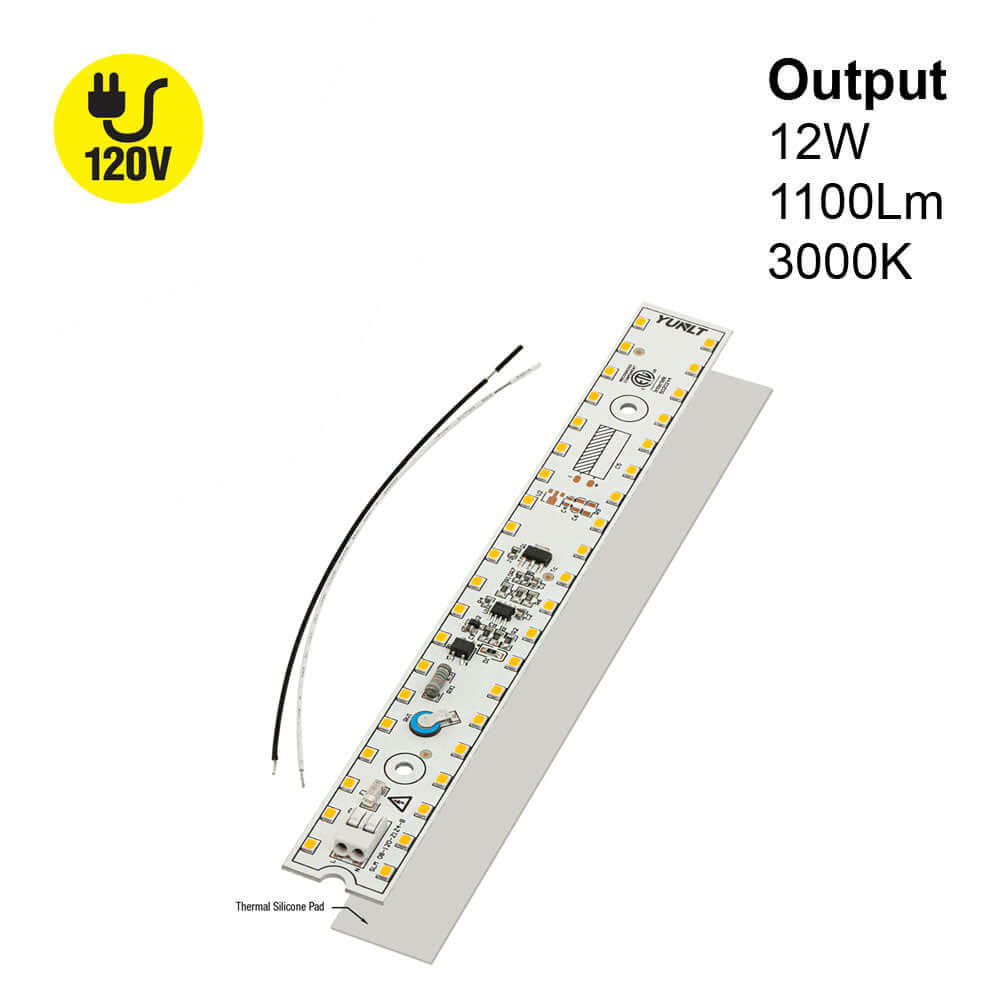

Luminous Flux | 1100 lumens |
Color Temperature | 3000K (Warm White) |
Rendering Index | CRI>90 |
Power Source | AC |
Dimmable | Yes |
Base Material | Aluminum |
Package Components | LED Module Thermal Silicon Pad 6inch Black and White power feed |
Dimensions | 203mm (8 inch) x 25.2 mm (1 inch) |
Diameter of the screw hole | 3.9mm (0.15 in) |
Distance between holes | 128mm (5 in) |
Height | 6mm (0.23in) |
Certification |
|
The 8-inch Slim LED Module Driverless Engine SLM 08-012W-930-120-S3-Z1B is an energy-efficient lighting solution that features a total of 40 LED bulbs, providing a powerful luminous flux of 1100 lumens while consuming only 12W of power. This LED module has a model number of SLM 08-012W-930-120-S3-Z1B and operates on 120V AC power source.
The color temperature of this module is 3000K, which gives off a warm white light that is ideal for various applications, including indoor and outdoor lighting. The high color rendering index (CRI) of over 90 ensures that the colors are rendered accurately and vividly.
The module is designed to be dimmable, allowing the user to adjust the brightness of the light according to their preference. It also features a durable base material made of aluminum, which efficiently dissipates heat and ensures its longevity.

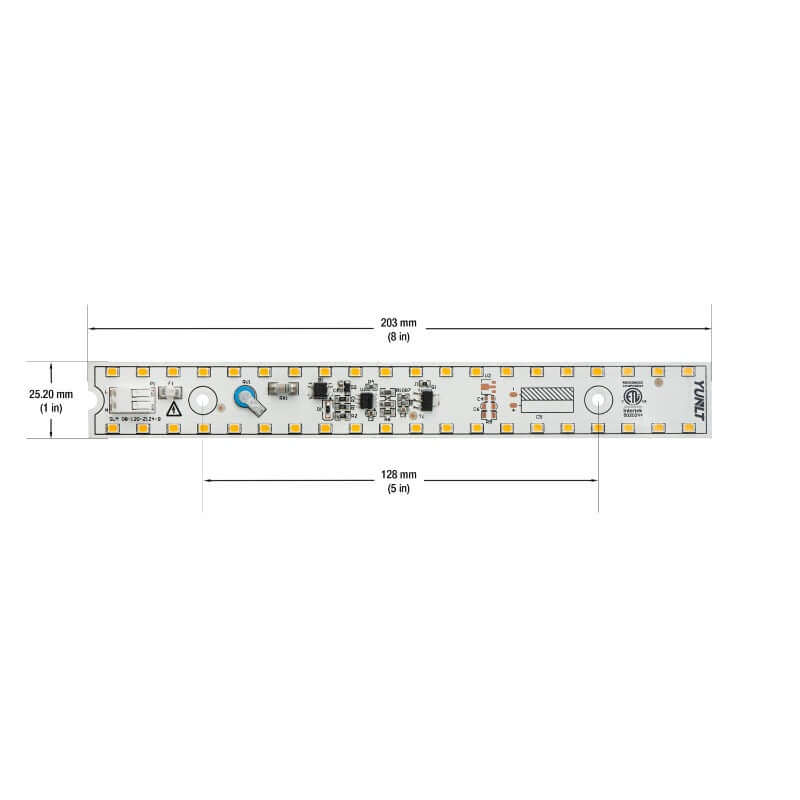

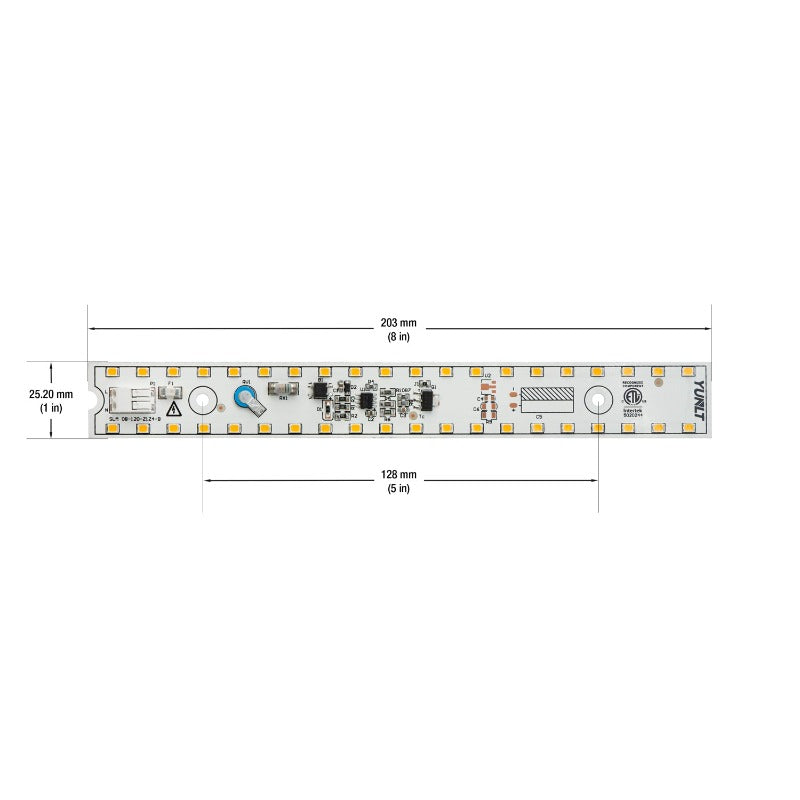

The dimensions of the module are 203mm (8 inches) in length and 25.2 mm (1 inch) in height. It comes with screw holes that have a diameter of 3.9mm (0.15 inches) and are spaced 128mm (5 inches) apart. The package includes a thermal silicon pad and a 6-inch black and white power feed, making installation easier and more convenient.
This LED module has been certified by ETL, ensuring that it meets safety standards and has been tested for electrical safety. Whether you're looking to light up your home, office, or commercial space, the SLM 08-012W-930-120-S3-Z1B LED module is an excellent choice that offers high performance and energy efficiency.
Features:
- Contains 40 LED bulbs and has a wattage of 12W
- Provides a powerful luminous flux of 1100 lumens while consuming only 12W of power
- Operates on 120V AC power source
- Color temperature of 3000K provides warm white light
- High color rendering index (CRI) of over 90 accurately renders colors
- Dimmable design allows the user to adjust brightness
- Durable base material made of aluminum ensures longevity and efficient heat dissipation
- Dimensions of 203mm (8 inches) in length and 25.2 mm (1 inch) in height
- Screw holes with a diameter of 3.9mm (0.15 inches) and spaced 128mm (5 inches) apart

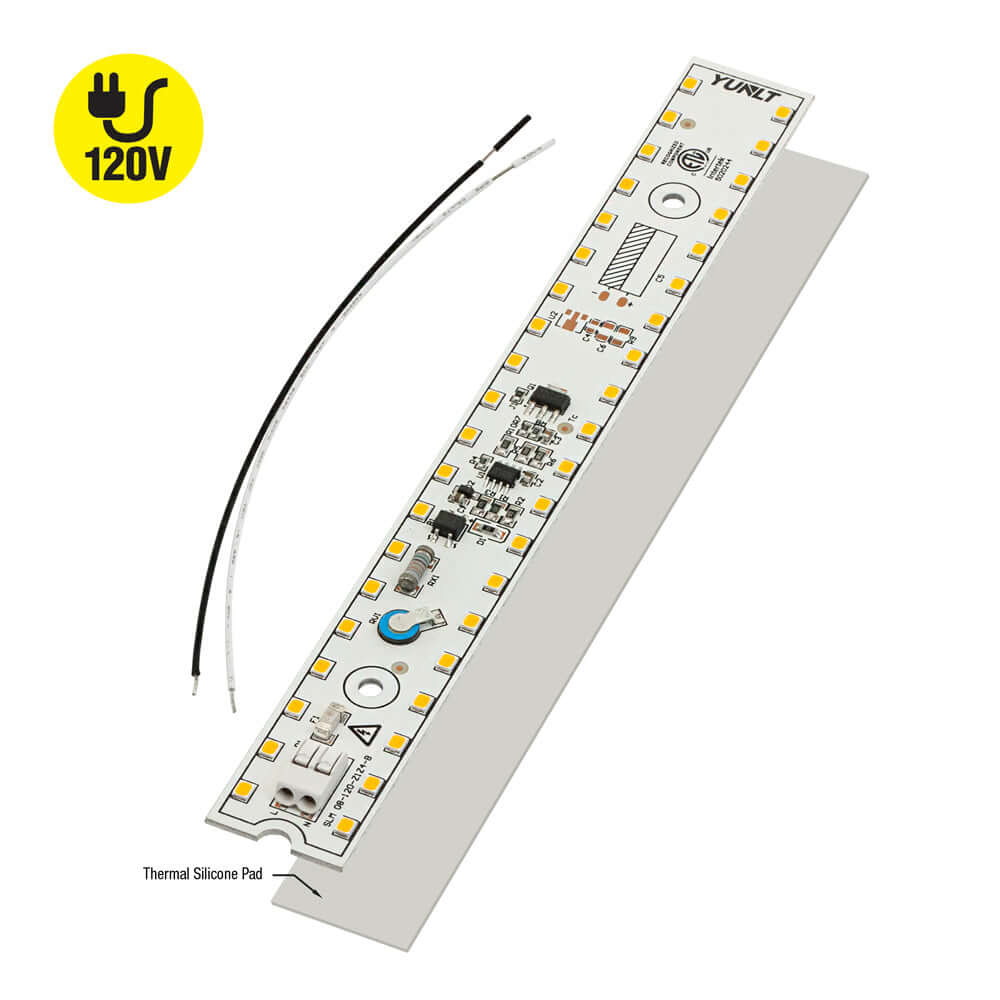

- Package includes thermal silicon pad and 6-inch black and white power feed for convenient installation
- Certified by ETL for safety and electrical safety
- Suitable for indoor and outdoor lighting applications in homes, offices, and commercial spaces.
- A premier quality light engine. It produces up to 1100 lumens of exceptional light.
- Low power consumption, high energy efficiency.
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.
- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
