11 inch Slim ZEGA LED Module SLM 11-010W-930-120-S3-Z1A, 120V 10W 3000K(Warm White)

  • $25.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561428075
Title:
We only have 37 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).


Product Description

Product LED Module
Model No SLM 11-010W-930-120-S3-Z1A
No of LEDs 40
Wattage 10W
Voltage 120V AC
Luminous Flux 900 lumens
Color Temperature 3000K (Warm White)
Rendering Index CRI>90
Power Source AC
Dimmable Yes
Base Material Aluminum
Package Components  LED Module
Thermal Silicon Pad
6inch Black and White power feed

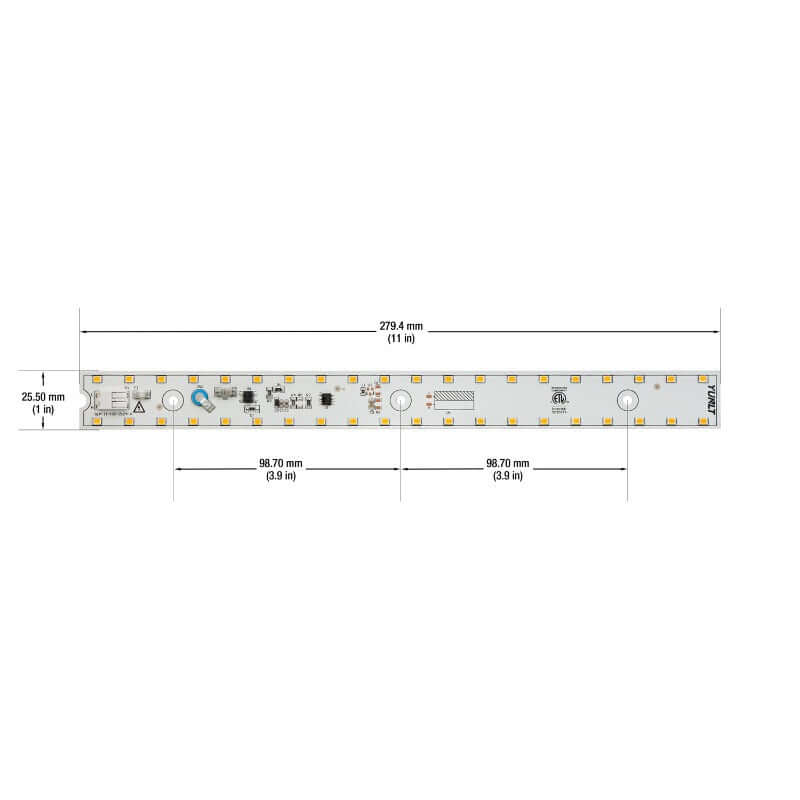

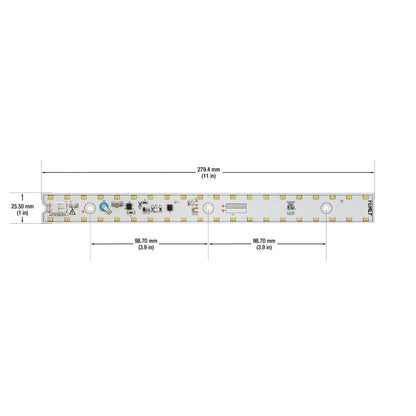

Dimensions 279.4mm (11 inch) x 25.5 mm (1 inch)
Diameter of the screw hole 3.9mm (0.15 in)
Distance between holes 98.7mm (3.9 in)
Height 6mm (0.23in)
Certification

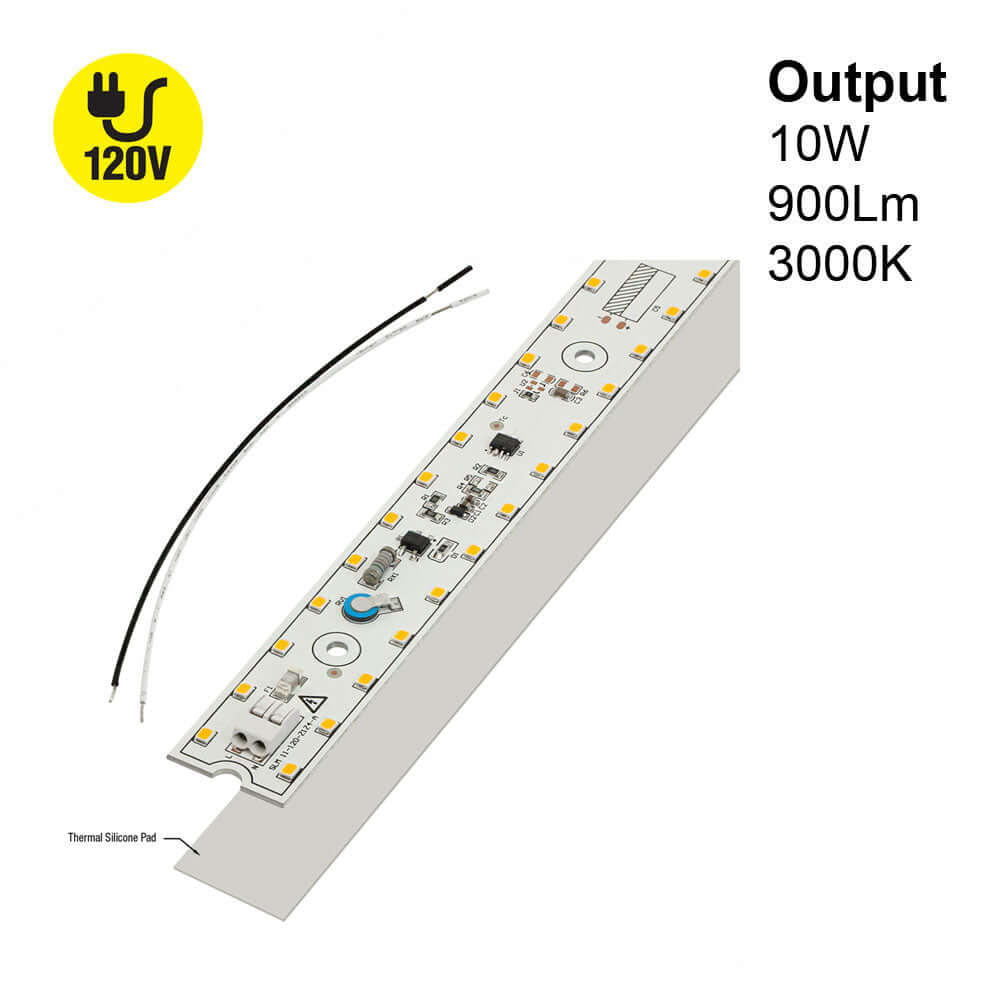

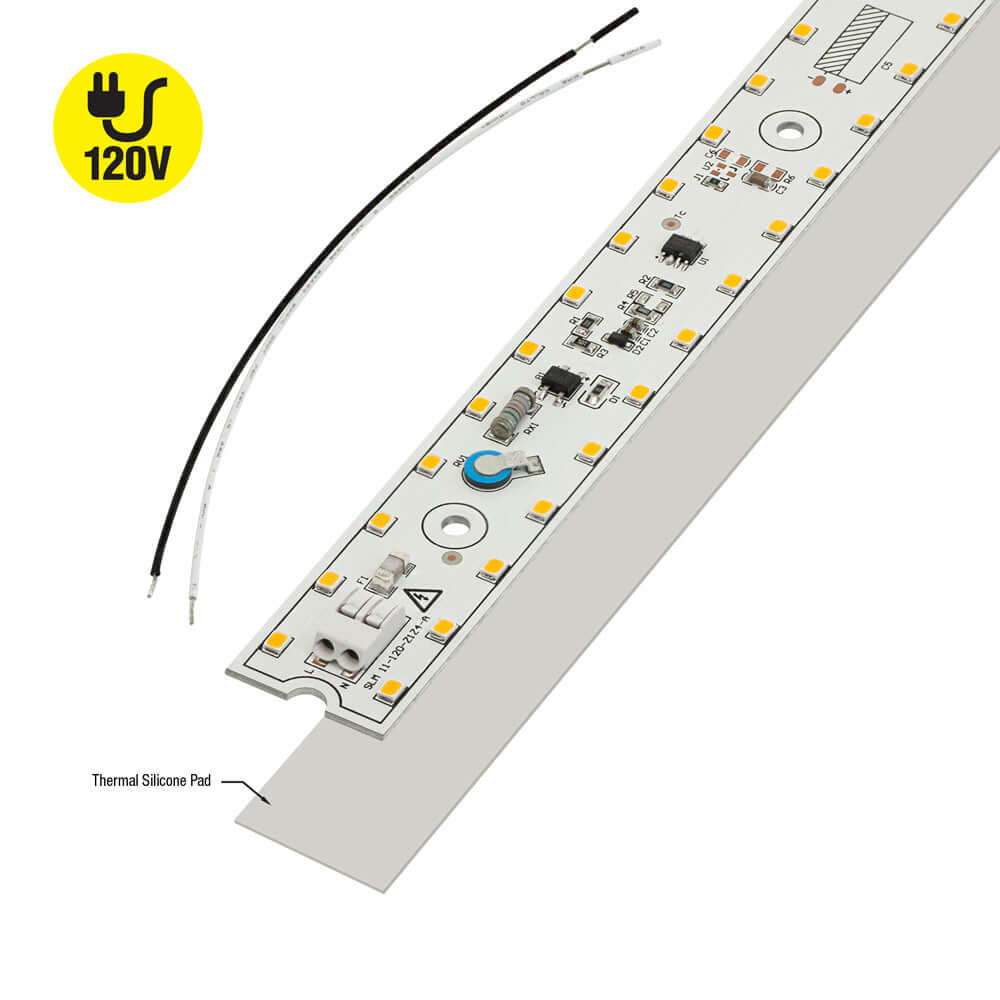

The SLM 11-010W-930-120-S3-Z1A is an 11-inch slim linear LED module driverless engine that provides high-quality and efficient lighting for various applications. It contains 40 LEDs and has a wattage of 10W, powered by 120V AC.

The module emits warm white light at a color temperature of 3000K, with a high color rendering index (CRI) of over 90, which means colors appear natural and vibrant. With a luminous flux of 900 lumens, this LED module provides bright and efficient lighting suitable for various applications such as under-cabinet lighting, task lighting, and display lighting.

The dimensions of the module are 279.4mm (11 inch) in length and 25.5 mm (1 inch) in width. The diameter of the screw hole is 3.9mm (0.15 in), and the distance between the holes is 98.7mm (3.9 in). This LED module is also dimmable and comes with a thermal silicon pad for even heat distribution, which helps to prolong the life of the module.

In addition, the SLM 11-010W-930-120-S3-Z1A comes with a 6-inch black and white power feed for easy installation. It is certified by ETL for safe and reliable use. This LED module is an excellent choice for anyone looking for a high-quality, energy-efficient, and long-lasting LED lighting solution.

Features:

  • 11-inch slim linear LED module driverless engine
  • Contains 40 LEDs and has a wattage of 10W, powered by 120V AC
  • Emits warm white light at a color temperature of 3000K with a CRI of over 90, providing natural and vibrant colors
  • Luminous flux of 900 lumens for bright and efficient lighting suitable for various applications
  • Dimensions of 279.4mm (11 inch) in length and 25.5 mm (1 inch) in width, with a screw hole diameter of 3.9mm (0.15 in) and a distance between holes of 98.7mm (3.9 in)
  • Dimmable and comes with a thermal silicon pad for even heat distribution, prolonging the life of the module
  • Includes a 6-inch black and white power feed for easy installation
  • Certified by ETL for safe and reliable use
  • Ideal for anyone seeking high-quality, energy-efficient, and long-lasting LED lighting solutions
  • It is a good DIY product for the replacement of a ceiling light/ Bulb source.
  • Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
