11 inch Slim ZEGA LED Module SLM 11-012W-930-120-S3-Z1B, 120V 12W 3000K(Warm White)
|Model No||SLM 11-012W-930-120-S3-Z1B|
|No of LEDs||40|
|Luminous Flux||1000 lumens|
|Color Temperature||3000K (Warm White)|
|Package Components||LED Module
Thermal Silicon Pad
6inch Black and White power feed
|Dimensions||279.4mm (11 inch) x 25.5 mm (1 inch)|
|Diameter of the screw hole||3.9mm (0.15 in)|
|Distance between holes||98.7mm (3.9 in)|
The SLM 11-012W-930-120-S3-Z1B is an 11-inch slim linear LED module driverless engine that provides high-quality and efficient lighting for various applications. This product contains 40 LEDs and has a wattage of 12W, powered by 120V AC. The module emits warm white light at a color temperature of 3000K, with a high color rendering index (CRI) of over 90, which means colors appear natural and vibrant.

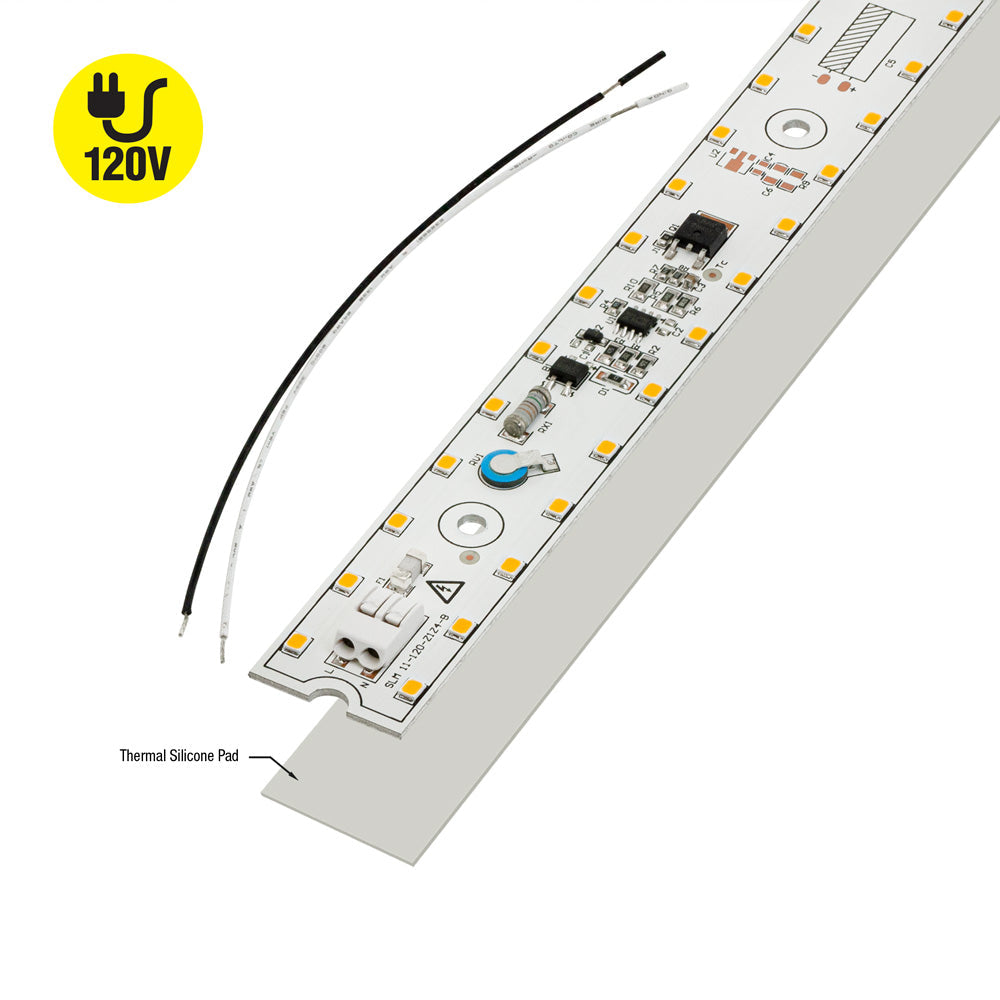

It comes with a thermal silicon pad for even heat distribution, which helps to prolong the life of the module. Additionally, a 6-inch black and white power feed is included for easy installation.

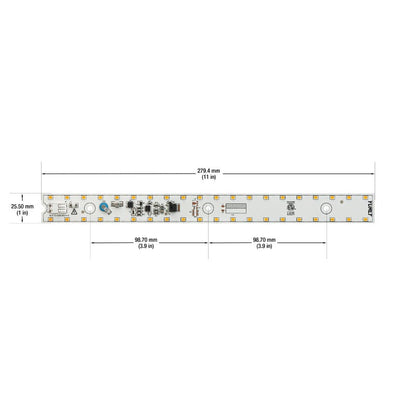

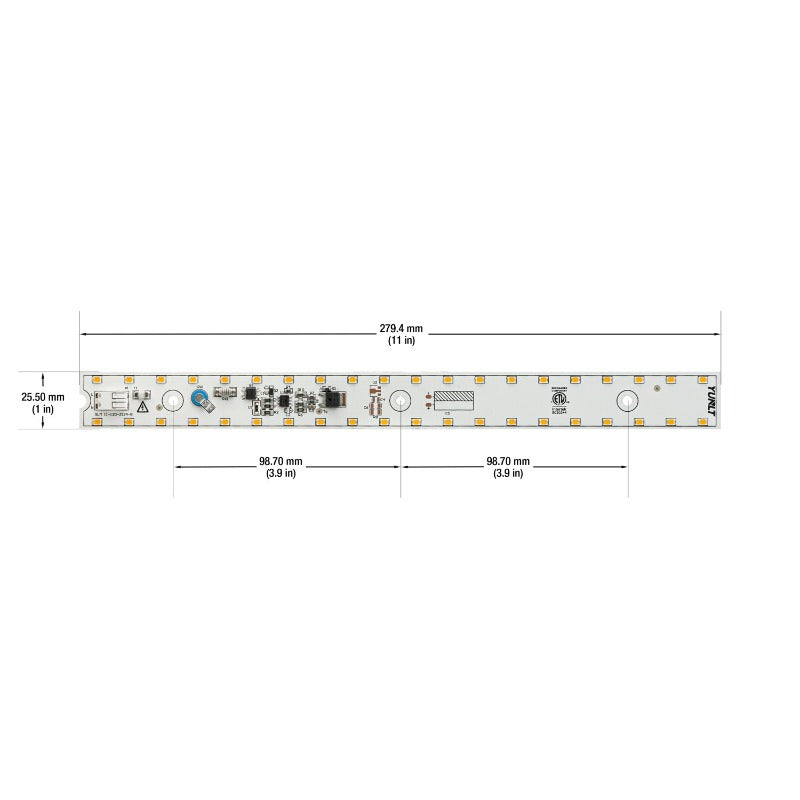

The dimensions of the module are 279.4mm (11 inch) in length and 25.5 mm (1 inch) in width. The diameter of the screw hole is 3.9mm (0.15 in), and the distance between the holes is 98.7mm (3.9 in).
With a luminous flux of 1000 lumens, this LED module provides bright and efficient lighting suitable for various applications such as under-cabinet lighting, task lighting, and display lighting. It has low power consumption and high energy efficiency, making it cost-effective to use. This LED module is also dimmable and can be used as a DIY product for replacing ceiling lights or bulb sources.
The SLM 11-012W-930-120-S3-Z1B is certified by ETL for safe and reliable use. It is an excellent choice for anyone looking for a high-quality, energy-efficient, and long-lasting LED lighting solution.
- 11-inch slim linear LED module driverless engine
- Contains 40 LEDs and has a wattage of 12W
- Powered by 120V AC
- Emits warm white light at a color temperature of 3000K
- High color rendering index (CRI) of over 90 for natural and vibrant colors
- Made of aluminum for excellent heat dissipation
- Comes with a thermal silicon pad for even heat distribution and prolonged life
- Includes a 6-inch black and white power feed for easy installation
- Dimensions: 279.4mm (11 inch) in length and 25.5 mm (1 inch) in width
- Diameter of screw hole: 3.9mm (0.15 in), distance between holes: 98.7mm (3.9 in)
- Luminous flux of 1000 lumens for bright and efficient lighting
- Suitable for various applications such as under-cabinet lighting, task lighting, and display lighting
- Low power consumption and high energy efficiency for cost-effective use
- Dimmable and can be used as a DIY product for replacing ceiling lights or bulb sources
- Certified by ETL for safe and reliable use.
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.
- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
