11 inch Slim ZEGA LED Module SLM 11-015W-930-120-S3-Z1B , 120V 15W 3000K(Warm White)
|Model No||SLM 11-015W-930-120-S3-Z1B|
|No of LEDs||40|
|Luminous Flux||1300 lumens|
|Color Temperature||3000K (Warm White)|
|Package Components||LED Module
Thermal Silicon Pad
6inch Black and White power feed
|Dimensions||279.4mm (11 inch) x 25.5 mm (1 inch)|
|Diameter of the screw hole||3.9mm (0.15 in)|
|Distance between holes||98.7mm (3.9 in)|

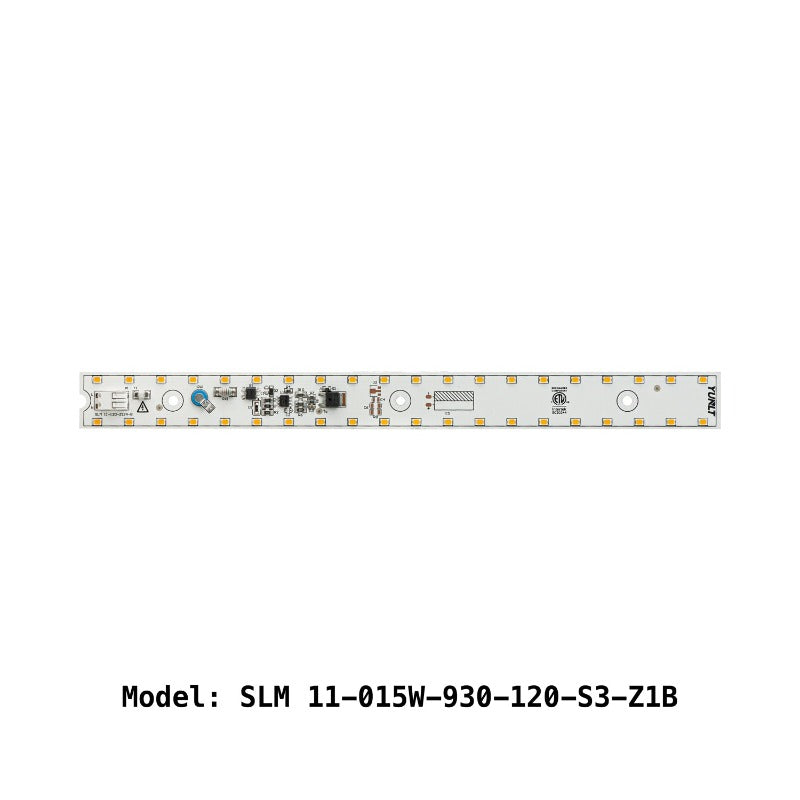

The SLM 11-015W-930-120-S3-Z1B is an 11-inch slim linear LED module driverless engine that provides high-quality and efficient lighting for various applications. It contains 40 LEDs and has a wattage of 15W, powered by 120V AC.
The module emits warm white light at a color temperature of 3000K, with a high color rendering index (CRI) of over 90, which means colors appear natural and vibrant. With a luminous flux of 1300 lumens, this LED module provides bright and efficient lighting suitable for various applications such as under-cabinet lighting, task lighting, and display lighting.

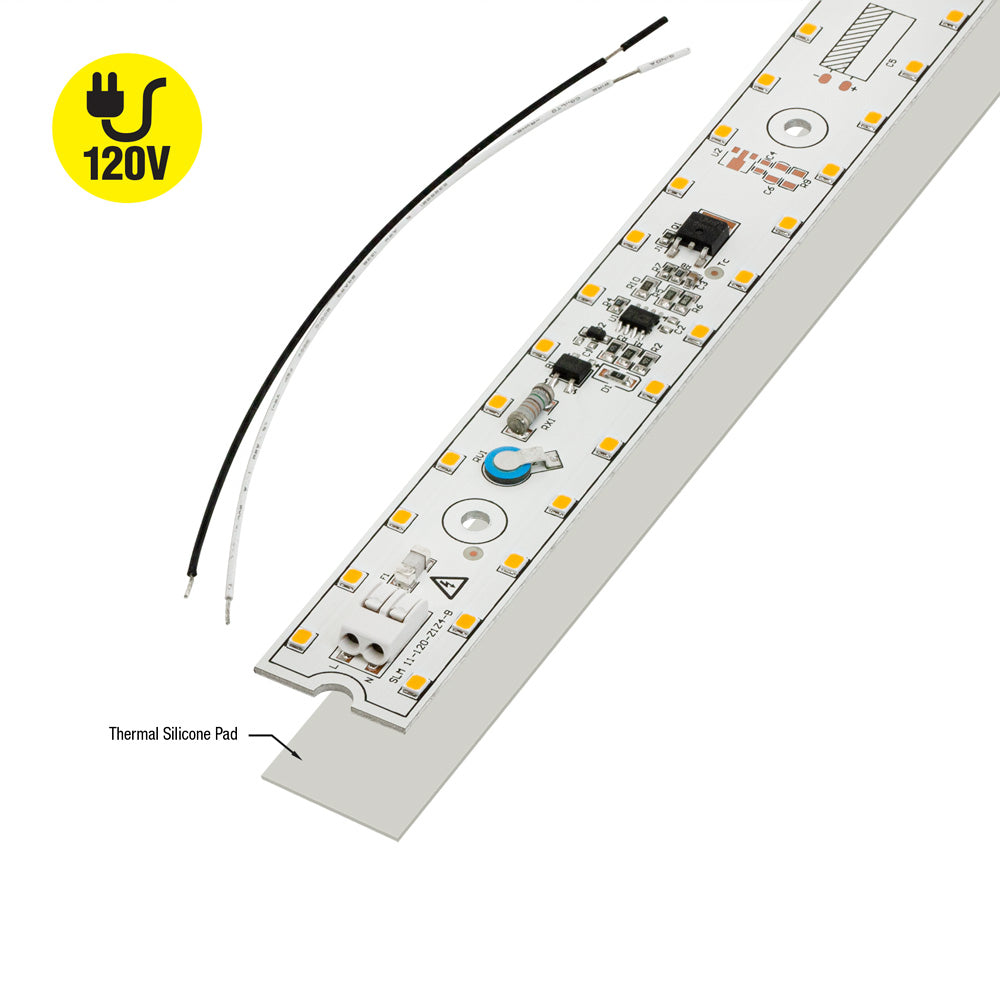

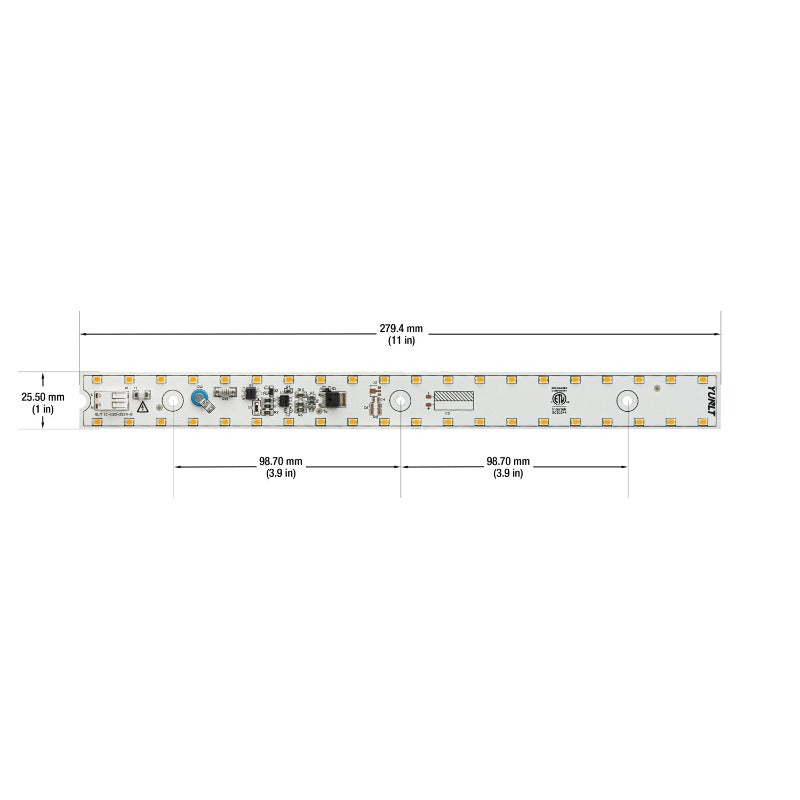

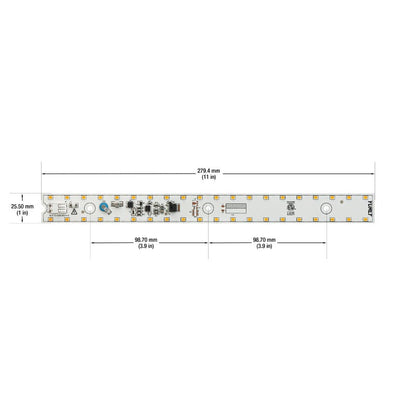

The dimensions of the module are 279.4mm (11 inch) in length and 25.5 mm (1 inch) in width. The diameter of the screw hole is 3.9mm (0.15 in), and the distance between the holes is 98.7mm (3.9 in). This LED module is also dimmable and comes with a thermal silicon pad for even heat distribution, which helps to prolong the life of the module.
In addition, the SLM 11-015W-930-120-S3-Z1B comes with a 6-inch black and white power feed for easy installation. It is certified by ETL for safe and reliable use. This LED module is an excellent choice for anyone looking for a high-quality, energy-efficient, and long-lasting LED lighting solution.
- 11-inch slim linear LED module driverless engine made of aluminum for excellent heat dissipation
- Contains 40 LEDs and has a wattage of 15W, powered by 120V AC
- Emits warm white light at a color temperature of 3000K with a high color rendering index (CRI) of over 90 for natural and vibrant colors
- Provides a luminous flux of 1300 lumens, suitable for various applications such as under-cabinet lighting, task lighting, and display lighting
- Dimensions of 279.4mm (11 inch) in length and 25.5 mm (1 inch) in width, with a diameter of the screw hole of 3.9mm (0.15 in) and distance between holes of 98.7mm (3.9 in)
- Dimmable with a thermal silicon pad for even heat distribution and longer life
- Comes with a 6-inch black and white power feed for easy installation
- Certified by ETL for safe and reliable use
- Energy-efficient and long-lasting LED lighting solution
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.
- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
