Product Description

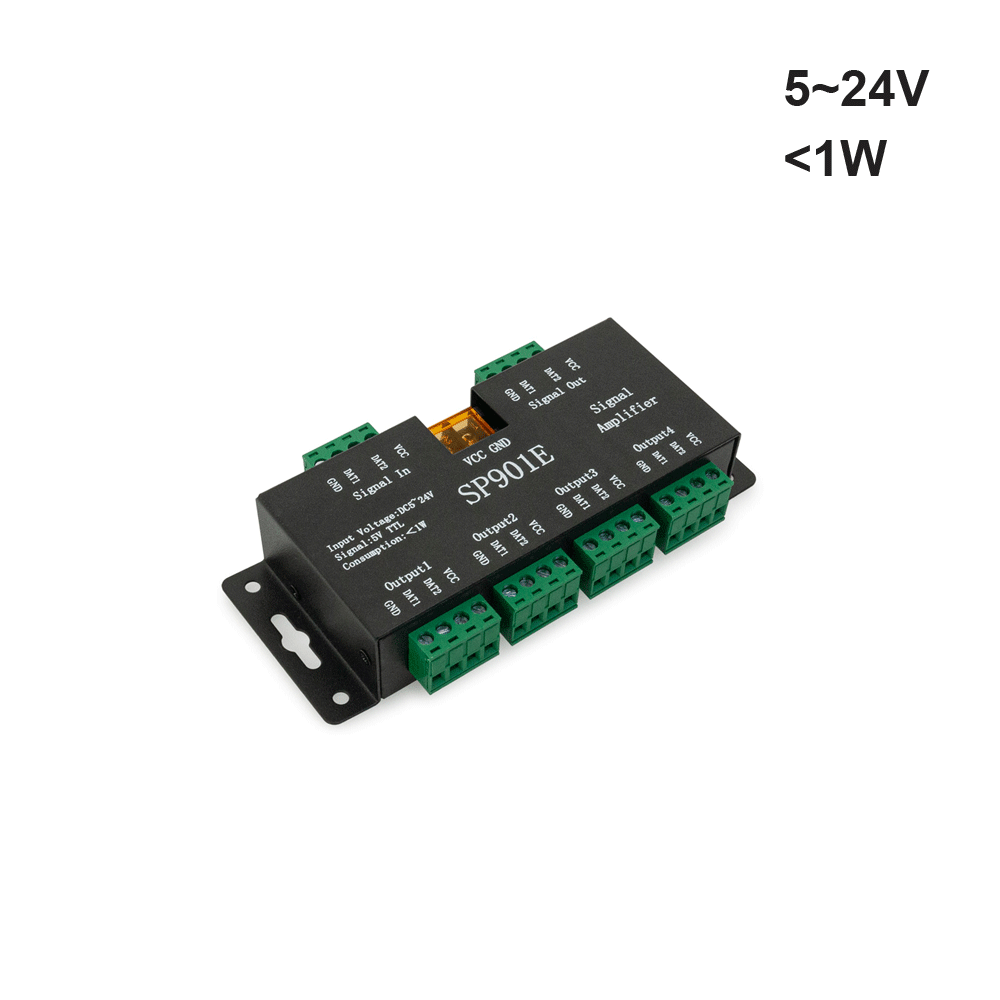

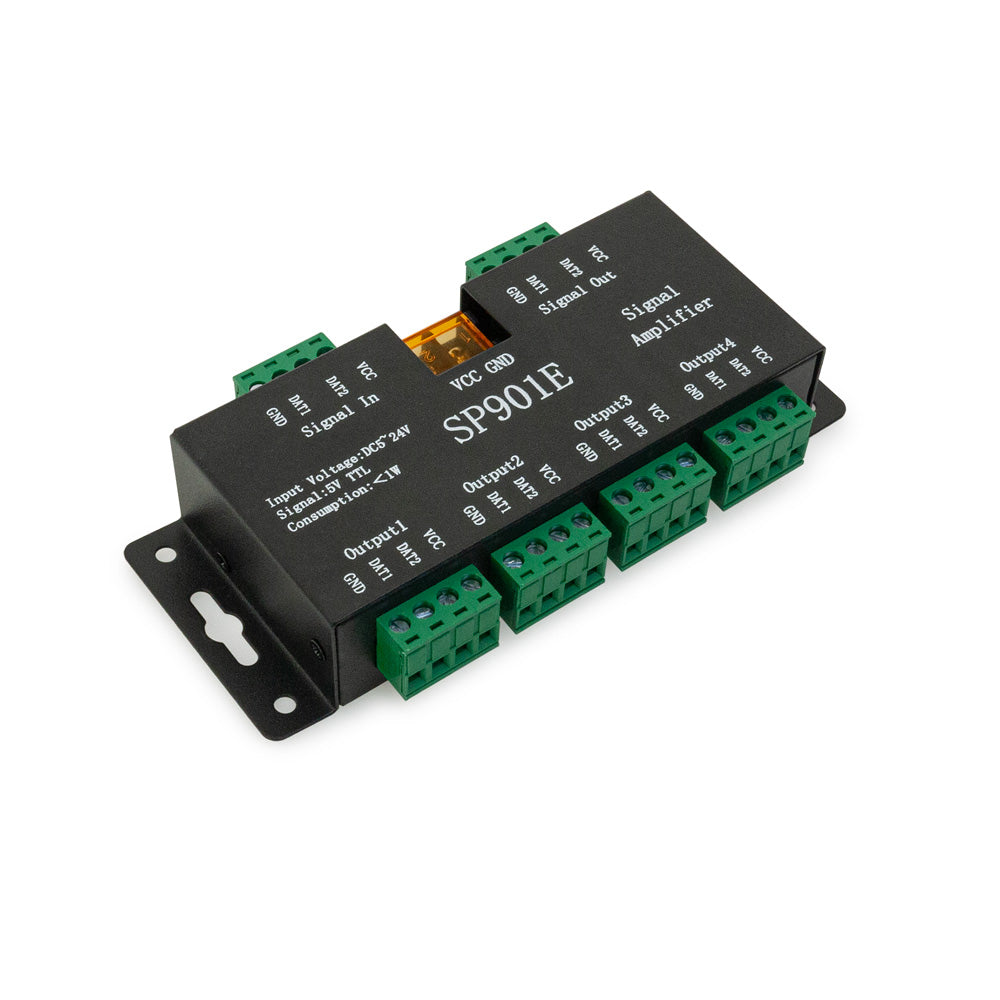

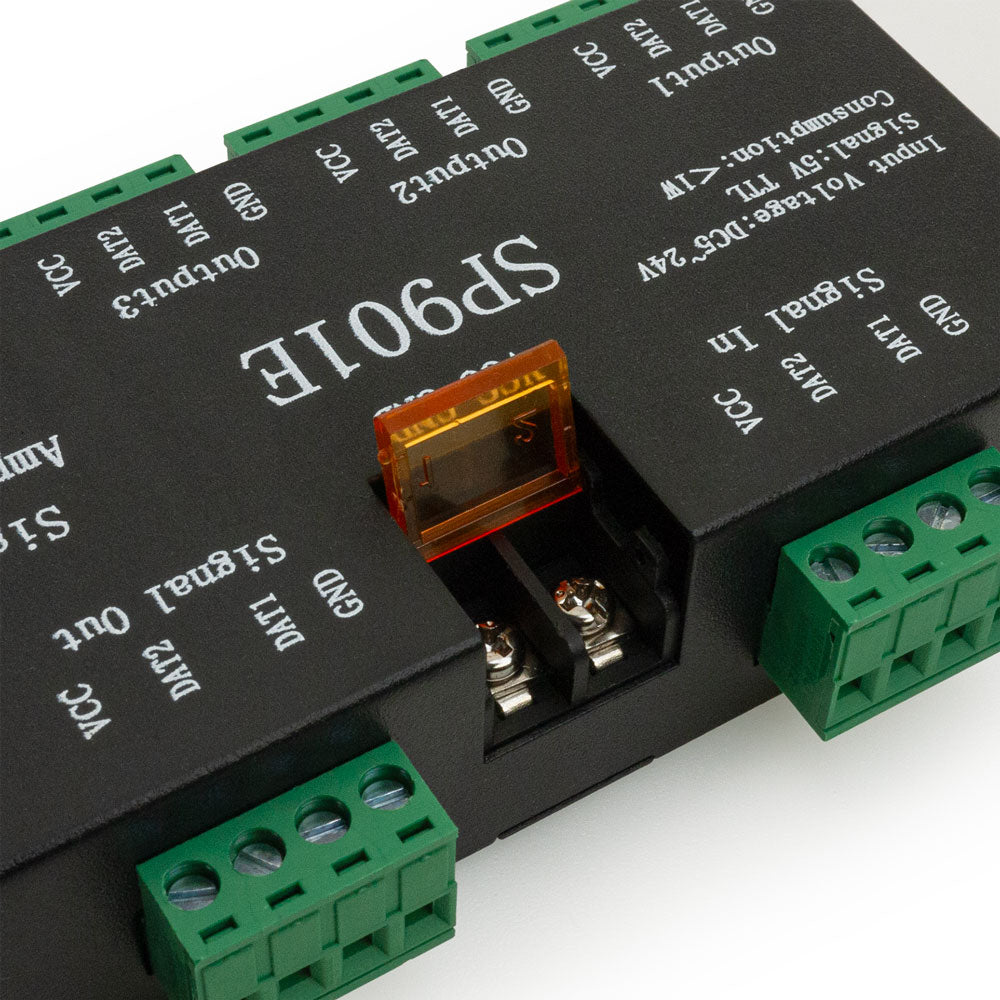

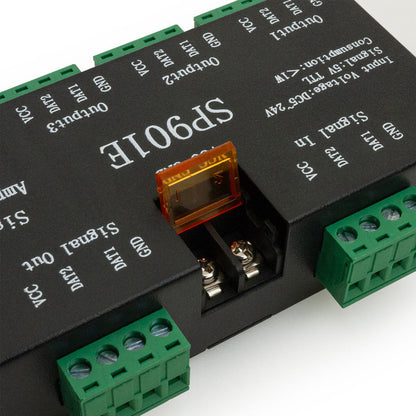

| Product | LED SPI Signal Amplifier |
| Model | SP901E |
| Voltage | 5V~24V DC |
| Working current | 3mA-6mA |
| Working temperature | -20 ~ +60℃ |
| Output | 8 channels / 4 channels |
| Compatible IC type | WS2812B,WS2811,SK6812, SK6812-RGBW,SM16703, WS2813, WS2815, CS8812, AL2815, WS2801, APA102, SK9822,UCS1903, LPD6803, LPD8806, APA102 |
| Static power consumption | <1W |

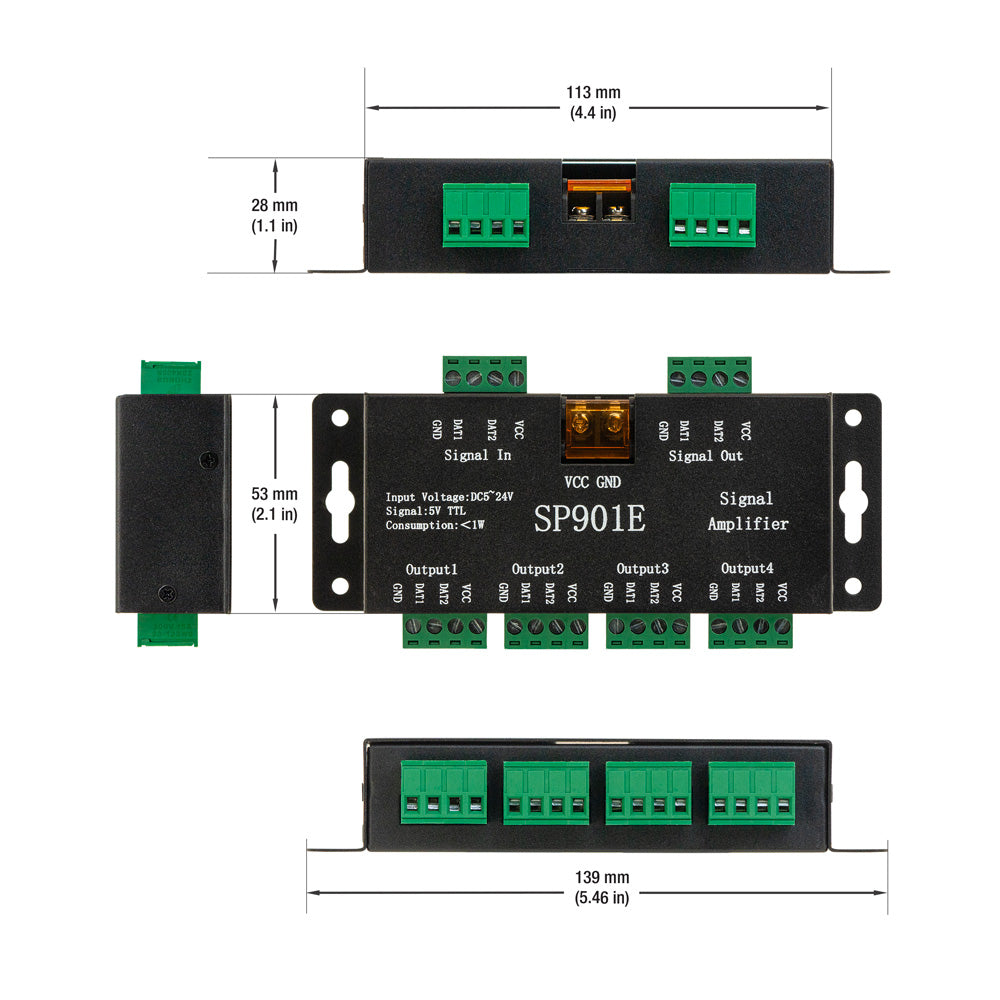

| Dimensions | 139 x 53 x 28mm (5.4 x 2.1 x 1.1in) |
This amplifier is engineered to seamlessly interface with various 5V-TTL signal dual signals. It takes a single input signal and simultaneously generates 4 or 8 channels of signals. Each channel possesses the ability to oversee the same quantity of LED pixels as your primary controller, granting you the precision and synchronization needed for intricate lighting effects. It accommodates a wide array of LED strips, from single-data-wire addressable ones like WS2812B, WS2811, SK6812RGB, SK6812-RGBW, SM16703, to those with data and clock wires such as WS2801, APA102, SK9822, and dual data wires like WS2813 and WS2815. This versatility simplifies your setup and allows you to control multiple LED strip types with a single controller.
Notably, the amplifier operates across a broad working voltage range from DC5V to DC24V, but it does not regulate the output voltage. Moreover, this amplifier is expandable, enabling multiple units to be cascaded together for synchronous operation, making it especially suitable for small and medium dream color lighting projects. In summary, the SPI Signal Amplifier augments your LED lighting control capabilities, permitting you to extend your lighting setup, manage diverse LED strip types, and synchronize multiple amplifiers for larger projects. It is vital to verify compatibility with your existing equipment and ensure that the power supply voltage aligns with your LED lights' requirements to maximize its effectiveness.
Features:
- Multi-Channel Output: Generates 4 or 8 channels of signals from a single input, offering precise control for LED pixels.
- Versatile LED Strip Support: Compatible with a wide range of LED strips, including single-data-wire types like WS2812B, WS2811, SK6812RGB, SK6812-RGBW, SM16703, and those with data and clock wires such as WS2801, APA102, SK9822, and dual data wires like WS2813 and WS2815.
- Simplified Setup: Allows control of multiple LED strip types with a single controller, streamlining your setup.
- Broad Voltage Range: Operates across a wide voltage range from DC5V to DC24V, but it does not regulate the output voltage.
- Expandable and Synchronous: Multiple units can be cascaded together for synchronous operation, making it ideal for small and medium dream color lighting projects.
- Enhanced Control: Augments LED lighting control capabilities, extending your lighting setup and supporting diverse LED strip types.
