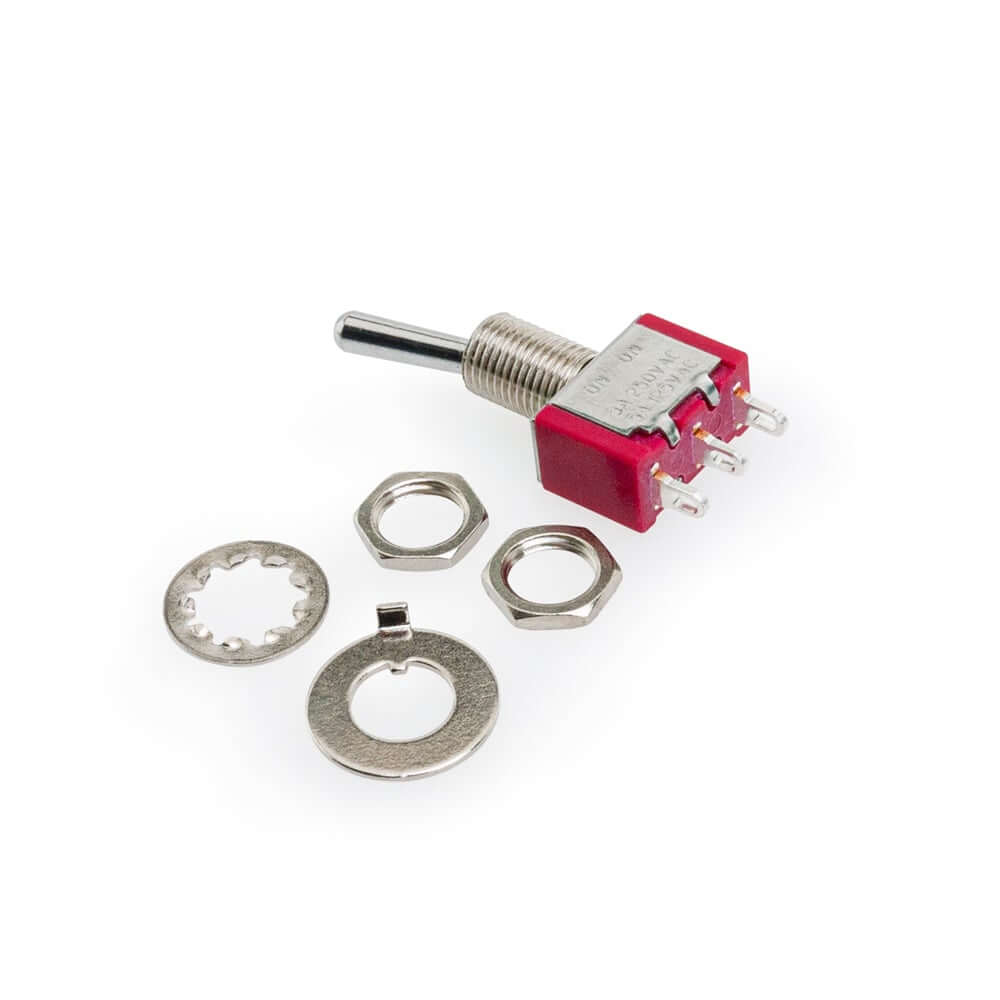

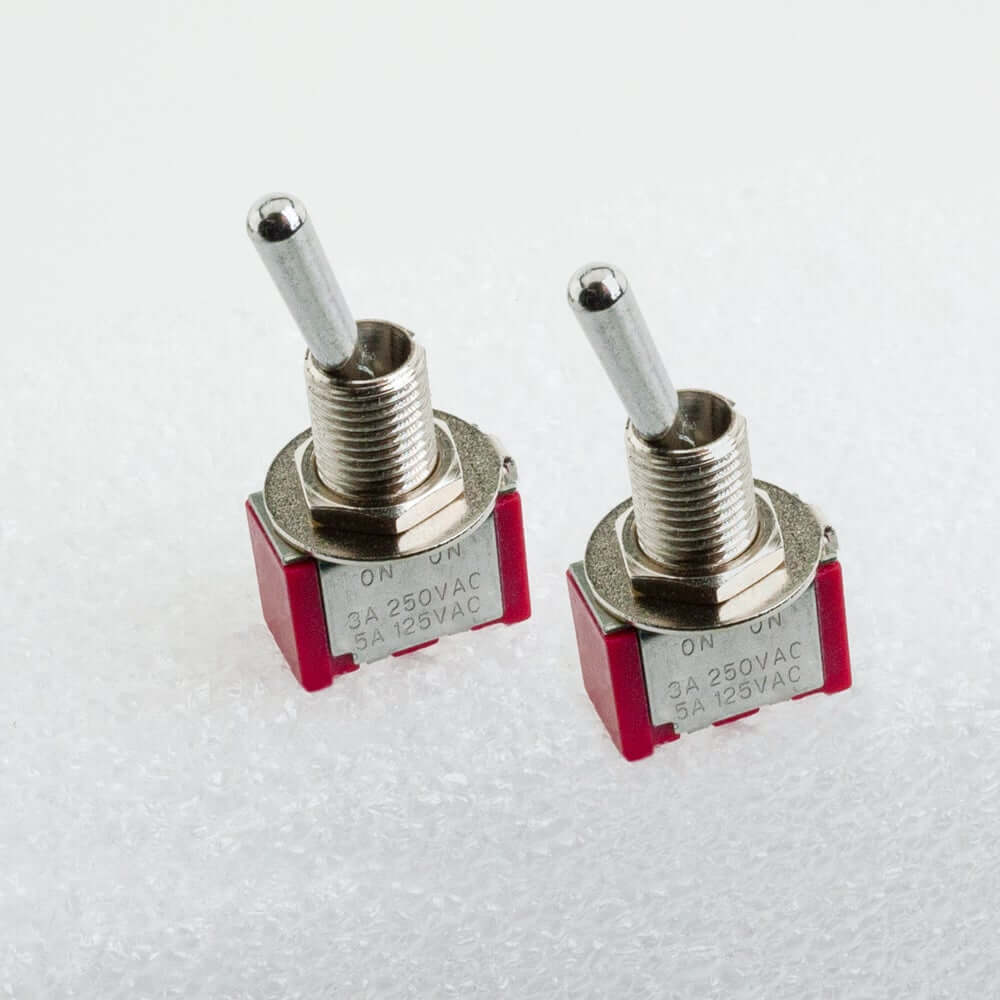

SPDT Toggle Switch 5A 125VAC On-On (Pack of 2)

  • $4.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561403560
We only have 118 left! Get it now before it's completely gone.

Free shipping on orders over $49 USD (Check availability during checkout).

Tags: Switches

Product Description

Voltage Rating 125V AC at 5A • 250V AC at 3A
Actuator Material Brass, Stainless Steel Coated
Case Red Thermoplastic
Termination Wire Lug
Circuit Type SPDT
Switch Function On-On
Dimension Height 33mm (1.29in)
Ø12mm (0.47in)


Feature:

  • ON-ON switch has three terminals, common and two switched, when one is on the other is off, and vice versa. (single pole, double throw).
  • It is a single-pole,  SP switches control only one electrical circuit with a double-throw (SPDT).
  • Throw refers to the extreme position of the actuator,  This switch closes a circuit in the Up position, as well as the Down position (On-On).
  • These switches are well suited for designs requiring human interface via a toggle or rocker-style switch.
