AD-107T-2.2W-12V Square Cabinet Lights, 12V 2.2W 3000K White
|Product||Cabinet Lighting/ Cabinet Puck Lights|
|Input Voltage||12V DC|
|Color Temperature||3000K (Warm White)|
|Trim Material||Die-cast Aluminum|
|Trim Color Finish||White|
|IP Rating||IP20 (Dry and Damp locations)|
|Wire length||39 inches (1 meter)|

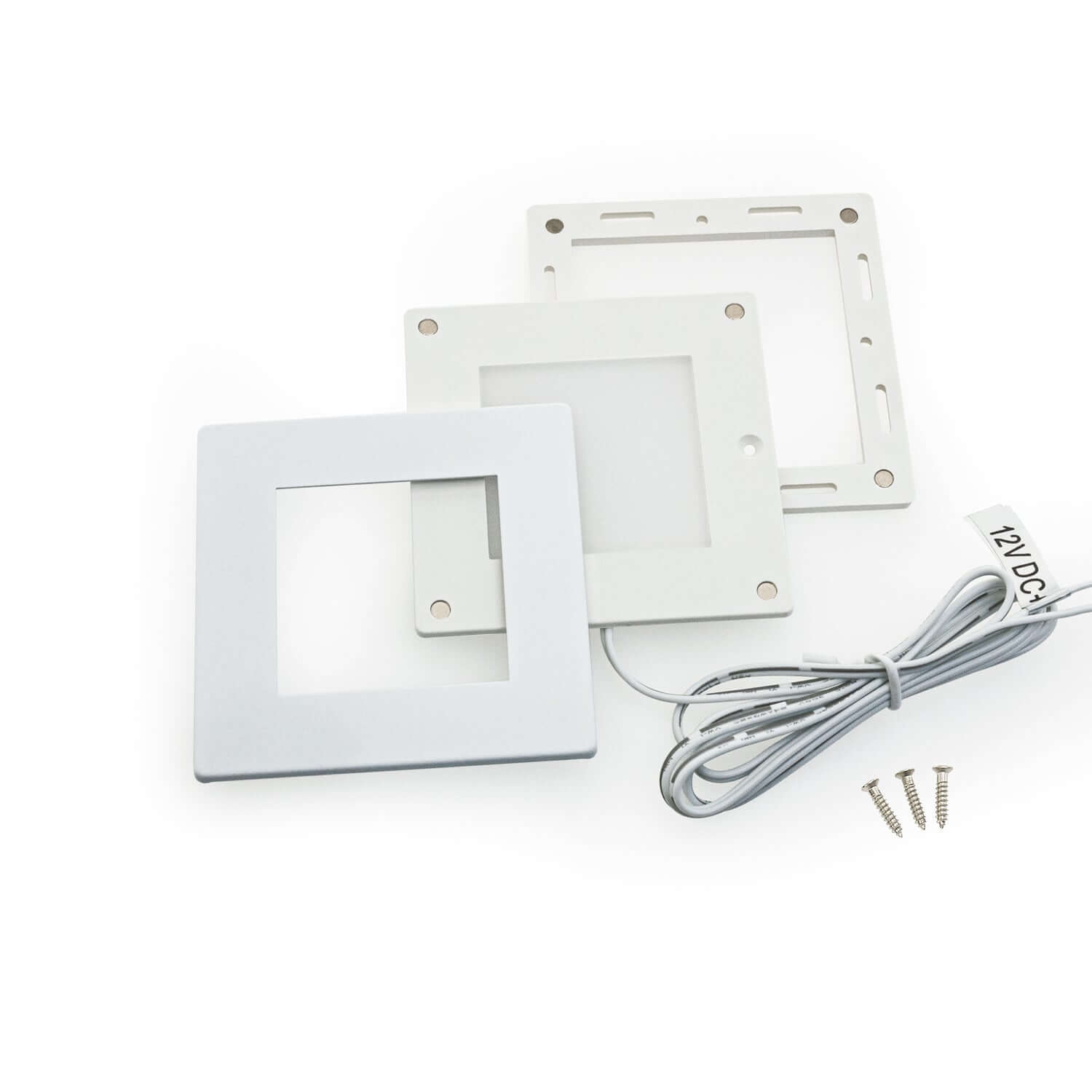

|Product Content||Square engine, Magnetic-Base with screws, Interchangeable trim|

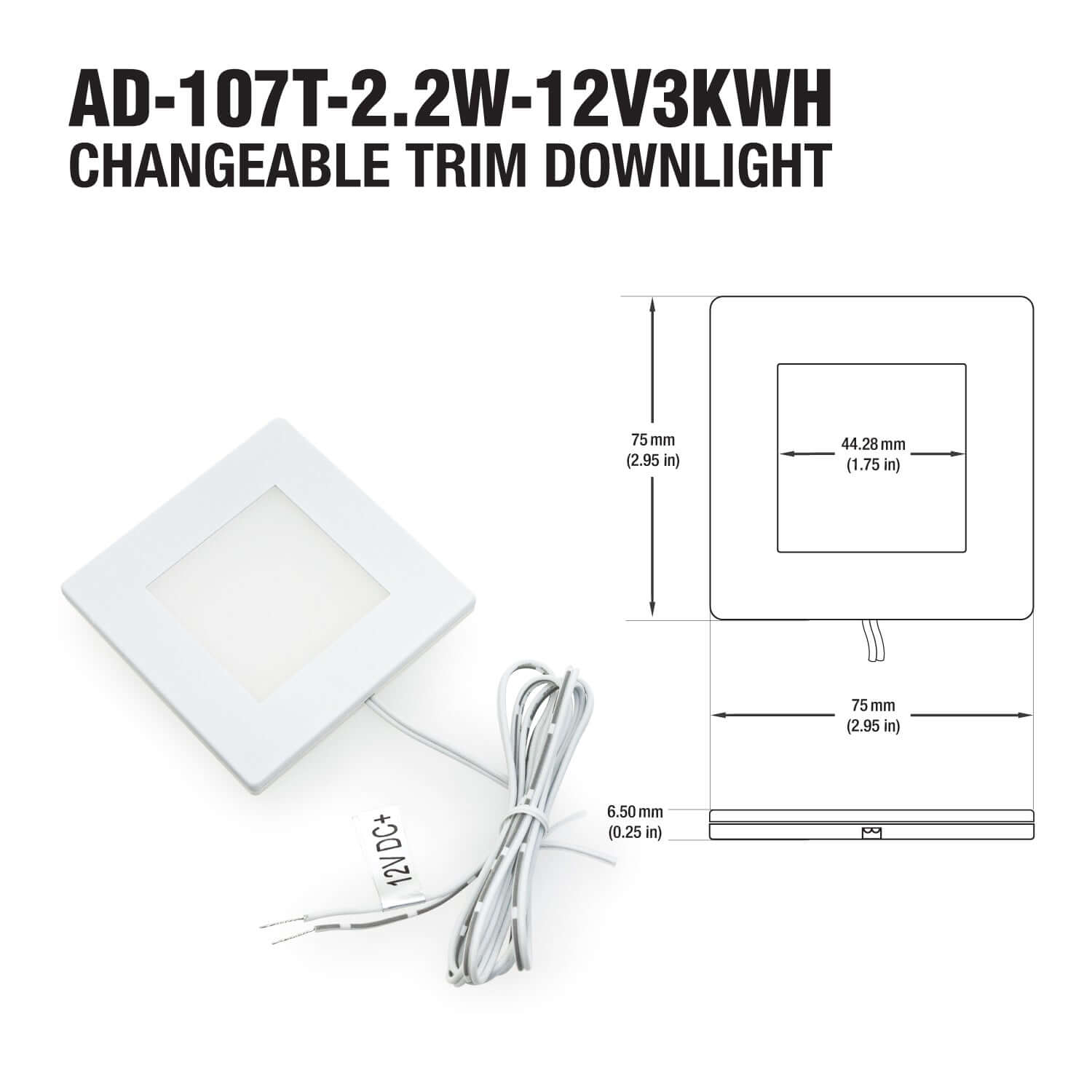

|Dimensions||75 x 75 x 6.50 mm (2.95 x 2.95 x 0.25 in)|

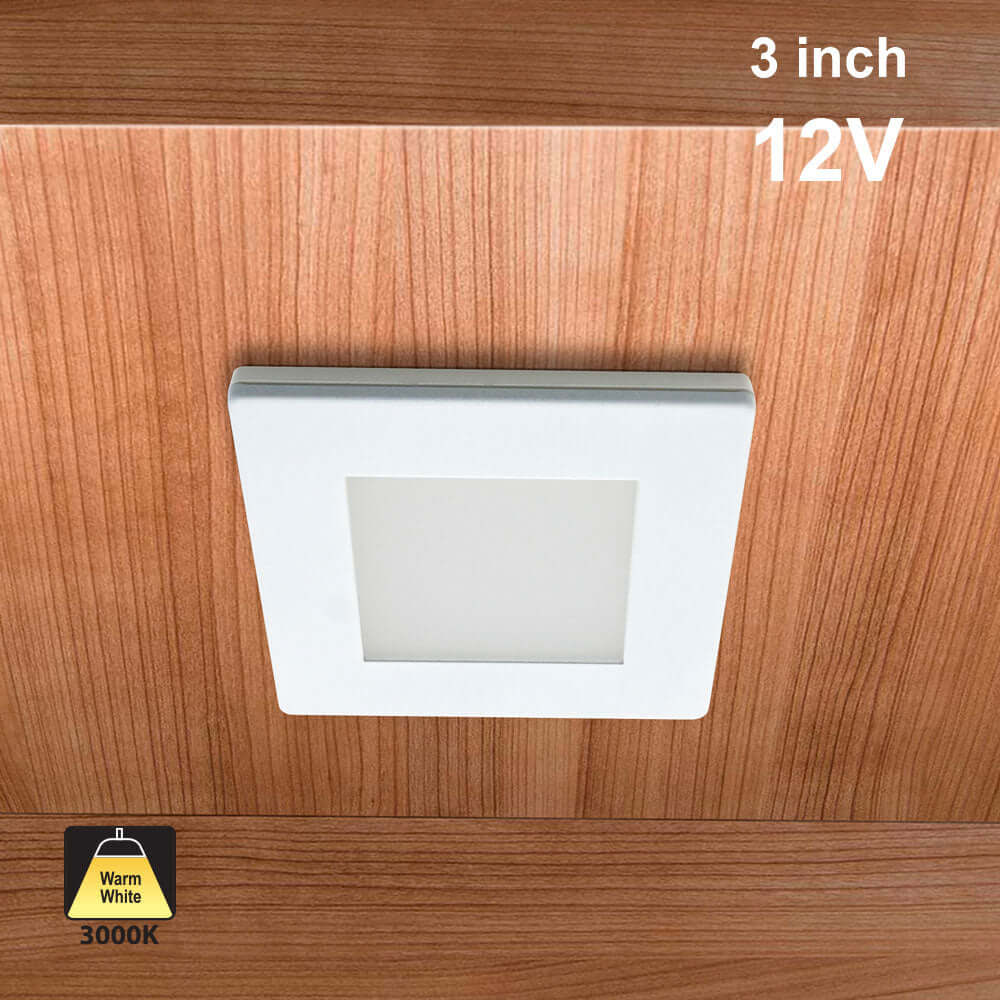

The AD-107T-2.2W-12V Square Cabinet Lights are a type of cabinet lighting, also known as cabinet puck lights, designed for surface mounting. They feature a square-shaped engine made of PVC material and a white die-cast aluminum trim that measures 75 x 75 x 6.50 mm. The lights are powered by a 12V DC input voltage and have a low power consumption of 2.2W, making them highly energy-efficient.
The lights have a color temperature of 3000K, which is warm white, and a high color rendering index (CRI) of over 90, ensuring that colors appear vivid and accurate. They have a brightness of 170 lumens and a beam angle of 115°, providing a wide and even distribution of light.
The lights are dimmable and can be controlled using a compatible low voltage dimmer that has the same input rating as the dimmable power supply driver. The lights come with a 39-inch wire length (1 meter) and a magnetic-base with screws for easy installation. The interchangeable trim allows for customization, and the lights are available in black and brushed nickel finish trims in addition to white.
The AD-107T-2.2W-12V Square Cabinet Lights have an IP20 rating, making them suitable for use in dry and damp locations. They are widely applied in wardrobes, cabinets, and shelves of modern kitchens due to their low power consumption and high energy efficiency. The lights meet Canadian and United States standards and are certified by ETL.
- Square-shaped PVC engine with a white die-cast aluminum trim measuring 75 x 75 x 6.50 mm
- 12V DC input voltage and low power consumption of 2.2W for high energy efficiency
- Warm white color temperature of 3000K and high CRI of over 90 for accurate color rendering
- Brightness of 170 lumens and a wide 115° beam angle for even distribution of light
- Dimmable with a compatible low voltage dimmer with the same input rating as the dimmable power supply driver

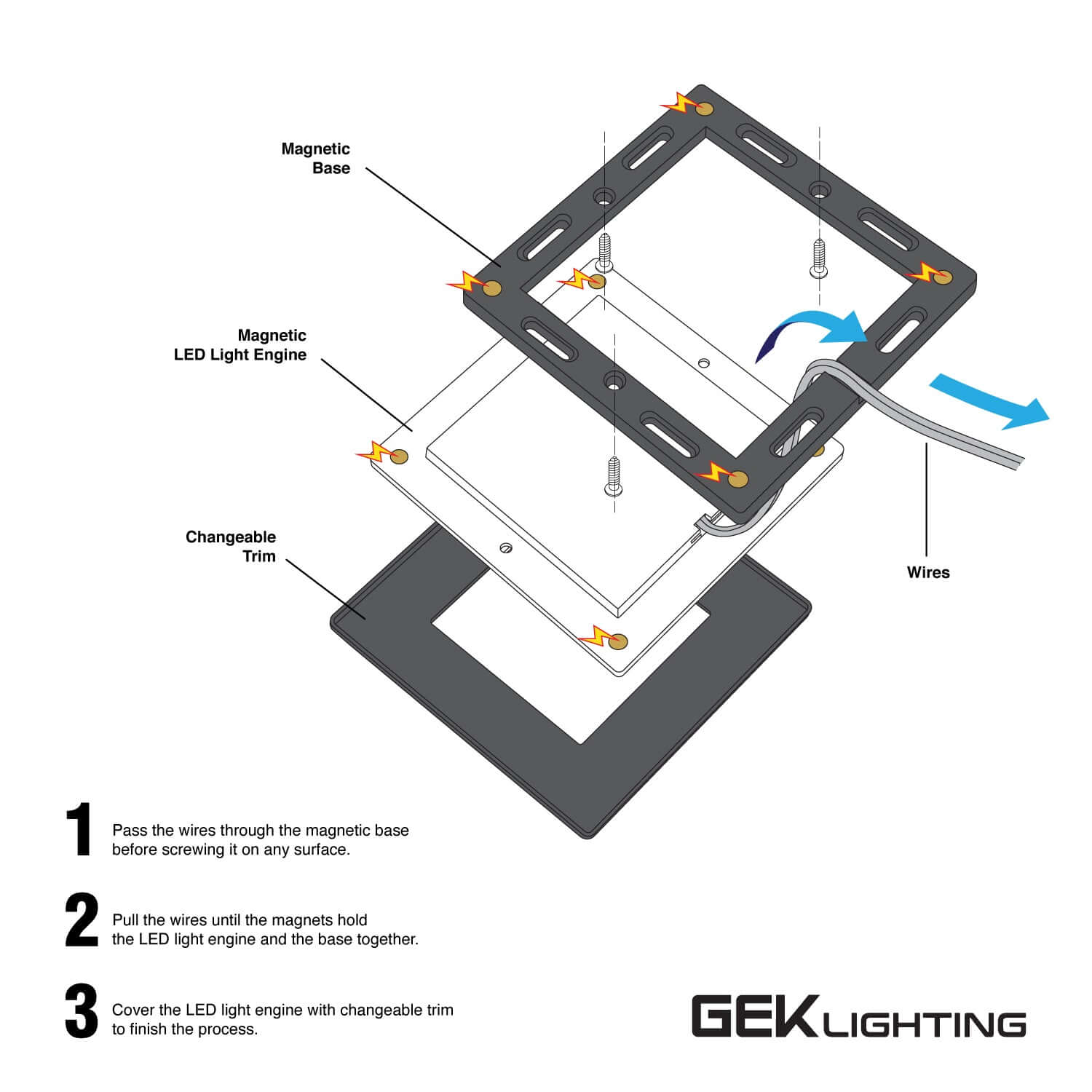

- Comes with a 39-inch wire length and magnetic base with screws for easy installation

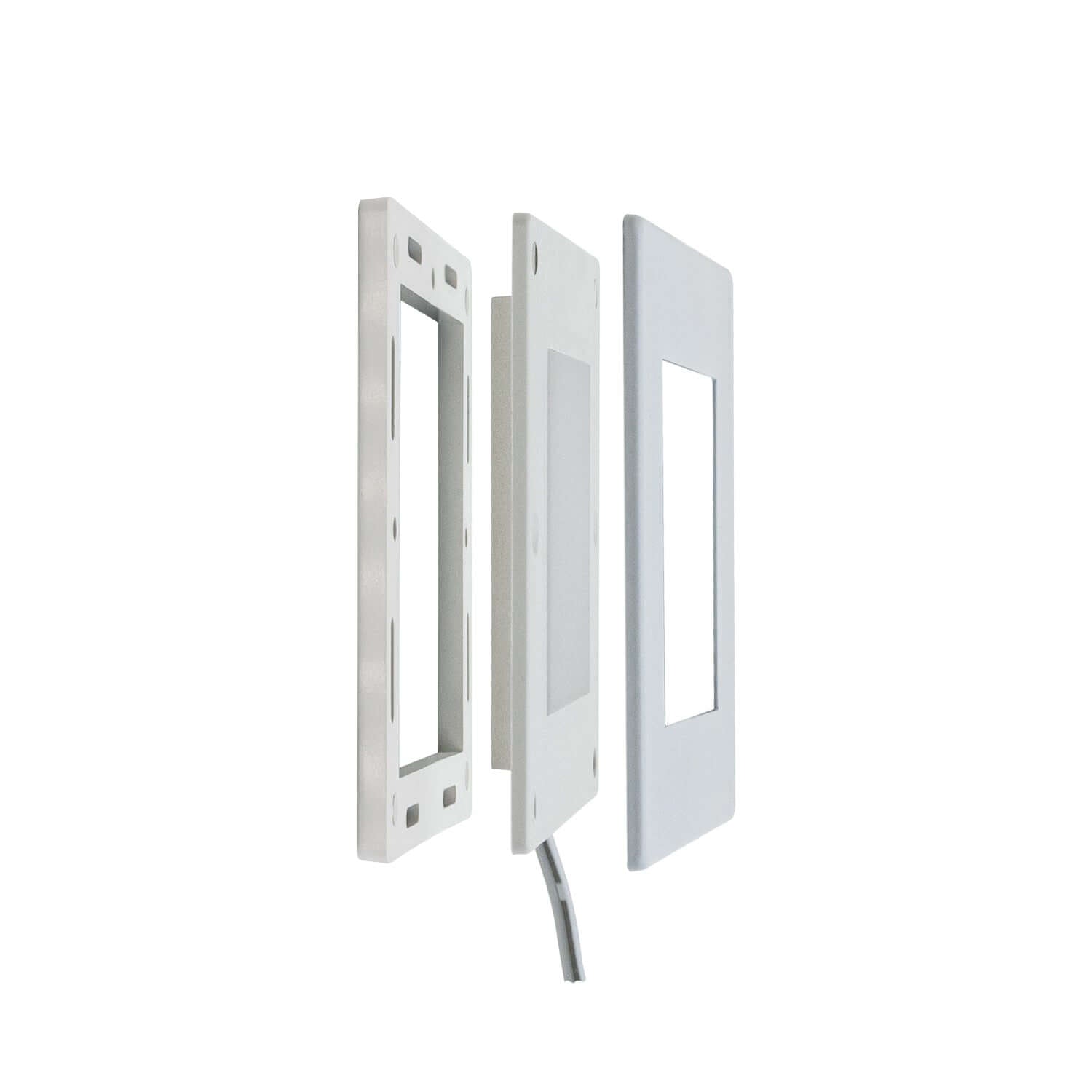

- Interchangeable trim allows for customization with black and brushed nickel finish trims available in addition to white
- IP20 rating makes them suitable for use in dry and damp locations
- Widely applied in wardrobes, cabinets, and shelves of modern kitchens
- Certified by ETL and meets Canadian and United States standards
