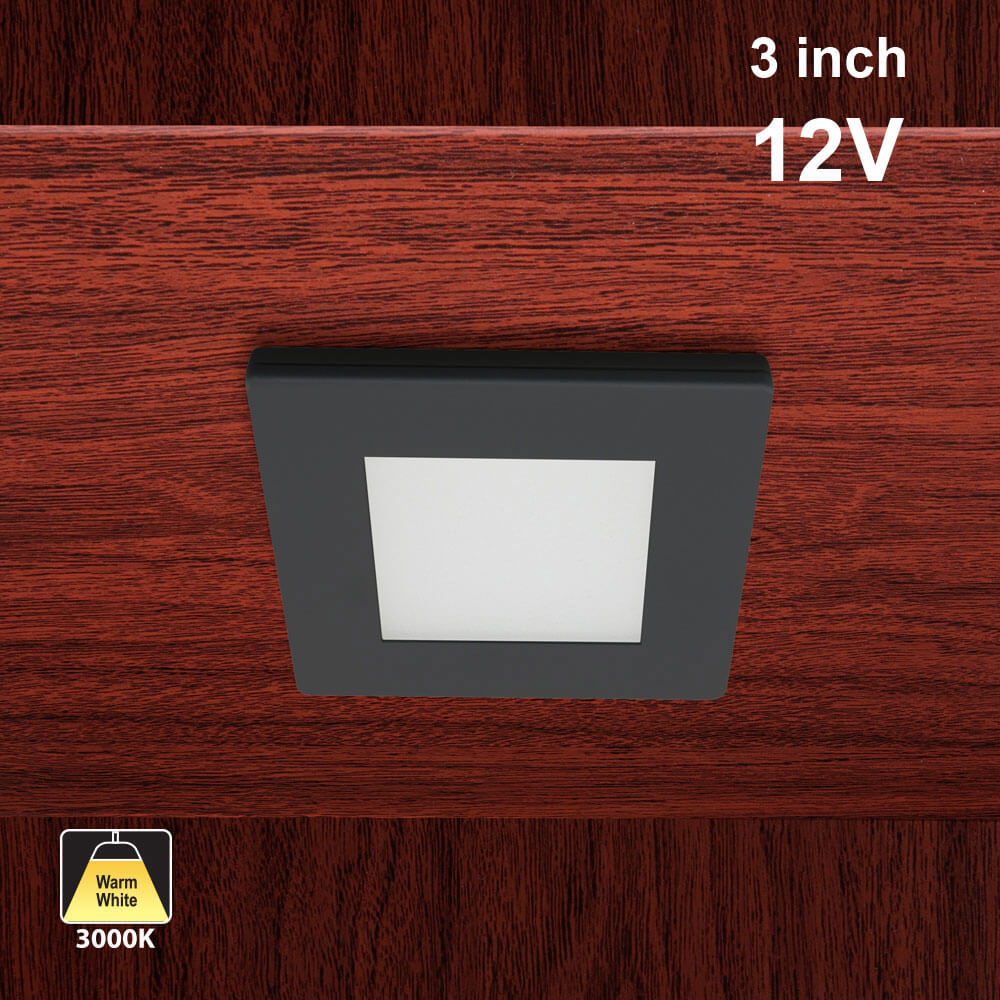

AD-107T-2.2W-12V Square Cabinet Lights, 12V 2.2W 3000K Black

  • $24.50 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561417963
We only have 192 left! Get it now before it's completely gone.

Free shipping on orders over $49 USD (Check availability during checkout).



Product Description

Product Cabinet Lighting/ Cabinet Puck Lights
Model AD-107T-2.2W-12V
Trim Model PKL-TRB-BK-SQ
Input Voltage 12V DC
Input Current 180mA
Power 2.2W
Color Temperature 3000K
Brightness 170 lumens
Dimmable Yes
Rendering Index CRI>90
Beam Angle 115°
Engine Material PVC
Trim Material Die-cast Aluminum
Trim Color Finish Black
IP Rating IP20 (Dry and Damp locations)
Wire length 39 inches (1 meter)
Installation Surface Mount

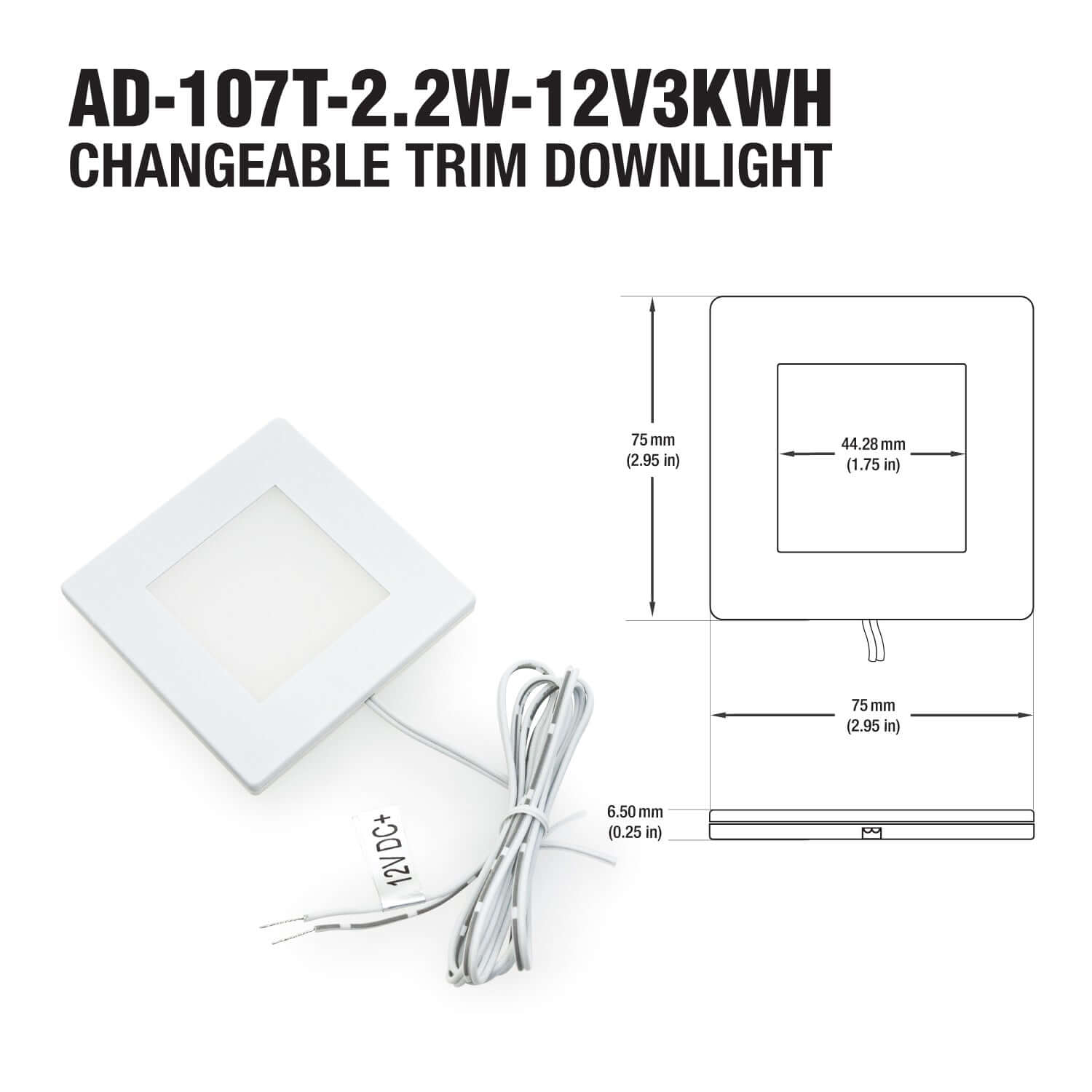

Dimensions 75 x 75 x 6.50 mm (2.95 x 2.95 x 0.25 in)

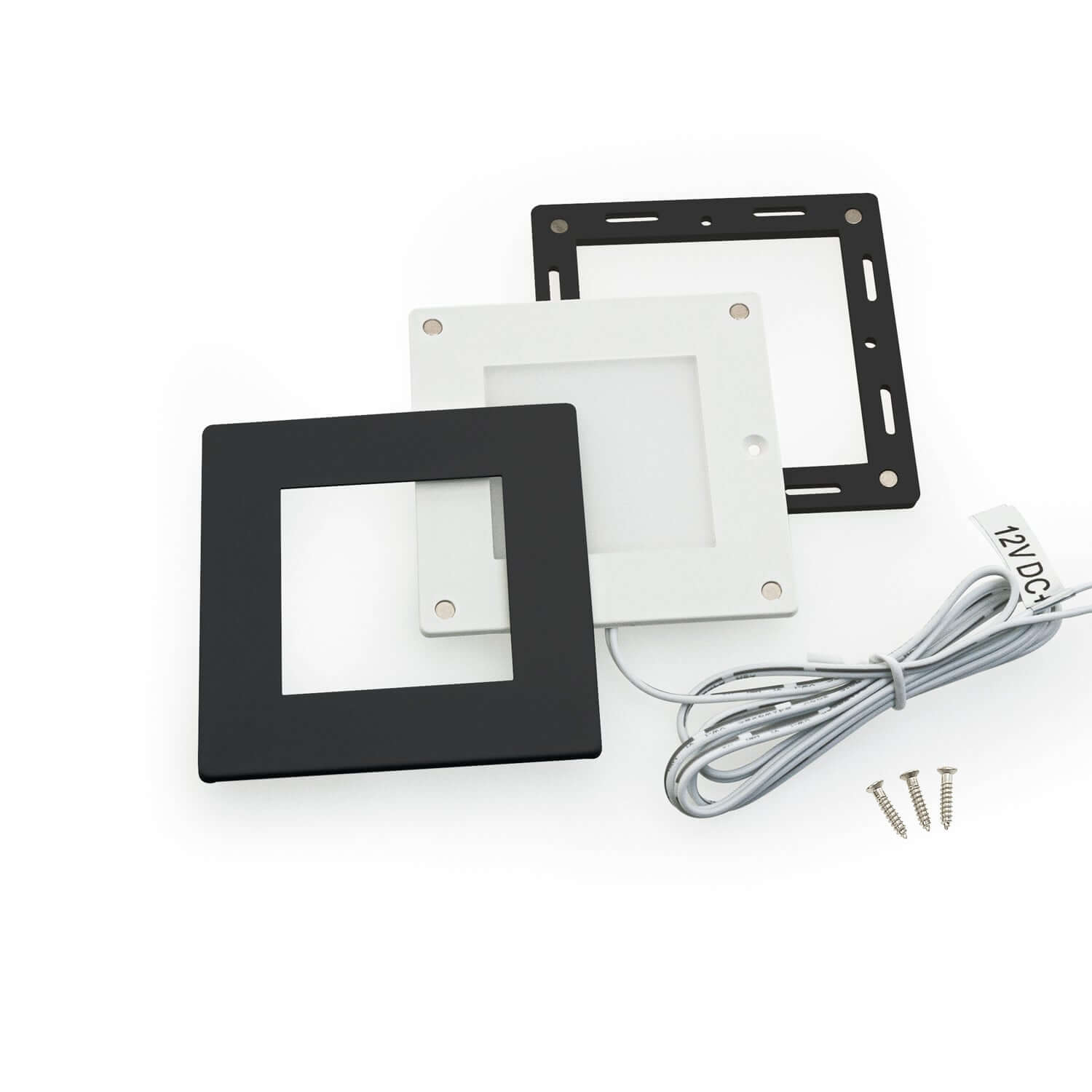

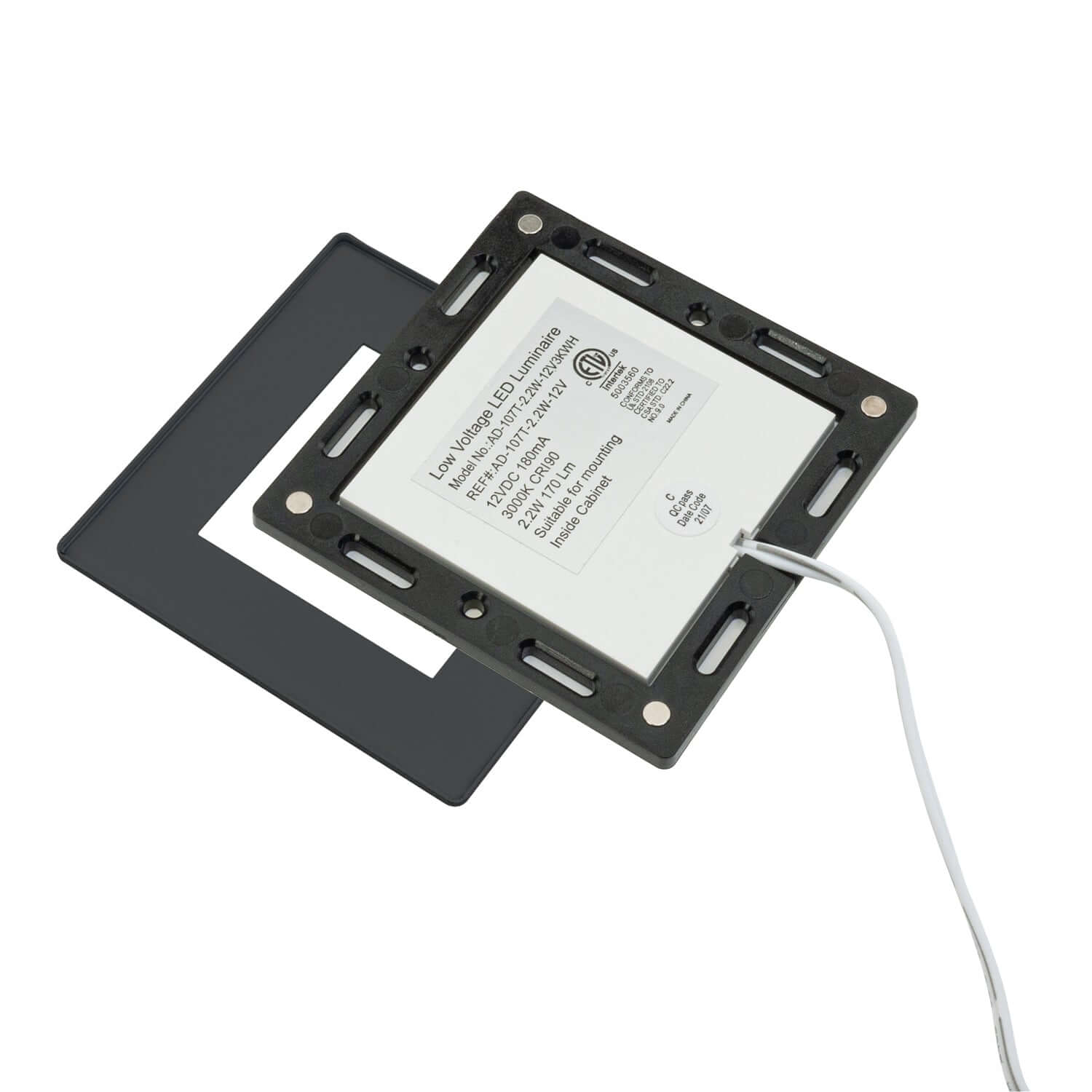

Product Content Square engine, Magnetic-Base with screws, Interchangeable trim
Certification


Features:

The AD-107T-2.2W-12V Square Cabinet Lights are a type of cabinet lighting, also known as cabinet puck lights, designed for surface mounting. They feature a square-shaped engine made of PVC material and a black die-cast aluminum trim that measures 75 x 75 x 6.50 mm. The lights are powered by a 12V DC input voltage and have a low power consumption of 2.2W, making them highly energy-efficient.

The lights have a color temperature of 3000K, which is warm white, and a high color rendering index (CRI) of over 90, ensuring that colors appear vivid and accurate. They have a brightness of 170 lumens and a beam angle of 115°, providing a wide and even distribution of light.

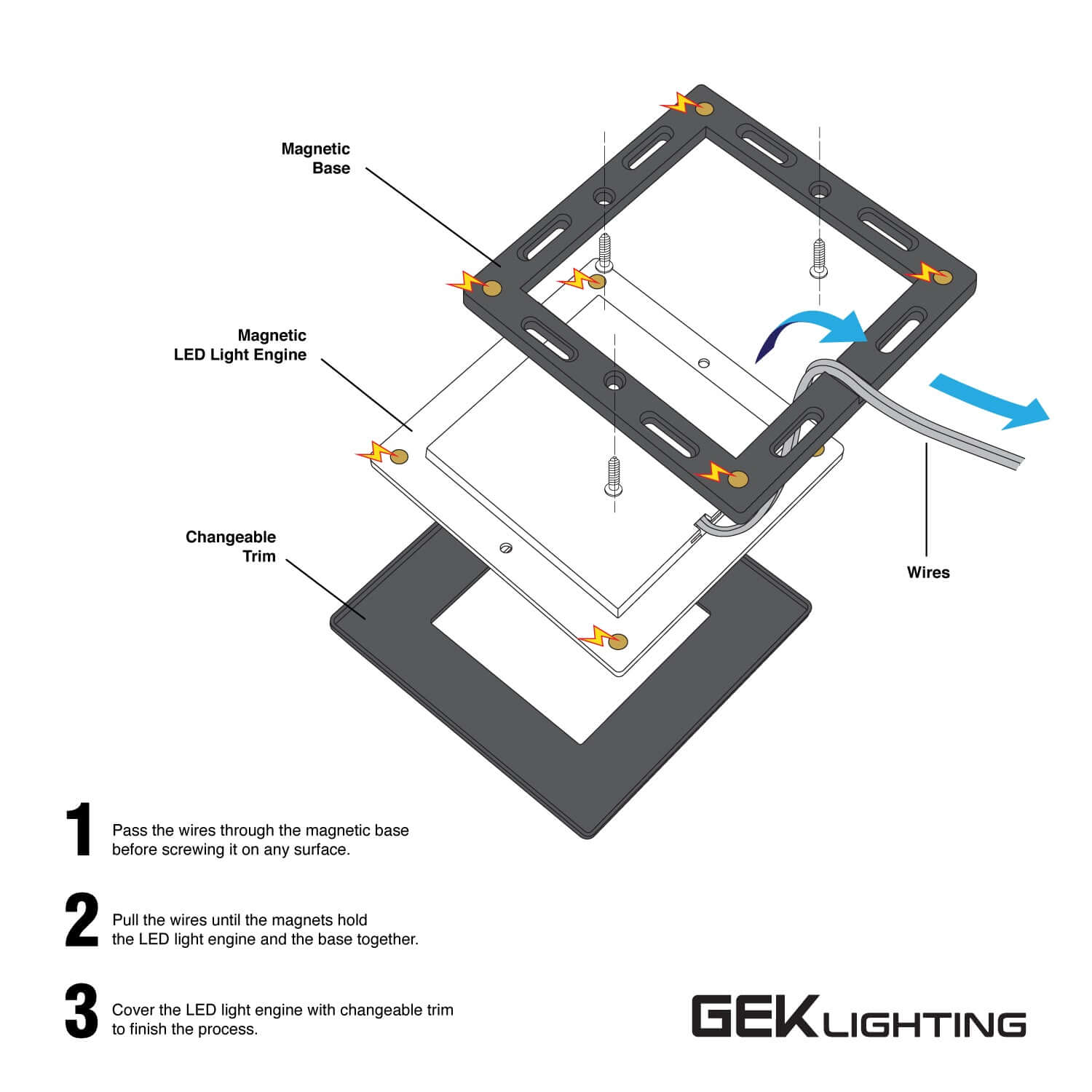

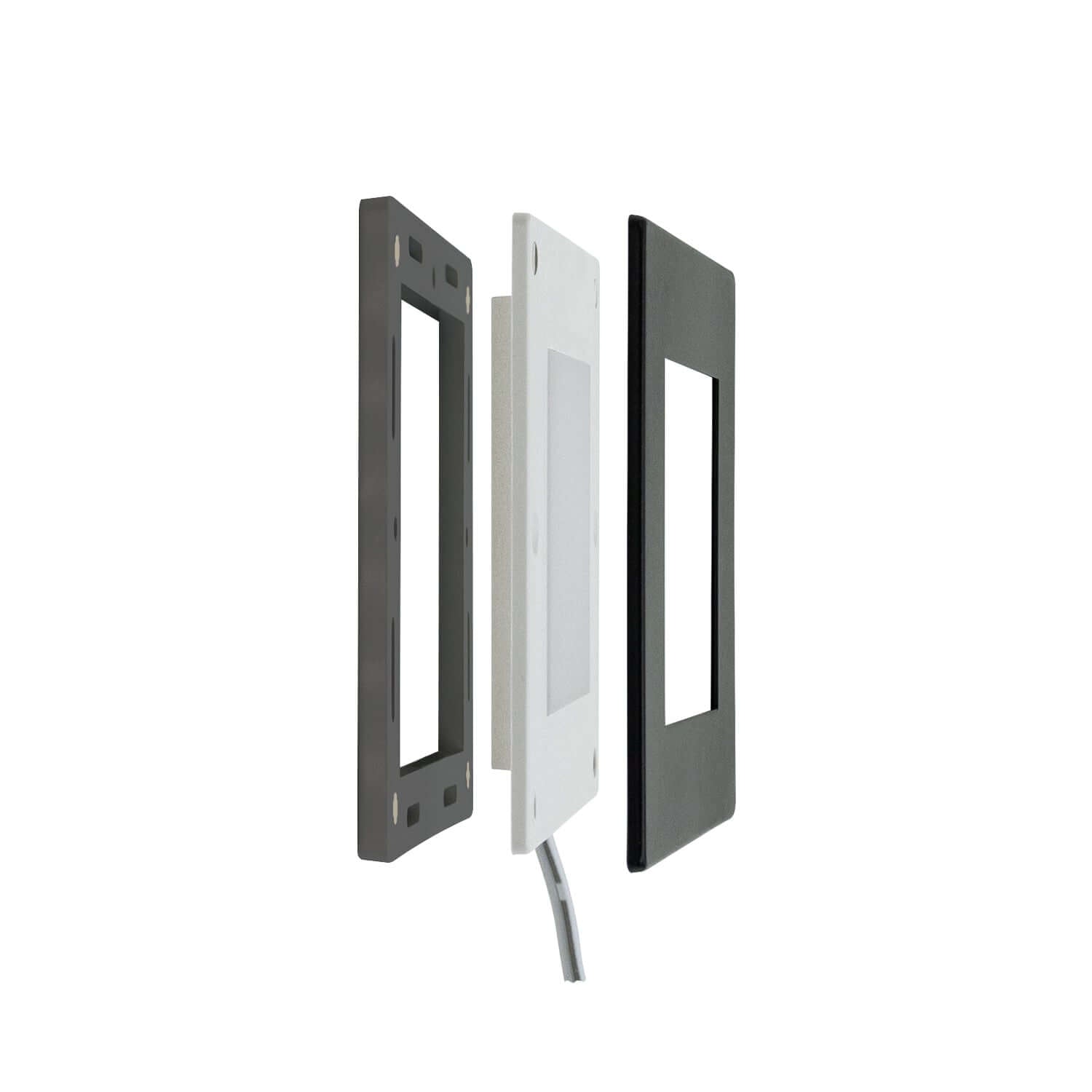

The lights are dimmable and can be controlled using a compatible low voltage dimmer that has the same input rating as the dimmable power supply driver. The lights come with a 39-inch wire length (1 meter) and a magnetic-base with screws for easy installation. The interchangeable trim allows for customization, and the lights are available in white, black, and brushed nickel finish trims.

The AD-107T-2.2W-12V Square Cabinet Lights have an IP20 rating, making them suitable for use in dry and damp locations. They are widely applied in wardrobes, cabinets, and shelves of modern kitchens due to their low power consumption and high energy efficiency. The lights meet Canadian and United States standards and are certified by ETL.
