AD-107T-2.2W-12V Square Cabinet Lights, 12V 2.2W 3000K Brushed Nickel

  • $24.50 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561417970
We only have 86 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).

Product Description

Product Cabinet Lighting/ Cabinet Puck Lights
 Model AD-107T-2.2W-12V
Trim Model PKL-TRB-BN-SQ
Input Voltage 12V DC
Input Current 180mA
Power 2.2W
Color Temperature 3000K
Brightness 170 lumens
Dimmable Yes
Rendering Index CRI>90
Beam Angle 115°
Engine Material PVC
Trim Material Die-cast Aluminum
Trim Color Finish Brushed Nickel
IP Rating IP20 (Dry and Damp locations)
Wire length 39 inches (1 meter)
Installation Surface Mount

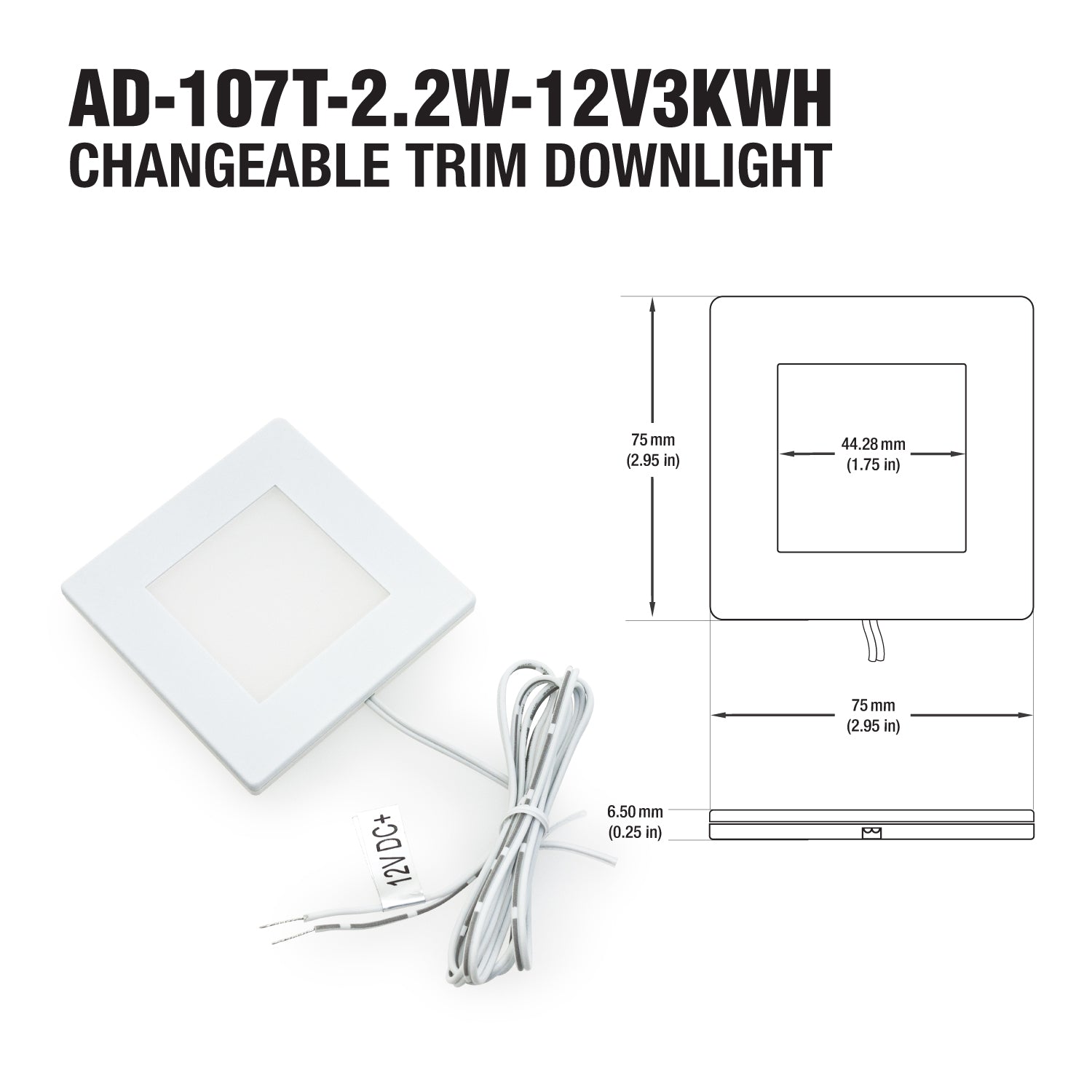

Dimensions 75 x 75 x 6.50 mm (2.95 x 2.95 x 0.25 in)

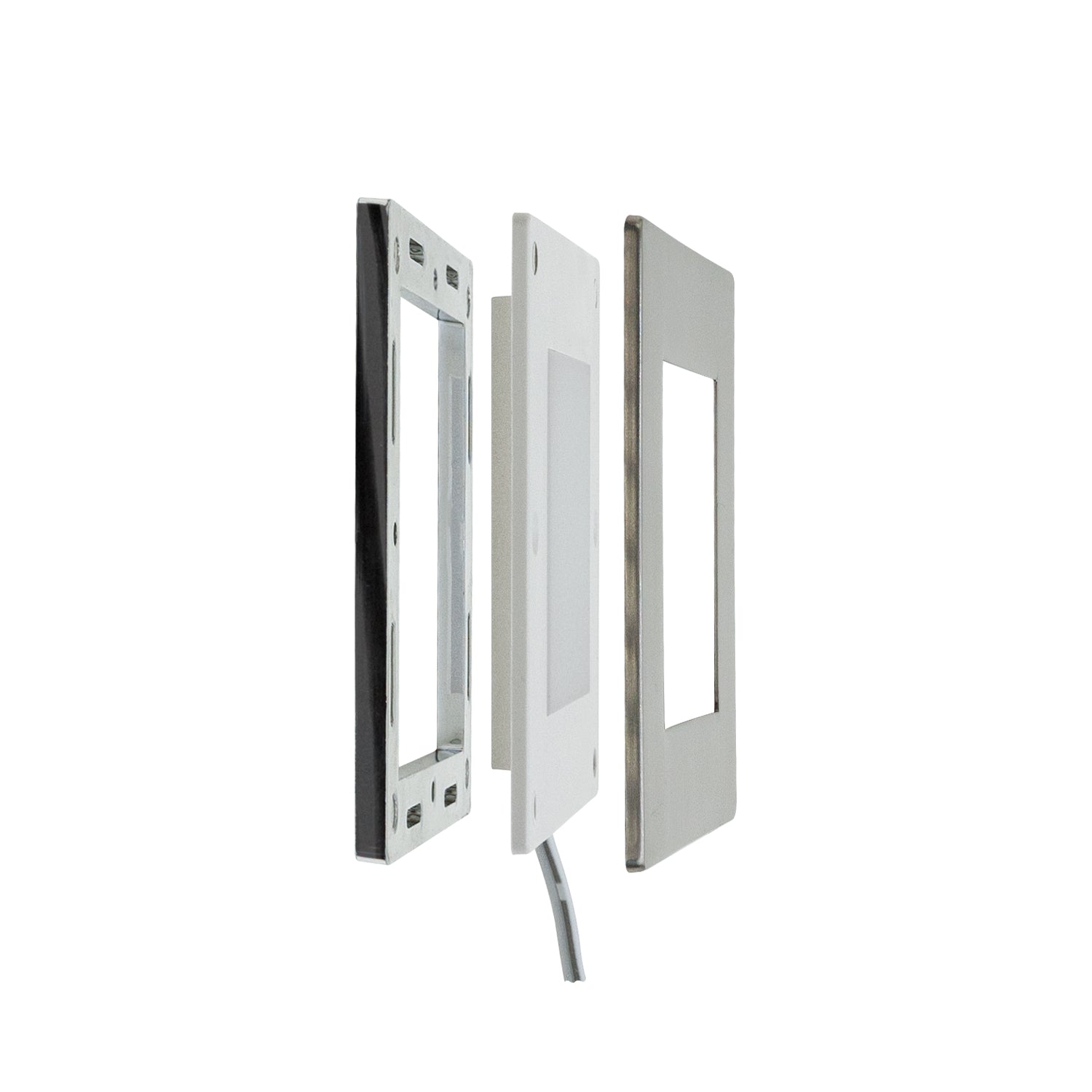

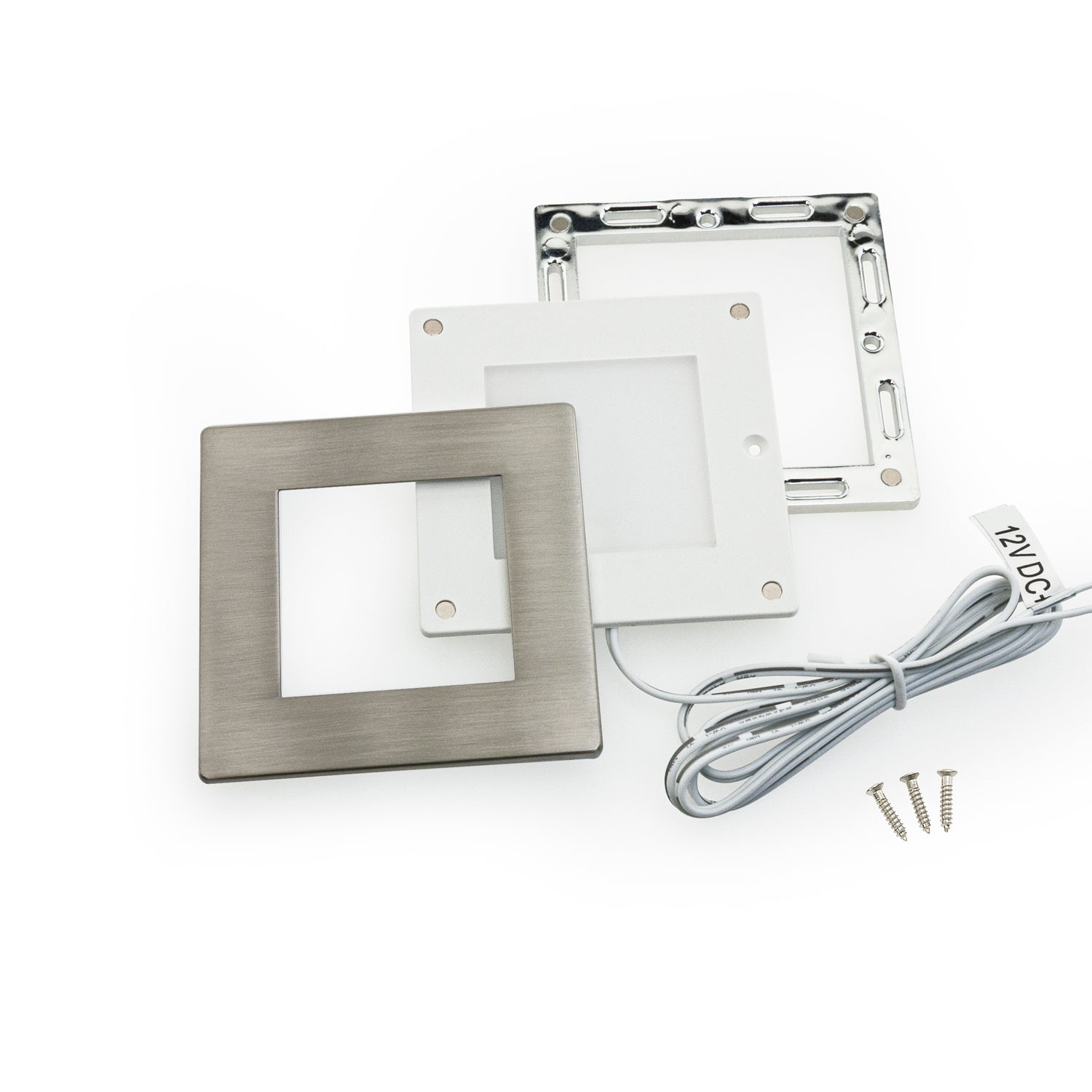

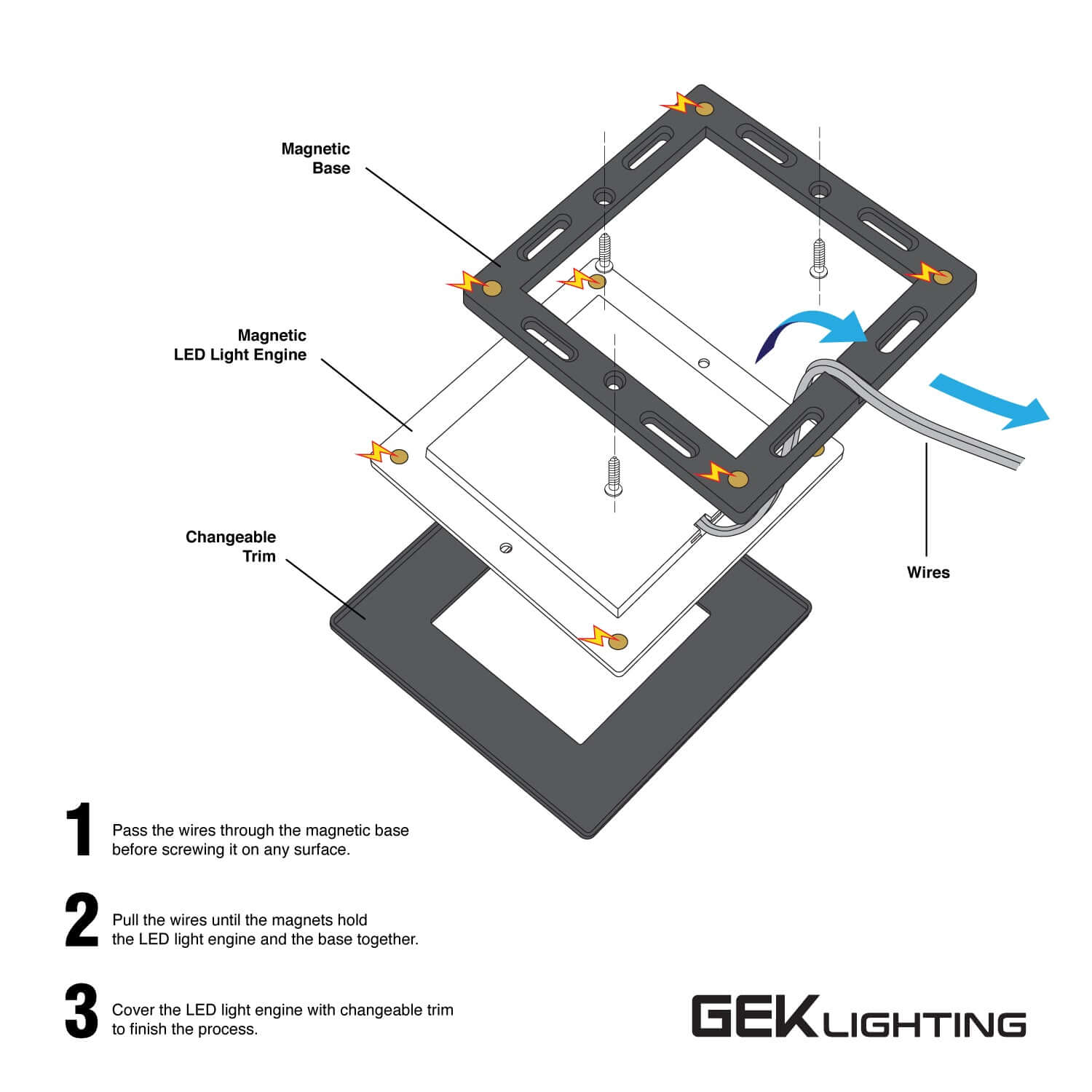

Included Content Square engine, Magnetic-Base with screws, Interchangeable trim


The AD-107T-2.2W-12V Square Cabinet Lights are a type of cabinet lighting or cabinet puck lights that are surface mounted. The product comes with a square engine, magnetic-base with screws, and interchangeable trim. The trim color finish is brushed nickel, and the dimensions of the product are 75 x 75 x 6.50 mm (2.95 x 2.95 x 0.25 in).

The input voltage for the product is 12V DC, and the input current is 180mA. The power of the product is 2.2W, and it has a color temperature of 3000K. The brightness of the product is 170 lumens, and it has a beam angle of 120°. The engine material is PVC, while the trim material is die-cast aluminum.

The product is dimmable and has a high rendering index of CRI>90. It is also energy-efficient, with low power consumption. The AD-107T-2.2W-12V Square Cabinet Lights are widely applicable in wardrobe, cabinet, and shelves of a modern kitchen.

The product has an IP20 rating, which provides protection from a large part of the body such as a hand. The AD-107T-2.2W-12V Square Cabinet Lights are applicable for damp and dry locations. The dimmer control must have the same input rating as the dimmable power supply driver it connects to, and it is also compatible with other low voltage dimmers.

The AD-107T-2.2W-12V Square Cabinet Lights are available in white, black, and brushed nickel finish trims. The product is certified by ETL and meets Canadian and United States standards with UL STD 153, STD. C22.2.
