Product Description
| Product | LED Remote Controller |
| Model | SR-2819S-DIM (R1) |
| Output | RF Signal |
| Voltage | 4.5V (3xAAA battery) |
| Frequency | 434MHz/869.5MHz/916.5MHz |
| Control Zone | 4 Zone |
| Remote Type | Dimmer |
| Compatible Controllers (Sold Separately) |
SR-1009EA-5C (R-25.5A) SR-1009FA3 (R-1.6A) SR-1009FA7 (R-3A) SR-1009EATYWI-5C (R-8A) SR-1009TYWI-5C (R-4A) SR-1009CS (R1) |
| Color | Black |
| Operating temperature | 0-40° C |
| Relative humidity | 8% to 80% |
| IP Rated | IP20 |

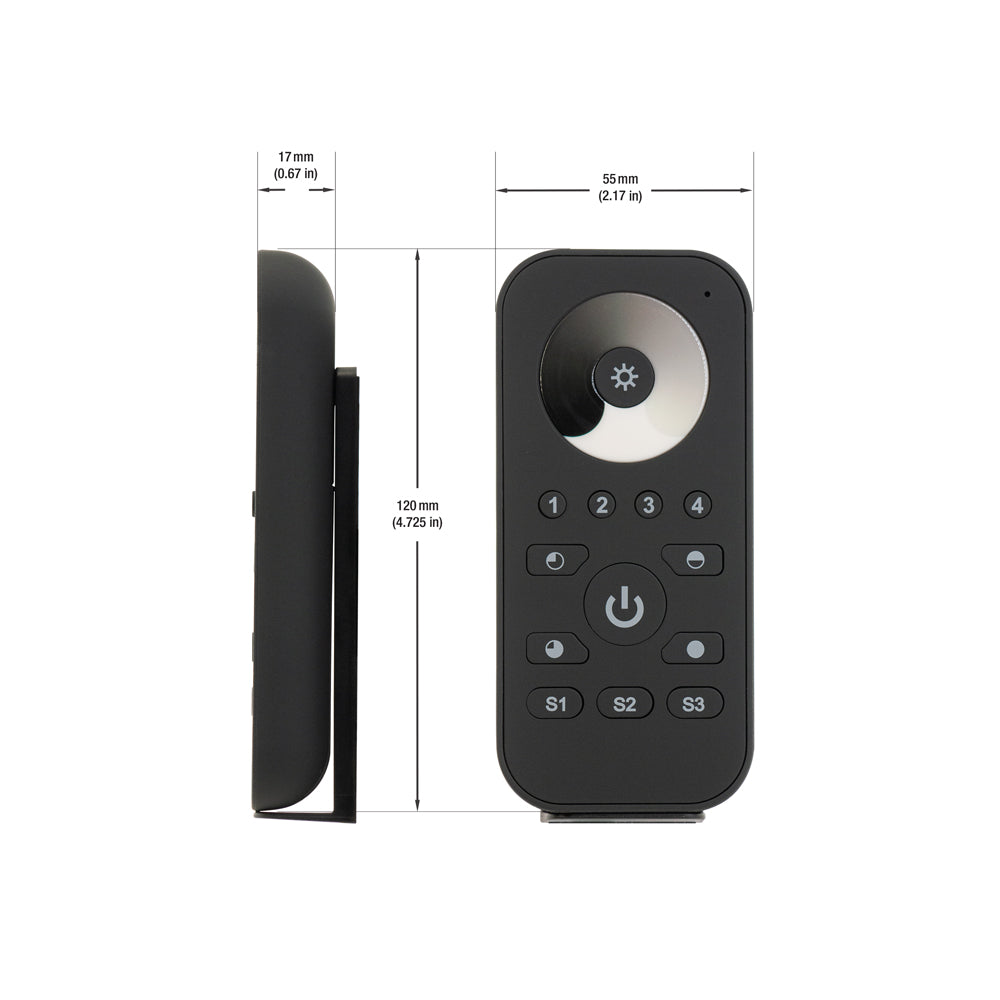

| Dimensions | 120 x 55 x 17mm (4.7 x 2.1 x 0.66in) |
Features:
- The SR-2819S-DIM (R1) is a single color remote controller for CCT LED lights.
- It operates on an RF signal output and uses a voltage of 4.5V powered by 3 AAA batteries.
- The controller communicates using a frequency of 434MHz/869.5MHz/916.5MHz and has a control zone of 4.
- Ultra-sensitive touch control brightness touch wheel enables accurate and fast color control.
- 3 different scenes can be saved for each zone and can control the distance around 20-30 meters.
- 256 level brightness adjustment for each white allows you to achieve millions of different colors.
- Smooth dimming without any flickering from 0.1% to 100% and direct access to 25%, 50%, 75%, and 100% brightness using the buttons.
- The SR-2819S-DIM (R1) remote controller has a humanized memory function that remembers the last Kelvin setting.
- It can work with a power repeater to expand output unlimitedly.
- The controller comes in a black color and has an operating temperature of 0-40°C and relative humidity of 8% to 80%.
- The IP rating is IP20, and the dimensions of the controller are 120 x 55 x 17mm (4.7 x 2.1 x 0.66in).
