Product	Inground Light
Model	UL-1022-0300-A
Trim	One-Way Trim
Operating Voltage	12-24V DC
Total Power Consumption	3W
Color Temperature	3000K (Warm White) or RGBW
Brightness	240-300Lm
Bulb Type	Integrated COB LED
Housing Material	Die-cast Aluminum body
Cap Color Finish	315 Stainless Steel
Beam Angle	45°
IP Rating	IP67
Dimmable	Yes

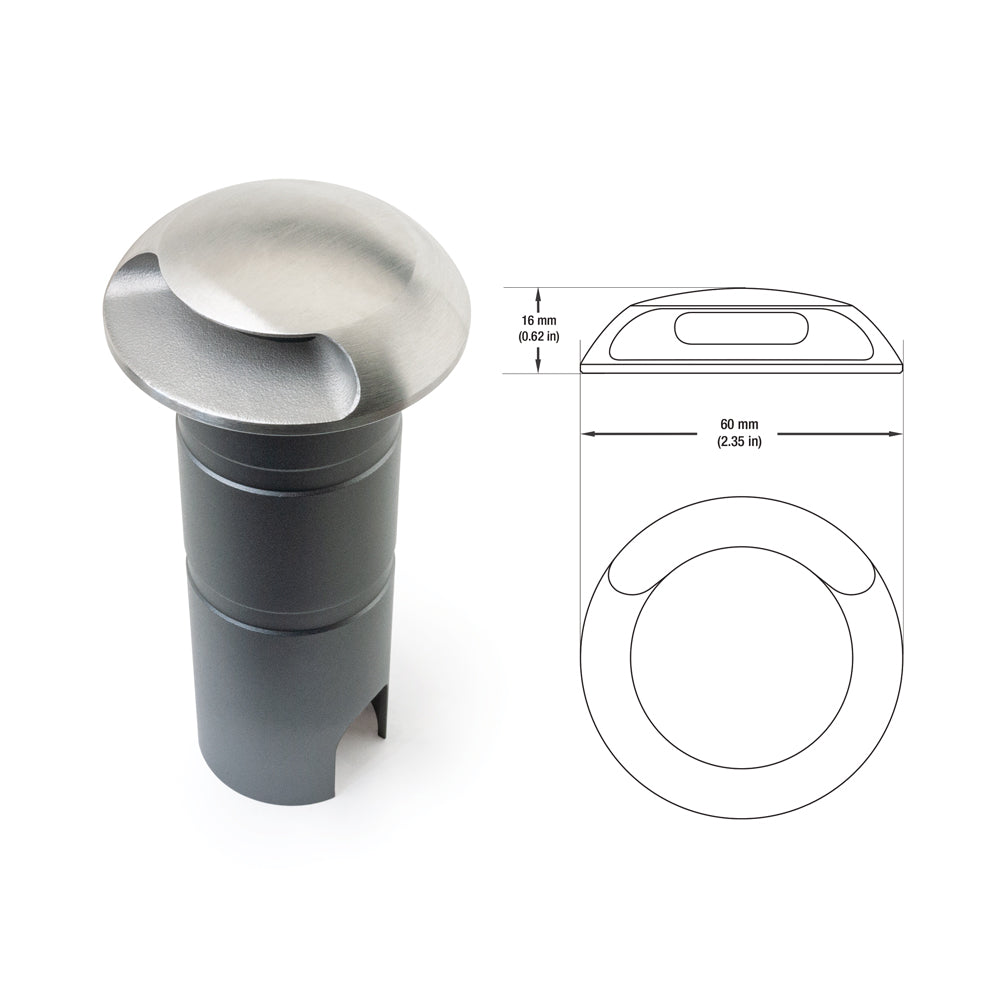

Dimensions with Housing	Diameter – 60 mm (2.3 inches) Height – 100 mm (3.95 inches)
Cable Size	Length 100cm (39.3in) Ø 7.7mm (0.3in) 18AWG FT2
Certification

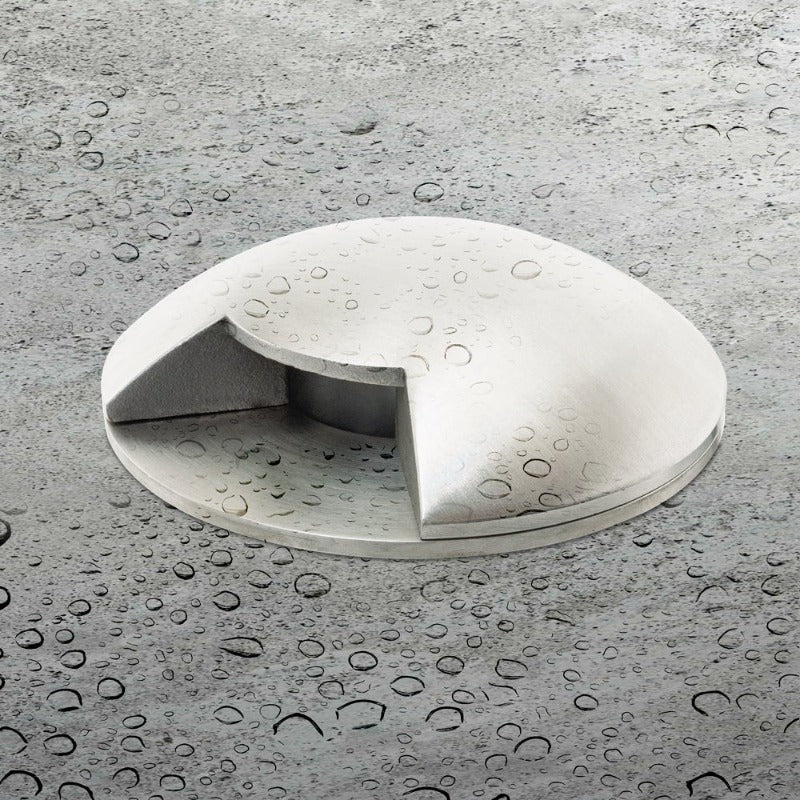

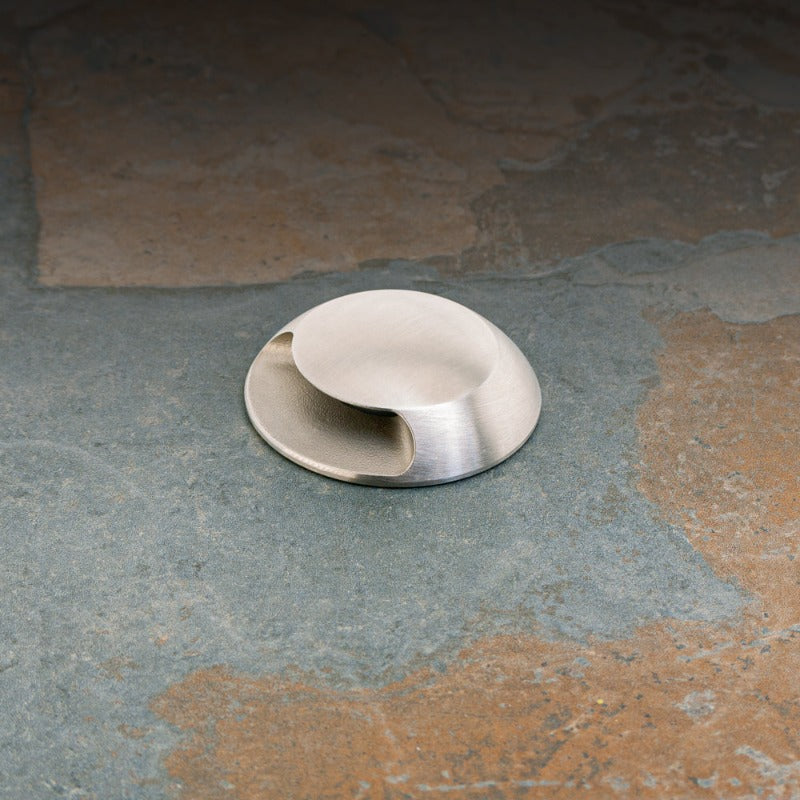

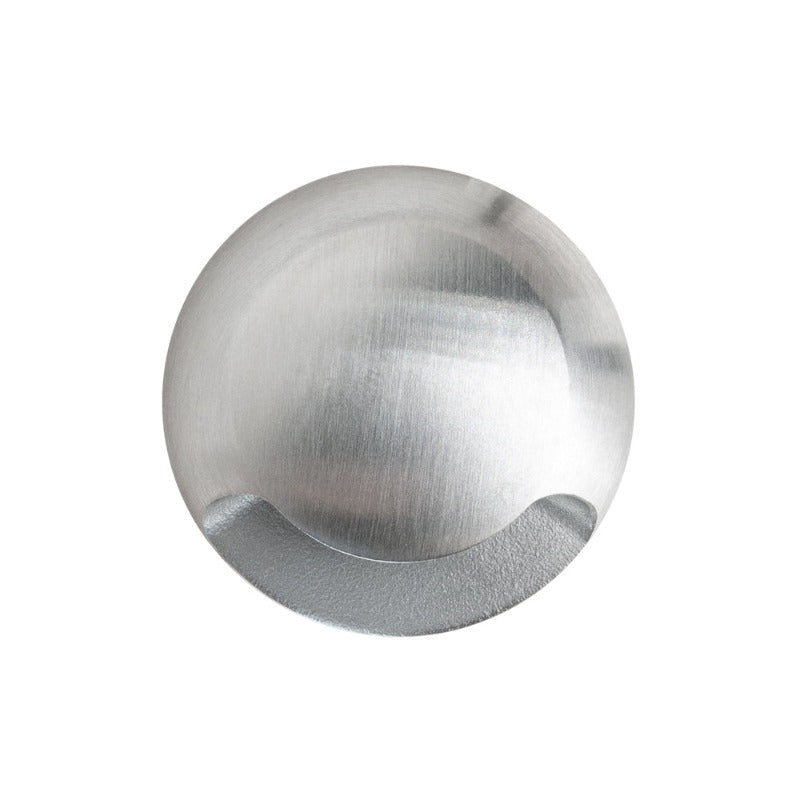

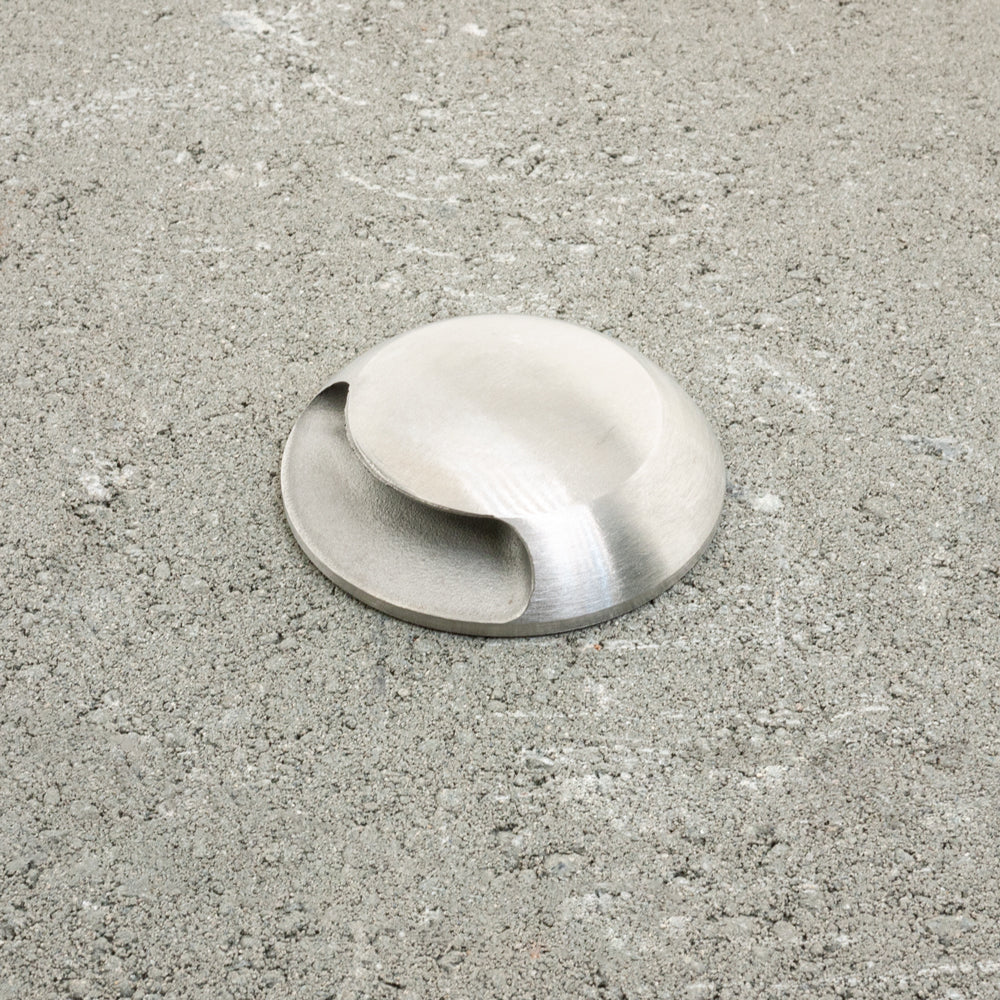

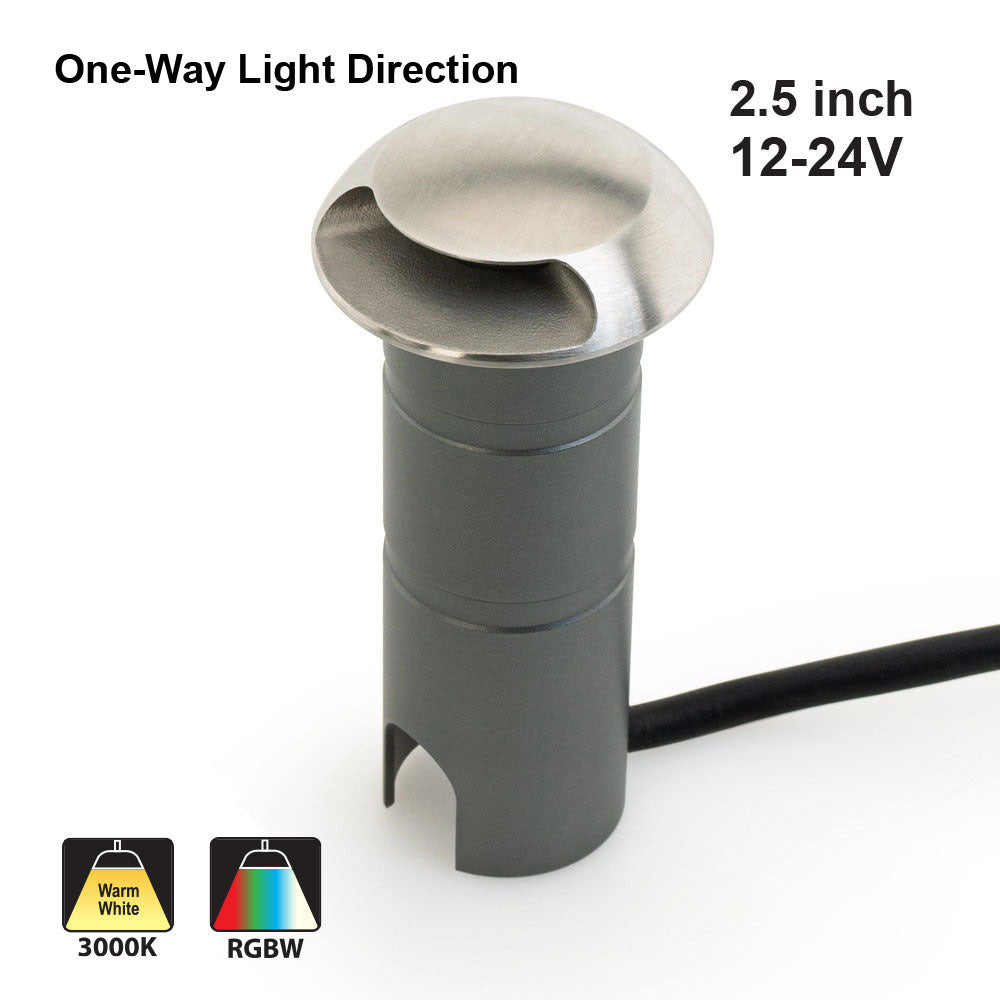

The UL-1022-0300-A is a recessed LED in-ground driveway light with a one-way trim that operates on a 12-24V DC power supply and has a total power consumption of 1W. It is available in either Warm White (3000K) or RGBW color temperature options and produces a brightness of 240-300Lm using an integrated COB LED bulb.

The housing of this fixture is made of a die-cast aluminum body with a cap color finish of 315 stainless steel. It has a beam angle of 45° and an IP67 rating, which makes it suitable for use in all weather conditions and being stepped upon. The fixture is also dimmable, allowing you to adjust the brightness to your desired level.

The dimensions of the fixture with housing are 60mm in diameter and 100mm in height. The cable size included is 100cm in length with a diameter of 7.7mm and 18AWG FT2. The UL-1022-0300-A can be used for various applications such as LED pathways, pool deck lights, patio light, or low-level wall lighting. It creates a unique ambiance and provides functional illumination by highlighting paths and driveways.

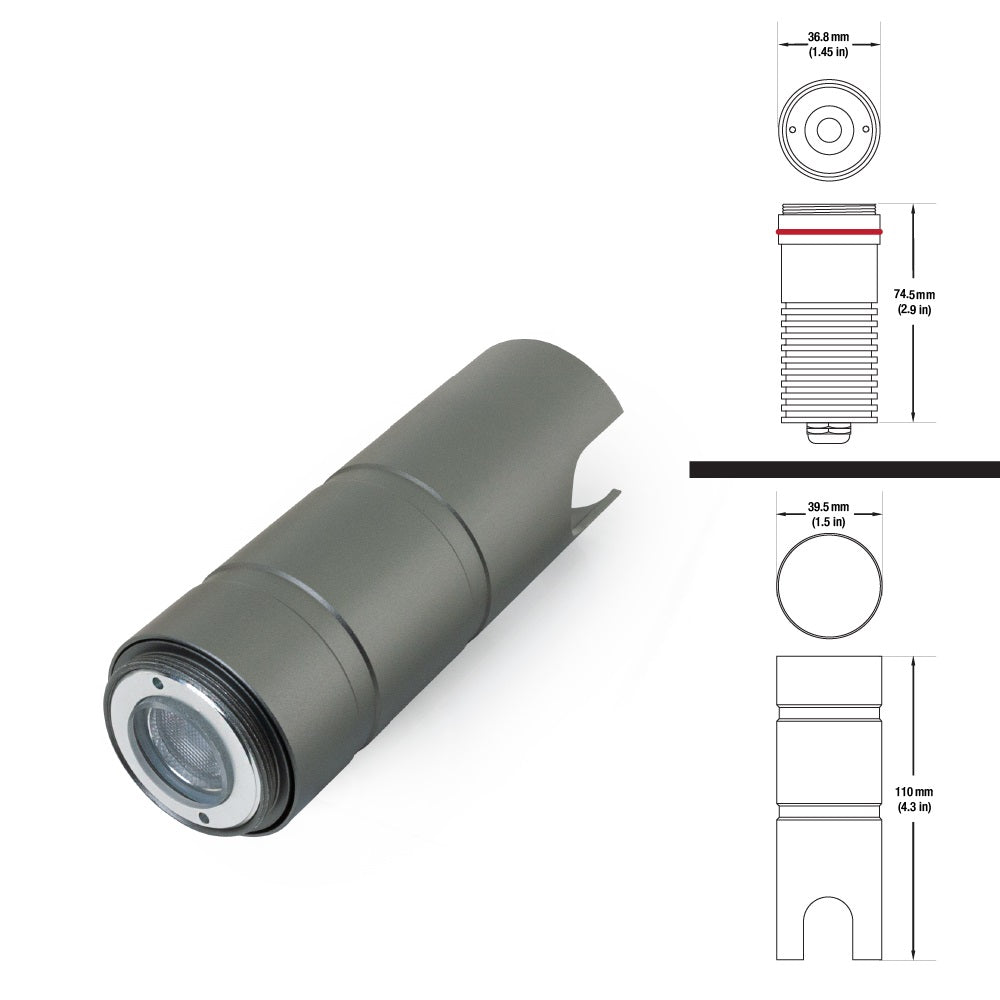

This in-ground engine can be used with different caps such as 1-way trim, 2-way trim, 4-way trim, and Round Flat trim, depending on your desired application. You can also connect multiple fixtures to a single switch, depending on the wattage of the transformer. The UL-1022-0300-A is certified and meets safety standards for lighting fixtures.

Features:

• Recessed LED in-ground driveway light with one-way trim
• Operates on 12-24V DC power supply with a total power consumption of 1W
• Available in Warm White (3000K) or RGBW color temperature options with a brightness of 240-300Lm
• Die-cast aluminum body housing with cap color finish of 315 stainless steel
• Beam angle of 45° and IP67 rating, suitable for all weather conditions and being stepped upon
• Dimmable fixture, adjustable to desired brightness level
• Dimensions of 60mm diameter and 100mm height with 100cm cable length and 7.7mm diameter 18AWG FT2
• Suitable for various applications such as LED pathways, pool deck lights, patio light, or low-level wall lighting
• Can be used with different caps such as 1-way trim, 2-way trim, 4-way trim, and Round Flat trim
• Multiple fixtures can be connected to a single switch based on transformer wattage
• Certified and meets safety standards for lighting fixtures.
• We carry UL-1022-0300-A engine in both changing color (RGBW) and single color (3000K/Warm White). Choose the engine based on your desired needs,
• UL-1022-0300-A In-Ground engine can be used with different caps (1-way trim, 2-way trim, 4-way trim, and Round Flat trim) based on your desired application.
• Depending upon the wattage of the transformer, any number of lights can go on 1 switch.
