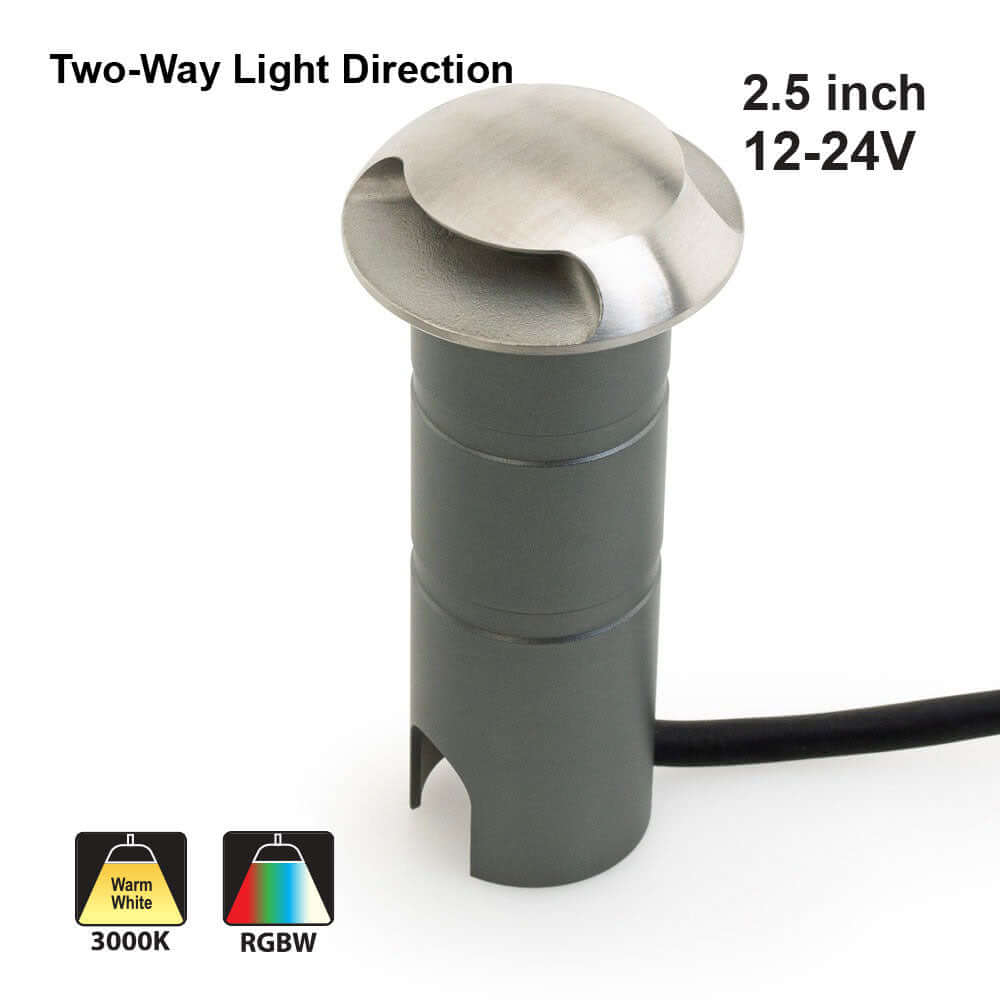

UL-1022-0300-A 2.5 inch Outdoor Dia Recessed LED Inground Light Driveway light, 12-24V 3W 3000K(Warm White)/ RGBW

  • $149.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561424114
We only have 75 left! Get it now before it's completely gone.

Free shipping on orders over $49 USD (Check availability during checkout).




Product Description

Product Inground Light
Model UL-1022-0300-A
Trim Two-Way Trim
Operating Voltage 12-24V DC
Total Power Consumption 3W
Color Temperature 3000K (Warm White) or RGBW
Brightness 240-300Lm
Bulb Type Integrated COB LED
Housing Material Die-cast Aluminum body
Cap Color Finish
315 Stainless Steel
Beam Angle 45°
IP Rating IP67
Dimmable Yes

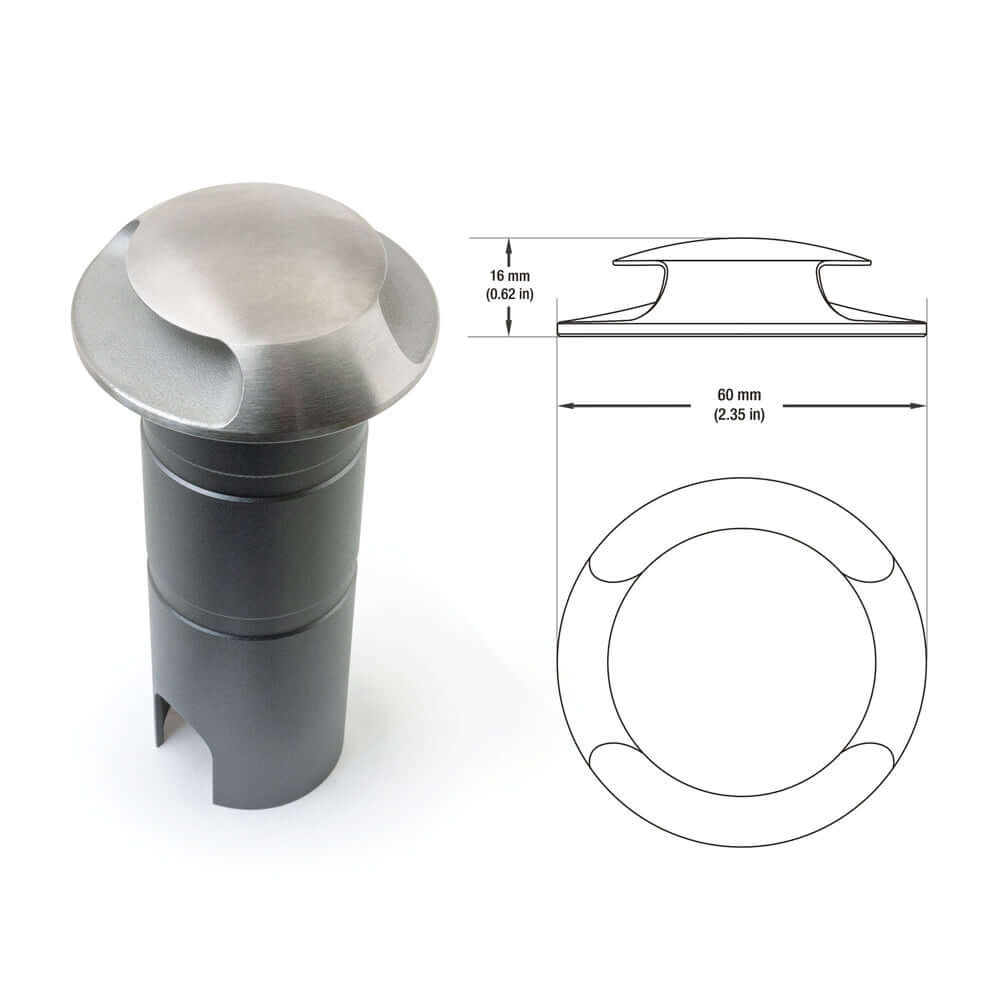

Dimensions with Housing

Diameter – 60 mm (2.3 inches)
Height – 100 mm (3.95 inches)

Cable Size

Length 100cm (39.3in)
Ø 7.7mm (0.3in)
18AWG
FT2

Certification



The UL-1022-0300-A is a lighting fixture with a Two-Way Trim that operates on 12-24V DC power supply and has a total power consumption of 1W. It is available in either Warm White (3000K) or RGBW color temperature options and produces a brightness of 240-300Lm using an integrated COB LED bulb.

The housing of this fixture is made of die-cast aluminum body with a cap color finish of 315 stainless steel. It has a beam angle of 45° and an IP67 rating, which makes it suitable for use in all weather conditions and being stepped upon. The fixture is also dimmable, allowing you to adjust the brightness to your desired level.

The dimensions of the fixture with housing are 60mm in diameter and 100mm in height. The cable size included is 100cm in length with a diameter of 7.7mm and 18AWG FT2. The UL-1022-0300-A can be used for various applications such as LED pathways, pool deck lights, patio light, or low-level wall lighting. It creates a unique ambiance and provides functional illumination by highlighting paths and driveways.

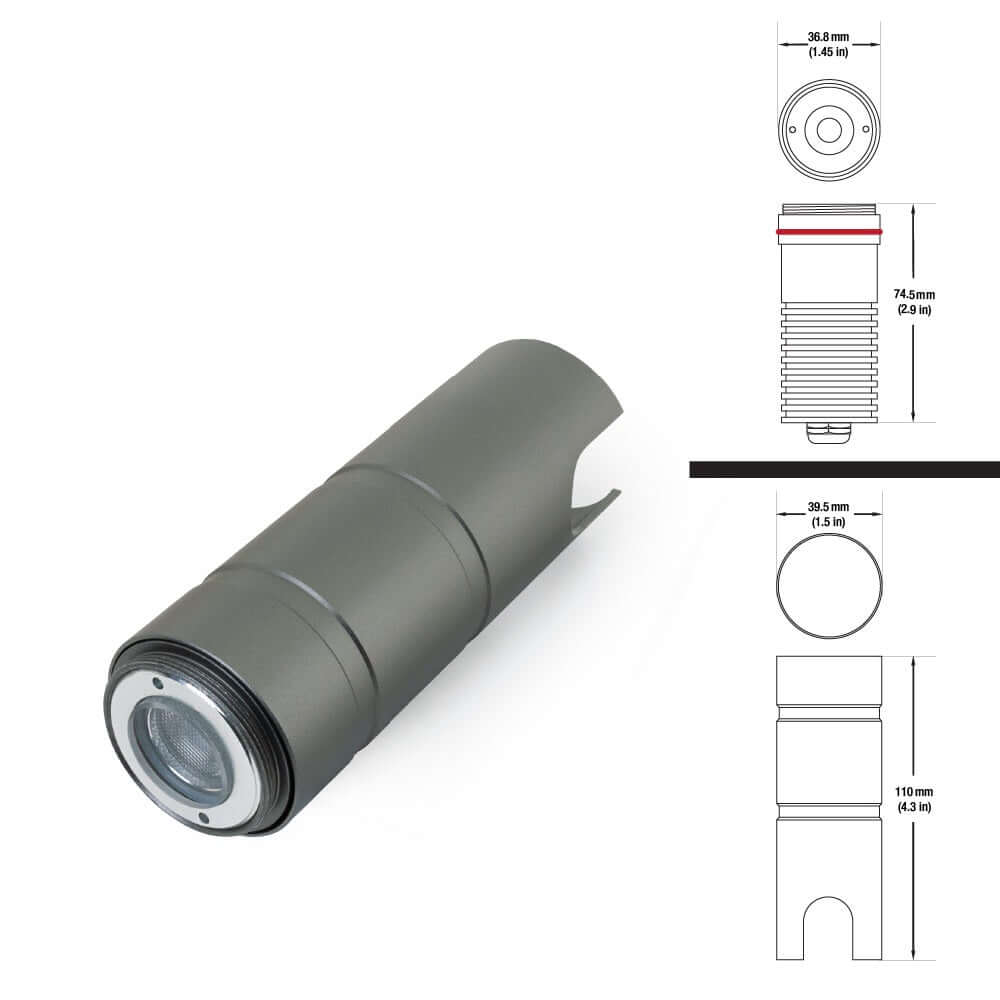

This in-ground engine can be used with different caps such as 1-way trim, 2-way trim, 4-way trim, and Round Flat trim, depending on your desired application. You can also connect multiple fixtures to a single switch, depending on the wattage of the transformer. The UL-1022-0300-A is certified and meets safety standards for lighting fixtures.

Features:

  • Two-way Trim lighting fixture that operates on 12-24V DC power supply with a total power consumption of 1W
  • Available in Warm White (3000K) or RGBW color temperature options and produces a brightness of 240-300Lm using an integrated COB LED bulb
  • Housing made of die-cast aluminum body with a cap color finish of 315 stainless steel
  • Has a beam angle of 45° and an IP67 rating, making it suitable for use in all weather conditions and being stepped upon
  • Dimmable fixture, allowing you to adjust the brightness to your desired level
  • Dimensions of the fixture with housing are 60mm in diameter and 100mm in height
  • Comes with a 100cm long cable with a diameter of 7.7mm and 18AWG FT2
  • Can be used for various applications such as LED pathways, pool deck lights, patio light, or low-level wall lighting
  • Can be used with different caps such as 1-way trim, 2-way trim, 4-way trim, and Round Flat trim, depending on your desired application
  • Can connect multiple fixtures to a single switch, depending on the wattage of the transformer
  • Certified and meets safety standards for lighting fixtures.
  • We carry UL-1022-0300-A engine in both changing color (RGBW) and single color (3000K/Warm White).  Choose the engine based on your desired needs,
  • UL-1022-0300-A In-Ground engine can be used with different caps (1-way trim, 2-way trim, 4-way trim, and Round Flat trim) based on your desired application.
